Product Overview

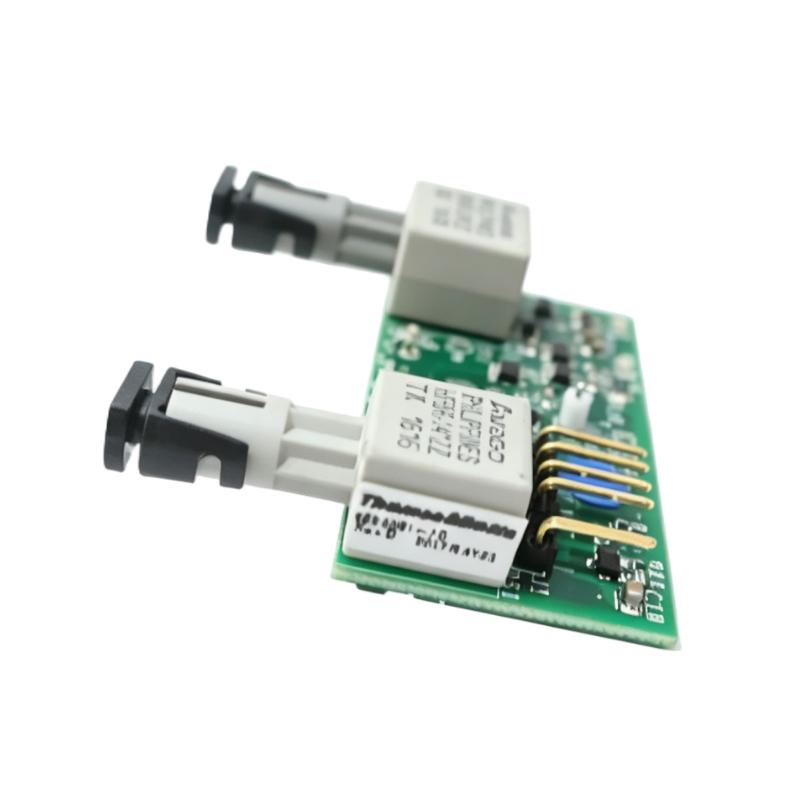

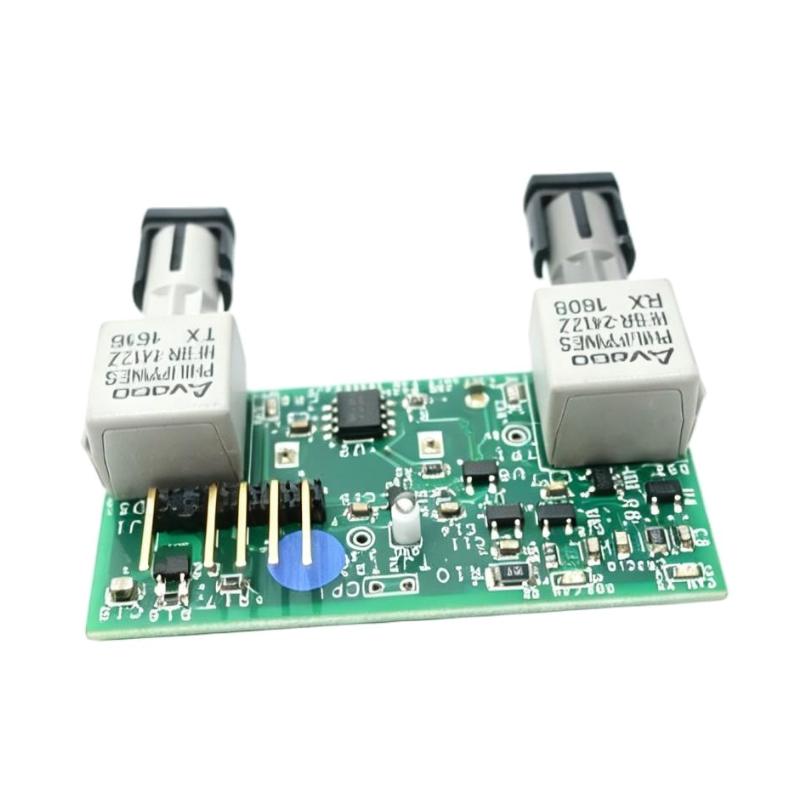

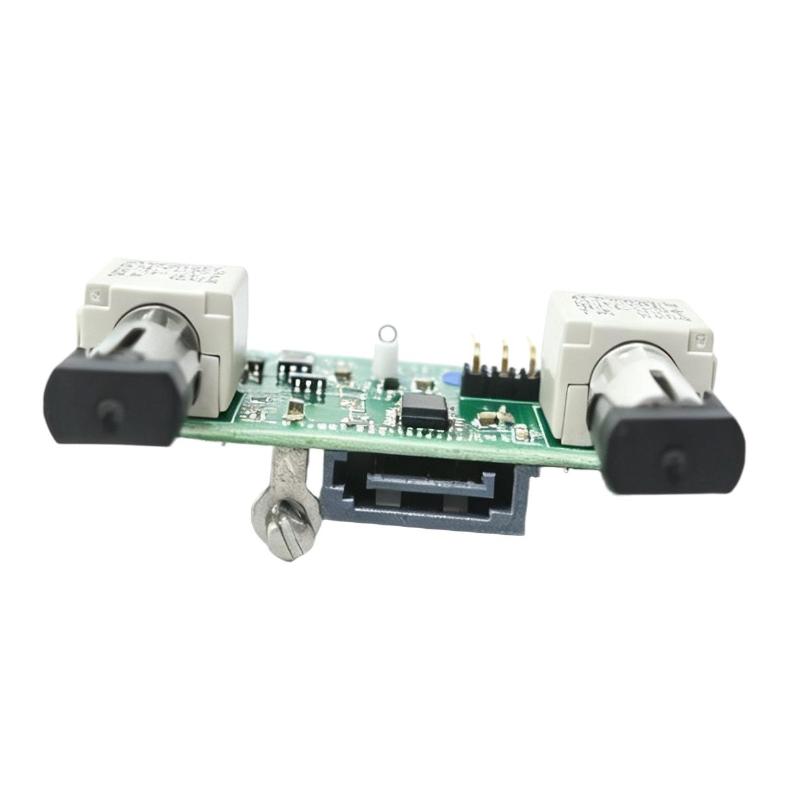

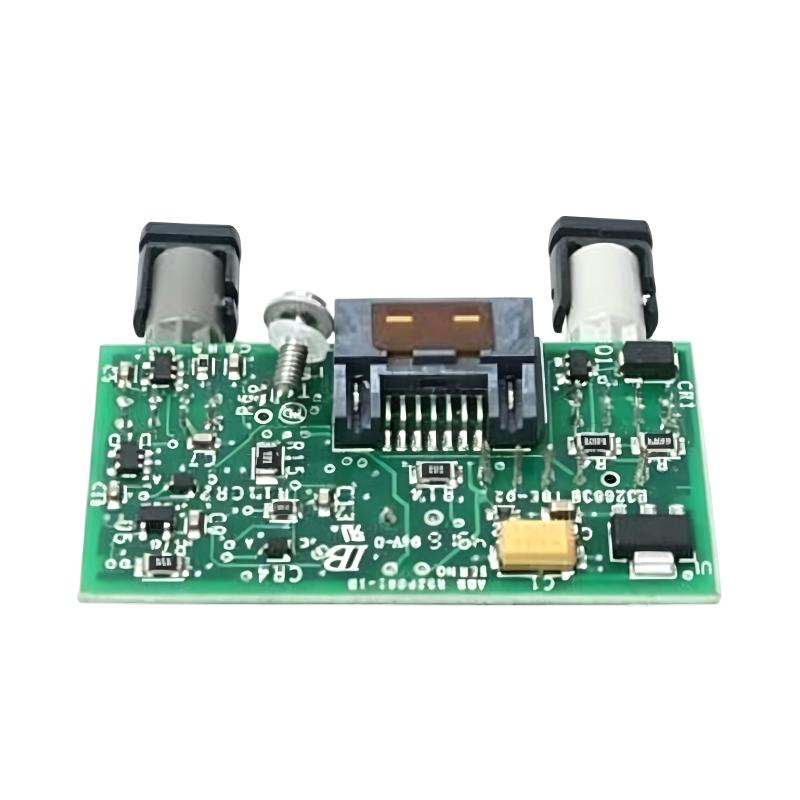

The ABB 852A061-1 PGC5000 SBC CAN Interface Card Assembly is a CAN interface card assembly associated with the PGC5000 control platform. It provides a dedicated communication interface between the PGC5000 single-board computer and compatible CAN-based devices or subsystems.
In a PGC5000 installation, the CAN interface card handles the physical and electrical interface required for CAN communication while the associated SBC manages the higher-level control and data-processing functions. This separation allows the controller hardware to communicate with external CAN nodes without treating the interface card as the primary processor.
For maintenance, the 852A061-1 should be evaluated as a communication interface component. Communication faults can originate from the card itself, CAN wiring, termination, connected nodes, power, connectors, or SBC configuration, so fault isolation should cover the complete communication path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | ABB 852A061-1 PGC5000 SBC CAN Interface Card Assembly |
| Product Family | PGC5000 |
| Product Type | SBC CAN Interface Card Assembly |
| System Role | CAN communication interface |
| Main Function | CAN network connectivity for SBC-based control hardware |
| Application | Industrial control and automation systems |
| Board Type | Interface Card Assembly |
| Dimensions | 110 × 25 × 85 mm |
| Weight | 0.35 kg |
Product Features
- CAN interface card assembly for the PGC5000 SBC hardware.
- Provides CAN communication connectivity for compatible control-system devices.
- Interfaces the SBC with external CAN-based nodes and subsystems.
- Supports integration of CAN communication into the PGC5000 control architecture.
- Board-level construction allows targeted replacement during maintenance.
- Separates communication interface functions from the primary SBC processing hardware.
Working Principle
The CAN interface card provides the electrical communication path between the PGC5000 SBC and the CAN network. Data generated by the controller can be transferred through the interface to connected CAN nodes, while incoming CAN messages are delivered to the SBC for processing by the control application.
The card works together with the CAN physical network, including the associated connectors, communication wiring, and connected nodes. Proper operation therefore depends on more than the interface card itself. A wiring fault, incorrect termination, damaged connector, inactive CAN node, or communication configuration issue can prevent successful data exchange even when the card is functioning correctly.
During troubleshooting, technicians should verify the interface card, SBC connection, CAN network wiring, node status, and communication parameters as a complete path.
Role in a PGC5000 Control Architecture
| System Element | Function |
|---|---|
| PGC5000 SBC | Executes control applications and processes system data |
| 852A061-1 CAN Interface Card Assembly | Provides the CAN communication interface for the SBC |
| CAN Network | Carries communication data between the controller and connected nodes |
| CAN Devices or Subsystems | Exchange process, status, or control data with the PGC5000 system |
| PGC5000 Power Components | Supply operating power to the controller and interface hardware |
| I/O and Interface Hardware | Connect the control system with field signals and external equipment |
| Engineering or Service Equipment | Supports configuration, diagnostics, and maintenance |
The 852A061-1 sits between the SBC processing layer and the CAN communication network. A failure at this interface can interrupt communication with multiple connected CAN nodes while leaving other controller functions operational.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Control Systems | CAN connectivity for PGC5000-based controller hardware |
| Process Control | Communication between controller electronics and compatible CAN subsystems |
| Automated Machinery | Exchange of control and status data with CAN-connected equipment |
| Distributed Control Hardware | Linking the SBC with external CAN nodes |
| Legacy Automation Systems | Maintaining CAN communication capability in installed PGC5000 equipment |
| Industrial Equipment Maintenance | Replacement of defective CAN interface hardware during system service |
Installation and Maintenance
- Verify the complete part number before installation and confirm that the replacement interface card matches the PGC5000 SBC hardware configuration.
- Isolate system power and follow the applicable electrical safety procedure before removing or installing the card assembly.
- Record connector and cable positions before disconnection to ensure the CAN interface is reconnected correctly.
- Inspect the SBC interface connector for bent contacts, contamination, oxidation, or mechanical damage.
- Use appropriate ESD precautions when handling the exposed interface card and avoid unnecessary contact with electronic components.
- Inspect CAN communication wiring for loose terminals, damaged insulation, incorrect connections, or signs of mechanical stress.
- Check CAN network termination according to the applicable system design when communication faults affect multiple nodes.
- Verify connected CAN nodes and determine whether the fault affects one device, several devices, or the complete CAN network.
- Inspect the interface card for visible damage such as burnt areas, damaged connectors, cracked components, or signs of overheating.
- Check power and interface connections if the SBC does not recognize or communicate through the CAN interface after installation.
- Verify communication configuration and confirm that the associated controller software and CAN network settings match the installed system.
- Perform a controlled communication test after replacement, checking SBC initialization, CAN communication, connected-node status, and relevant control-system functions.
Related Components
| Component | Function |
|---|---|
| PGC5000 SBC | Provides computing and control processing |
| CAN Network Wiring | Carries CAN communication signals between connected devices |
| CAN Network Nodes | Exchange data with the PGC5000 controller |
| PCB Connectors | Establish electrical connections between the interface card and SBC/network |
| PGC5000 Power Components | Supply operating power to controller and communication electronics |
| PGC5000 I/O Hardware | Provides field signal acquisition and control interfaces |
| Communication Hardware | Supports additional data exchange within the control architecture |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB 852A061-1 | PGC5000 SBC CAN Interface Card Assembly | CAN communication for SBC-based control hardware |
| ABB 852A060-1B | PGC5000 SBC Carrier PCB Assembly | SBC hardware interconnection and carrier functions |
| ABB 852A059-1 | PGC5000 SBC Controller PCB Assembly | Computing and control processing |
| ABB 852A045-1 | PGC5000 DTC Standard Model PCB Assembly | DTC-related control electronics |
| ABB PGC5000 I/O Components | I/O Hardware | Field signal acquisition and control outputs |
| ABB PGC5000 Communication Components | Communication Hardware | Data exchange within the control architecture |
Key Advantages
- Provides a dedicated CAN communication interface for PGC5000 SBC hardware.
- Connects the controller with compatible CAN-based devices and subsystems.
- Supports a clear separation between SBC processing and network interface functions.
- Allows targeted replacement of communication hardware during maintenance.
- Helps maintain CAN connectivity in installed PGC5000 control equipment.
Technical FAQs
What is the function of the ABB 852A061-1?
The 852A061-1 is a PGC5000 SBC CAN Interface Card Assembly. It provides the CAN communication interface between the associated SBC and compatible CAN-connected devices or subsystems.
Does the 852A061-1 perform the main control processing?
No. The interface card handles CAN communication functions, while the associated SBC performs the primary computing and control processing.
What should be checked if CAN communication is lost after installing the card?
Check the card-to-SBC connection, CAN wiring, connectors, network termination, connected CAN nodes, power supply, and communication configuration. Determining whether the fault affects one node or the complete network can help isolate the problem.
Can a CAN interface card fault affect multiple devices?
Yes. If the interface card or its connection to the SBC interrupts the CAN communication path, multiple connected CAN nodes may become unavailable at the same time. Network wiring and node faults should also be considered during diagnosis.
