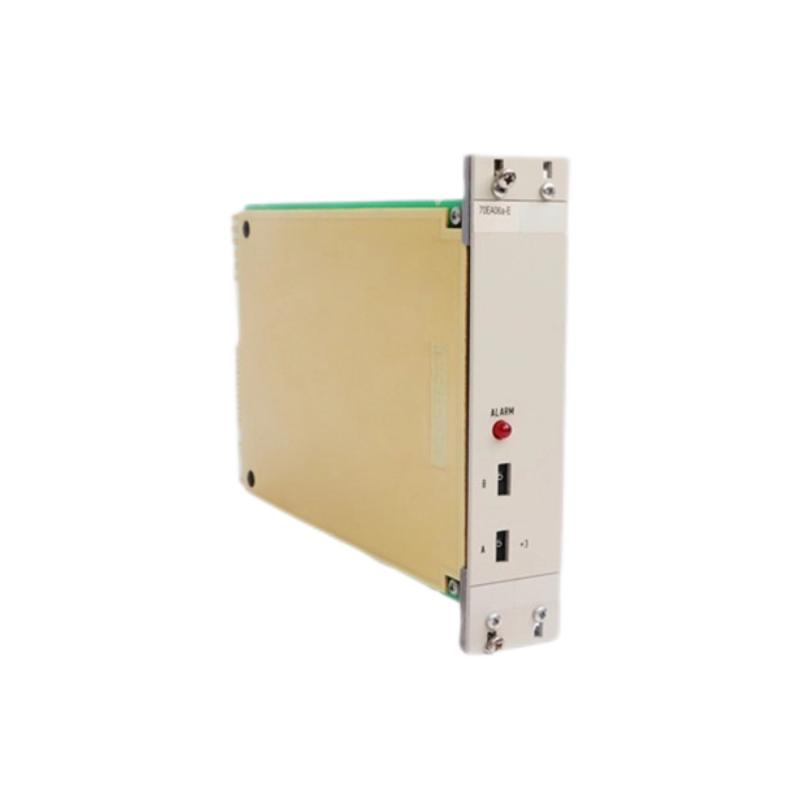

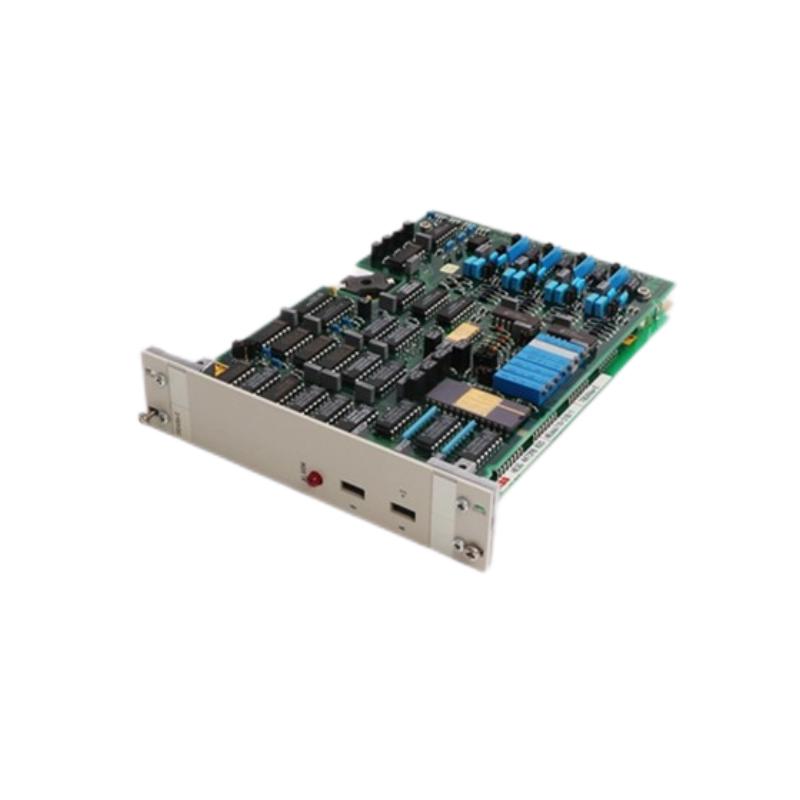

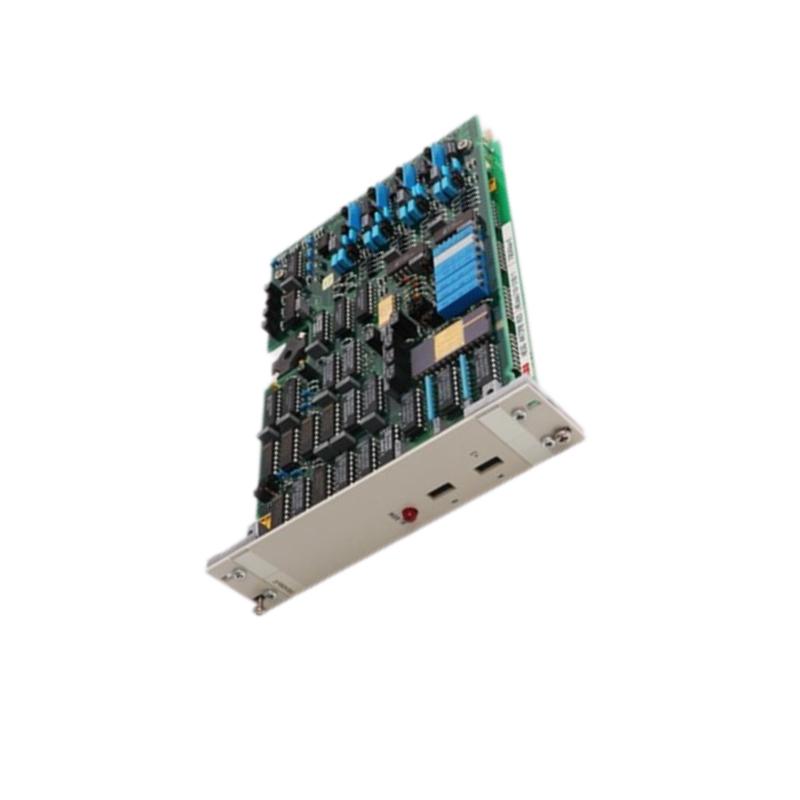

ABB 70EB 02A-E (GJR319100R0004 / GJR319100R4)
Product Specifications, Description, Applications, Advantages, and FAQ**
1. Product Overview
The ABB 70EB 02A-E (product references GJR319100R0004 and GJR319100R4) is a high-performance industrial control and switching device designed for use in a wide range of automation systems, particularly in power management and motor control applications. This model is engineered to provide high reliability, efficient performance, and long operational life in demanding industrial environments. With its robust construction, the 70EB 02A-E can be used to manage both low and high-power electrical circuits, making it a versatile solution for various industrial applications.
The 70EB 02A-E is a part of ABB’s Industrial Control Series, which is known for advanced switching technologies and high-quality components. This unit is designed to handle high currents and frequent switching cycles, making it ideal for environments that require high electrical reliability and resilience.
The device offers multiple control voltage options and is designed to be easily integrated into automation systems or motor control centers (MCCs). It supports efficient power distribution and circuit control, ensuring smooth operation in various manufacturing, processing, and distribution applications.
2. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 70EB 02A-E |
| Reference Numbers | GJR319100R0004 / GJR319100R4 |
| Product Type | Industrial Control and Switching Module |
| Rated Operational Voltage | 380–690 V AC |
| Rated Current | 100 A |
| Control Voltage | 24 V DC / 110 V AC / 230 V AC |
| Frequency | 50 / 60 Hz |
| Number of Poles | 3-Pole Configuration |
| Contact Configuration | 3 Main Contacts + 1 Auxiliary Contact |
| Mechanical Endurance | ≥ 1,000,000 operations |
| Electrical Endurance | ≥ 100,000 switching cycles at rated load |
| Insulation Voltage | 1500 V |
| Protection Class | IP20 Front / IP00 Rear |
| Connection Type | Screw / Bolt Terminals |
| Mounting Method | DIN Rail or Direct Panel Mount |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (H × W × D) | 180 × 95 × 105 mm |
| Weight | 1.35 kg |
| Compliance | Industrial Control & Safety Standards |
3. Product Introduction
The ABB 70EB 02A-E is a control and switching unit designed for high-performance industrial applications. It is engineered to handle high-current electrical circuits with excellent precision, providing efficient switching and power management. The unit features advanced electrical components and is optimized for long-term reliability in industrial settings. The 70EB 02A-E is commonly used in motor control systems, power distribution panels, and automation setups that require precise and frequent switching.
The device is particularly useful in motor control centers (MCCs) where it provides safe control and protection for electric motors and associated equipment. Its compact design and robust construction make it easy to integrate into automation systems, offering both flexibility and durability.
Key features of the ABB 70EB 02A-E include high mechanical endurance, long electrical life, and versatile control voltage options, which make it a reliable solution for both standard and demanding applications. Additionally, its IP20 protection class ensures that it is well-suited for environments with low exposure to dust or moisture.
4. Product Applications
The ABB 70EB 02A-E is designed for use in a wide variety of applications, including:
-
Motor Control Centers (MCCs): Ideal for controlling motors and generators in factories, industrial plants, and mining operations.
-
Power Distribution Systems: Used in power management applications, providing reliable switching and protection for high-voltage circuits.
-
Industrial Automation: Commonly integrated into PLC-based automation systems for precise control of manufacturing lines and robotic assembly.
-
HVAC Systems: Controls air handling units, chillers, and pumps in large industrial or commercial buildings.
-
Energy Generation and Distribution: Used in switchgear systems, transformer stations, and other high-voltage applications.
-
Material Handling Systems: Provides reliable switching for conveyor belts, automated storage, and other logistics systems.
-
Energy Storage Systems: Used in battery management systems and energy storage applications for regulating power flow.
The ABB 70EB 02A-E is well-suited for industries such as oil and gas, chemical processing, automotive, power generation, and building automation, where precision and reliability are essential.
5. Product Advantages
The ABB 70EB 02A-E offers several notable advantages that make it a reliable choice for industrial control and switching:
-
High Current Rating: With a 100 A current rating, it can manage medium-to-high power applications, making it ideal for various industrial systems.
-
Flexible Control Voltage Options: Supports 24 V DC, 110 V AC, and 230 V AC control voltages, providing versatility in different applications.
-
Long Operational Life: Designed for over 1,000,000 mechanical operations and 100,000 electrical operations, ensuring long-term reliability and low maintenance.
-
Compact Design: The compact size allows for easy installation in tight spaces, ideal for panel mounting or DIN rail mounting.
-
Robust and Durable: Constructed to withstand high mechanical stress, this device is capable of enduring frequent switching cycles in demanding environments.
-
Minimal Maintenance: Its low-maintenance design ensures a long service life with minimal downtime, reducing operating costs over time.
-
High Insulation Voltage: With a 1500 V insulation voltage, it is highly resistant to electrical faults, ensuring safe operation.
-
IP20 Protection: This rating makes it resistant to dust and safe to handle in industrial settings.
These advantages make the ABB 70EB 02A-E an essential component in high-power electrical systems, providing superior performance and reliability.
6. Brand and Product Series
| Attribute | Description |
|---|---|
| Brand | ABB |
| Product Series | Industrial Control and Switching Devices |
The 70EB 02A-E is part of the ABB Industrial Control and Switching Devices series, designed for high-quality electrical control and automation solutions in a wide range of industries. ABB is a leading brand in the field of industrial automation, offering advanced control products that ensure safety, efficiency, and reliability in electrical systems.
7. Recommended Related Models (Same Series or Similar)
| Model | Function Type | Rated Current | Control Voltage | Weight (kg) |
|---|---|---|---|---|
| 70EB 03A-E | High-performance Control Switch | 120 A | 24–230 V AC/DC | 1.50 |
| 70EB 04A-E | Power Distribution Control Unit | 150 A | 24–230 V AC/DC | 1.80 |
| 70EB 05A-E | Motor Protection Switch | 200 A | 24–230 V AC/DC | 1.90 |
| 70EC 01A-E | Industrial Control Module | 90 A | 24–230 V AC/DC | 1.35 |
| 70EC 02A-E | Automation Control Switch | 80 A | 24–230 V AC/DC | 1.25 |
8. Popular Models from the Same Brand
| Model | Product Type | Rated Voltage | Rated Function / Output | Weight (kg) |
|---|---|---|---|---|
| AF50-60-12-11 | Variable Frequency Drive | 380–480 V AC | 5.0–15.0 kW | 2.30 |
| ESB500 | Motor Protection Breaker | Up to 500 A | Overcurrent Protection | 2.60 |
| OT60F6 | Thermal Overload Relay | 60–70 A | Motor Protection | 1.00 |
| MS600-40 | Contactor | 380–415 V AC | 60 A | 1.20 |
| CP-E 24/120.0 | DIN Rail Power Supply | 24 V DC | 120 A Output | 1.60 |
9. Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the ABB 70EB 02A-E?
A: The ABB 70EB 02A-E is a control and switching module designed to handle high-power electrical circuits efficiently in industrial systems.
Q2: What is the rated current of this model?
A: The unit has a rated current of 100 A, suitable for medium-to-high-power applications.
Q3: Which control voltages can the 70EB 02A-E support?
A: It supports 24 V DC, 110 V AC, and 230 V AC, providing flexibility for different types of control systems.
Q4: How long does the ABB 70EB 02A-E last?
A: The device is designed for over 1,000,000 mechanical operations and 100,000 electrical operations, ensuring long-term reliability.
Q5: Can this device be used in automated manufacturing systems?
A: Yes, it is compatible with PLC-based automation systems and is ideal for automated manufacturing environments.
Q6: What is the protection class of the 70EB 02A-E?
A: The unit has IP20 protection for the front, offering protection against dust and safe handling in industrial settings.
Q7: How is this device mounted?
A: It can be mounted on DIN rails or directly onto panels, offering flexibility in installation.
Q8: What industries is this product suitable for?
A: It is widely used in oil and gas, chemical processing, automotive, energy generation, and building automation.
Q9: Does this model require regular maintenance?
A: The ABB 70EB 02A-E is designed for low maintenance, requiring minimal servicing throughout its operational life.
Q10: Is this device suitable for high-voltage applications?
A: Yes, with a rated voltage range up to 690 V AC, it is suitable for high-voltage industrial applications.
