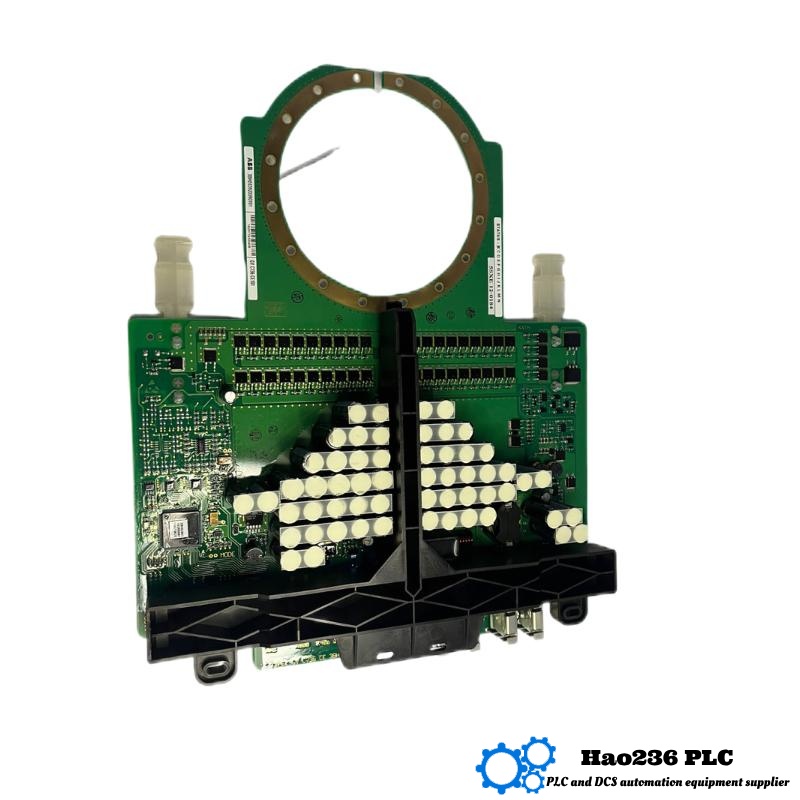

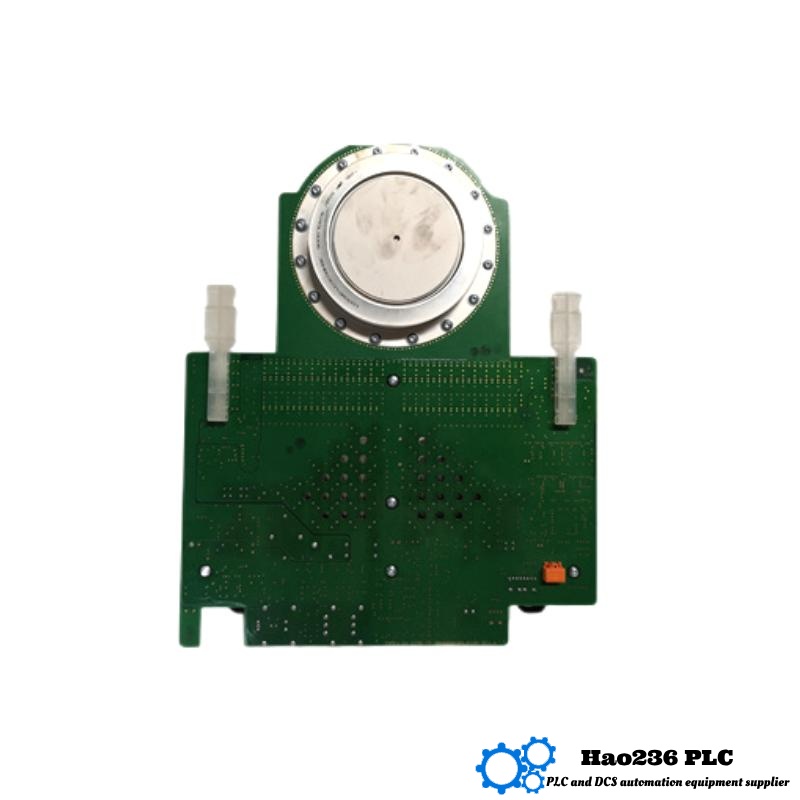

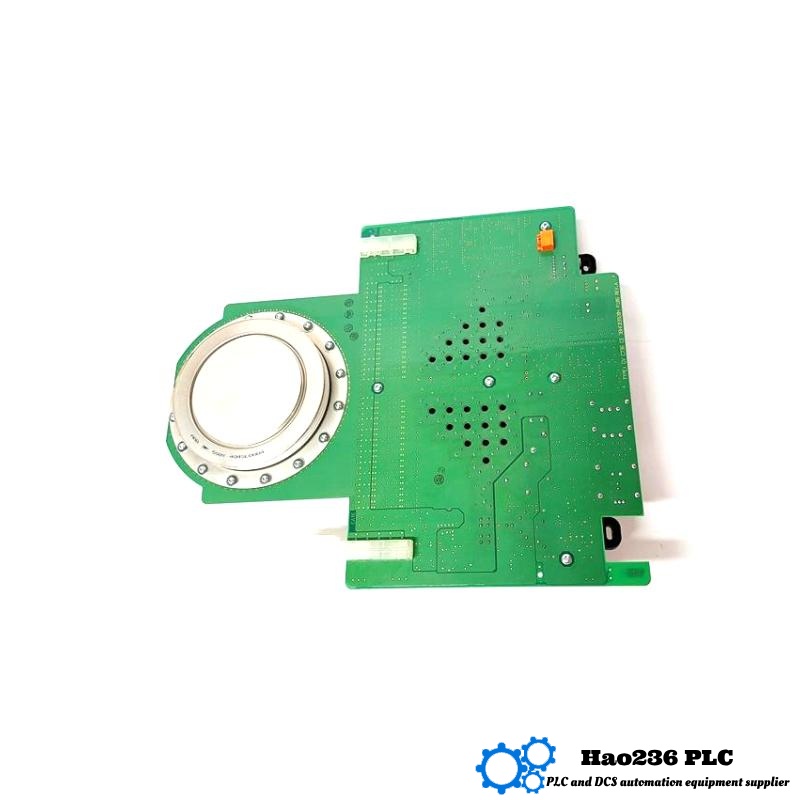

GVC736CE101 (3BHE039203R0101 / 5SXE12‑0184) — Module Overview
Brand: ABB
Series: GVC Series — SCR/IGCT-Based Control Modules
Product Introduction
The GVC736CE101, known by article numbers 3BHE039203R0101 and 5SXE12‑0184, is a high-integrity semiconductor control module—often described as an SCR or IGCT device. Positioned in rotating machinery control systems, particularly turbines and compressors, it delivers SIL‑2 safety-certified logic with triple-core redundancy and sub-millisecond deterministic execution. Built for extreme industrial environments, this module withstands vibration, humidity, and EMI—serving as the control logic backbone in mission-critical automation systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GVC736CE101 (3BHE039203R0101 / 5SXE12‑0184) |
| Type | SCR / IGCT-based control module |
| Safety Certification | SIL 2 (IEC 61511) |
| Processor Architecture | Triple-core redundant voting logic |
| Execution Speed | < 0.5 ms cycle time |
| Analog I/O Capacity | 16 channels (configurable) |
| Digital I/O Capacity | 32 channels |
| Communication Interfaces | 2 × Ethernet TCP/IP, 1 × RS-485 |
| Operating Temperature | –40 °C to +70 °C |
| Power Consumption | 24 V DC (18–32 V) |
| Isolation Voltage | 1500 V AC channel-to-channel |
| MTBF | > 350,000 hours |
| Mounting | DIN-rail or panel — ruggedized housing (IP20) |
| Weight | Approx. 1.2 kg |
| Dimensions (W×H×D) | 200 mm × 150 mm × 40 mm |
| Certifications | CE, RoHS, UL, IEC 61511 (SIL 2), ATEX Zone 2 optional |
Applications
-
Turbine & Compressor Control: Speed governing, anti-surge logic, load sharing in power generation and oil & gas facilities
-
Critical Rotating Equipment Automation: High reliability in environments requiring fast, safe control logic (e.g., CCGT plants, offshore compressors)
-
Harsh Industrial Environments: Vibration-, humidity-, and EMI-tolerant design suited to mining, power, and marine control systems
Advantages
-
Safety-Grade Logic: SIL‑2 certified with triple-core voting eliminates single-point failures
-
Lightning-Fast Response: Control cycles under 0.5 ms for precise actuation
-
Condition-Rich Diagnostics: Non-volatile FRAM memory and front-panel status LEDs offer advanced health tracking
-
Rugged Suitability: IP20 enclosure, wide temperature range, and vibration resistance (5 g, 10–150 Hz) support real-world industrial use
Related Models (Same Series)
| Model | Description |
|---|---|
| GVC736CE101 | SIL‑2 turbine/compressor logic module (this model) |
| GVC736AE | Standard-temperature variant |
| PP836 | Power supply complement for GVC modules |
| TA736 | Field wiring termination assembly |
| GVC750BE | Higher-grade SIL 3 safety logic module |
Other Popular ABB Control Modules
| Model | Function |
|---|---|
| CI854V1 | PROFIBUS DP interface module |
| CI867AK01 | Modbus TCP interface module |
| PM865 | Primary controller CPU for rotating machinery |
| SA801F | Analog input module for vibration monitoring |
| SD822 | Distributed I/O base module |
Frequently Asked Questions (QA)
Q1: What safety rating does this module have?
A1: It’s SIL‑2 certified with triple-core redundancy to detect and mask faults.
Q2: How fast is its control loop?
A2: It executes deterministic cycles under 0.5 ms.
Q3: What I/O does it support?
A3: Configurable 16 analog and 32 digital channels.
Q4: What communications are supported?
A4: Dual Ethernet TCP/IP ports and one RS‑485 interface.
Q5: What temperature range can it handle?
A5: Fully operational between –40 °C and +70 °C.
Q6: What are its physical dimensions and weight?
A6: Measures ~200×150×40 mm and weighs about 1.2 kg.
Q7: What’s its MTBF?
A7: Offers an MTBF exceeding 350,000 hours.
Q8: How is it powered?
A8: Powered via 24 V DC (18–32 V) from the control backplane.
Q9: In what environments is it ideal?
A9: Best for vibration-, humidity-, and EMI-sensitive industrial locations.
Q10: Why choose it over general modules?
A10: Its safety logic, real-time response, rugged design, and diagnostics make it a premium option for rotating equipment control.
