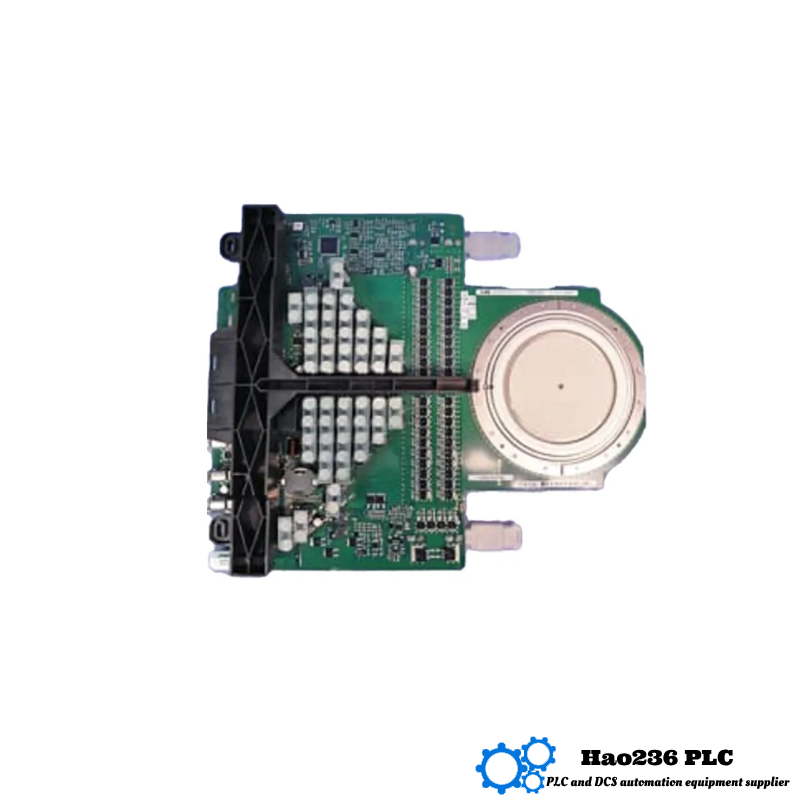

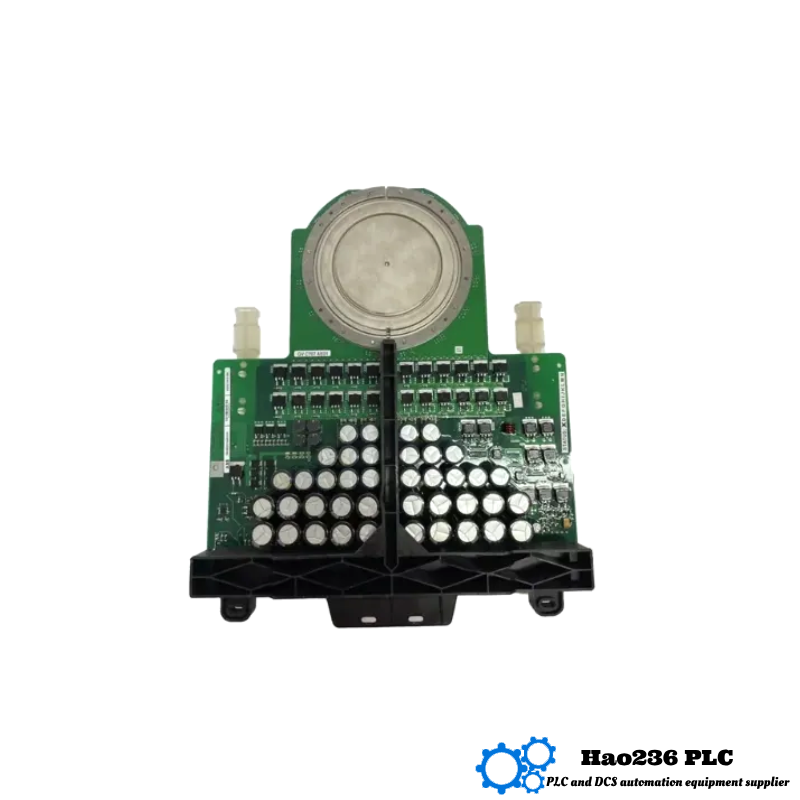

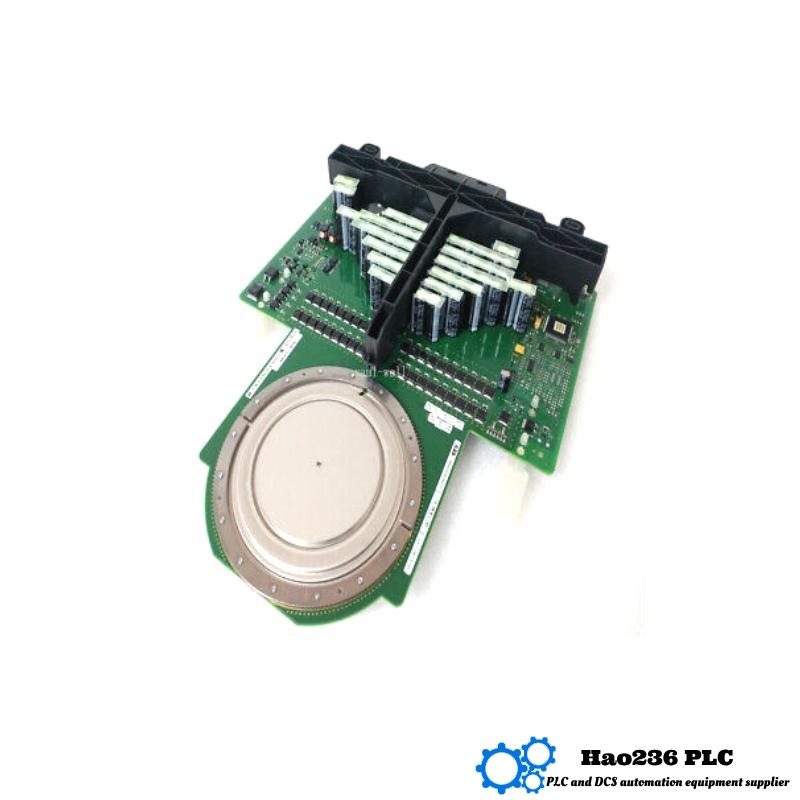

ABB 5SHY4045L0006 (3BHB030310R0001) Detailed Product Information
📘 Product Introduction
The ABB 5SHY4045L0006, identified internally as 3BHB030310R0001, is a high-performance Integrated Gate-Commutated Thyristor (IGCT) gate driver module. It is designed for medium to high voltage power electronic applications where high switching speeds, precise gate control, and robust fault diagnostics are required.
This model belongs to a family of gate drivers optimized for rugged industrial environments, including motor drives, traction, and renewable energy sectors. The 5SHY4045L0006 offers enhanced protection features and thermal management, ensuring stable and reliable operation under demanding electrical and environmental stresses.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5SHY4045L0006 |
| Internal Code | 3BHB030310R0001 |
| Type | Integrated Gate-Commutated Thyristor (IGCT) Gate Driver |
| Voltage Rating | 4500 V |
| Current Rating | 1200 A |
| Maximum Power Dissipation | 1.8 kW |
| Gate Trigger Voltage | ±15 V |
| Gate Trigger Current | 120 mA |
| Operating Temperature | -40°C to +85°C |
| Dimensions (L × W × H) | 230 mm × 110 mm × 36 mm |
| Weight | 1.48 kg |
| Isolation Voltage | >10 kV |
| Cooling Method | Natural convection / Forced air |
| Mounting | Panel mount, 4-point fixing |
| Protection Features | Desaturation detection, Over-temp shutdown, Under-voltage lockout |
| Standards Compliance | CE, RoHS, UL insulation class |
🛠️ Applications
-
Industrial Motor Drives: Suitable for medium-voltage variable speed drives in pumps, fans, compressors, and extrusion machinery.
-
Rail Traction Systems: Used in power inverters for locomotives and metros, offering rapid switching and robust diagnostics for safety.
-
Renewable Energy Systems: Applied in inverter stations for wind turbines and solar farms, ensuring efficient conversion and grid synchronization.
-
Marine Propulsion: Powers electric propulsion and auxiliary power converters on vessels, ensuring high reliability and vibration resistance.
-
Heavy Power Conversion: Employed in metallurgy and mining applications where high power and precise control are critical.
✅ Product Advantages
-
Advanced Fault Detection: Incorporates real-time desaturation and over-temperature detection, preventing device damage and reducing maintenance downtime.
-
High Isolation: Provides high-voltage isolation (>10 kV) to protect control electronics from power stage voltages, increasing safety.
-
Compact and Robust Design: Compact footprint combined with rugged packaging allows for easy integration in tight industrial spaces.
-
Wide Operating Temperature: Designed to perform reliably in harsh conditions, from sub-zero cold starts to hot operational environments.
-
Optimized Thermal Management: Enables both natural convection and forced-air cooling, increasing versatility in various installation scenarios.
🏷️ Brand & Series
-
Brand: ABB
-
Series: 5SHY High-Voltage IGCT Gate Drivers
-
Category: Power Electronics Gate Drivers
Related Models (Same Series or Relevant)
| Model | Current Rating (A) | Voltage Rating (V) | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| 5SHY4045L0001 | 1200 | 4500 | 230 × 110 × 35 | 1.45 | Earlier generation with similar specs |
| 5SHY4045L0009 | 1600 | 4500 | 235 × 115 × 38 | 1.60 | Higher current rating, improved diagnostics |
| 5SHY3545L0006 | 1400 | 4500 | 225 × 110 × 35 | 1.50 | Medium current, compact design |
| 5SHY4045L0010 | 1300 | 4500 | 230 × 110 × 36 | 1.52 | Enhanced thermal dissipation |
| 5SHY4045L0011 | 1500 | 4500 | 235 × 115 × 37 | 1.55 | Fiber-optic communication interface |
Popular Models (Same Brand)
| Model | Type | Voltage Rating (V) | Dimensions (mm) | Weight (kg) | Use Case / Highlight |
|---|---|---|---|---|---|
| 5SNA1500E330305 | IGBT Module | 3300 | 180 × 140 × 40 | 2.50 | High-current industrial drives |
| 5SDF1060H0001 | Gate Driver Unit | 4500 | 250 × 110 × 40 | 1.70 | Advanced optical communication |
| 5SHY3545L0016 | IGCT Driver | 4500 | 233 × 115 × 35 | 1.55 | High-speed switching with diagnostics |
| 5SNA1200E330306 | IGBT Module | 3300 | 200 × 150 × 50 | 3.00 | Heavy-duty inverter applications |
| 5STP33Q2800 | Thyristor Module | 2800 | 190 × 90 × 30 | 1.20 | Controlled rectification and simple drives |
FAQ (Q&A)
Q1: What is the main function of the 5SHY4045L0006?
A1: It is a gate driver module designed to control IGCT power switches, providing gate voltage, isolation, and protection during switching.
Q2: What voltage and current ratings does it support?
A2: It supports up to 4500 V and 1200 A, suitable for medium to high power industrial applications.
Q3: What safety features are included?
A3: It has desaturation detection, over-temperature protection, under-voltage lockout, and isolation for user safety.
Q4: Can it be used in harsh environments?
A4: Yes, it operates reliably in temperatures from –40°C to +85°C and is built for rugged industrial conditions.
Q5: What are the physical dimensions and weight?
A5: It measures 230 mm by 110 mm by 36 mm and weighs 1.48 kg.
Q6: What cooling methods are recommended?
A6: Natural convection is generally sufficient; however, forced air cooling is recommended for high power or hot environments.
Q7: How is this model mounted?
A7: It uses a panel mounting system with four fixing points for secure installation.
Q8: What applications is this product ideal for?
A8: Suitable for industrial motor drives, rail traction, renewable energy inverters, marine propulsion, and heavy-duty converters.
Q9: How does it communicate fault conditions?
A9: Faults are signaled via dedicated logic outputs and, in some variants, via fiber-optic communication for remote monitoring.
Q10: What standards does it comply with?
A10: It complies with CE, RoHS, and UL insulation class standards ensuring safety and environmental compatibility.
