Introduction

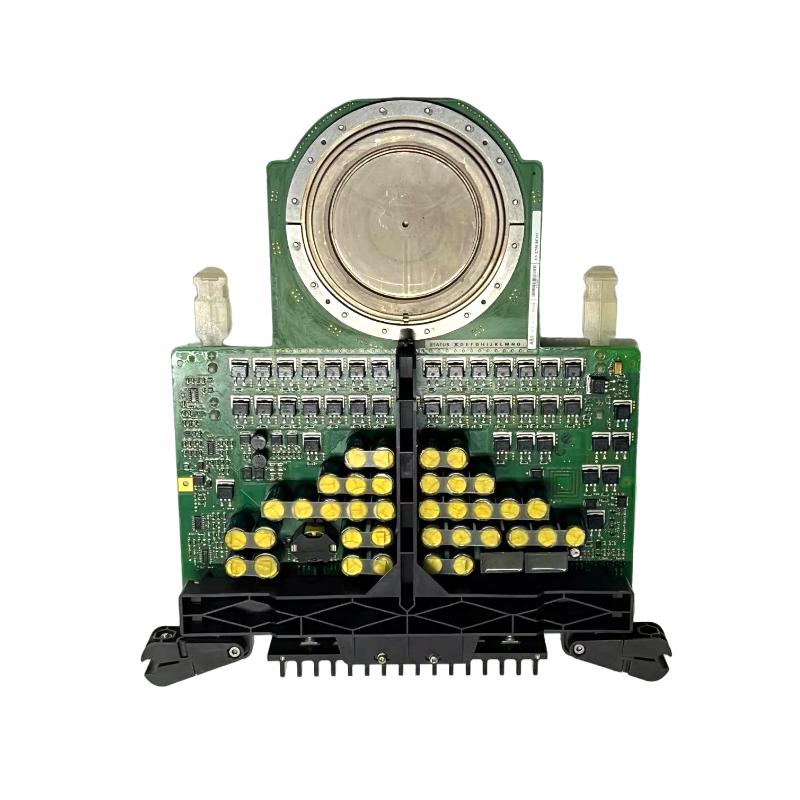

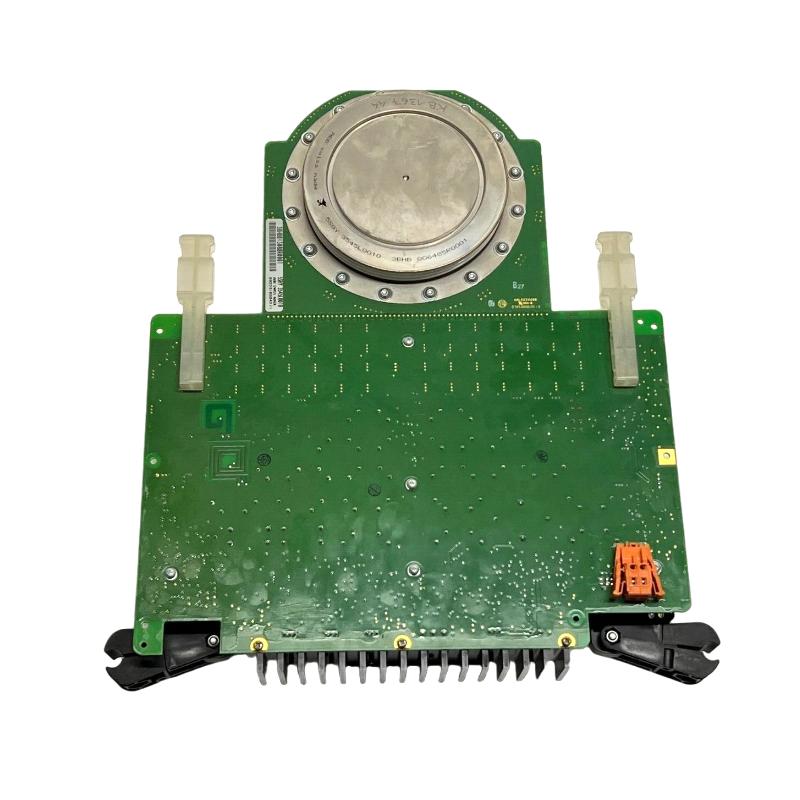

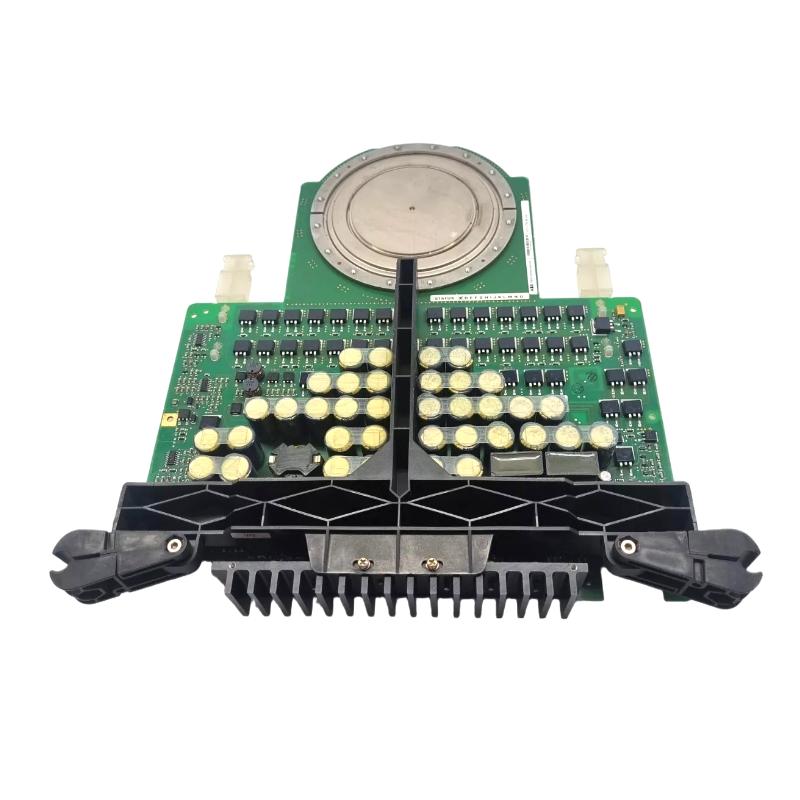

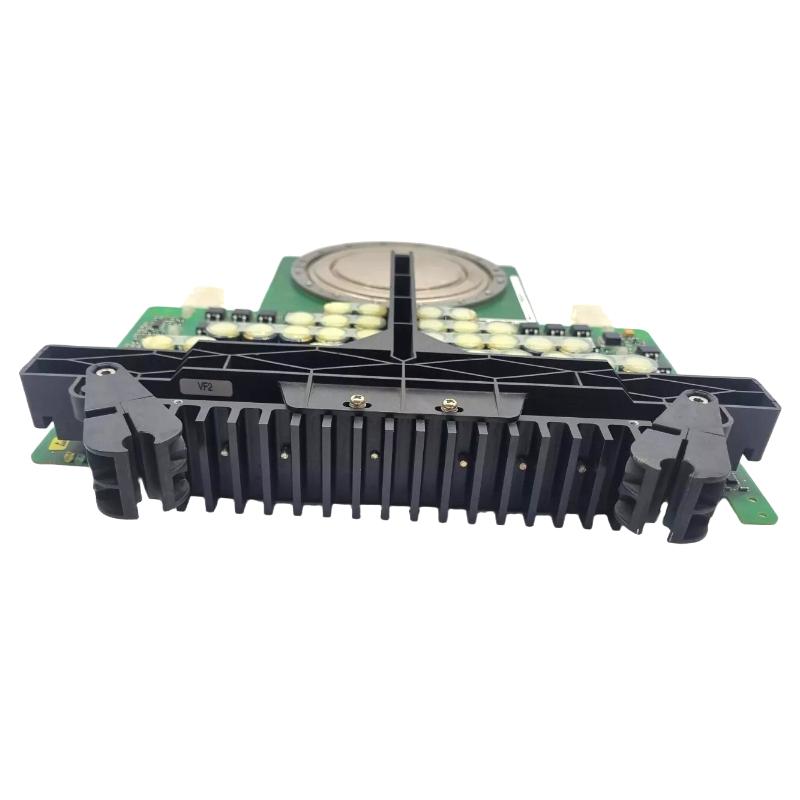

The ABB Ltd. 5SHY 3545L0010 (3BHB013088R0001) IGCT Module is a high-power semiconductor switching device used in advanced industrial power electronics. Based on Integrated Gate-Commutated Thyristor (IGCT) technology, it combines the high current capability of traditional thyristors with the fast switching characteristics of modern semiconductor devices.
This module is widely applied in medium-voltage drives, power converters, and energy infrastructure systems where efficient switching and high-power handling are required. The module has dimensions of 120 × 26 × 120 mm (H x W x D) and a weight of 1.32 kg.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5SHY 3545L0010 |
| Ordering Number | 3BHB013088R0001 |
| Product Type | IGCT Power Semiconductor Module |
| Manufacturer | ABB |
| Dimensions | 120 × 26 × 120 mm (H x W x D) |
| Weight | 1.32 kg |
| Rated Blocking Voltage | 4500 V |
| Rated Current | Up to 3500 A |
| Peak Gate Current | ±1000 A |
| Turn-On Time | Approx. 1.5 μs |
| Turn-Off Time | Approx. 1.5 μs |
| Junction Temperature Range | −40 °C to +125 °C |
| Cooling Method | Heat-sink or forced cooling systems |
The module is designed to provide high-efficiency switching and low conduction losses, making it suitable for high-power electrical systems requiring reliable energy conversion.
Applications
The 5SHY 3545L0010 IGCT Module is commonly used in:
-
Medium-voltage motor drive systems
-
Industrial power converters and inverters
-
High-voltage direct current (HVDC) transmission systems
-
Static VAR compensators (SVC) and grid stabilization equipment
-
Heavy industrial equipment such as compressors, pumps, and large motors
These applications require stable switching and efficient control of high electrical loads.
Advantages
-
High voltage and current handling capability
-
Fast switching performance with minimal power losses
-
Reliable press-pack semiconductor construction
-
Designed for demanding industrial power systems
-
Suitable for large-scale energy and motor control applications
Technical FAQs
Q1: What is the primary function of the 5SHY 3545L0010 module?
It functions as a high-power semiconductor switch used in converters, drives, and industrial power control systems.
Q2: What technology does this module use?
It uses Integrated Gate-Commutated Thyristor (IGCT) technology, enabling fast switching and high current capability.
Q3: Where is this module typically installed?
It is installed in industrial power converters, medium-voltage drives, and high-power electrical cabinets.
Q4: What industries commonly use this module?
Power generation, heavy manufacturing, oil and gas, mining, and large industrial automation systems.
Q5: Why are IGCT modules preferred in high-power applications?
They provide high efficiency, strong current capability, and reliable switching performance for large electrical loads.
