Product Overview

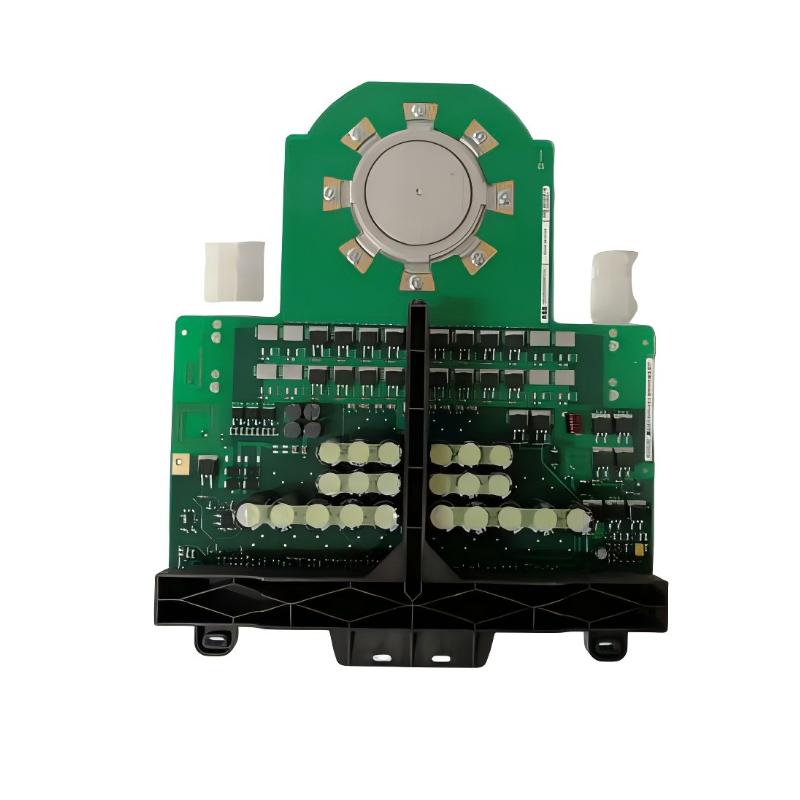

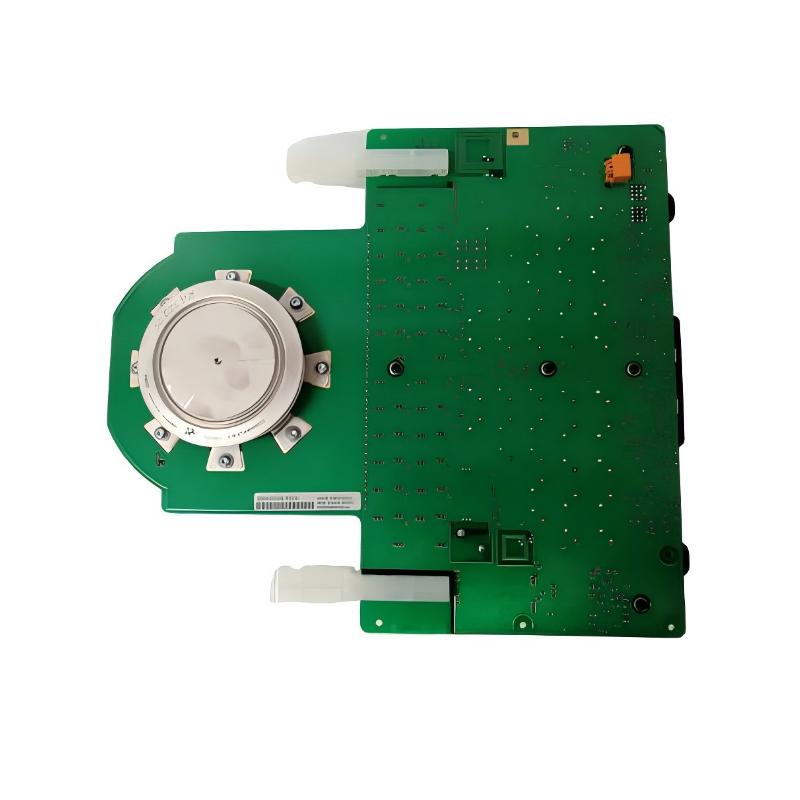

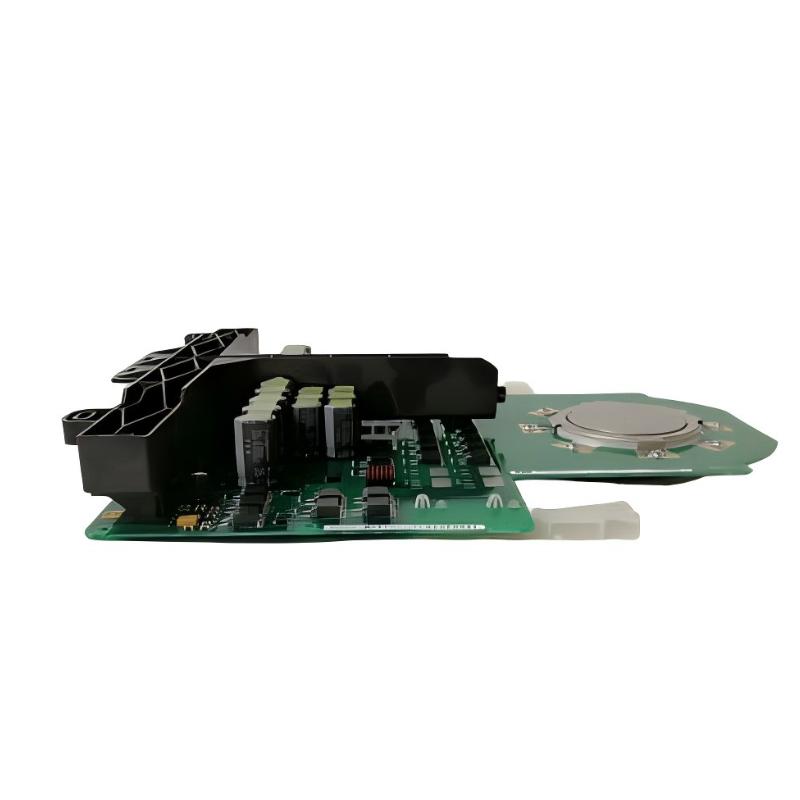

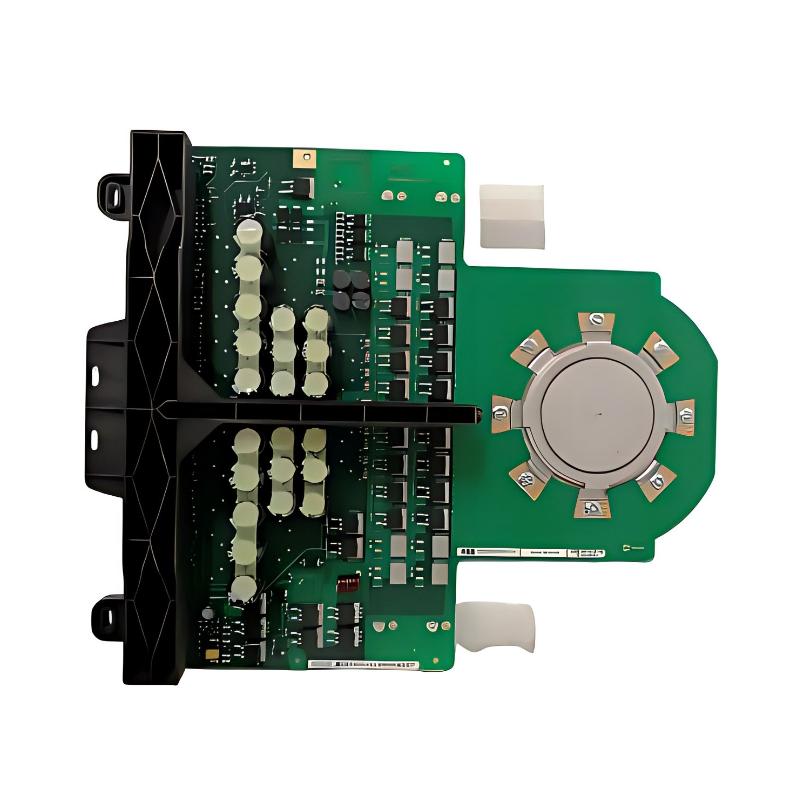

The ABB 5SHX1445H0002 (3BHL000387P0101) IGCT Module is a high-performance power semiconductor device based on Integrated Gate-Commutated Thyristor (IGCT) technology. It is designed for high-power switching applications in industrial drive systems, power conversion equipment, and medium- to high-voltage control systems.
This module combines the advantages of thyristor robustness with fast switching capability, making it ideal for demanding applications requiring high efficiency, reliability, and precise power control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | 5SHX1445H0002 |
| Part Number | 3BHL000387P0101 |
| Product Type | IGCT Module |
| Technology | Integrated Gate-Commutated Thyristor |
| Function | High-power switching and control |
| Voltage Rating | High-voltage industrial class |
| Current Rating | High-current capability (application dependent) |
| Switching Speed | Fast switching performance |
| Gate Drive | Integrated gate unit compatible |
| Cooling Method | Heatsink / forced air or liquid cooling |
| Dimensions | 120 × 60 × 40 mm |
| Weight | 1.2 kg |
| Mounting Type | Module-mounted on cooling assembly |
| Operating Environment | Industrial high-power systems |
| Application Category | Medium/High voltage power electronics |
Function and Working Principle
The 5SHX1445H0002 operates based on IGCT technology, which combines features of GTO thyristors and IGBT devices.
Its working principle includes:
- Controlling large currents and voltages using gate-triggered switching
- Turning on through gate signal activation
- Turning off rapidly using integrated gate commutation
- Minimizing switching losses through optimized semiconductor structure
- Providing high-efficiency power conversion in switching circuits
The IGCT design allows faster turn-off times and lower losses compared to traditional thyristors.
Role in Industrial Control Systems
Within industrial power systems, this module plays a critical role:
- Acts as a core switching device in high-power converters
- Enables efficient energy conversion and motor control
- Supports stable operation of medium-voltage drives
- Enhances system reliability under high electrical stress
- Provides precise control of electrical power flow
It is essential in high-power electronic control architectures.
Industrial Applications
The ABB IGCT Module is widely used in:
- Medium-voltage motor drives
- Industrial variable speed drives (VSD)
- Power converters and inverters
- HVDC and FACTS systems
- Renewable energy conversion systems
- Heavy industrial equipment (steel, mining, cement)
It is particularly suitable for applications requiring high efficiency and high reliability under heavy load conditions.
Installation and System Integration
For optimal performance, the module should be installed as follows:
- Mounted on appropriate heatsink or cooling system
- Integrated with compatible IGCT gate driver units
- Connected within high-power converter circuits
- Proper thermal management ensured (air or liquid cooling)
- Installed with correct insulation and protection measures
Correct installation is critical to ensure safe operation and long service life.
Compatible System Components
The 5SHX1445H0002 typically works with:
- ABB IGCT gate driver units
- High-power inverter and converter systems
- Cooling systems (heatsinks, liquid cooling units)
- Power control units and protection circuits
- Industrial drive control systems
These components together form a complete high-power switching system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 5SHX1445H0001 | IGCT Module | Earlier generation | Standard power systems |
| 5SHX2645L0004 | IGCT Module | Higher voltage capability | High-voltage drives |
| 5SHX1060H0003 | IGCT Module | Compact design | Medium-power systems |
| 3BHL series | IGCT family | Modular power devices | Converter systems |
| IGBT modules | Power semiconductor | Alternative technology | General applications |
Key Advantages
- High efficiency in power switching applications
- Fast switching with low losses
- High voltage and current handling capability
- Robust design for industrial environments
- Reliable performance in heavy-duty applications
- Compatible with advanced drive and converter systems
Technical FAQs
What is an IGCT module?
An IGCT is a high-power semiconductor device used for fast and efficient switching in power electronics.
How is it different from an IGBT?
IGCT devices typically handle higher power levels and offer lower conduction losses in high-voltage applications.
Where is this module typically used?
It is used in medium-voltage drives, power converters, and heavy industrial systems.
Conclusion
The ABB 5SHX1445H0002 (3BHL000387P0101) IGCT Module is a high-performance power semiconductor designed for demanding industrial applications. With its fast switching capability, high efficiency, and robust construction, it plays a critical role in modern power conversion and motor control systems.
For engineers and system integrators, it provides a reliable solution for high-power switching applications requiring precision, durability, and long-term operational stability.
