Product Overview

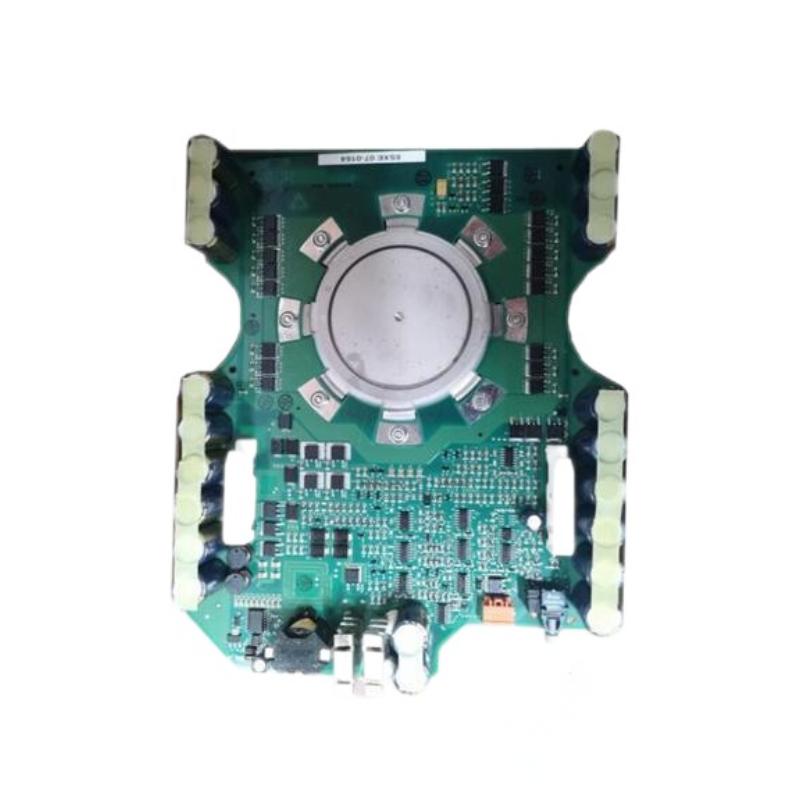

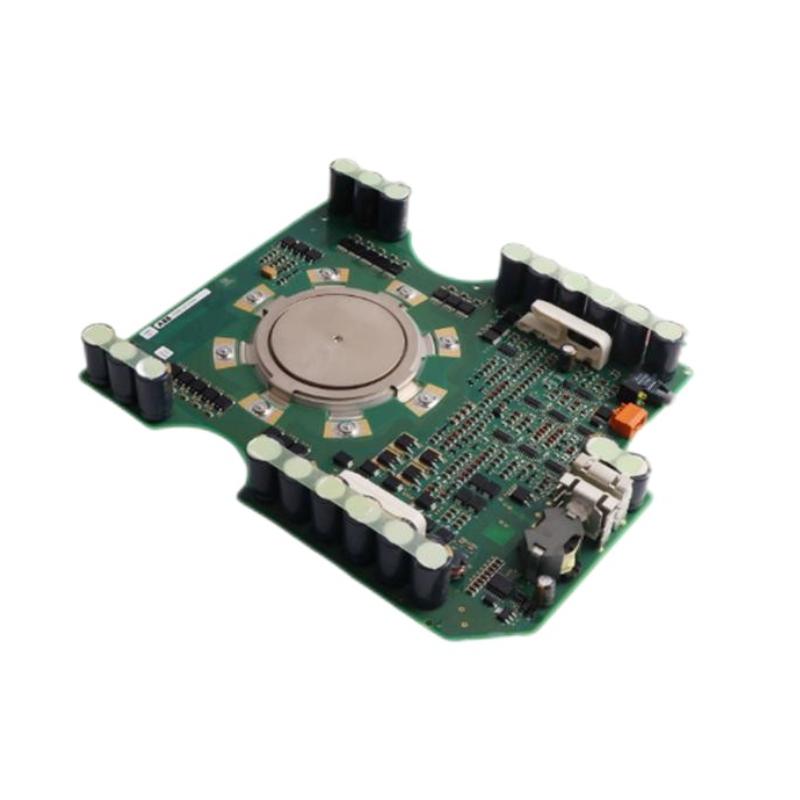

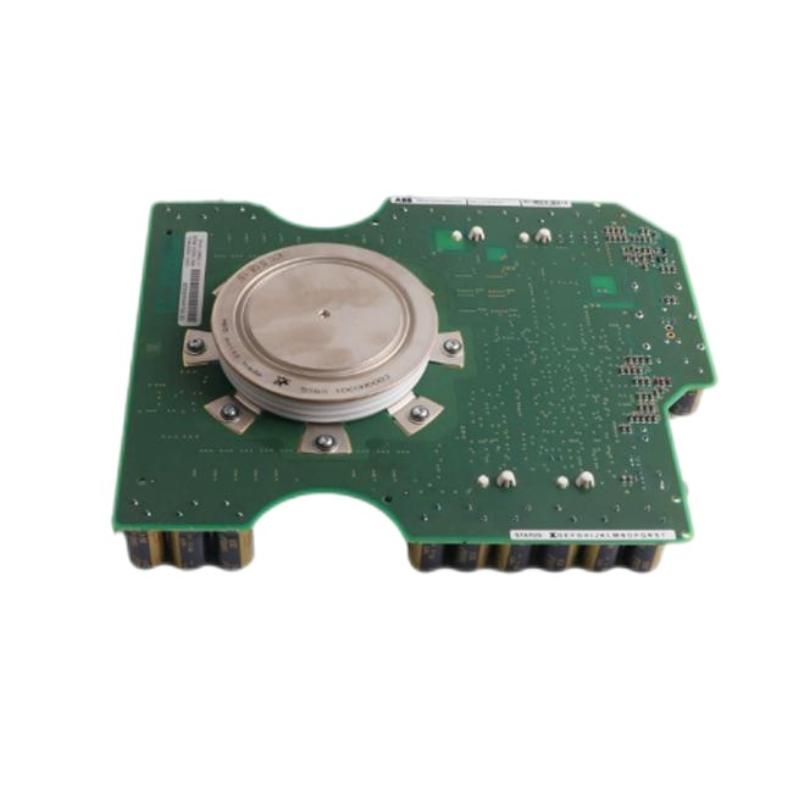

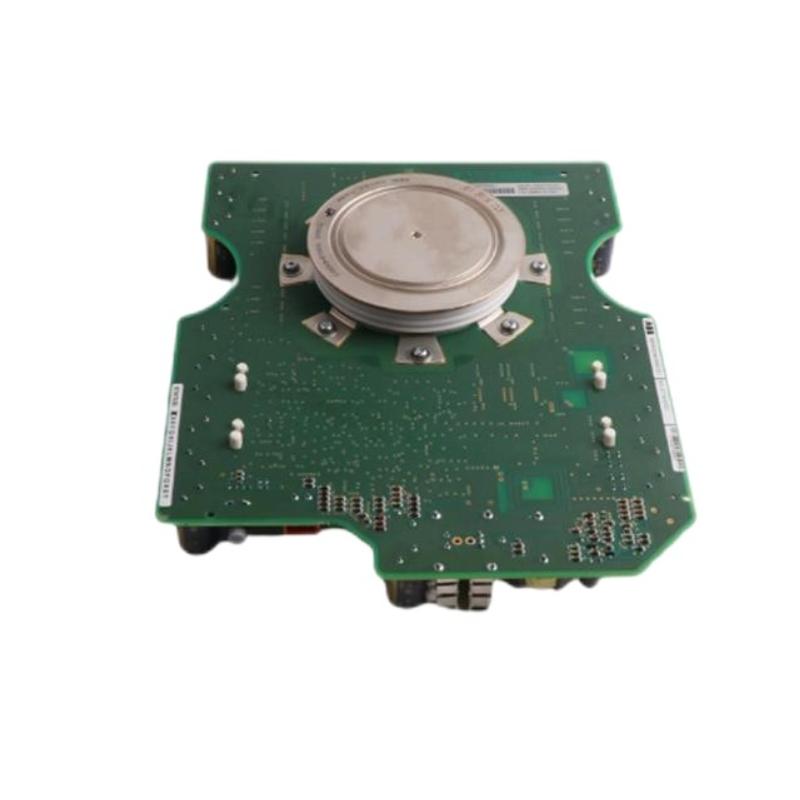

The ABB 5SHX1060H0003 (3BHB020538R0001) IGCT Module is a high-performance industrial semiconductor designed for fast switching and high-current control in power electronics systems. With dimensions of 190 × 140 × 38 mm and a weight of 1.2 kg, this module is ideal for industrial applications requiring robust energy management and reliable high-power performance.
Manufactured by ABB, the IGCT module combines the advantages of thyristor and IGBT technologies, providing efficient power conversion, low losses, and durable industrial performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5SHX1060H0003 / 3BHB020538R0001 |
| Product Type | IGCT (Integrated Gate-Commutated Thyristor) Module |
| Manufacturer | ABB |
| Dimensions | 190 × 140 × 38 mm (H × W × D) |
| Weight | 1.2 kg |
| Function | High-current switching and precise control in industrial power electronics |
| Installation | Integrated into power modules, converters, or industrial drives |
| Application | Motor drives, industrial inverters, and high-power control systems |
| Operating Environment | High-current, high-voltage industrial systems |
Functional Description
The 5SHX1060H0003 IGCT Module is designed to:
-
Handle high-current industrial circuits efficiently
-
Perform rapid switching for dynamic energy conversion
-
Minimize conduction and switching losses, improving system efficiency
-
Protect downstream equipment via precise current management
-
Support high-power industrial motor drives, converters, and inverters
This IGCT module ensures reliable, long-term operation even under harsh electrical and thermal conditions.
Industrial Applications
The IGCT module is commonly used in:
-
High-power industrial motor drives
-
Large-scale rectifiers and power converters
-
Renewable energy inverters and storage systems
-
Heavy machinery requiring fast and precise energy control
-
Process automation in chemical, manufacturing, and oil & gas industries
-
High-voltage DC (HVDC) transmission systems
Its compact design allows installation in power modules while maintaining robust performance.
Key Advantages
-
High-current capacity for industrial loads
-
Fast switching performance for energy-efficient power control
-
Durable construction for reliable industrial operation
-
Compact form factor (190 × 140 × 38 mm, 1.2 kg)
-
Energy-efficient operation with reduced losses
These features make the 5SHX1060H0003 IGCT module ideal for industrial drives, converters, and high-power automation systems.
Recommended Complementary Components
| Model | Description | System Role |
|---|---|---|
| 5SGX0845F0001 | IGCT Module | Works in parallel or complementary power circuits |
| 5SDF0860H0003 | High-Power Diode | Supports rectification and current management |
| 086370-001 | Power Board Module | Integrates IGCT modules for system operation |
| 086362-001 | Circuit Board | Interfaces control and protection logic with power modules |
| 23NG23 | Power Module | Supplies regulated DC power to IGCT circuits |
Conclusion
The ABB 5SHX1060H0003 / 3BHB020538R0001 IGCT Module is a high-power, reliable industrial semiconductor for fast switching, precise current control, and efficient energy conversion. With dimensions of 190 × 140 × 38 mm and a weight of 1.2 kg, it is suited for industrial motor drives, inverters, and high-current power electronics systems.
For industrial applications requiring robust operation, energy efficiency, and reliable high-current performance, this IGCT module is a critical component in ABB’s portfolio of industrial power devices.
