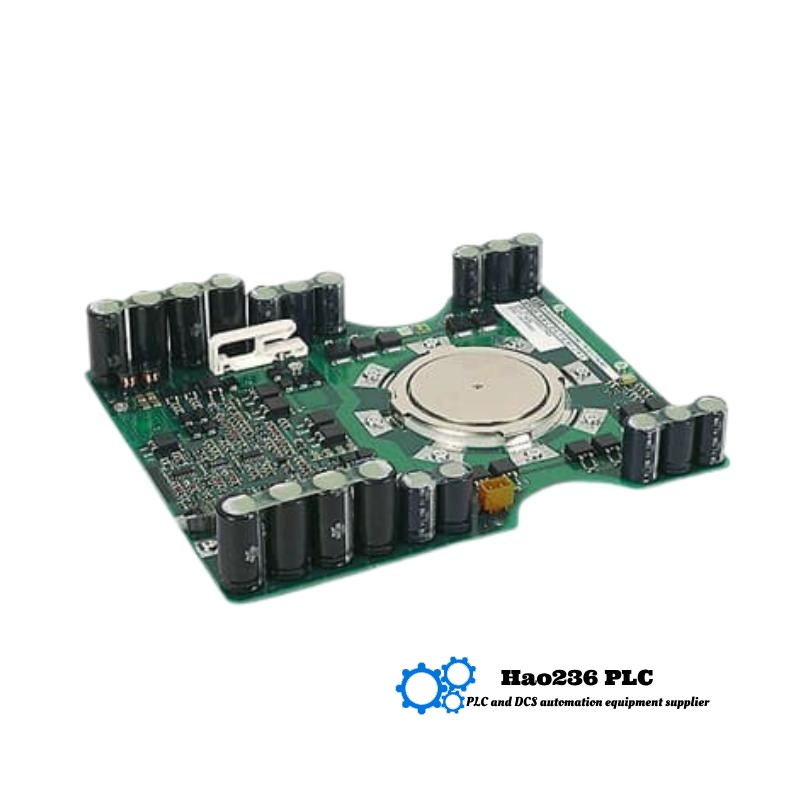

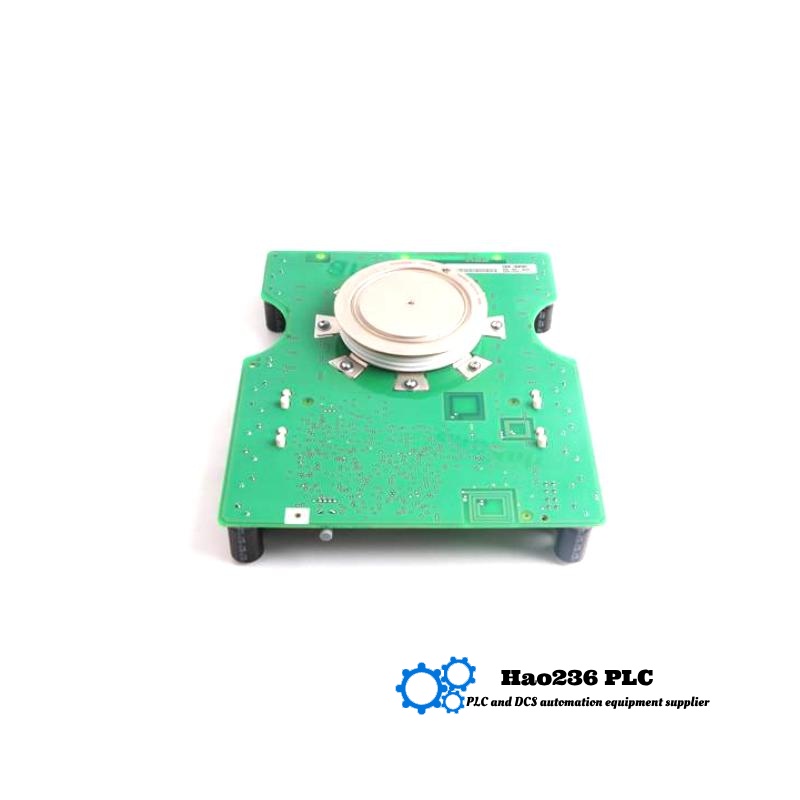

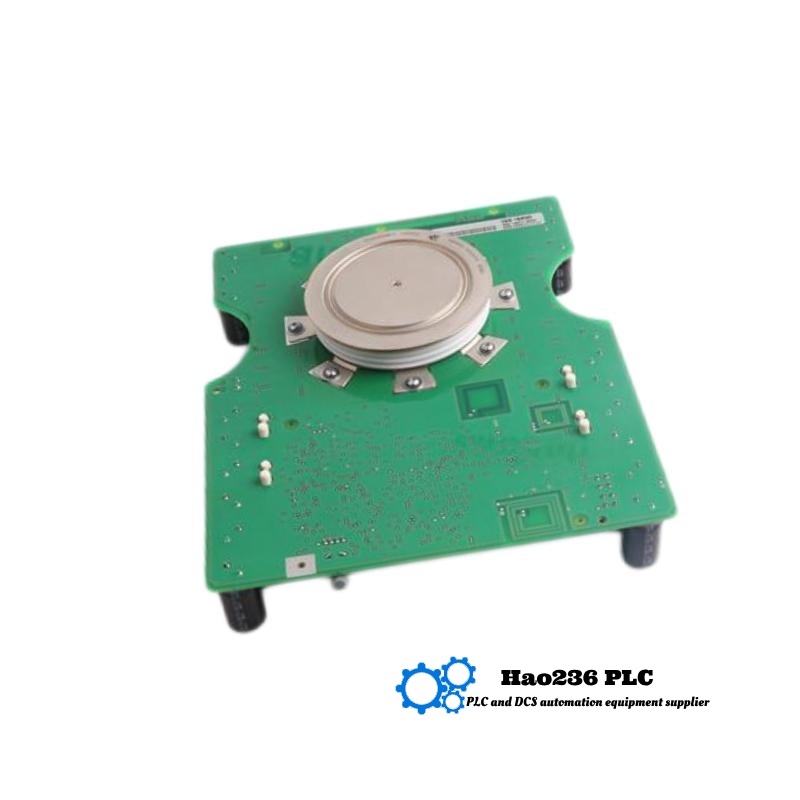

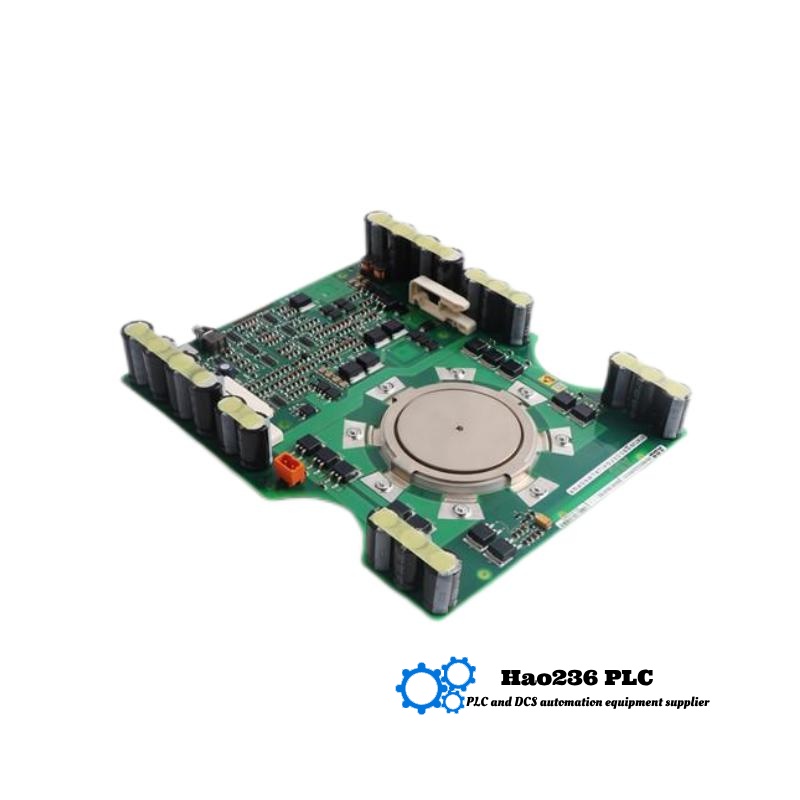

ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module
Product Introduction
The ABB 5SHX1060H0001 3BHL000392P0101 is an Integrated Gate-Commutated Thyristor (IGCT) power module engineered for high-power, high-efficiency industrial applications. It combines the ruggedness of thyristor technology with gate-commutation capability, delivering fast switching, low conduction losses, and high reliability. This module forms the heart of medium-voltage converters and drives, enabling precise control of large motors and power converters in demanding environments.
Product Parameters
| Parameter | Details |
|---|---|
| Part Number | 5SHX1060H0001 / 3BHL000392P0101 |
| Module Type | IGCT Power Module |
| Dimensions | 190 × 140 × 38 mm |
| Weight | 1.2 kg |
| Rated Voltage | 4.5 kV |
| Rated Current | 3,500 A |
| Isolation Voltage | 8 kV (AC) |
| Turn-off Time | < 4 µs |
| Thermal Resistance | 0.02 K/W (junction to case) |
| Gate Drive Voltage | ±15 V |
| Mounting Type | Bolt-down flange |
| Cooling Method | Liquid or forced-air cooling |
Applications
The IGCT module is ideally suited for:
-
Medium-Voltage Drives: Precise control of large synchronous and induction motors in steel mills, paper plants, and cement factories.
-
Static Var Compensators (SVC): Fast reactive power compensation for grid stability and power quality.
-
High-Power Converters: Rolling mill drives, hoist conveyors, and ship propulsion systems requiring robust, high-speed switching.
-
Traction Systems: Electrified rail traction converters where reliability and high power density are critical.
-
Renewable Integration: Power electronics for large wind turbines and solar-farm inverters in medium-voltage applications.
Advantages
-
High Efficiency: Low conduction voltage drop and very fast turn-off minimize switching losses and heat generation.
-
Robustness: Rugged thyristor structure withstands overcurrent and short-circuit events, ensuring long service life.
-
Compact Power Density: High current handling in a relatively small package reduces system footprint.
-
Fast Commutation: IGCT’s forced commutation allows high-frequency operation with stable performance.
-
Ease of Integration: Standard flange mounting and voltage ratings simplify system design and servicing.
Brand Information
Brand: ABB is a global leader in electrification and automation technologies. With over 130 years of innovation, ABB delivers advanced power electronics and drives solutions that drive industrial productivity, energy efficiency, and digital transformation.
Series Information
This module belongs to ABB’s SHP® IGCT family—a series of high-power, medium-voltage IGCT modules designed for heavy-duty industrial drives and grid support applications. The SHP® lineup is known for its modularity, high switching performance, and compatibility with ABB’s gate-drive and converter systems.
Recommended Models (Same Series or Related)
| Model | Rated Voltage | Rated Current | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3BHL000391P0101 | 4.5 kV | 2,500 A | 190 × 140 × 38 | 1.0 kg |
| 3BHL000393P0101 | 4.5 kV | 5,000 A | 220 × 160 × 45 | 1.8 kg |
| 5SHX1060H0002 | 3.3 kV | 3,000 A | 180 × 130 × 38 | 1.1 kg |
| 5SHX1070H0001 | 4.5 kV | 4,000 A | 200 × 150 × 40 | 1.4 kg |
| 3BHL000395P0101 | 6.5 kV | 3,500 A | 210 × 150 × 42 | 1.6 kg |
Recommended Models from ABB
| Model | Description | Key Features | Applications |
|---|---|---|---|
| 3BHE0135P002 | 3.3 kV, 1,500 A GTO Module | Gate-turn-off thyristor, proven reliability | Legacy drives, synchronous motor control |
| 5SHF2032H0002 | 4.5 kV, 2,000 A DPC Module | Diode-phase-control rectifier, high surge capability | Rectifier bridges, power supplies |
| 5SHY2070H0001 | 4.5 kV, 1,200 A MCD™ Module | Modular component design, low thermal resistance | Compact drive trains |
| 3BHB0055P051 | 6.5 kV, 1,000 A Diode Module | Fast recovery diode, high-efficiency | Free-wheeling, snubber circuits |
| 5SHX1080H0001 | 4.5 kV, 3,500 A IGCT Power Module | Next-generation SHP® IGCT, enhanced switching speed | Advanced medium-voltage converters |
FAQ (Frequently Asked Questions)
-
Q: What is an IGCT module?
A: An IGCT integrates a gate-commutated thyristor with fast turn-off capability, enabling high-power, high-frequency switching with lower losses than conventional GTOs. -
Q: What cooling methods are supported?
A: This module supports both liquid (water/glycol) and forced-air cooling, depending on your system design and thermal requirements. -
Q: How do I mount the module?
A: It uses bolt-down flange mounting; ensure a flat, thermally conductive surface and torque bolts to ABB’s specifications. -
Q: What is the typical turn-off time?
A: The module features a turn-off time of less than 4 µs, allowing high-frequency operation. -
Q: Can this module handle short-circuit events?
A: Yes, the rugged thyristor design tolerates brief overcurrent and short-circuit conditions if protected by appropriate gate-drive and protection circuits. -
Q: What gate-drive voltage is required?
A: A bipolar ±15 V gate-drive supply is required for reliable switching and commutation. -
Q: What maintenance is needed?
A: Periodic inspection of cooling connections, torque checks on flange bolts, and gate-drive system diagnostics ensure long service life. -
Q: Is the module RoHS compliant?
A: Yes, it meets the latest RoHS directives for restriction of hazardous substances. -
Q: What series does this module belong to?
A: It is part of ABB’s SHP® IGCT family, designed for medium-voltage power conversion and drives. -
Q: How do I select a compatible module?
A: Choose based on required voltage, current rating, switching speed, and cooling method; consult ABB’s product selector for full compatibility.
