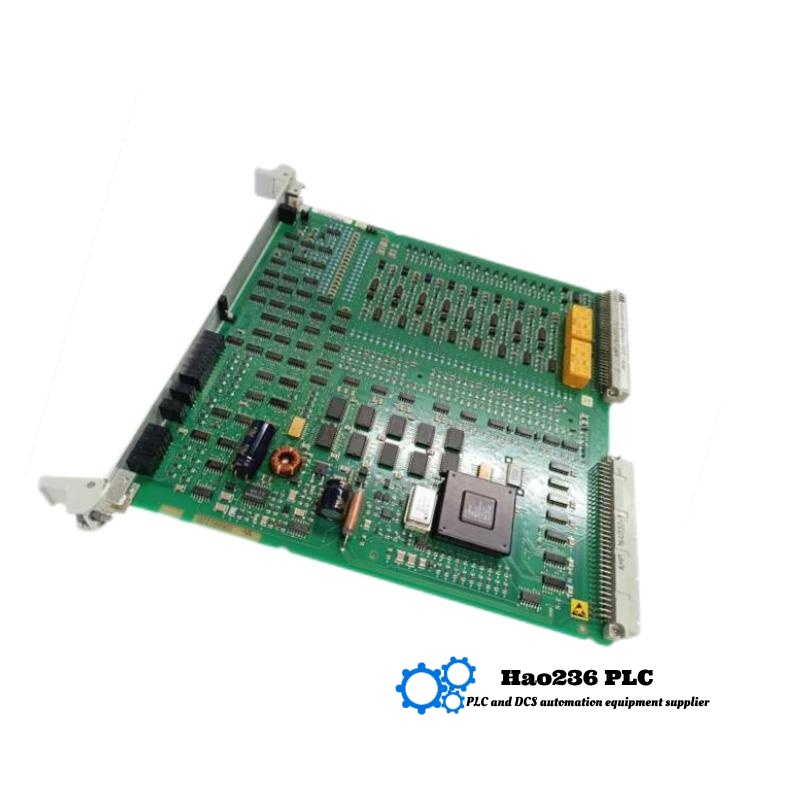

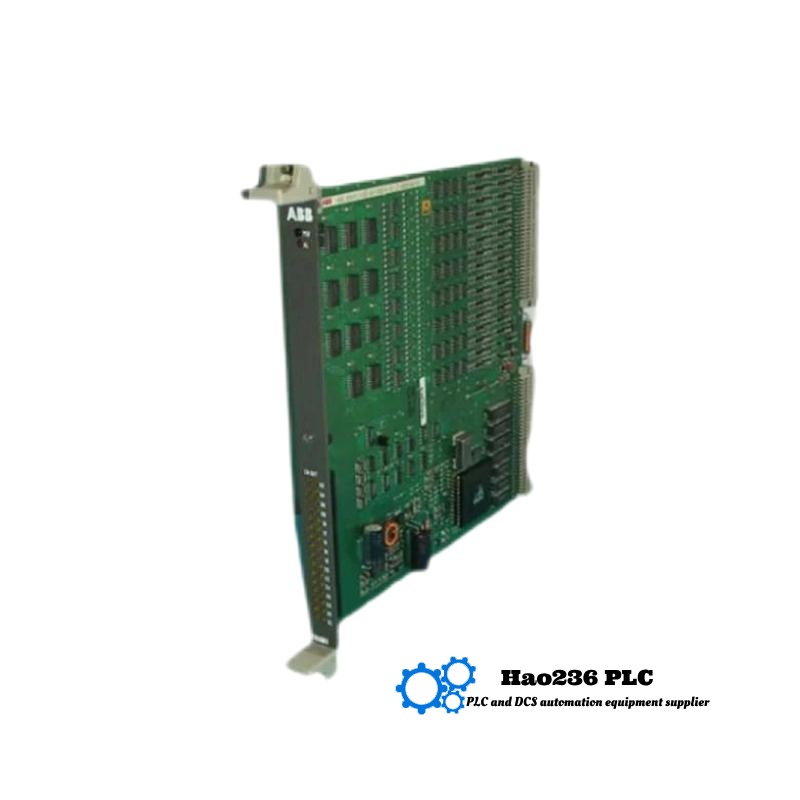

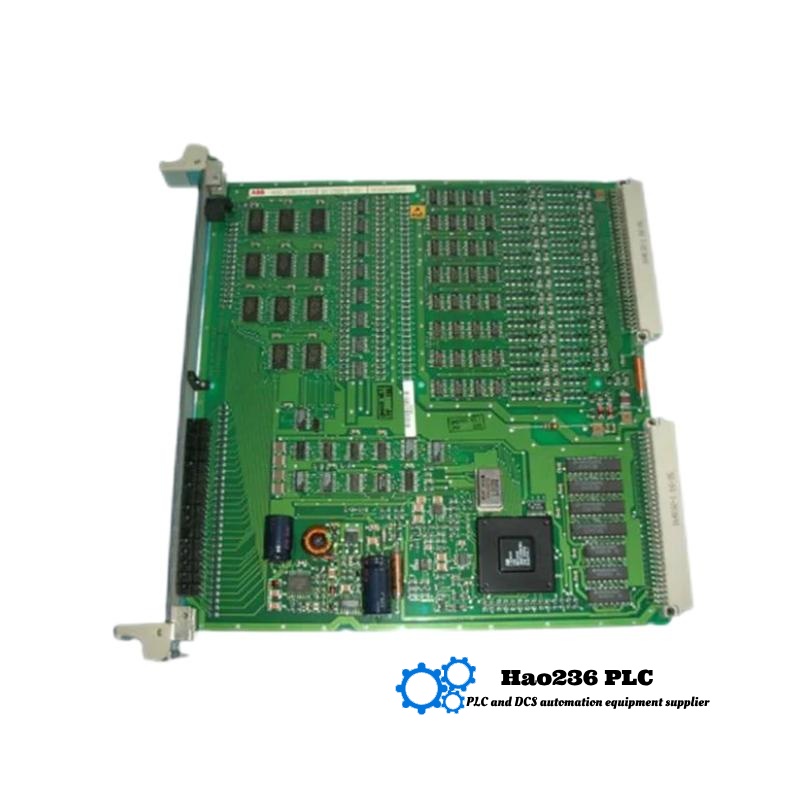

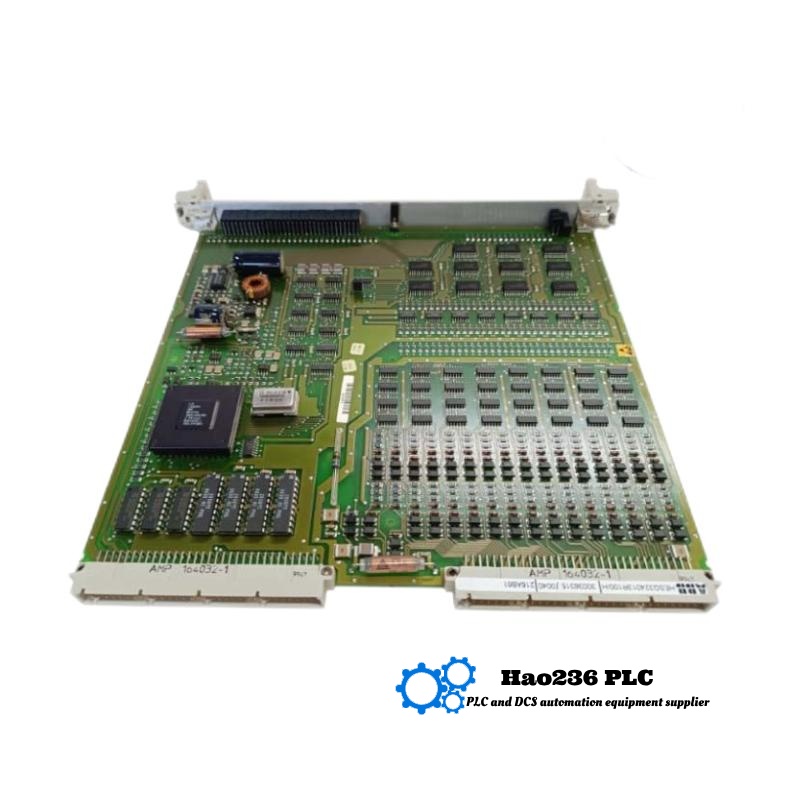

ABB 216AB61 HESG324013R100 Binary Output Module
Product Overview
The ABB 216AB61 HESG324013R100 is a highly reliable and compact binary output module designed for use in industrial control systems. It is an integral part of ABB’s S800 I/O series, known for providing precise control and reliable data output in industrial automation applications. The 216AB61 module is specifically designed to handle digital output signals, allowing users to efficiently control devices such as relays, solenoids, and motors.
This module operates seamlessly with various ABB control systems and other compatible automation equipment. Its compact design and robust functionality make it ideal for integration into both new and existing industrial control systems.
Product Parameters
| Parameter | Details |
|---|---|
| Model | ABB 216AB61 HESG324013R100 |
| Type | Binary Output Module |
| Series | S800 I/O |
| Dimensions | 100 x 60 x 25 mm |
| Weight | 0.25 kg |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Number of Outputs | 16 Channels |
| Mounting Method | DIN Rail or Panel Mount |
| Signal Type | Digital/On-Off |
| Operating Temperature | –20°C to +60°C |
| Communication Interface | Bus Communication via MODBUS |
| Certifications | CE, UL, and RoHS compliant |
| Power Consumption | 3 W |
| Protection Class | IP20 |
Applications
The ABB 216AB61 binary output module is widely used in industrial automation and process control applications where digital control and signal switching are needed:
-
Industrial Control Systems: To control and monitor actuators such as valves, relays, and other digital devices.
-
Manufacturing Automation: In environments where precise digital signals are required for production machinery, conveyors, and automated lines.
-
Energy Management Systems: To control digital loads, manage relays in power systems, and integrate with energy monitoring systems.
-
Building Automation: For controlling lighting, HVAC, security systems, and other building devices using digital outputs.
-
Infrastructure Systems: Used in transportation systems and water treatment plants where automation and reliable output management are crucial.
Product Advantages
-
Compact Design: The small form factor (100 x 60 x 25 mm) allows for easy installation in tight spaces or in panel setups where space is limited.
-
High Reliability: Known for high-quality, durable performance, this module operates reliably in a variety of harsh industrial environments.
-
Scalable: Easily integrates with other ABB I/O modules and control systems, making it an ideal solution for expanding or upgrading systems.
-
Energy Efficient: Low power consumption (3 W) minimizes energy costs and supports sustainable operations.
-
Wide Temperature Range: With an operating temperature range of –20°C to +60°C, it performs reliably in diverse conditions, whether in a cold factory or a hot industrial site.
Brand Information
ABB (Asea Brown Boveri) is a global leader in power and automation technologies. The company designs, manufactures, and services technology to improve industrial productivity and energy efficiency. ABB’s innovative products are used across industries such as utilities, industry, transport, and infrastructure. The S800 I/O series represents ABB’s expertise in distributed control systems, offering flexible and reliable I/O solutions that are critical in ensuring the success of industrial processes worldwide.
Recommended Related Models (Same Series or Similar)
| Model | Description | Dimensions (mm) | Weight (kg) | Series |
|---|---|---|---|---|
| 216AB62 HESG324013R101 | Binary output module with extended outputs | 100 x 60 x 25 | 0.25 | S800 I/O |
| 216AB64 HESG324013R103 | High-density 32-channel output module | 100 x 60 x 50 | 0.35 | S800 I/O |
| 216AB60 HESG324013R099 | Compact 8-channel binary output module | 100 x 60 x 25 | 0.25 | S800 I/O |
| 216AB65 HESG324013R105 | 16-channel output with relay functionality | 100 x 60 x 30 | 0.3 | S800 I/O |
| 216AB58 HESG324013R098 | 12-channel binary output module | 100 x 60 x 25 | 0.28 | S800 I/O |
Popular ABB Models (Same Brand)
| Model | Function | Dimensions (mm) | Weight (kg) | Series |
|---|---|---|---|---|
| PM864AK01 | CPU module for AC 800M | 145 x 127 x 40 | 0.7 | AC 800M |
| CI854AK01 | Communication Interface Profibus | 115 x 127 x 40 | 0.4 | AC 800M |
| AI810 | Analog Input Module | 120 x 110 x 35 | 0.35 | S800 I/O |
| DO810 | Digital Output Module | 120 x 110 x 35 | 0.35 | S800 I/O |
| PM802F | Field Controller CPU | 200 x 150 x 60 | 1.1 | Freelance |
FAQ – ABB 216AB61 HESG324013R100
Q: What is the ABB 216AB61 module used for?
A: It is a binary output module used for controlling digital devices in industrial automation systems, such as relays, actuators, and solenoids.
Q: How many channels of output does this module have?
A: The ABB 216AB61 has 16 channels of digital output.
Q: What is the power consumption of the module?
A: The module consumes 3 W of power.
Q: What type of communication interface does it support?
A: It supports bus communication via MODBUS for integration with control systems.
Q: What is the operating temperature range of the module?
A: The module operates within a temperature range of –20°C to +60°C.
Q: Can this module be used for controlling motors?
A: Yes, it can control motors, solenoids, relays, and other devices that require digital output control.
Q: How is the ABB 216AB61 mounted?
A: It can be mounted on a DIN rail or directly on a panel, depending on the application needs.
Q: Is this module CE certified?
A: Yes, the ABB 216AB61 is CE certified and compliant with RoHS standards.
Q: Can the module be used in hazardous environments?
A: While it is durable and designed for industrial environments, specific installation and safety conditions should be reviewed based on the local environment’s requirements.
Q: What is the warranty on this product?
A: ABB offers a standard warranty for this module, typically lasting 12-24 months, depending on the terms of sale.
