Product Overview

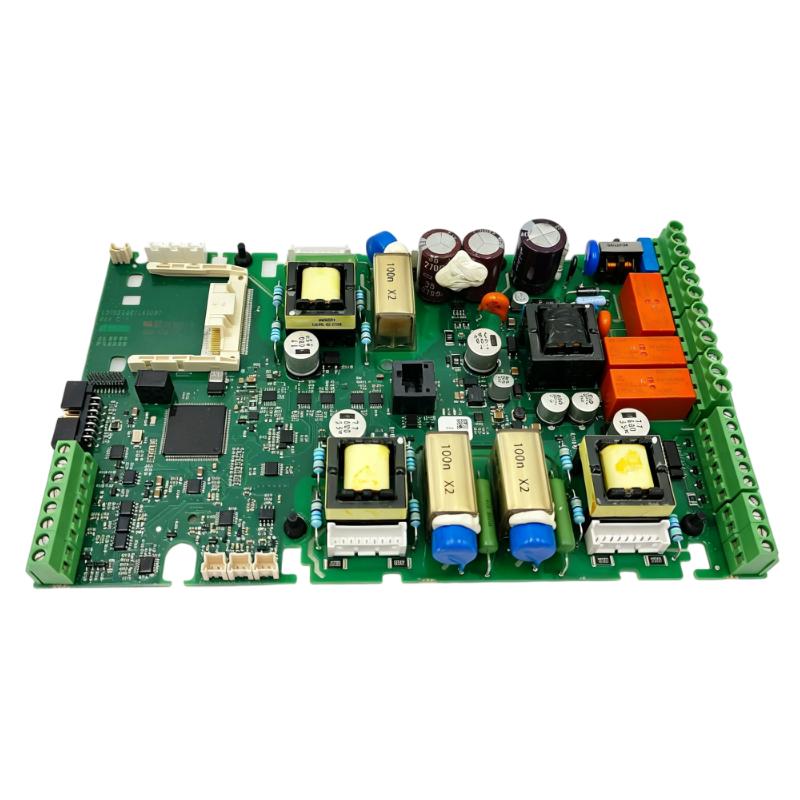

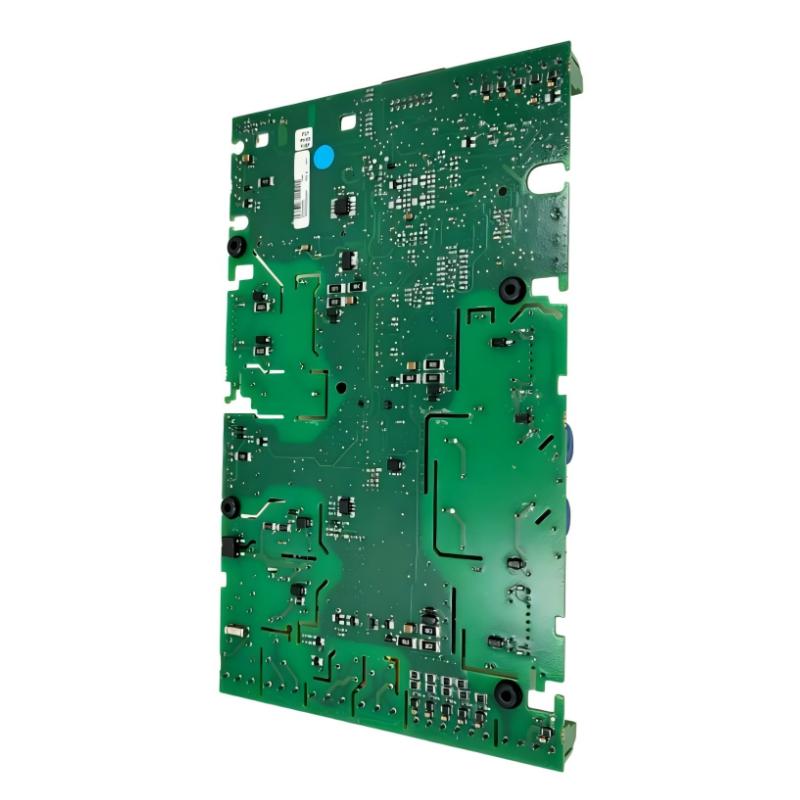

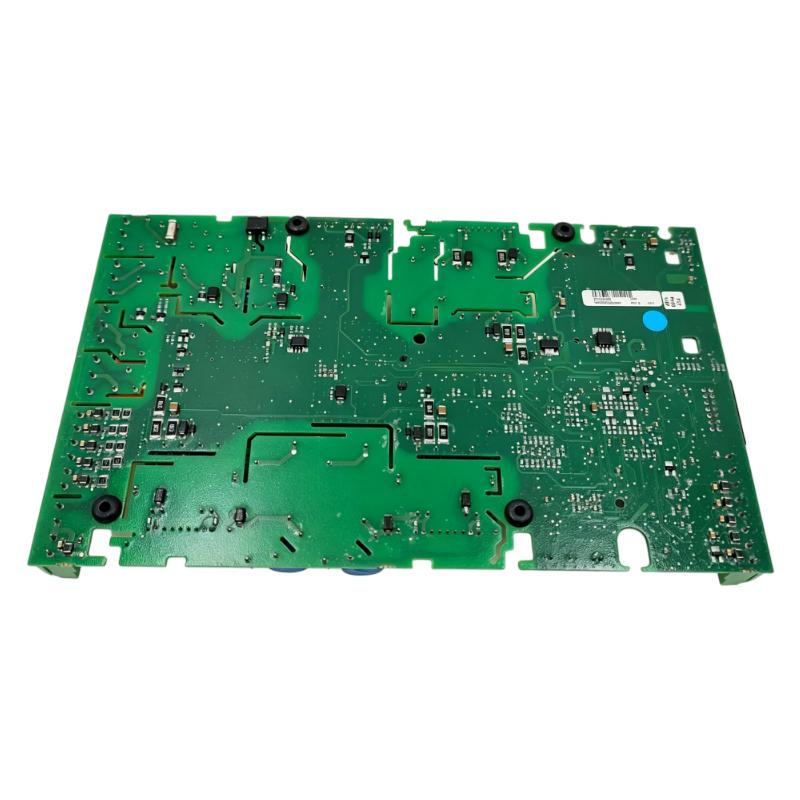

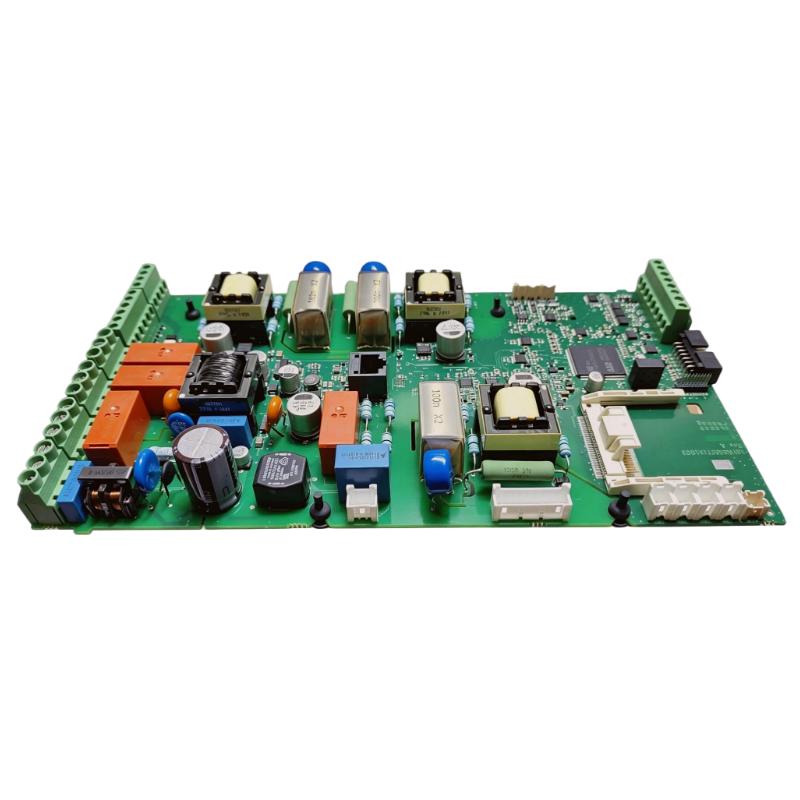

The ABB 1SFB536271A1009 is a CPU Control Board used in ABB PSTX softstarter systems. It serves as a central electronic control component within the softstarter, handling control functions associated with starting and stopping motors and coordinating the operation of the softstarter’s power-control circuitry.
Within a PSTX installation, the control board works between the operator or control-system commands and the softstarter’s power section. It processes operating commands and system information, while the associated power electronics regulate the motor during acceleration and deceleration.
The board is relevant to industrial motor-control applications where reduced-voltage starting is required to limit starting current and mechanical stress. It can be used in motor-driven equipment such as pumps, fans, compressors, conveyors, and other industrial machinery.
For service and replacement work, the CPU Control Board should be considered together with the PSTX softstarter configuration, control wiring, communication interfaces, and power section. Correct board identification and configuration are important before returning the softstarter to operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 1SFB536271A1009 |
| Product Family | PSTX Softstarter |
| Product Type | CPU Control Board |
| Primary Function | Softstarter control and processing |
| System Role | Central softstarter control interface |
| Application | Industrial motor starting and control |
| Dimensions | 280 × 40 × 100 mm |
| Weight | 0.6 kg |
Product Features
- CPU control board for ABB PSTX softstarter systems
- Handles central control functions within the softstarter
- Coordinates control commands with the softstarter power section
- Suitable for industrial motor starting and stopping applications
- Works with associated PSTX control and monitoring functions
- Applicable to motor-driven pumps, fans, compressors, conveyors, and machinery
- Suitable for maintenance and replacement of compatible PSTX control hardware
Working Principle
The 1SFB536271A1009 CPU Control Board processes operating commands and system information within the PSTX softstarter. Based on the configured operating conditions, it coordinates the softstarter’s control functions and communicates with the power-control section responsible for regulating motor voltage.
During motor starting, the control system manages the softstarter sequence while the power section controls the electrical supply applied to the motor. As the motor accelerates, the control board monitors the relevant operating information and maintains the configured starting behavior.
Start Command → PSTX CPU Control Board → Control / Power Section → Motor
During stopping, the control board similarly coordinates the configured stopping sequence. Status information, protection conditions, and control signals can be processed as part of the overall softstarter operation.
Role in an ABB PSTX Softstarter Control Architecture
The 1SFB536271A1009 occupies the control layer inside the PSTX softstarter. It connects external commands and softstarter operating functions with the internal power-control circuitry.
Operator / PLC → PSTX CPU Control Board → Power-Control Section → Motor
| System Element | Function |
|---|---|
| Operator / PLC | Sends motor start, stop, and control commands |
| PSTX CPU Control Board | Processes softstarter control functions |
| PSTX Power Section | Regulates electrical power supplied to motor |
| Motor Protection | Monitors applicable motor operating conditions |
| Motor | Performs the mechanical work |
| HMI / Control System | Provides monitoring and operator interaction |
This architecture separates the control-processing functions from the high-power motor-switching section of the softstarter.
Industrial Applications
| Application | Typical Use |
|---|---|
| Pump Systems | Controlled motor starting and stopping |
| HVAC Equipment | Soft starting of fans and pumps |
| Compressors | Reducing mechanical and electrical starting stress |
| Conveyors | Smooth motor acceleration |
| Water Treatment | Motor control for pumps and auxiliary equipment |
| Industrial Machinery | Controlled starting of motors |
| Material Handling | Starting conveyor and handling motors |
| Process Equipment | Motor control within automated production systems |
Installation and Maintenance
- Confirm that the 1SFB536271A1009 is the correct control board for the installed PSTX softstarter before replacement.
- Isolate the softstarter and motor circuit according to the approved electrical safety procedure.
- Allow sufficient time for the equipment to reach a safe de-energized condition before accessing internal components.
- Record the existing control-board connections and configuration before removal.
- Verify connectors and terminal assignments against the applicable PSTX documentation.
- Inspect the replacement board and associated connectors for visible damage or contamination.
- Install the board carefully and ensure all connectors are fully seated.
- Check communication, control, and auxiliary wiring after installation.
- Restore power under controlled commissioning conditions.
- Verify that the PSTX softstarter initializes correctly and reports normal status.
- Test start, stop, protection, and control functions with the motor under appropriate commissioning conditions.
- After replacement, perform a complete softstarter and motor functional test before returning the equipment to normal service.
Compatible System Components
| Component | Function |
|---|---|
| ABB PSTX Softstarter | Provides controlled motor starting and stopping |
| PSTX Power Section | Controls electrical power delivered to motor |
| Motor | Converts electrical energy into mechanical power |
| Motor Protection Devices | Protects motor and electrical circuits |
| PLC / Controller | Sends automated start and stop commands |
| HMI / Operator Panel | Provides local monitoring and control |
| Communication Interface | Exchanges control and status information |
| Motor Contactor / Bypass | Supports motor circuit switching where applicable |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB 1SFB536271A1009 | PSTX CPU Control Board | PSTX softstarter control |
| ABB PSTX Softstarter | Softstarter | Industrial motor starting and stopping |
| ABB PSTX Series Control Boards | Control Board | Softstarter control and monitoring |
| ABB PSTX Power Sections | Power-Control Assembly | Motor voltage regulation |
| ABB PSTX Communication Modules | Communication Interface | PLC and network integration |
| ABB PSTX Accessories | Softstarter Accessories | Installation and system integration |
Key Advantages
- Provides central control processing within compatible ABB PSTX softstarters.
- Coordinates external commands with the softstarter power-control section.
- Supports controlled motor acceleration and stopping.
- Suitable for automated motor-control applications.
- Useful for PSTX service, repair, and control-board replacement.
- Integrates with PLC, HMI, and associated softstarter components.
Technical FAQs
What function does the CPU Control Board perform inside a PSTX softstarter?
The CPU Control Board handles central control and processing functions within the softstarter. It coordinates operating commands and system information with the PSTX power-control section.
What symptoms may indicate a control-board problem?
Failure to initialize, missing control responses, abnormal status indications, or unexpected softstarter behavior may indicate a control-board issue. However, control wiring, configuration, communication, and the power section should also be checked before replacing the board.
Can the control board be replaced without checking the PSTX configuration?
The replacement should not be treated as a simple plug-in component without verification. The board identification, connector arrangement, control settings, communication configuration, and associated PSTX hardware should be checked before commissioning.
What should be tested after installing a replacement CPU Control Board?
Verify softstarter initialization first, then check control commands, status information, protection functions, and communication. A controlled motor start and stop test should confirm that the complete PSTX system operates correctly.
