Overview

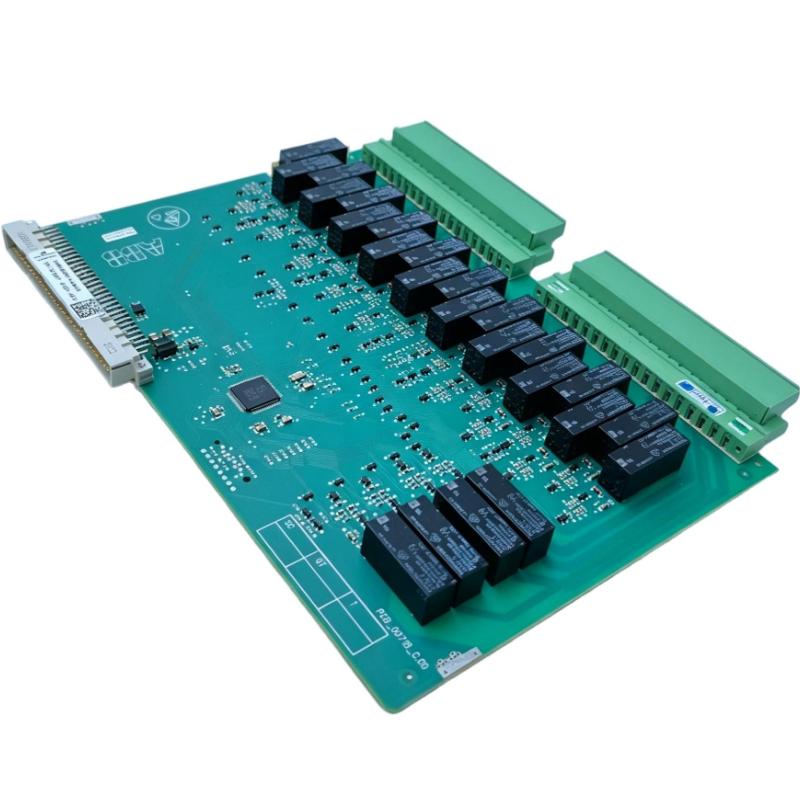

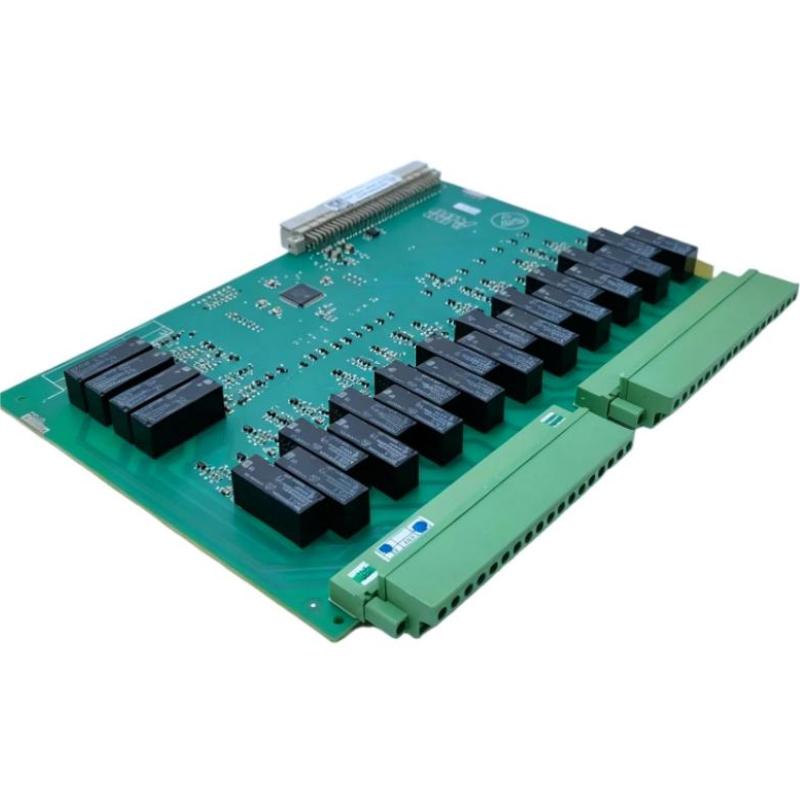

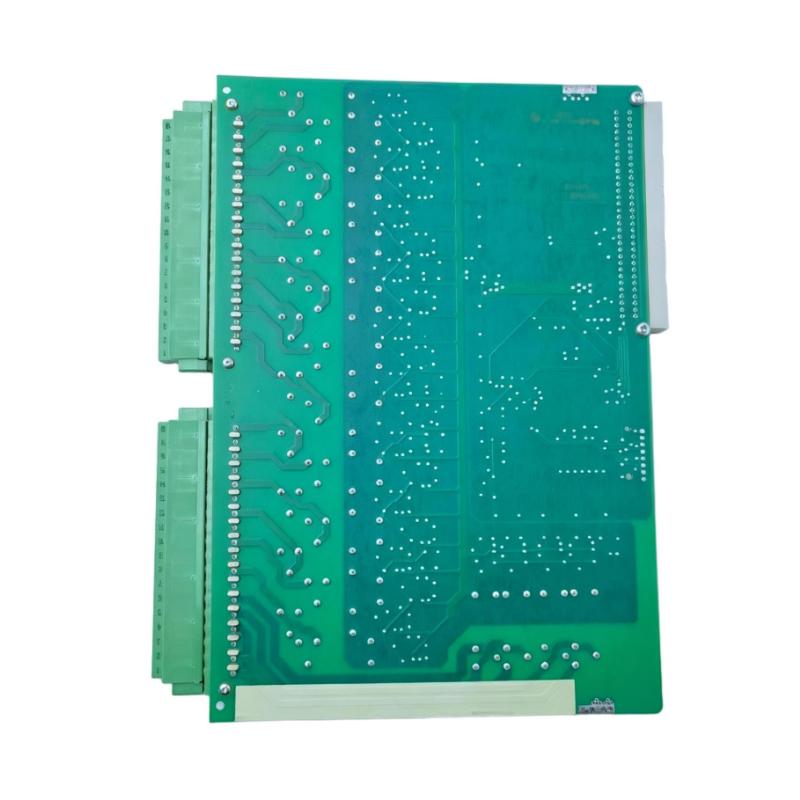

The ABB 1MRK000614-BBr00 is a Binary Input/Output Module designed for industrial protection, control, and automation systems.
This module combines digital input and output functions, allowing control systems to receive status signals from external devices and send switching commands to connected equipment. It provides a flexible interface between field devices and automation platforms for applications requiring reliable signal monitoring and control.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | 1MRK000614-BBr00 |
| Product Type | Binary Input/Output Module |
| Dimensions | 225 × 25 × 187 mm |
| Weight | 0.4 kg |
| Signal Type | Digital Input / Digital Output |
| Main Function | Binary Signal Acquisition and Control |
| Input Function | Receives External Status Signals |
| Output Function | Controls External Devices |
| Installation Type | Control System Module Installation |
| Application | Protection and Automation Systems |
Applications
Power Protection Systems
The ABB 1MRK000614-BBr00 is used in protection systems to collect equipment status signals and provide control outputs for electrical devices.
Substation Automation
It supports substation control applications by providing reliable digital communication between field equipment and protection systems.
Industrial Control Systems
The module is suitable for industrial automation applications requiring both digital signal monitoring and control functions.
Equipment Control Applications
It can receive feedback signals from devices while also sending switching commands for operational control.
Automation Interlocking Systems
The module supports control sequences and safety interlocking functions based on binary input and output signals.
How It Works
The ABB 1MRK000614-BBr00 integrates binary input and output functions within a single module.
The input channels receive status information from external contacts, sensors, or switching devices. The output channels transmit control commands to external equipment such as relays, actuators, or other control devices.
The typical working process is:
Field Devices → 1MRK000614-BBr00 Module → Protection / Control System → Controlled Equipment
By combining signal monitoring and control functions, the module simplifies system design and improves automation efficiency.
Key Advantages
| Feature | Benefit |
|---|---|
| Combined Input and Output Functions | Provides both monitoring and control capability in one module. |
| Reliable Digital Signal Processing | Ensures accurate status detection and command execution. |
| Compact Module Design | Helps save installation space in control cabinets. |
| Flexible System Integration | Supports various protection and automation applications. |
| Stable Industrial Operation | Suitable for continuous control system operation. |
| Efficient Signal Management | Reduces the need for separate input and output components. |
Related Components
| Component | Function |
|---|---|
| ABB 1MRK000614-BBr00 Module | Handles binary input and output signal processing. |
| Protection Relay System | Performs monitoring and protection logic. |
| Digital Sensors | Provide equipment status information. |
| Control Relays | Execute switching operations. |
| Communication Modules | Transfer data between automation devices. |
| Switchgear Equipment | Provides field control and feedback signals. |
Installation
The ABB 1MRK000614-BBr00 should be installed in a compatible ABB protection or automation system.
Before installation, check:
- Module compatibility
- Input and output signal requirements
- Wiring connections
- Installation position
- System configuration parameters
Ensure all terminals are correctly connected and secured. After installation, verify input signal detection, output operation, and communication status with the control system.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Input Signal Not Detected | Incorrect wiring or faulty field device | Check input connections and external contacts. |
| Output Command Not Executed | Output circuit problem | Check output wiring and connected equipment. |
| Incorrect Signal Status | Configuration error | Verify module settings and control logic. |
| Intermittent Operation | Loose connection or cable issue | Inspect terminals and wiring condition. |
| Module Communication Failure | System connection problem | Check module installation and controller status. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| 1MRK000614-BBr00 | Binary Input/Output Module | Digital monitoring and control |
| 1MRK000508-BBr00 | Binary Input Module | Status signal acquisition |
| 1MRK000005-392 | Binary Input/Output Module | Protection system I/O expansion |
| 1MRK002246-BDr01 | Binary Input/Output Module | Industrial signal processing |
| 1MRK000284-ABr03 | Binary Input Module | Digital status monitoring |
| 3HAC021905-001/05 | SMB Unit | Industrial control system application |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| ABB Protection Systems | Control Platforms | Electrical monitoring and protection |
| ABB Relion Series | Protection Devices | Power system applications |
| ABB I/O Modules | Signal Processing Units | Digital and analog signal handling |
| ABB Control Modules | Automation Components | System control functions |
| ABB Communication Modules | Network Components | Data exchange and integration |
| ABB Industrial Automation Systems | Control Solutions | Process and equipment automation |
Technical FAQs
1. What is the main function of the ABB 1MRK000614-BBr00?
The ABB 1MRK000614-BBr00 is a binary input/output module used for digital signal monitoring and control in automation systems.
2. What is the difference between binary input and binary output functions?
Binary input receives status signals from external devices, while binary output sends control commands to external equipment.
3. Where is the ABB 1MRK000614-BBr00 commonly used?
It is commonly used in protection systems, substation automation, and industrial control applications.
4. What should be checked if an output command does not work?
Check output wiring, connected devices, module configuration, and control logic settings.
5. Why use a combined binary input/output module?
A combined module reduces system complexity by providing signal monitoring and control functions within one device.
