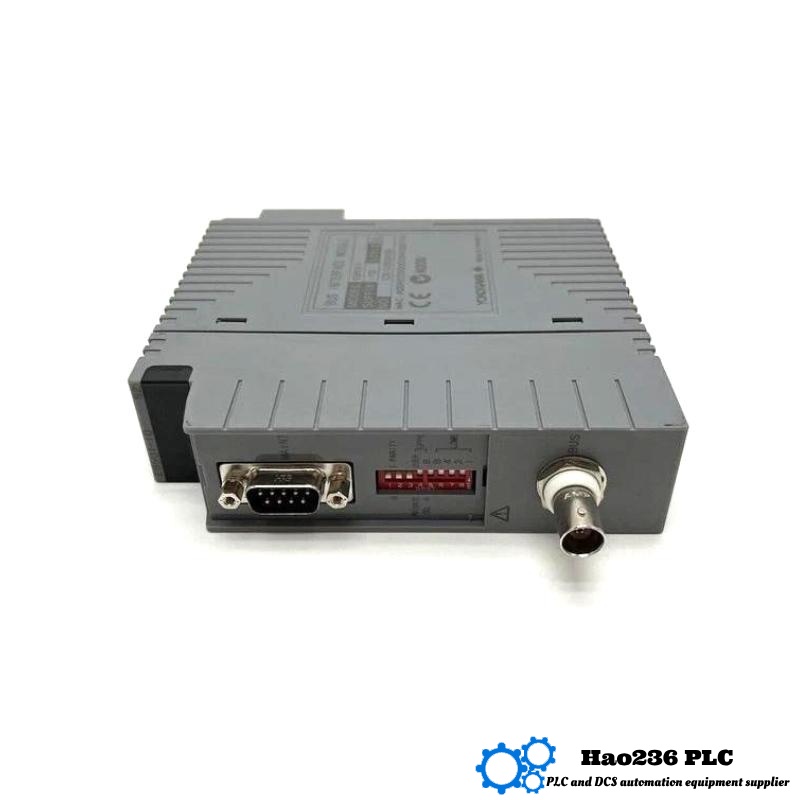

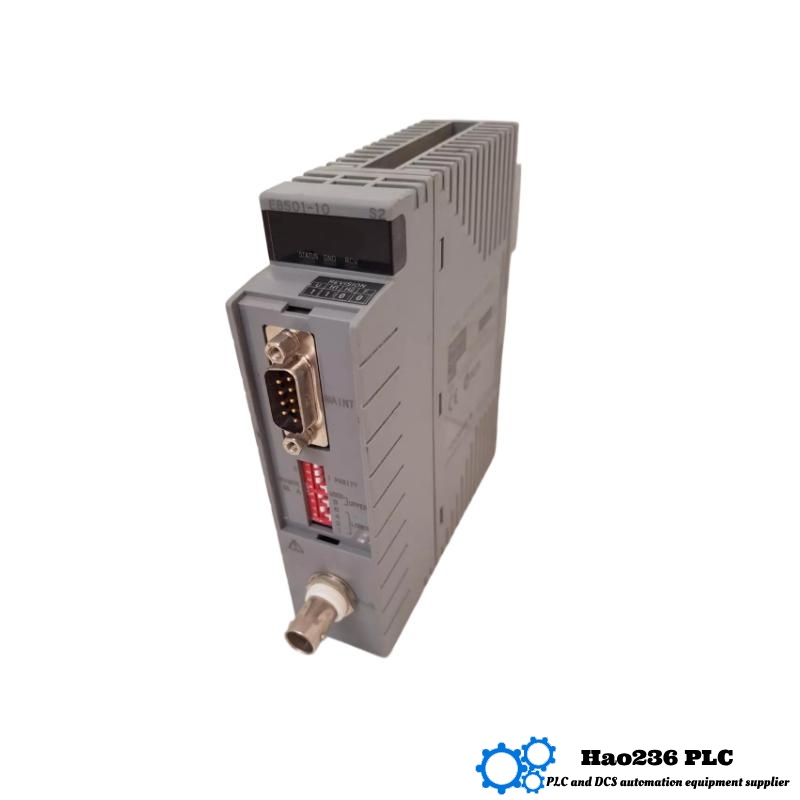

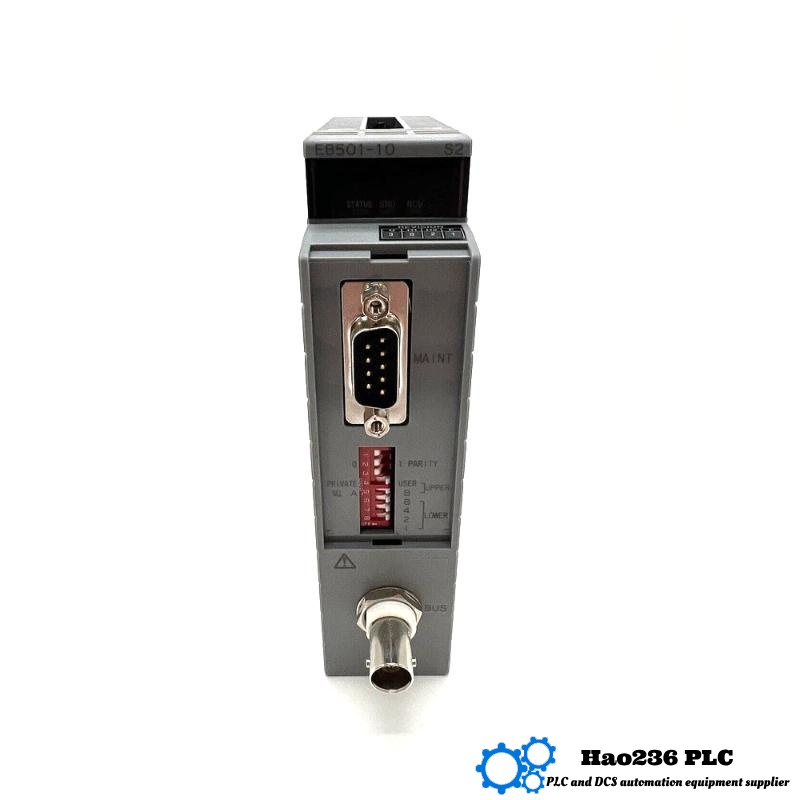

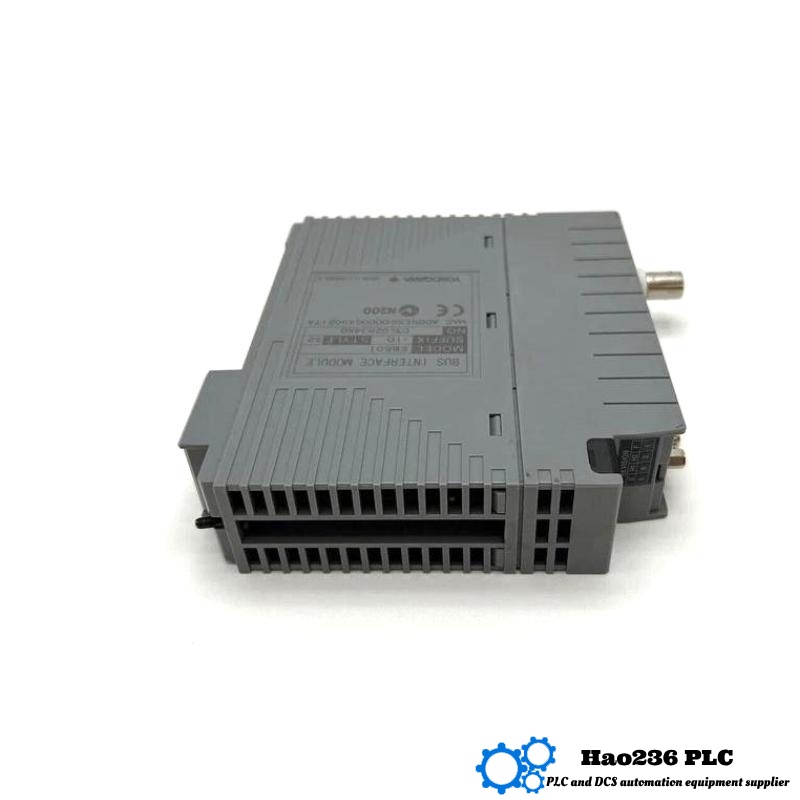

Yokogawa EB501-10 S2 Bus Interface Module
Product Introduction
The Yokogawa EB501-10 S2 is a high-performance bus interface module specifically designed to provide robust and reliable communication between field instruments and control systems in industrial environments. As part of Yokogawa’s proven automation hardware portfolio, this module ensures precise and efficient data transmission using standardized fieldbus protocols.
With its compact dimensions of 144.65 x 130 x 32.8 mm and lightweight construction at only 0.3 kg, the EB501-10 S2 offers superior adaptability for integration in space-constrained applications. Its durable housing and advanced internal architecture are optimized for harsh industrial conditions, making it a trusted choice for continuous, high-availability operations in sectors such as power generation, oil & gas, and chemical processing.
The EB501-10 S2 supports seamless configuration and setup, making it a plug-and-play solution for engineers looking to scale or upgrade communication capabilities in existing Yokogawa DCS or PLC environments. With internationally recognized certifications, it ensures safe, stable, and compliant performance across global industries.
Product Parameters
| Parameter | Description |
|---|---|
| Model Number | EB501-10 S2 |
| Dimensions | 144.65 x 130 x 32.8 mm |
| Weight | 0.3 kg |
| Communication Bus | Fieldbus-compatible (varies by configuration) |
| Power Supply | 24 V DC (typical) |
| Operating Temperature | -10°C to 55°C |
| Mounting Type | DIN rail mounting |
| Connector Type | Standard industrial bus connectors |
| Certifications | CE, UL (region-dependent) |
Product Applications
-
Used in distributed control systems (DCS) for communication between field devices and control units
-
Enables integration of sensors, actuators, and transmitters in industrial automation networks
-
Applied in oil & gas, petrochemical, power, manufacturing, and water treatment plants
-
Supports real-time data collection for monitoring and diagnostics
-
Acts as a communication bridge for fieldbus networks in hazardous environments
Product Advantages
High Reliability
Designed for demanding industrial environments, it offers consistent and fault-tolerant communication.
Compact Size
Small footprint (144.65 x 130 x 32.8 mm) and lightweight design (0.3 kg) make installation flexible and convenient.
Industrial Durability
Can withstand electrical noise, temperature variations, and mechanical vibration typical in factory settings.
Easy Integration
DIN rail mounting and standard connectors simplify installation and reduce system setup time.
Scalable and Flexible
Adaptable to various Yokogawa control systems and supports different protocol settings for network scalability.
Global Certification
Conforms to CE and UL standards, ensuring safety and quality compliance in international operations.
Brand Information
Yokogawa Electric Corporation is a globally recognized leader in industrial automation, control systems, and instrumentation. Established in 1915, Yokogawa is headquartered in Tokyo, Japan, and operates in more than 55 countries. Known for its reliability and innovation, the company offers solutions that improve productivity, safety, and sustainability in sectors such as energy, chemicals, pharmaceuticals, and manufacturing.
Related Models (Same or Similar Series)
| Model Number | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|
| EB501-10 S1 | 144.65 x 130 x 32.8 | 0.3 | Earlier version with standard communication |
| EB502-20 S2 | 150 x 135 x 35 | 0.35 | Multi-protocol support for extended systems |
| EB503-10 S2 | 140 x 128 x 33 | 0.32 | Enhanced noise filtering capabilities |
| EB504-10 S3 | 145 x 130 x 34 | 0.31 | Improved temperature tolerance |
| EB501-15 S2 | 144.65 x 130 x 32.8 | 0.3 | Longer-distance fieldbus signal extension |
Popular Yokogawa Models (Other Hot Products)
| Model Number | Product Type | Key Feature | Typical Application | Cable Length / Size |
|---|---|---|---|---|
| CP471-10 | Proximitor Sensor | High accuracy, rugged design | Vibration monitoring | Compact sensor size |
| EB401-50 | Extension Cable | Long cable length | Remote sensor connection | 50 meters |
| EC401-10 | Extension Cable | Standard cable length | Sensor extension | 10 meters |
| EB401-25 | Extension Cable | Medium cable length | Moderate distance sensor wiring | 25 meters |
| CP472-15 | Proximitor Sensor | Enhanced thermal tolerance | High temperature environments | Compact sensor size |
Frequently Asked Questions (FAQ)
Q1: What is the function of the EB501-10 S2?
A1: It connects field devices to Yokogawa control systems using fieldbus protocols, enabling real-time data communication.
Q2: What bus systems does it support?
A2: The EB501-10 S2 is compatible with several fieldbus protocols, depending on the system configuration.
Q3: Can it be installed in small enclosures?
A3: Yes, with its compact size (144.65 x 130 x 32.8 mm), it is suitable for small control cabinets.
Q4: Is the unit CE certified?
A4: Yes, it is CE certified and may include UL and other international certifications.
Q5: What is the power requirement?
A5: The module typically operates on a 24 V DC power supply.
Q6: Can this module be used in high-temperature environments?
A6: Yes, it operates effectively within a range of -10°C to 55°C.
Q7: Is it compatible with CENTUM VP systems?
A7: Yes, the EB501-10 S2 is designed to integrate smoothly with Yokogawa’s CENTUM VP platform.
Q8: What mounting options are available?
A8: The unit supports DIN rail mounting for ease of installation and servicing.
Q9: Does it support firmware upgrades?
A9: Yes, the firmware can be updated to improve functionality and compatibility.
Q10: What happens if the communication fails?
A10: Diagnostic LEDs and system logs help identify issues, and Yokogawa provides troubleshooting guidance.
