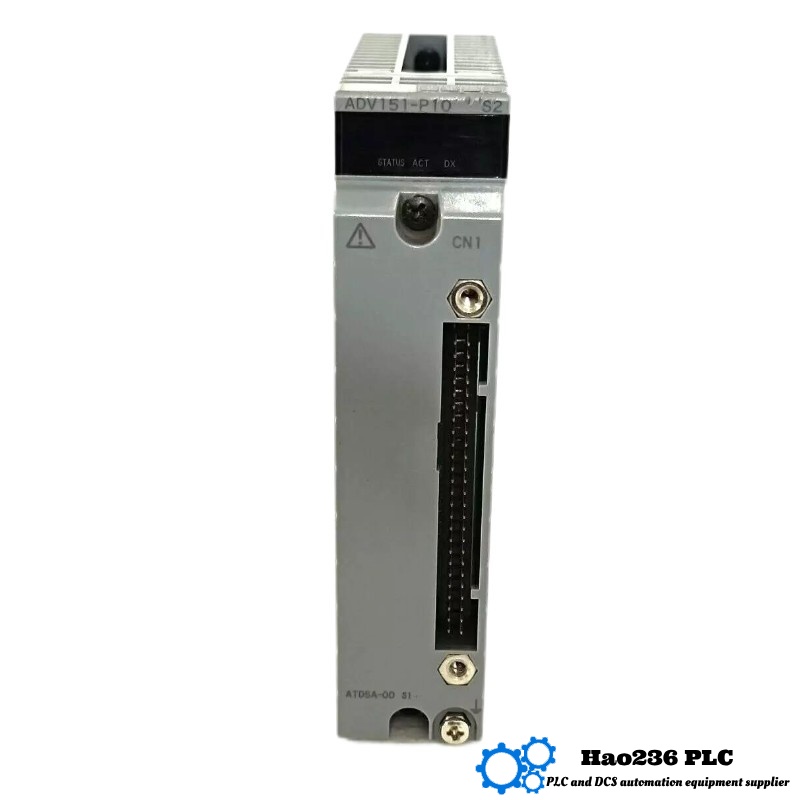

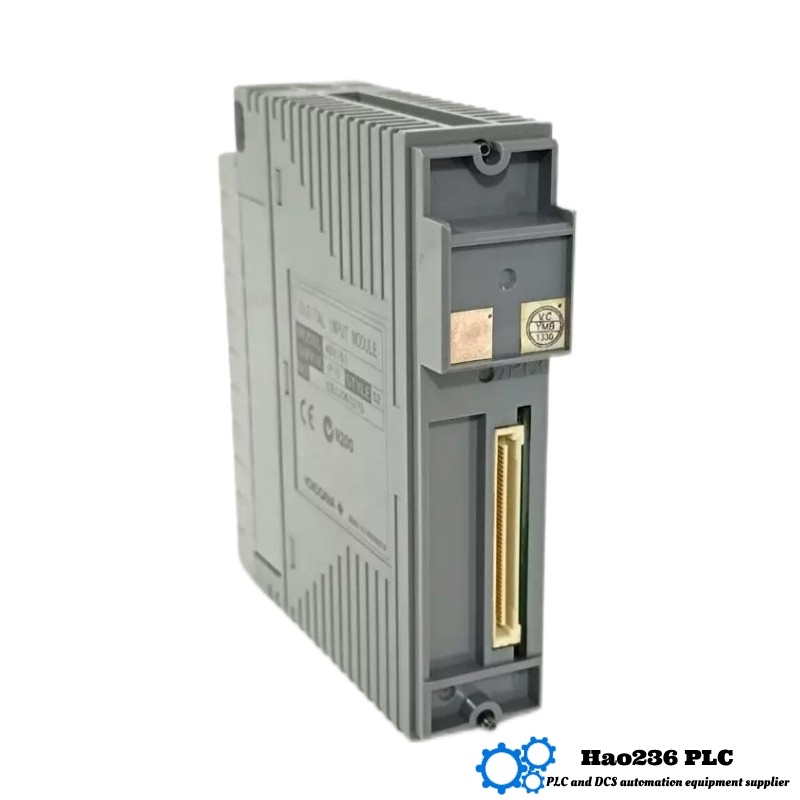

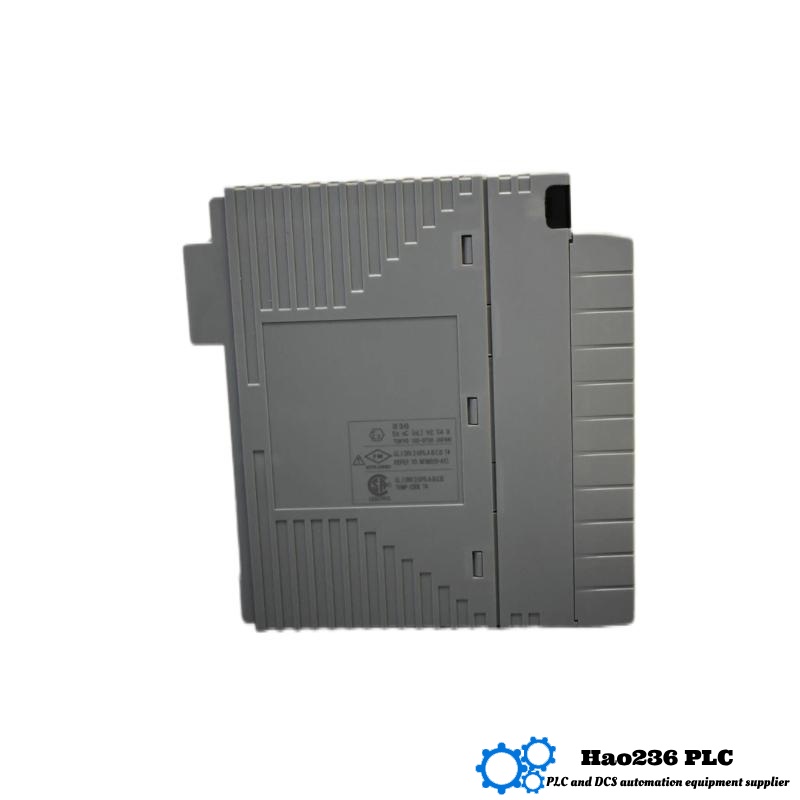

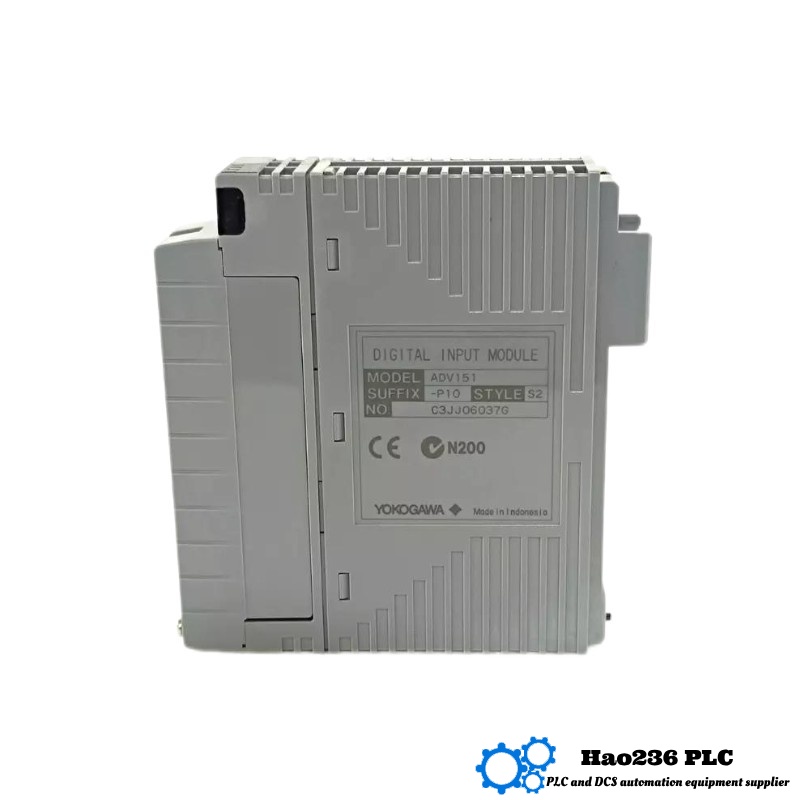

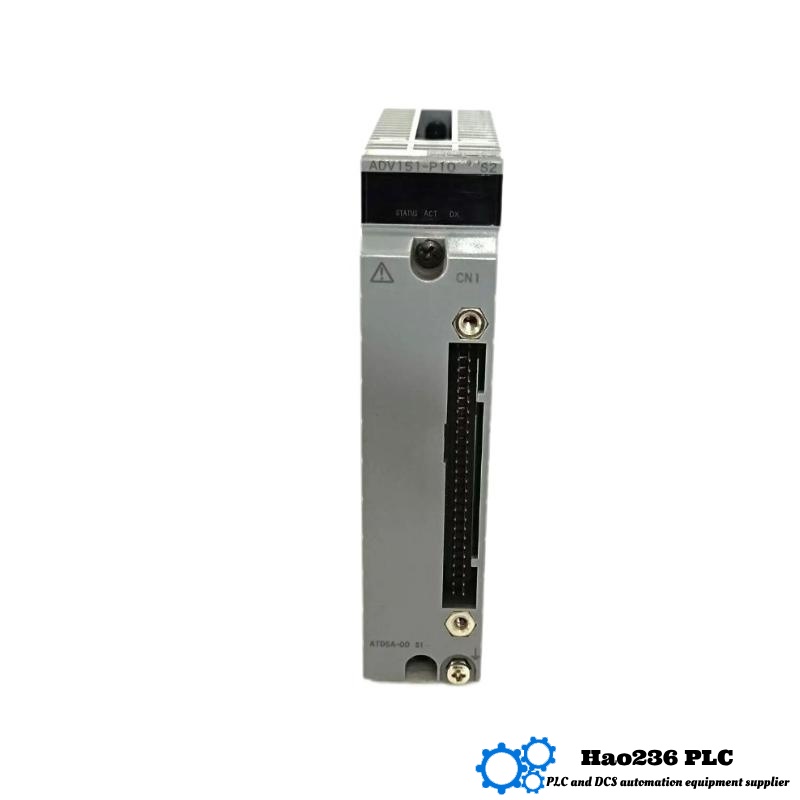

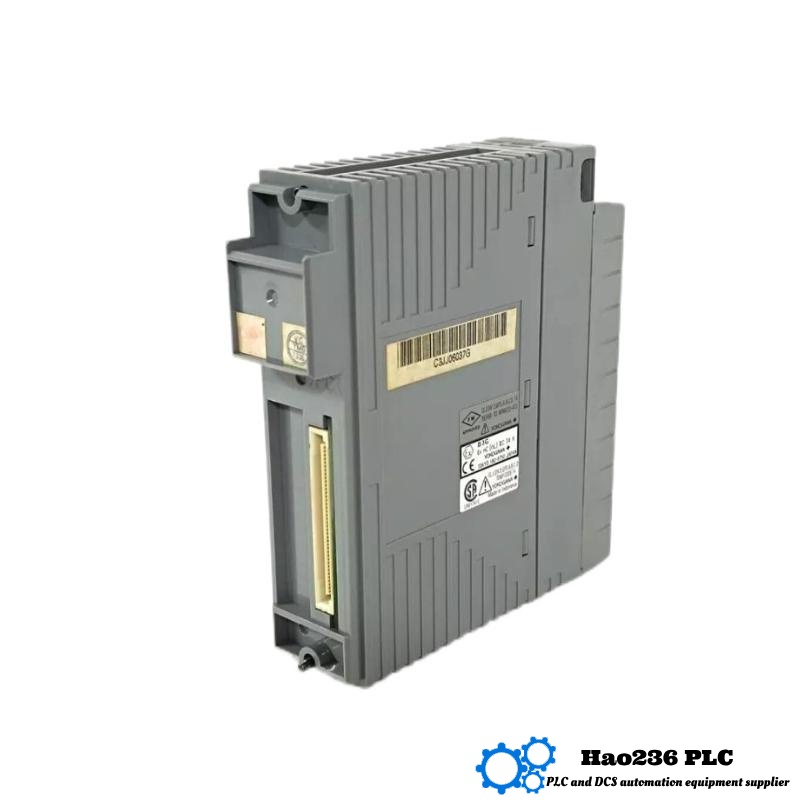

Product Overview: Yokogawa ADV151‑P10
Brand & Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module family (32‑channel, 24 V DC digital input modules used in Yokogawa Centum / FIO / Bus Node / Field Input Output systems)
Description
The ADV151‑P10 is a 32‑channel digital input module that interfaces with field devices such as switches, pushbuttons, proximity contacts, etc., to collect ON/OFF signals (24 V DC) for process control, monitoring and safety systems. It supports sink/source wiring, status inputs, pushbutton inputs, and functions such as SOE (Sequence of Events) capture. The module is compatible with Yokogawa control systems (e.g. Centum CS, Centum VP, ESB Bus Node, Optical ESB Bus Node Units) and designed for reliability in industrial environments. It offers isolation, withstand voltage between inputs and system, and various terminal / connector options.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151‑P10 |
| Series | ADV151 Digital Input Modules (32‑channel, 24 V DC) |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Input ON Voltage | 18.0 to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | ~ 4.1 mA ± 20% at rated voltage |
| Maximum Allowable Input Voltage | ~ 30.0 V DC |
| Withstand Voltage | 2 kV AC for 1 minute between input signal and system; 500 V AC for 1 minute between commons (e.g. every 16‑channel group) |
| Response Time | ≤ 8 ms for status input; pushbutton input detection slower (≈ 20 ms) |
| Max ON/OFF Cycle (Pushbutton input) | ~ 25 Hz |
| Maximum Current Consumption (module) | ~ 500 mA @ 5 V DC |
| External Connections | Pressure clamp terminals; dedicated cable (AKB331); MIL connector cable options |
| Weight | 0.30 kg |
| Dimensions (approx.) | 13 cm × 10.7 cm × 3.25 cm (length × height × depth) |
| Operating Temperature | ‑20 °C to +60 °C |
| Storage Temperature | typical industrial storage limits (‑40 °C to +85 °C) |
Applications
-
Capturing discrete (ON / OFF) signals (pushbuttons, limit switches, float switches, etc.) in process plants.
-
Monitoring safety interlocks, alarms, status of field devices.
-
Integration with Yokogawa DCS / FCS systems (for example, Centum CS/VP, Bus Node Units).
-
Sequence‑of‑Events (SOE) logging in control rooms.
-
Retrofits where large number of digital inputs are needed with reliable, isolated module.
Advantages
-
High channel count (32 channels) in one module saves rack space.
-
Robust input specifications and isolation improve noise immunity and safety.
-
Supports both sink and source wiring, enhancing flexibility in field wiring.
-
Fairly fast response for status inputs (≤ 8 ms) allowing timely detection of events.
-
Pushbutton input support with SOE capture is useful for diagnostics and high fidelity monitoring.
-
Good physical size (compact) and moderate weight (~0.30 kg) help with installation.
Related Models (Same Series or Close)
Here are 5 models in the ADV151 / related digital input families, for comparison or alternate choices.
| Model | Key Specs / Differences | Weight (kg) |
|---|---|---|
| ADV151‑P50 | 32‑channel, 24 V DC input; variant with different suffix (“P50”) for mounting/terminal options | ~ 0.30 kg |
| ADV151‑P63 | With status display variant; possibly better diagnostics built in | ~ 0.30 kg |
| ADV151‑E63 | Explosion / hazardous area / “E” variant; with status display | ~ 0.30 kg |
| ADV157‑S50 | 32‑channel digital input but different terminal block or cable interface option | ~ 0.40 kg |
| ADV161‑P50 | 64‑channel input module (larger channel count) | ~ 0.30 kg |
Other Popular Yokogawa Modules (Other Brands / Types)
Here are 5 popular modules from the same brand (Yokogawa) in related I/O families:
| Model | Functionality / Highlights | Weight (approx.) |
|---|---|---|
| AAI143‑S50 | Analog input module (voltage/current / RTD) | ~ 0.40‑0.50 kg |
| AIS143‑H63 | Analog input with high speed or filtering features | ~ 0.30‑0.45 kg |
| ADP152‑P10 | Digital output module with similar channel count | ~ 0.30 kg |
| ADV161‑P63 | 64‑channel digital input with status display variant | ~ 0.30 kg |
| ADR541‑P50 | Relay / discrete output module to complement input modules | ~ 0.35‑0.45 kg |
FAQs (Questions & Answers)
Q1: What does “P10” stand for in ADV151‑P10?
A1: “P” indicates pushbutton input capability (counting edges, status detection), “10” is one of the suffix codes for specific features / hardware options in the ADV151 family (e.g. terminal block / cable set).
Q2: Is the module isolated between input signals and the module/system?
A2: Yes. It provides withstand voltage (2 kV AC) between its input signal lines and the system, improving safety and reducing interference.
Q3: What kind of ON/OFF voltage thresholds does it use?
A3: ON is detected when input voltage is approx. 18 to 26.4 V DC; OFF is below or equal to ~5.0 V DC.
Q4: How many input channels does ADV151‑P10 support?
A4: It supports 32 input channels.
Q5: How fast can it detect a change in status (for status inputs)?
A5: Response time for status inputs is ≤ 8 ms.
Q6: What is the maximum pushbutton (ON/OFF) switching speed supported?
A6: For pushbutton inputs, maximum ON/OFF cycle is about 25 Hz.
Q7: What are the physical dimensions & weight?
A7: Dimensions are approx. 13 × 10.7 × 3.25 cm; weight is about 0.30 kg.
Q8: How much power does the module consume?
A8: Maximum current consumption is up to 500 mA at 5 V DC (when all channels are active).
Q9: What connector / terminal options are provided?
A9: The module offers pressure clamp terminals, a dedicated cable (AKB331), and MIL‑connector cable options.
Q10: What temperature ranges can it operate under?
A10: Operating temperature from about −20 °C to +60 °C; storage temperature likely broader (typical industrial module specs).
