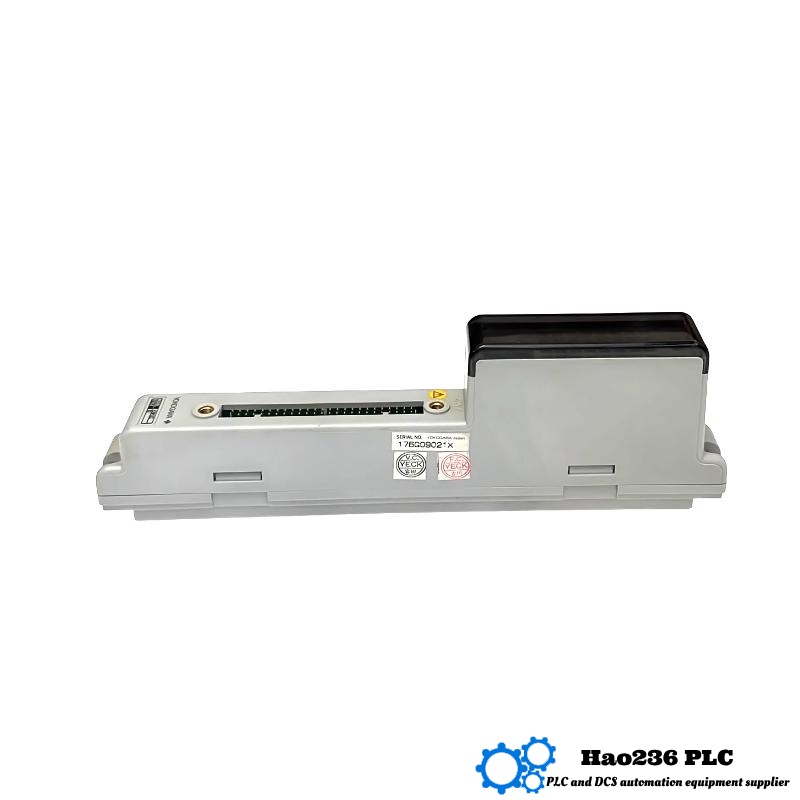

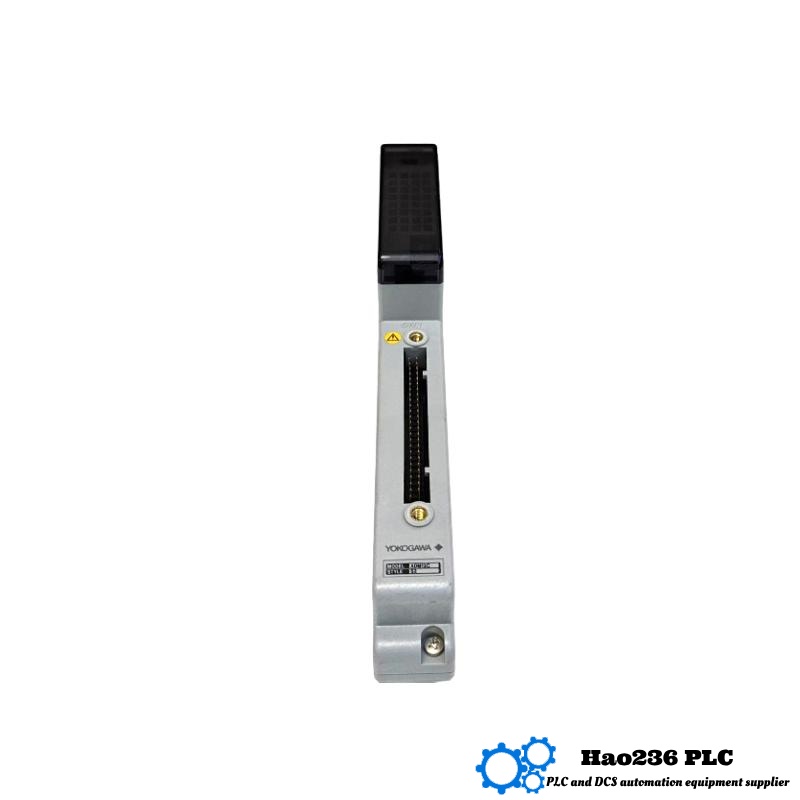

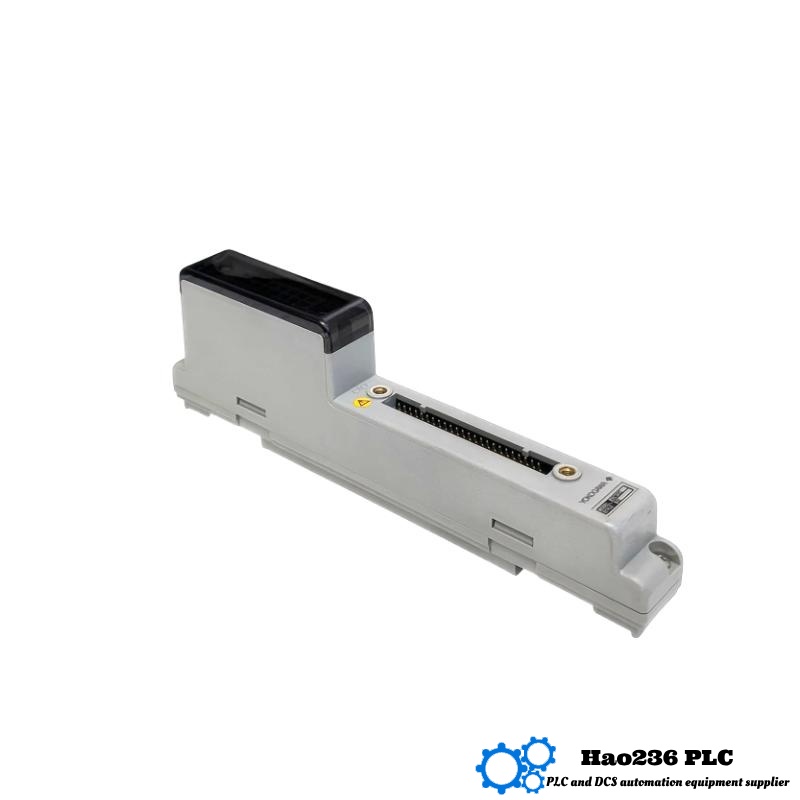

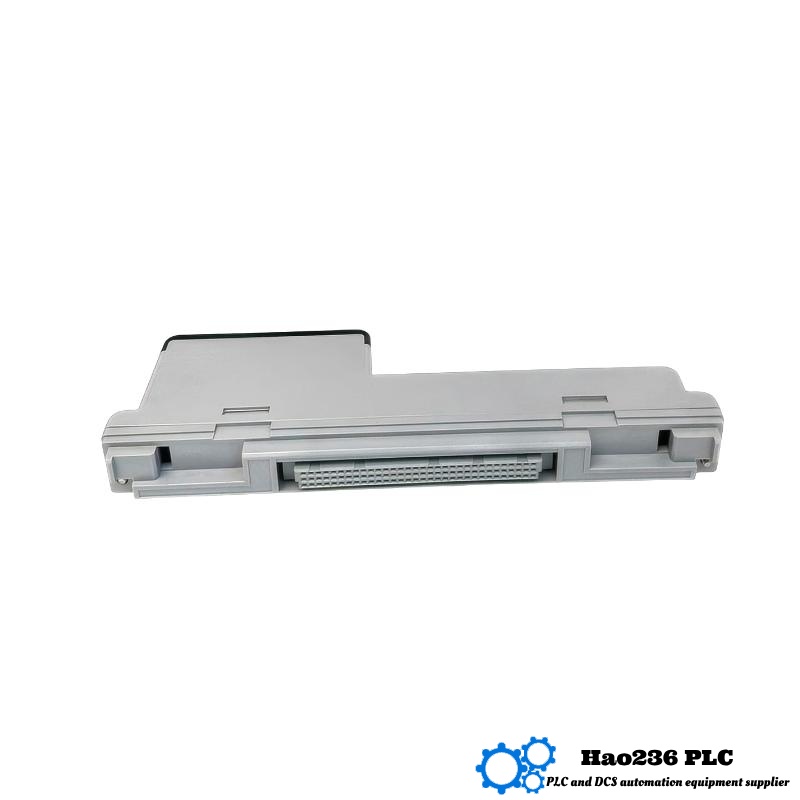

Yokogawa ADM12C Contact Input Module
Product Introduction
The Yokogawa ADM12C is a Contact Input Module designed for seamless integration with industrial automation systems. It allows the monitoring and processing of discrete contact inputs, typically from devices such as switches, relays, and sensors. The module is built for high-performance applications, offering fast response times and reliable signal processing. The ADM12C is engineered to provide maximum uptime and efficient control in industrial environments, where accuracy, reliability, and speed are crucial for maintaining operational excellence.
This contact input module offers 12 channels for input monitoring, providing the flexibility needed for various industrial applications. With its compact design and ease of integration into existing control systems, the ADM12C is an ideal solution for industries requiring robust and responsive control systems.
Applications
The ADM12C Contact Input Module is ideal for various industrial applications, including:
-
Industrial Automation: Collecting discrete contact signals from relays, switches, and sensors used in automated control systems.
-
Control Systems for Safety: Monitoring emergency stop buttons, interlock switches, and other safety-critical devices to ensure the safe operation of machinery and equipment.
-
Building Management: Collecting status inputs from HVAC systems, security systems, and other building infrastructure components to optimize facility management.
-
Manufacturing and Assembly Lines: Monitoring equipment and machine states to trigger alarms or stop operations when necessary, improving production efficiency.
-
Energy and Utilities: Monitoring the status of electrical equipment, circuit breakers, and safety switches to ensure reliable power distribution and system integrity.
Advantages
-
High Channel Density: With 12 input channels, the ADM12C supports efficient contact signal processing while optimizing space within control cabinets.
-
Compact and Efficient Design: Measuring just 200 x 130 x 30 mm, the module is designed to be compact yet highly effective, saving space while ensuring full functionality.
-
High-Speed Signal Processing: Ensures that contact inputs are processed swiftly and accurately, offering fast response times for real-time applications.
-
Reliability: The ADM12C is built to handle demanding industrial conditions, offering stable and reliable performance with minimal maintenance.
-
Versatile Integration: Compatible with Yokogawa control systems, this module integrates effortlessly with other industrial equipment, providing a seamless experience for system designers and operators.
-
Low Power Consumption: The ADM12C operates with low power requirements, making it energy-efficient and cost-effective to run over long periods.
Brand
-
Brand: Yokogawa
Product Parameters
Here are the detailed specifications for the Yokogawa ADM12C Contact Input Module:
| Parameter | Details |
|---|---|
| Model | ADM12C |
| Input Type | Contact Input (Dry Contact) |
| Number of Inputs | 12 Inputs |
| Input Voltage Range | 24 V DC (typical) |
| Input Resistance | 10 kΩ |
| Dimensions | 200 x 130 x 30 mm |
| Weight | 1 kg |
| Power Consumption | 0.9 W (typical) |
| Mounting | DIN Rail or Panel Mount |
| Temperature Range | -10 °C to +60 °C |
| Response Time | 10 ms (typical per input) |
Related Models
Here are five related models that belong to the same Yokogawa series or offer similar functionality:
| Model Number | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADM11C | Contact Input Module, 8 Inputs | 8 | Dry Contact | 200 x 130 x 30 | 1 |
| ADM13C | High-Density Contact Input Module | 16 | Dry Contact | 200 x 130 x 30 | 1.2 |
| ADM14C | Isolated Contact Input Module | 8 | Dry Contact | 200 x 130 x 30 | 1.1 |
| ADM15C | Compact Contact Input Module | 4 | Dry Contact | 200 x 130 x 30 | 1 |
| ADM16C | Contact Input Module with Extended Features | 12 | Dry Contact | 200 x 130 x 30 | 1.1 |
Popular Yokogawa Models
Here are five other popular Yokogawa models commonly used in industrial automation:
| Model Number | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AAI141-S00 | 4–20 mA Input Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAI132-S00 | RTD Input Module | 8 | Pt100/Pt1000 RTD | 107.5 x 32.8 x 130 | 0.2 |
| AAB142-S00 | Voltage Output Module | 8 | 0–10 V DC | 107.5 x 32.8 x 130 | 0.2 |
| AAF141-S00 | Current Output Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAD321-S00 | Universal Input/Output Hybrid Module | 4 IN / 4 OUT | TC, RTD, mA, V | 107.5 x 65.6 x 130 | 0.35 |
FAQ
-
Q: How many contact inputs does the ADM12C module support?
A: The ADM12C supports 12 discrete contact inputs. -
Q: What is the input voltage range for the ADM12C?
A: The typical input voltage range is 24 V DC. -
Q: How is the ADM12C mounted?
A: The module can be mounted on a DIN rail or directly to a panel. -
Q: What is the weight of the ADM12C?
A: The ADM12C weighs 1 kg. -
Q: What is the power consumption of the ADM12C?
A: The typical power consumption is 0.9 W. -
Q: What is the temperature range for the ADM12C?
A: The operating temperature range is -10 °C to +60 °C. -
Q: What is the response time of the ADM12C?
A: The response time is 10 ms per input. -
Q: How many inputs can the ADM12C handle?
A: The ADM12C can handle up to 12 contact inputs. -
Q: Can the ADM12C be used in high-density applications?
A: Yes, the ADM12C is designed to accommodate up to 12 input signals, making it suitable for moderate-density applications. -
Q: Is the ADM12C compatible with other Yokogawa systems?
A: Yes, the ADM12C integrates seamlessly with other Yokogawa control systems.
