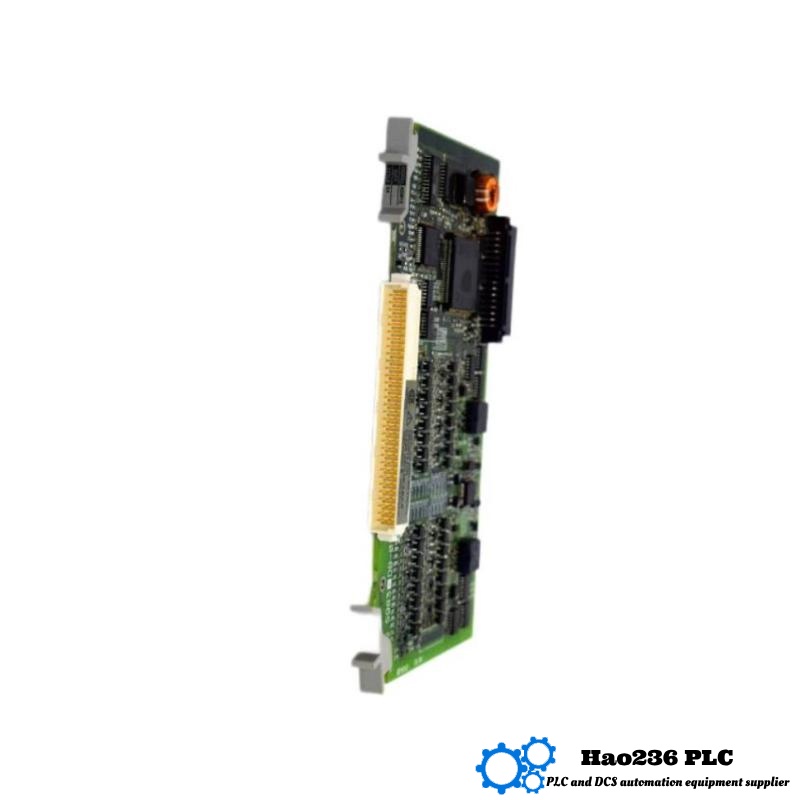

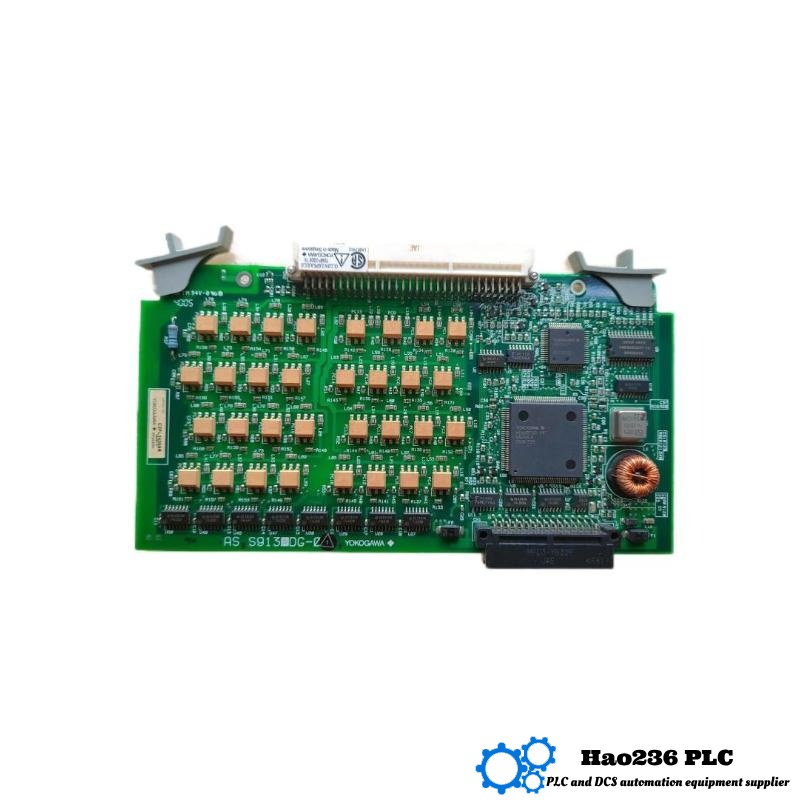

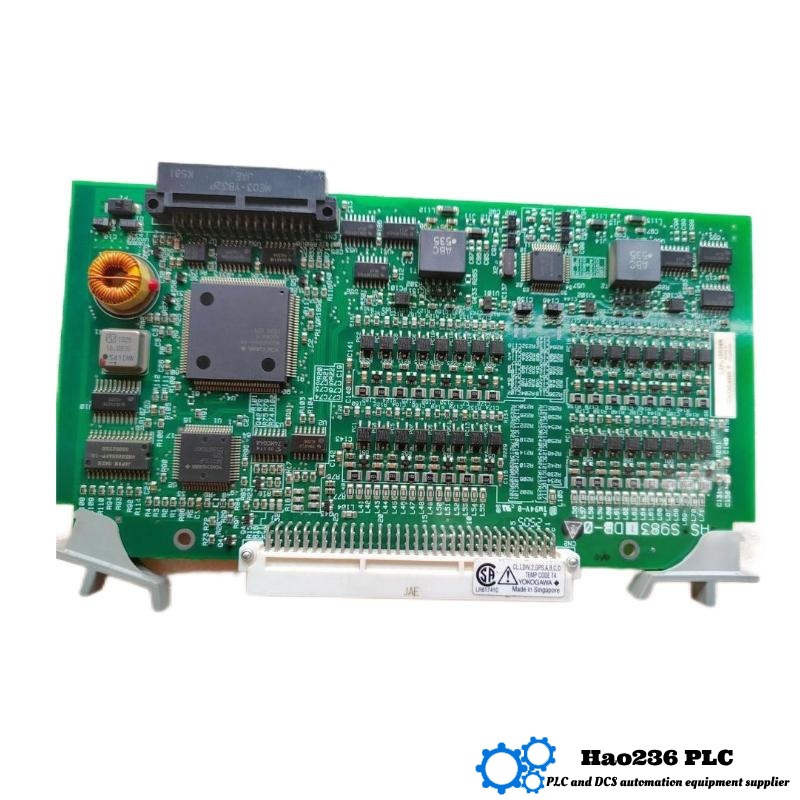

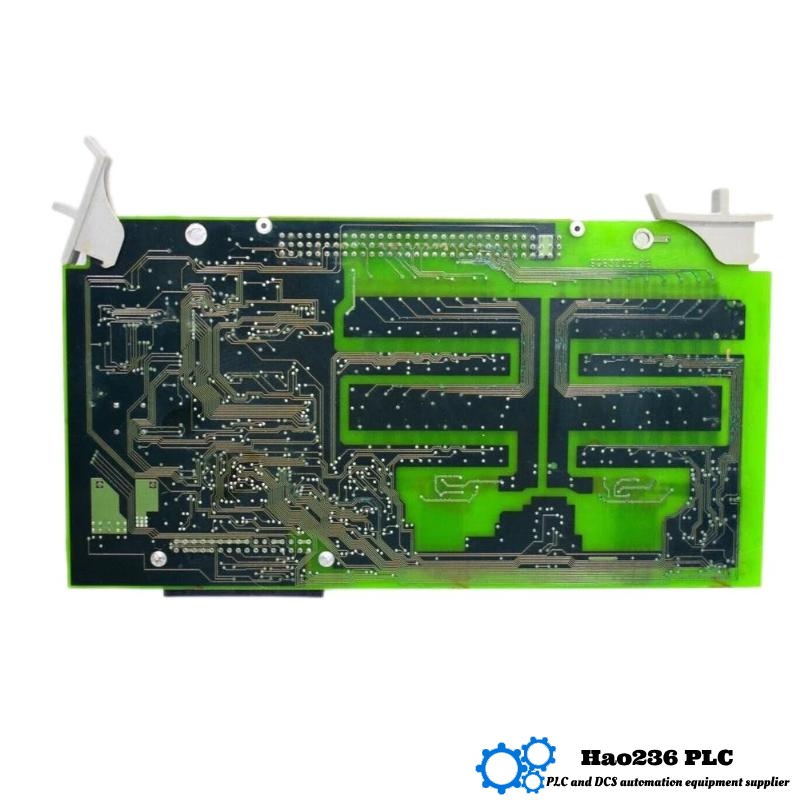

Yokogawa ADM12 Contact Input Module
Product Overview
The Yokogawa ADM12 is a contact input module designed for integration into industrial control systems. It is part of Yokogawa’s advanced automation product line, providing efficient and reliable contact input functionality. This module is widely used in industries requiring high-precision data acquisition and seamless integration with automation systems for monitoring and control applications.
The ADM12 is capable of receiving signals from a wide range of contact devices, such as push buttons, limit switches, and relay contacts. It converts these signals into appropriate digital signals for processing by the control system. The module is engineered for robust performance in harsh industrial environments, ensuring the reliability and accuracy of the signals it processes. It features a compact design, making it suitable for applications where space is limited.
The module’s seamless integration with Yokogawa’s automation and control systems makes it a versatile and reliable solution for a range of industrial processes.
Parameters
| Parameter | Specification |
|---|---|
| Model | ADM12 |
| Dimensions (L x W x H) | 200 x 130 x 30 mm |
| Weight | 1 kg |
| Input Type | Contact input (for switch, push-button, relay) |
| Input Channels | 12 input channels |
| Power Supply | 24 V DC |
| Operating Temperature Range | -10°C to +55°C |
| Mounting | DIN rail mountable |
| Input Signal Type | Dry contact (potential-free) |
| Input Voltage Range | 0V to 24V |
| Response Time | Fast response (milliseconds) |
Product Applications
The Yokogawa ADM12 Contact Input Module is used in various industrial applications, particularly for monitoring and control where precise digital signals from contact devices are required. The module’s applications include:
-
Industrial Automation: Widely used in factories and manufacturing environments to collect data from limit switches, safety circuits, and other contact-based devices for monitoring and control.
-
Process Control: Essential in process industries like chemical, pharmaceutical, and food processing, where it’s crucial to monitor status inputs from various contact devices such as relays and switches.
-
Safety Systems: Can be integrated into safety monitoring systems to ensure that emergency stop buttons or limit switches trigger appropriate actions in the system.
-
Power Plants: Used to monitor power generation systems, collecting data from contact devices that signal operational status or system faults.
-
Building Automation: Ideal for monitoring security and HVAC systems where status signals are generated by switches or relays.
Product Advantages
-
Compact and Efficient Design: The ADM12 measures 200 x 130 x 30 mm and weighs just 1 kg, making it compact and easy to integrate into space-limited control panels.
-
High Reliability: Built to perform under harsh conditions, it operates with a wide temperature range of -10°C to +55°C, ensuring reliable data collection in challenging environments.
-
Versatile Input: Supports up to 12 input channels, which can accommodate a wide range of contact devices, enhancing flexibility in system configuration.
-
Fast Response: The module offers fast response times, providing quick detection and processing of contact signals, ensuring timely and accurate control.
-
Easy Integration: Seamlessly integrates with Yokogawa’s automation systems, allowing for smooth and efficient communication between the module and other control components.
-
Durability: The module’s robust design ensures long-term operational stability, reducing the need for frequent replacements or maintenance.
Brand Overview: Yokogawa
Yokogawa is a global leader in industrial automation and control systems, providing innovative solutions to improve process efficiency, safety, and environmental sustainability. Founded in 1915, Yokogawa has been at the forefront of technological advancement in industries such as oil and gas, power, chemicals, and manufacturing. Their products, including the ADM12 Contact Input Module, are renowned for precision, reliability, and ease of integration, making them essential tools in optimizing industrial operations worldwide.
Recommended Related Models
| Model | Description | Key Parameter |
|---|---|---|
| ADM13 | Advanced contact input module with enhanced features | 16 input channels, wider input voltage range |
| ADM14 | Higher-channel version of ADM12, suitable for larger systems | 24 input channels, increased flexibility |
| ADM11 | Basic contact input module for small systems | 8 input channels, compact design |
| ADM15 | Specialized input module for high-frequency applications | Fast response time, high signal integrity |
| ADM16 | Flexible input module for complex industrial setups | Multi-protocol support, extended temperature range |
Recommended Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) | Power Supply | Inputs | Outputs |
|---|---|---|---|---|---|---|
| ADM12T | Contact Input Module | 200 x 130 x 30 | 1.0 | 24 V DC | 12 | – |
| ADM12C S2 | Contact Input Module (S2) | 200 x 130 x 30 | 1.0 | 24 V DC | 12 | – |
| ADM51-2 S4 | Advanced Input Module | 200 x 130 x 30 | 1.1 | 24 V DC | 12 | 4 |
| ADM52 | Dual Channel Input Module | 200 x 130 x 30 | 1.0 | 24 V DC | 12 | 2 |
| ADM54 | Quad Channel Input Module | 200 x 130 x 30 | 1.1 | 24 V DC | 12 | 4 |
FAQ
Q1: What is the main purpose of the Yokogawa ADM12?
A1: The ADM12 is a contact input module used to convert signals from contact-based devices (like push buttons, relays, and limit switches) into digital signals for use in control systems.
Q2: How many input channels does the ADM12 support?
A2: The ADM12 supports up to 12 input channels, allowing for versatile applications in various monitoring and control setups.
Q3: What is the operating temperature range of the ADM12?
A3: The ADM12 operates within a temperature range of -10°C to +55°C, making it suitable for most industrial environments.
Q4: Can the ADM12 be used in hazardous environments?
A4: The ADM12 is designed for industrial environments, but for hazardous areas, please consult Yokogawa for specific certifications and compatibility.
Q5: What is the weight of the ADM12?
A5: The ADM12 weighs 1 kg, making it a lightweight and easy-to-install solution for industrial control panels.
Q6: How is the ADM12 powered?
A6: The ADM12 operates on a 24 V DC power supply, commonly used in industrial control systems.
Q7: What types of devices can be connected to the ADM12?
A7: The ADM12 can connect to devices such as relays, limit switches, and push buttons, making it versatile for various industrial applications.
Q8: Can the ADM12 be mounted on DIN rails?
A8: Yes, the ADM12 is designed to be DIN rail mountable, offering easy installation in standard control cabinets.
Q9: Is the ADM12 compatible with Yokogawa’s other automation systems?
A9: Yes, the ADM12 is fully compatible with Yokogawa’s control systems, including the CS3000 and DX1000.
Q10: How does the ADM12 improve system efficiency?
A10: The ADM12 helps streamline control and monitoring processes by providing accurate, real-time data from contact-based devices, allowing for faster decision-making and more efficient system operation.
