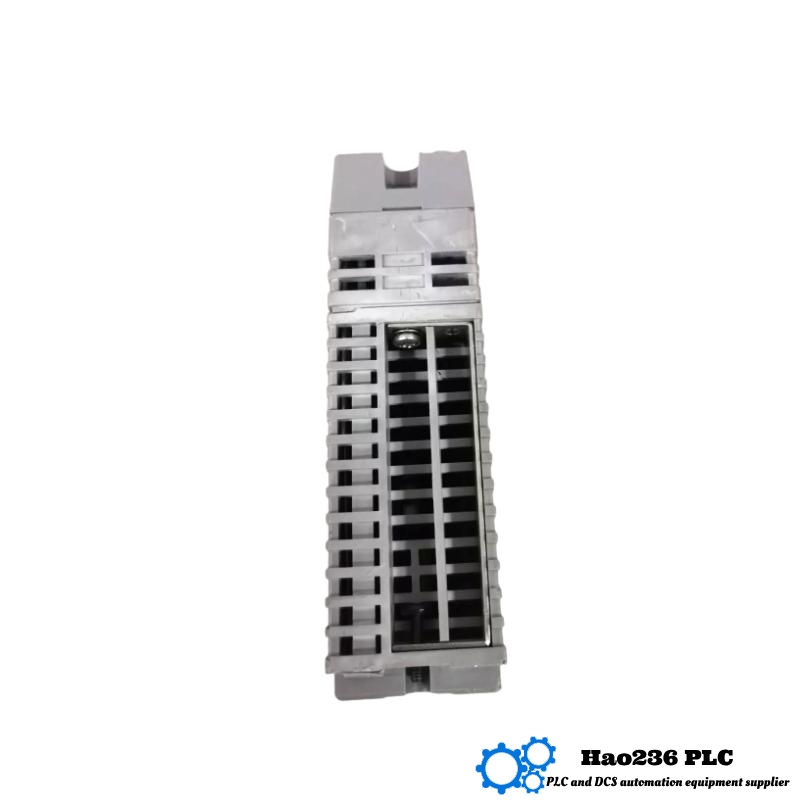

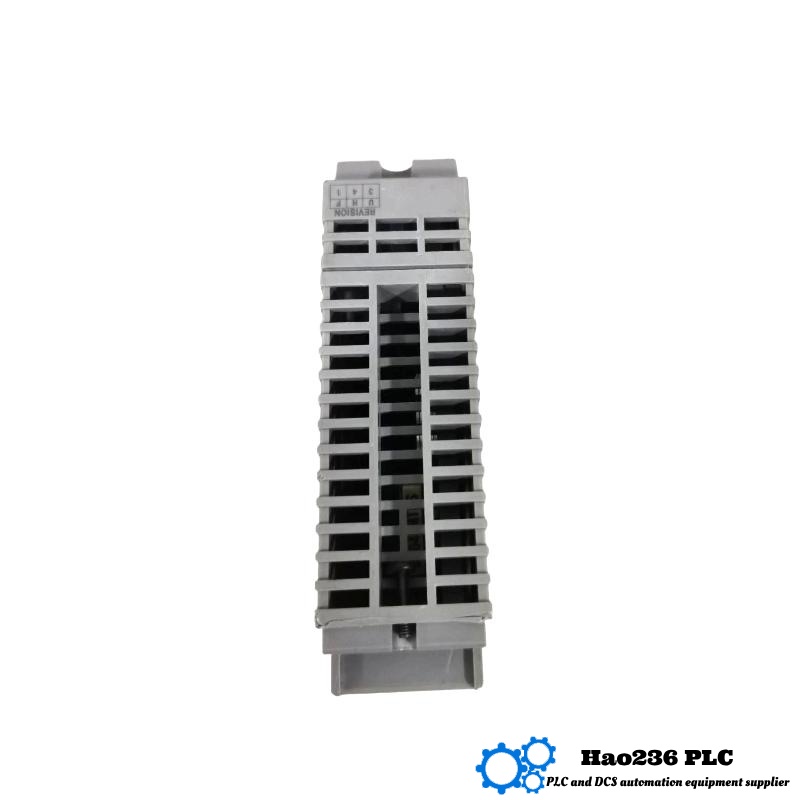

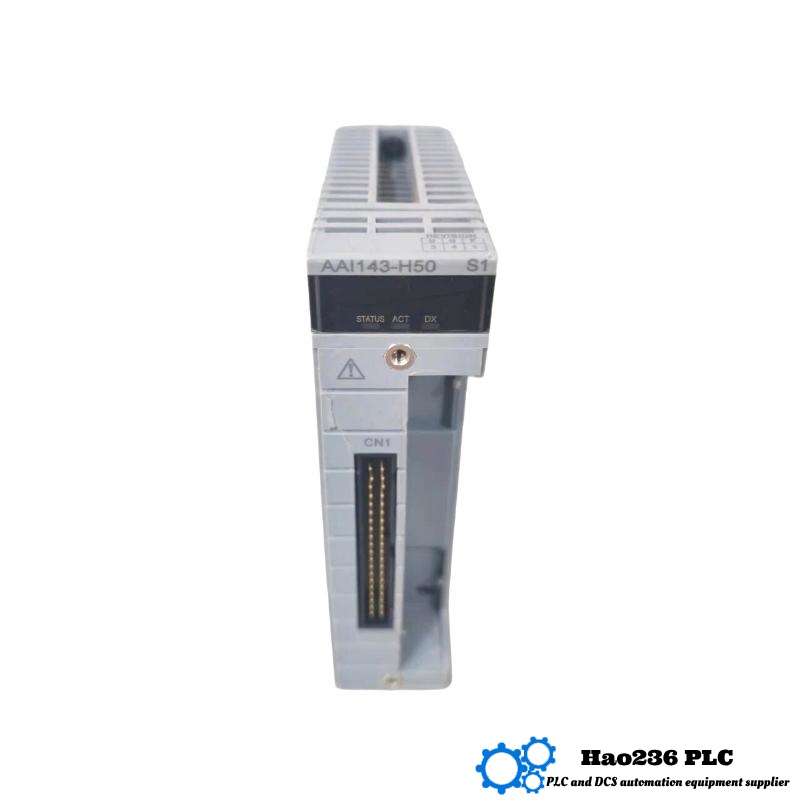

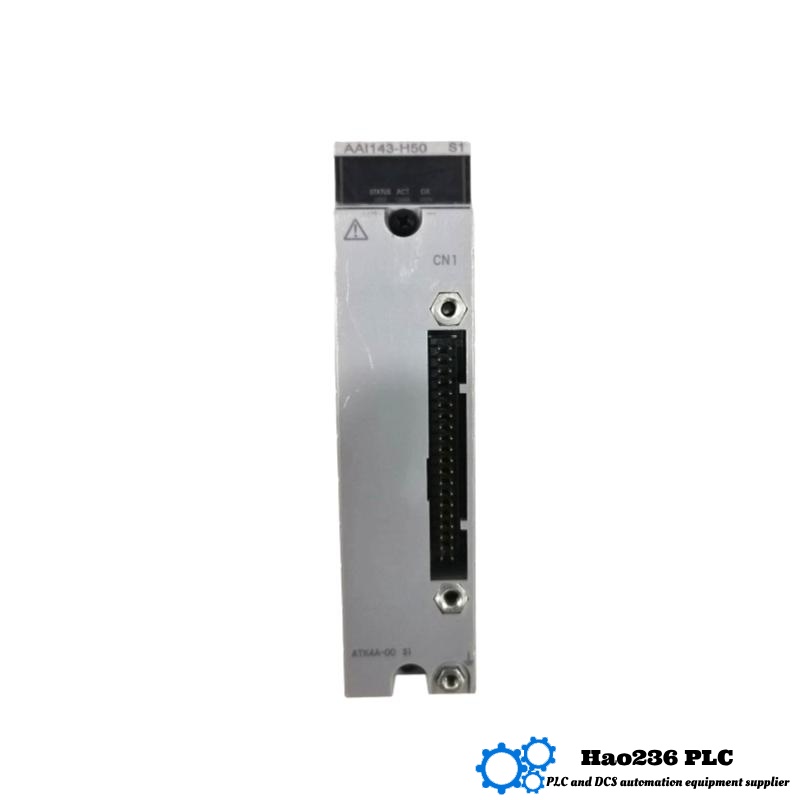

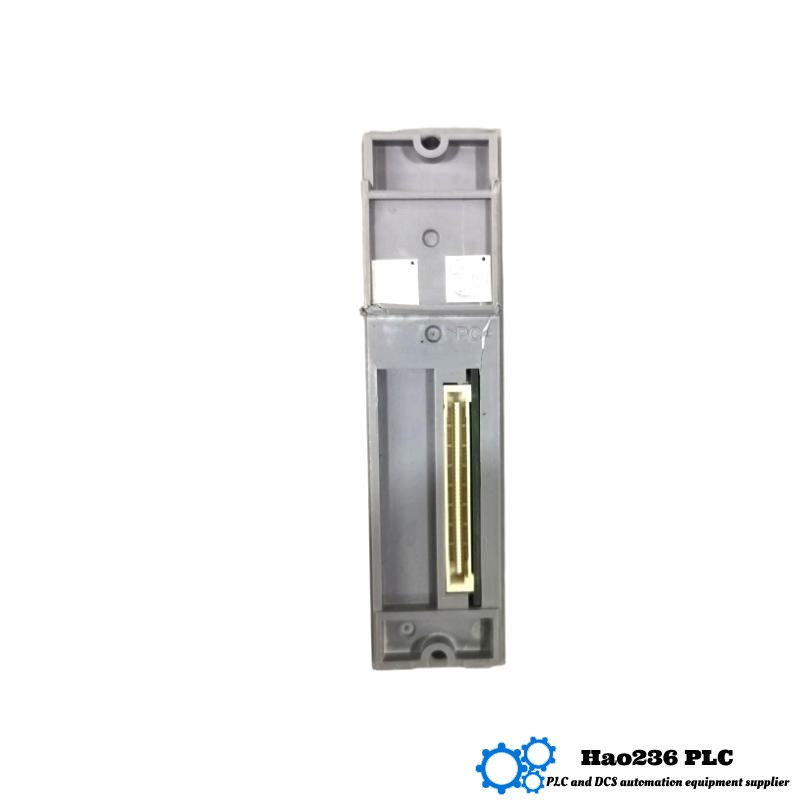

Product Overview: Yokogawa AAI143‑H50 S1
The AAI143‑H50 S1 is a 16-channel isolated analog input module with integrated HART communication protocol. It supports not only the standard 4–20 mA signal but also other analog types like 1–5 V and thermocouples. Designed for precision, reliability, and seamless integration into industrial Distributed Control Systems (DCS), it features pressure-clamp terminals, hot-swappable capability, and strong noise immunity.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | AAI143‑H50 S1 |
| Input Channels | 16 (fully isolated from each other and system ground) |
| Input Signal Types | 4–20 mA; 1–5 V; thermocouples supported |
| Accuracy | ± 0.1% of full span |
| Input Resistance (Current ON) | 270 Ω (20 mA) to 350 Ω (4 mA) |
| Input Resistance (OFF) | ≥ 500 kΩ |
| Data Update Period | ~10 ms per channel |
| Transmitter Supply Voltage | 19 V (min) @ 20 mA up to 25.5 V @ 0 mA |
| Max Input Current | 24 mA |
| Power Consumption | 230 mA @ 5 V DC; 540 mA @ 24 V DC |
| Withstand Voltage | 1,500 VAC, input to system, 1-minute test |
| Communication Protocol | HART-enabled on all channels |
| Environmental Immunity | Strong EMC / noise resistance |
| Hot-Swappable | Yes |
| Operating Temperature | 0 °C to +60 °C |
| Weight | Approx. 0.3 kg |
| External Dimensions (H×W×D) | 107.5 × 32.8 × 130 mm |
Typical Applications
Ideal for industrial process monitoring and automation, this module is used in sectors such as petrochemical, power generation, water treatment, and manufacturing. It captures precise analog data and supports remote diagnostics via HART, all while being hot-swappable—minimizing downtime during maintenance or replacements.
Key Advantages
-
Versatile Input Signal Support – Accepts multiple analog types including 4–20 mA, 1–5 V, and thermocouples.
-
High Accuracy – Excellent precision at ± 0.1% ensures reliable control.
-
Rapid Data Acquisition – ~10 ms channel update time supports timely feedback.
-
Solid Noise Immunity – Engineered EMI resistance for stable performance.
-
Convenient Maintenance – Hot-swappable design reduces service interruptions.
-
Smart Diagnostics – HART protocol enables two-way communication and parameter tuning.
-
Compact and Lightweight – Tight form factor (approx. 0.3 kg) fits efficiently in control cabinets.
Related Models (Same Series)
| Model | Description | Key Feature | Weight (kg) |
|---|---|---|---|
| AAI143‑H50 S1 | HART-enabled analog input module | Base HART input model | 0.3 |
| AAI143‑S50 | Non-HART analog input module | Cost-effective, basic input | 0.3 |
| AAI143‑H50/A4S00 | HART input with clamp terminals | Simplified wiring via A4S00 block | 0.3 |
| AAI143‑H50/K4A00 | HART input with KS interface adapter | Easy row wiring via KS adapter | 0.3 |
| AAI143‑H53 S1 | HART input with wide temperature capability | −20 °C to +70 °C operation | 0.3 |
Popular Yokogawa Modules (Same Brand)
| Model | Function | Typical Use Case | Weight (kg) |
|---|---|---|---|
| AAI143‑H50 S1 | Analog input, HART-enabled | Primary process monitoring | 0.3 |
| AAI543‑H50 | Analog output, HART-enabled | Driving actuators, analog control | ~0.4 |
| AAI141‑H50 | Non-isolated analog input | Budget-conscious analog capture | ~0.3 |
| ADV151‑P50 | Digital output module | Relays, alarm signals in DCS | ~0.3 |
| PW482‑50 | Power supply for I/O rack | System power in control cabinets | ~0.5 |
Frequently Asked Questions
Q1: What signal types can AAI143‑H50 accept?
A1: Supports 4–20 mA, 1–5 V, and thermocouple signals across its 16 isolated channels.
Q2: Is HART communication available?
A2: Yes—HART is built into all input channels for remote diagnostics.
Q3: What accuracy does the module provide?
A3: ± 0.1% of full scale—with high measurement fidelity.
Q4: How fast are measurements updated?
A4: Every channel updates in approximately 10 milliseconds.
Q5: Can the module be swapped without shutting down the system?
A5: Yes—it supports hot-swapping to reduce downtime.
Q6: How well does the module resist electrical noise?
A6: It’s engineered with superior EMC resistance for stable data capture.
Q7: What is the typical power draw?
A7: Around 230 mA at 5 V DC and 540 mA at 24 V DC.
Q8: What operating temperature range is supported?
A8: Designed for 0 °C to +60 °C, suitable for most indoor control systems.
Q9: How heavy and large is the module?
A9: Approximately 0.3 kg; dimensions are 107.5 × 32.8 × 130 mm.
Q10: What insulation capability does it offer?
A10: 1,500 VAC isolation between inputs and the system chassis for enhanced safety.
