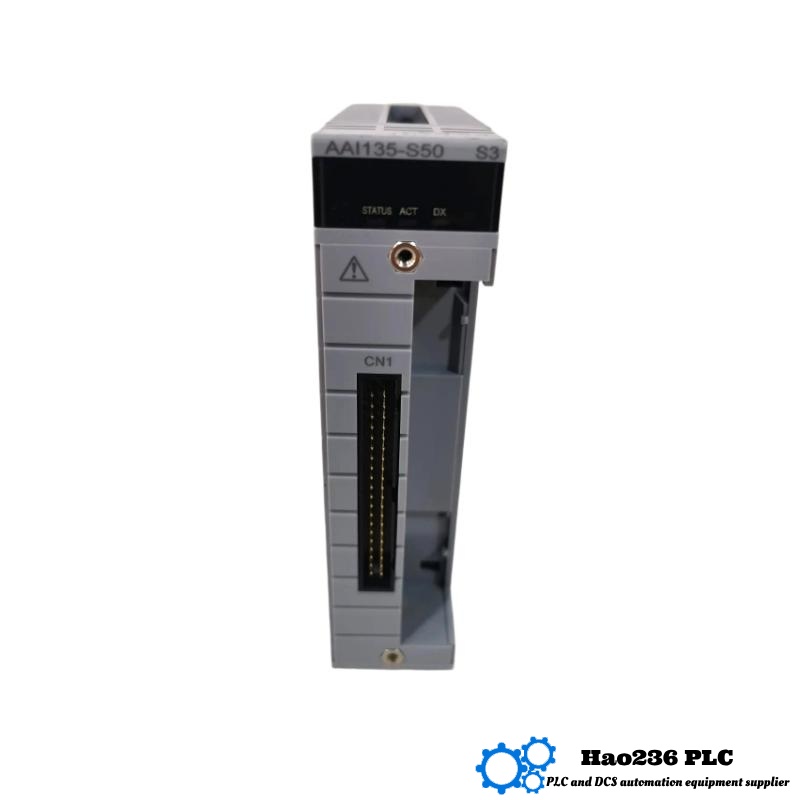

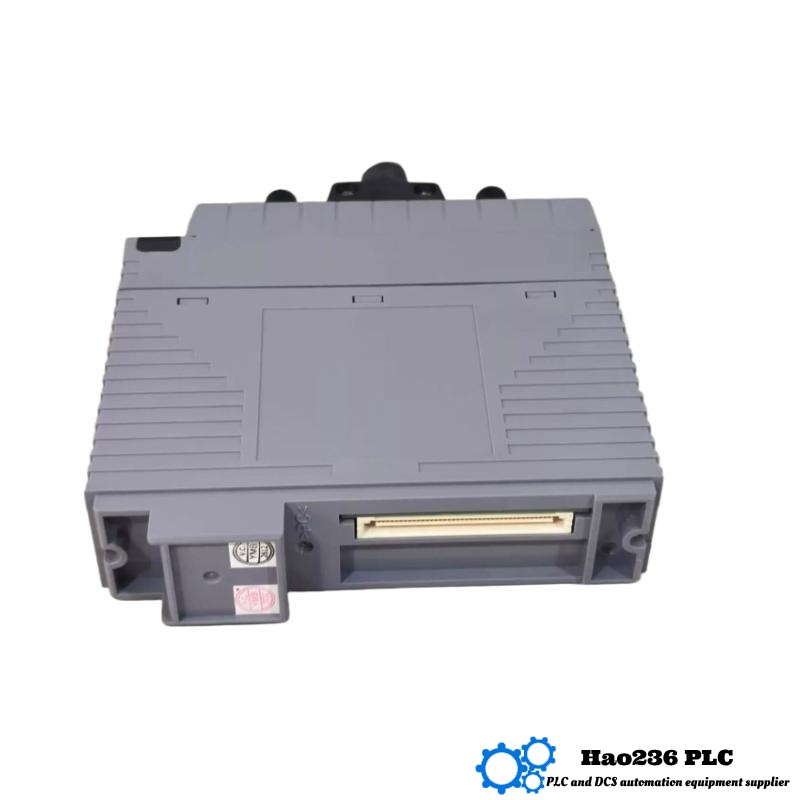

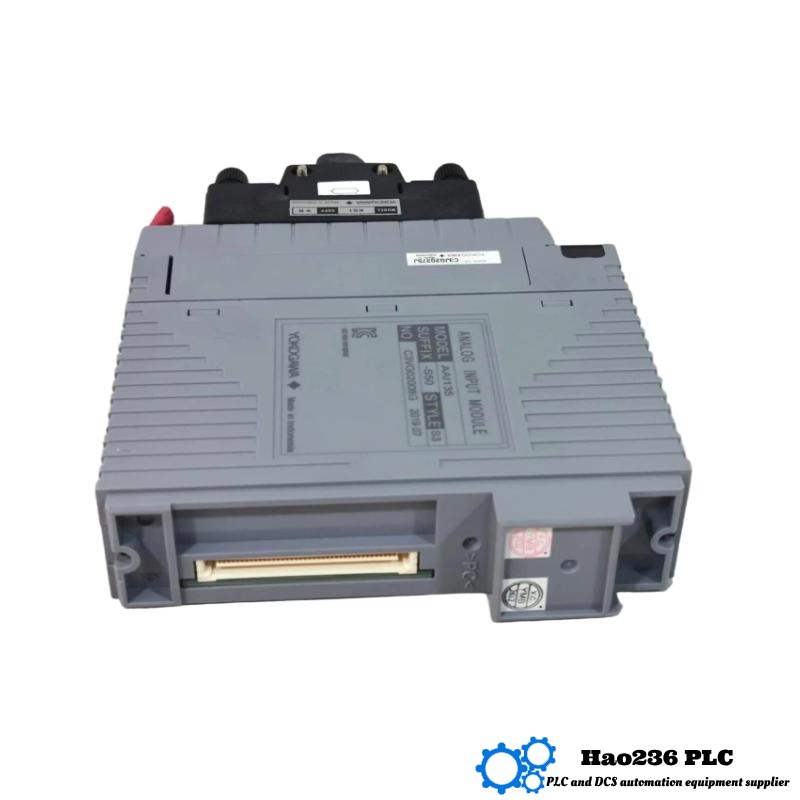

Yokogawa AAI135-S50/CCC01 Analog Input Module
Product Introduction
The Yokogawa AAI135-S50/CCC01 is a high-performance analog input module designed for signal conversion and processing in industrial control systems. This module is part of Yokogawa’s Advanced Control Systems (ACS) series and offers seamless integration with Yokogawa’s control and automation solutions. It is specifically engineered to handle signals from a variety of field instruments such as temperature, pressure, and flow sensors.
With a compact design of 107.5 × 32.8 × 130 mm and a weight of just 0.3 kg, this module is highly suitable for applications where space is limited without compromising on performance. The module supports 4-20 mA and 0-10 V DC input signals, making it versatile in various measurement scenarios, while providing high-resolution analog-to-digital conversion for precise data collection and processing.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Yokogawa AAI135-S50/CCC01 |
| Series | Advanced Control Systems (ACS) |
| Input Type | 4-20 mA, 0-10 V DC |
| Resolution | 16-bit |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail |
| Power Supply | 24 V DC |
| Temperature Range | -10°C to +60°C |
| Response Time | 0.5 s |
| Isolation | 250 V AC between input/output |
| Accuracy | ±0.1% of Full Scale |
| Input Impedance | 500 kΩ |
Product Applications
The Yokogawa AAI135-S50/CCC01 module is widely used in industries that require accurate signal conversion for monitoring and controlling various physical parameters. Some of the common applications include:
-
Oil & Gas: Used for measuring temperature, pressure, and flow in pipelines, refineries, and upstream operations.
-
Power Plants: Monitors critical variables like pressure, temperature, and flow in turbines, generators, and boilers.
-
Chemical Processing: Ensures accurate measurement of chemicals and fluid flow in reactors, mixing tanks, and other key process equipment.
-
Water Treatment: Provides accurate data for water quality, flow rate, and level measurements in water treatment plants.
-
Manufacturing: Helps monitor temperature and other physical variables in factory automation systems, ensuring efficient production and machinery health.
The module’s ability to process signals from various types of sensors enables it to serve as an integral part of these industries, driving performance and reducing operational risks.
Product Advantages
-
High Precision: The 16-bit resolution ensures accurate signal processing and precise measurement in industrial applications.
-
Wide Compatibility: The module supports both 4-20 mA and 0-10 V DC signals, providing broad compatibility with most industrial sensors.
-
Compact Size: At 107.5 × 32.8 × 130 mm and weighing only 0.3 kg, the module is easy to integrate into space-limited systems without compromising performance.
-
Flexible Integration: The DIN rail mounting makes installation simple and efficient, ensuring smooth integration into existing control panels.
-
Wide Operating Temperature Range: With an operating range of -10°C to +60°C, this module can function reliably in various environmental conditions.
-
Real-Time Monitoring: Provides real-time, high-precision data for monitoring and controlling critical process parameters.
-
Built for Durability: The module is engineered for long-term use in harsh industrial environments, offering consistent performance.
Brand and Series
-
Brand: Yokogawa
-
Series: Advanced Control Systems (ACS)
Yokogawa is a global leader in industrial automation and control solutions, known for its innovative products designed to optimize operational efficiency. The Advanced Control Systems (ACS) series is specifically designed to offer high-precision control, automation, and monitoring solutions, allowing industries to achieve superior process management. The AAI135-S50/CCC01 module is a key part of this series, delivering top-notch performance in demanding industrial environments.
Recommended Models from the ACS Series
| Model | Description | Key Parameters |
|---|---|---|
| AAI135-S02/CCC01 | 4-20 mA analog input module for temperature sensing | 4-20 mA, 16-bit, DIN Rail |
| AAI135-S04/CCC01 | Universal analog input for pressure and flow sensors | 4-20 mA, 0-10 V DC, 16-bit |
| AAI135-S10/CCC01 | Multi-channel input for complex systems | 4-20 mA, 16-bit |
| AAI145-S03/CCC01 | High-accuracy module for low-voltage applications | 0-10 V DC, 16-bit |
| AAI135-S05/CCC01 | Compact analog input for process control systems | 4-20 mA, 0-10 V DC, 16-bit |
Popular Yokogawa Models
| Model | Description | Key Parameters |
|---|---|---|
| ADV561-P00 S2 | Digital I/O Module for industrial control | Input/Output: 16 Channels, Voltage: 24V DC, Communication: Modbus |
| ALD112-S00 S1 | Analog Output Module for automation systems | Output: 16 Channels, Voltage: 24V DC, Communication: Profibus |
| ALE111-S51-S1 | High-precision Digital I/O Module | Input/Output: 16 Channels, Voltage: 24V DC, Communication: Modbus/TCP |
| ADV560-P00 S2 | Digital I/O Module for process control | Input/Output: 16 Channels, Voltage: 24V DC, Communication: Modbus/RTU |
| ALE112-S51-S2 | Enhanced Analog Output Module | Output: 16 Channels, Voltage: 24V DC, Communication: Modbus/TCP |
FAQ
-
What is the main function of the Yokogawa AAI135-S50/CCC01 analog input module?
-
The module converts analog signals from field instruments into digital signals for process control and monitoring.
-
-
What types of input signals does the AAI135-S50/CCC01 module support?
-
The module supports 4-20 mA and 0-10 V DC input signals.
-
-
What is the accuracy of the AAI135-S50/CCC01 module?
-
The module offers ±0.1% of Full Scale accuracy.
-
-
What is the size of the AAI135-S50/CCC01 module?
-
The module’s dimensions are 107.5 × 32.8 × 130 mm, and it weighs 0.3 kg.
-
-
How is the AAI135-S50/CCC01 mounted?
-
The module can be easily mounted using DIN Rail.
-
-
What is the operating temperature range for the AAI135-S50/CCC01?
-
The module operates within a temperature range of -10°C to +60°C.
-
-
What is the resolution of the AAI135-S50/CCC01?
-
The module offers 16-bit resolution for precise signal conversion.
-
-
Can the AAI135-S50/CCC01 be used in outdoor or harsh environments?
-
Yes, it is designed to operate reliably in a wide range of industrial environments.
-
-
Is the AAI135-S50/CCC01 module compatible with other Yokogawa products?
-
Yes, it integrates seamlessly with other Yokogawa control and monitoring systems.
-
-
What industries use the AAI135-S50/CCC01 module?
-
It is commonly used in industries such as oil & gas, chemical processing, water treatment, and manufacturing.
-
