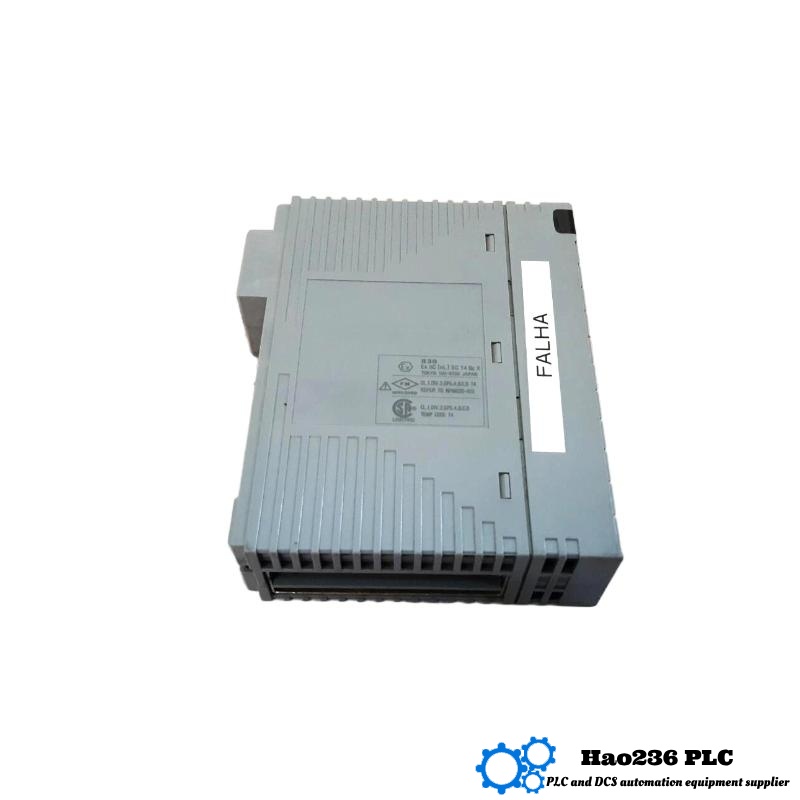

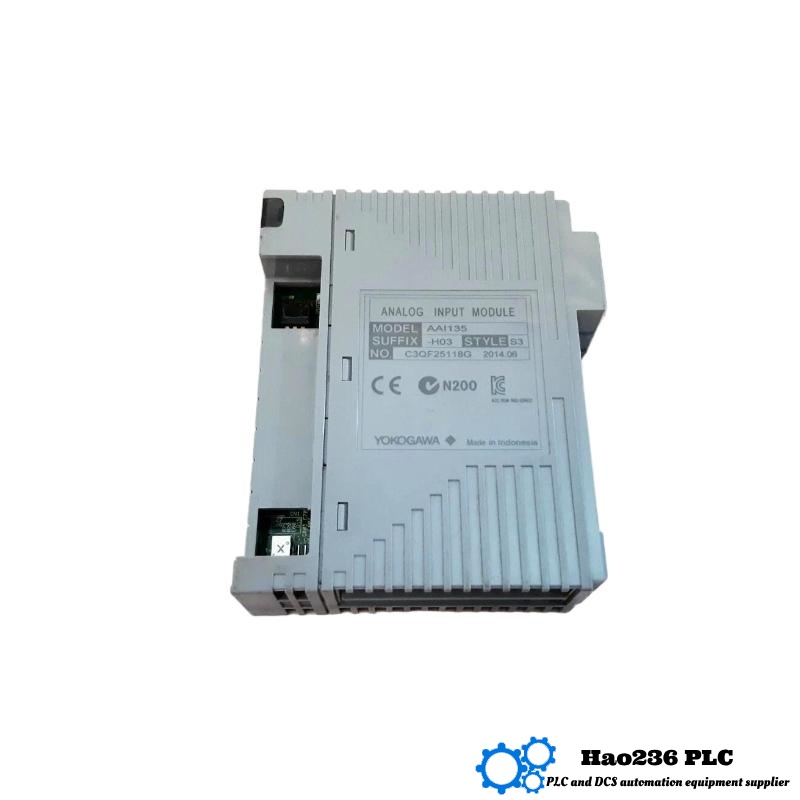

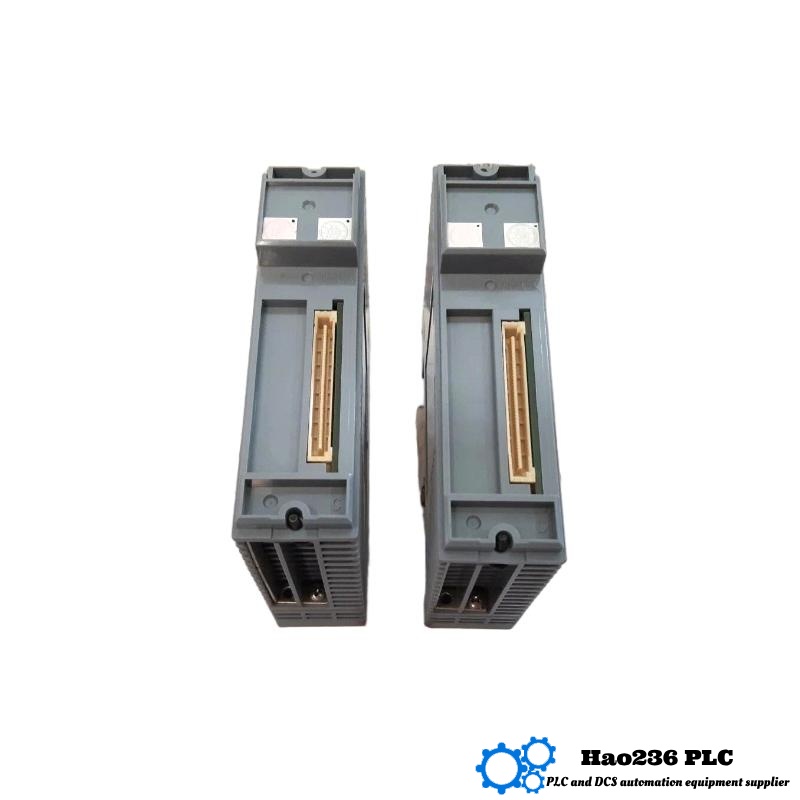

Yokogawa AAI135-S03 Analog Input Module
Product Introduction
The Yokogawa AAI135-S03 is a highly reliable and precise analog input module designed to convert physical signals into digital data for control systems. This module is part of Yokogawa’s Advanced Process Control (APC) series, known for its robust performance and versatility in handling a wide range of industrial control applications. It serves as an essential component for measuring and processing signals from various field instruments such as temperature, pressure, and flow sensors.
The AAI135-S03 module offers a compact size with dimensions of 107.5 × 32.8 × 130 mm and weighs just 0.3 kg, making it ideal for use in space-constrained environments while delivering high-performance signal conversion. It supports high-resolution analog-to-digital conversion, ensuring precise and reliable data for system monitoring and control.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Yokogawa AAI135-S03 |
| Series | Advanced Process Control (APC) |
| Input Type | 4-20 mA, 0-10 V DC |
| Resolution | 16-bit |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail |
| Power Supply | 24 V DC |
| Temperature Range | -10°C to +60°C |
| Response Time | 0.5 s |
| Isolation | 250 V AC between input/output |
| Accuracy | ±0.1% of Full Scale |
| Input Impedance | 500 kΩ |
Product Applications
The Yokogawa AAI135-S03 analog input module is designed for applications requiring accurate signal conversion and reliable data processing in a variety of industries, including:
-
Oil & Gas Industry: Monitors temperature, pressure, and flow in pipelines, oil refineries, and drilling equipment.
-
Power Plants: Measures analog signals from generators, turbines, and other critical machinery for real-time control.
-
Manufacturing and Automation: Used in factory automation systems to collect data from a variety of sensors and transmit the information to central controllers.
-
Water Treatment: Ensures precise control of water flow and quality parameters by connecting to various sensors.
-
Chemical Processing: Supports accurate measurement of variables such as chemical concentrations and flow rates to optimize process control.
The AAI135-S03 module’s flexibility and reliability make it a crucial component in automated systems, ensuring that data is accurately captured and processed to drive efficient operations.
Product Advantages
-
High Accuracy: The module offers ±0.1% of Full Scale accuracy, ensuring highly precise measurements for mission-critical applications.
-
Wide Compatibility: Supports both 4-20 mA and 0-10 V DC input signals, making it compatible with a wide range of industrial sensors.
-
Compact and Lightweight: With its compact dimensions and low weight (107.5 × 32.8 × 130 mm, 0.3 kg), the module is ideal for space-constrained installations.
-
Ease of Integration: The DIN Rail mounting option simplifies installation in control cabinets, reducing setup time.
-
Extended Operating Temperature: Operating at -10°C to +60°C, the module can function in a wide range of environmental conditions.
-
High Resolution: The 16-bit resolution provides detailed data for precise monitoring and control.
-
Long-Term Reliability: Built to endure harsh industrial environments, this module ensures continuous and reliable operation.
Brand and Series
-
Brand: Yokogawa
-
Series: Advanced Process Control (APC)
Yokogawa is a leading global provider of industrial automation, measurement, and control solutions. The APC Series focuses on providing high-performance modules for process control systems, ensuring accurate measurements and seamless integration with other industrial systems. The AAI135-S03 is an integral part of this series, delivering high precision and reliability in industrial control applications.
Recommended Models from the APC Series
| Model | Description | Key Parameters |
|---|---|---|
| AAI135-S01 | 4-20 mA analog input module | 4-20 mA, 16-bit, DIN Rail |
| AAI145-S03 | High-precision input module with multiple input options | 4-20 mA, 0-10 V DC, 16-bit |
| AAI115-S05 | Analog input module for high voltage sensors | 0-10 V DC, 16-bit |
| AAI155-S02 | Multi-channel analog input module for large systems | 4-20 mA, 0-10 V DC, 16-bit |
| AAI135-S04 | Single-channel analog input module for low-voltage applications | 4-20 mA, 16-bit |
Popular Yokogawa Models
| Model | Description | Key Parameters |
|---|---|---|
| ADM52-2 S4 | Advanced I/O Module for industrial systems | Input/Output: 16 DI, 16 DO, Voltage: 24V DC, Communication: Modbus |
| ADM52C-2 S3 | High-performance I/O Module | Input/Output: 20 DI, 20 DO, Voltage: 24V DC, Communication: Profibus |
| ANR11D-420 S1 | Process Control Module with redundancy | Input/Output: 16 DI, 16 DO, Voltage: 24V DC, Communication: Modbus/TCP |
| ADM53-2 S4 | Modular I/O Module for automation systems | Input/Output: 24 DI, 24 DO, Voltage: 24V DC, Communication: Ethernet |
| ANR12D-421 S2 | Advanced Control Module for process systems | Input/Output: 32 DI, 32 DO, Voltage: 24V DC, Communication: Modbus |
FAQ
-
What is the main function of the Yokogawa AAI135-S03 analog input module?
-
The module converts analog signals from various industrial sensors (such as temperature, pressure, or flow) into digital signals for control and monitoring systems.
-
-
What types of input signals are supported by the AAI135-S03?
-
The AAI135-S03 supports 4-20 mA and 0-10 V DC input signals.
-
-
What is the accuracy of the AAI135-S03 module?
-
The AAI135-S03 offers ±0.1% of Full Scale accuracy for precise measurements.
-
-
What is the size of the AAI135-S03 module?
-
The module has dimensions of 107.5 × 32.8 × 130 mm and weighs 0.3 kg.
-
-
How is the AAI135-S03 mounted?
-
The module can be mounted using DIN Rail, making it easy to integrate into existing control panels.
-
-
What is the operating temperature range for the AAI135-S03 module?
-
It operates within a temperature range of -10°C to +60°C.
-
-
What resolution does the AAI135-S03 module offer?
-
The module provides 16-bit resolution for accurate signal processing.
-
-
Can the AAI135-S03 module be used in outdoor environments?
-
Yes, the AAI135-S03 module is suitable for use in industrial environments with varying temperatures and conditions.
-
-
Is the AAI135-S03 module compatible with Yokogawa’s other products?
-
Yes, it is fully compatible with other Yokogawa control and monitoring systems.
-
-
How can I integrate the AAI135-S03 module into my existing system?
-
The module is designed for DIN Rail mounting, which allows for simple integration into control systems and panels.
-
