Product Overview

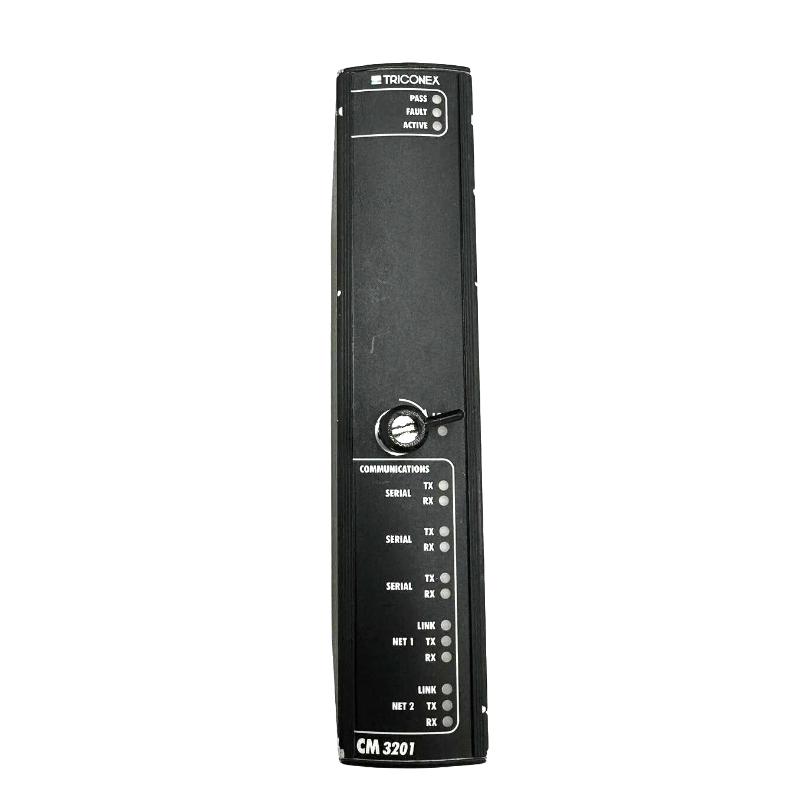

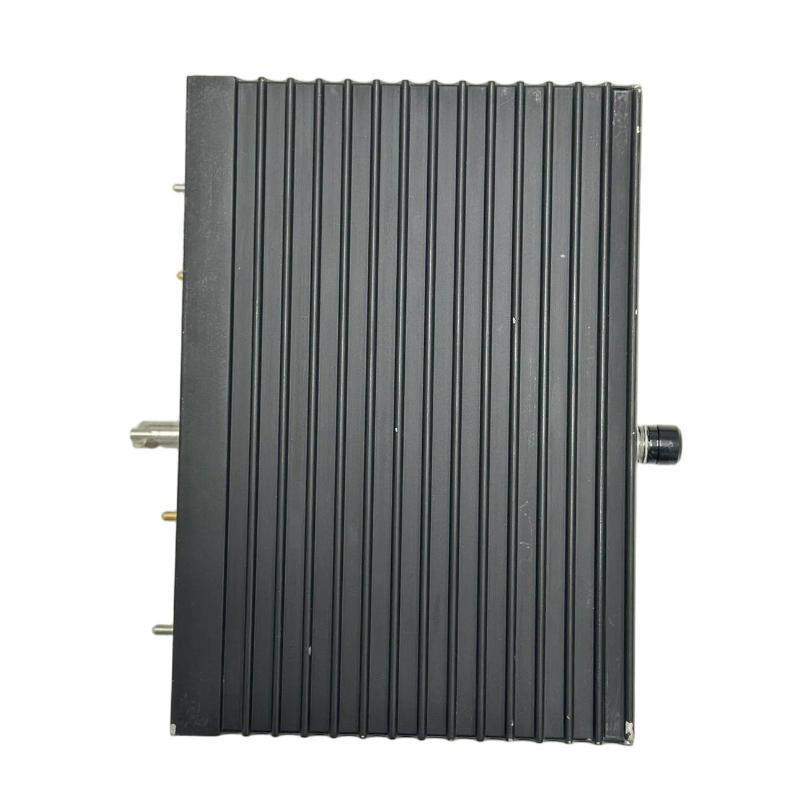

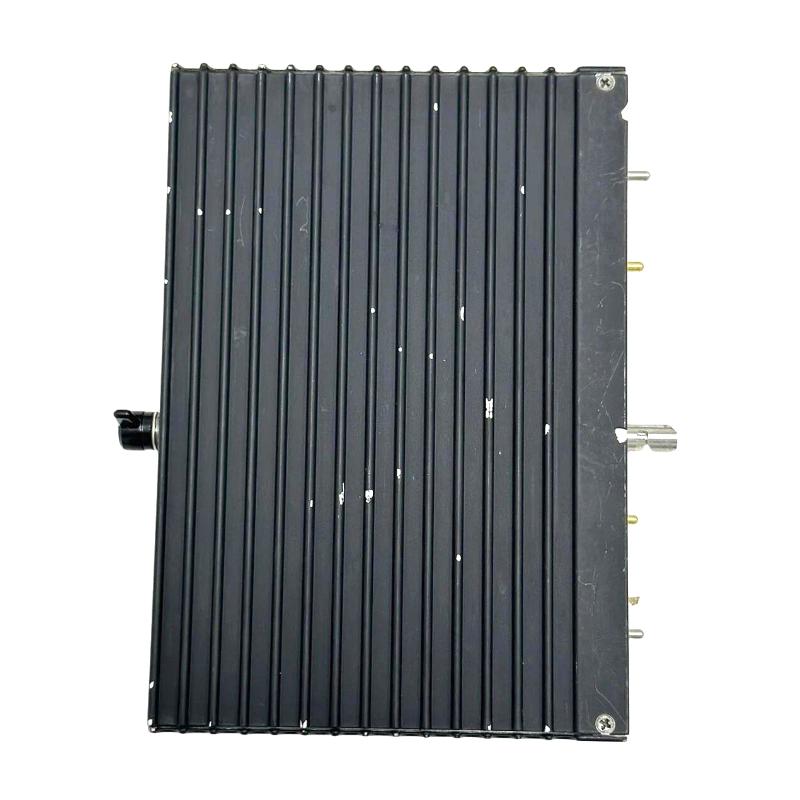

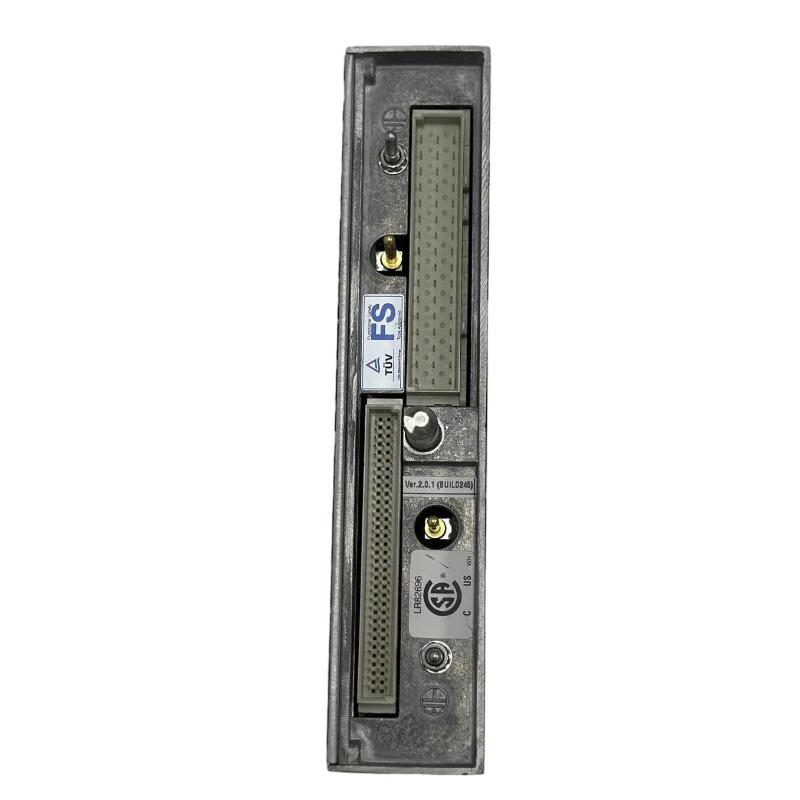

The Triconex CM3201 Communication Module is a communication component used in industrial safety and control system architectures. Its primary role is to provide a communication interface between the Triconex control platform and connected system equipment, allowing operational and diagnostic information to be exchanged within the control environment.

Communication modules are different from I/O modules. An I/O module normally handles direct field signals from sensors, switches, and actuators, while a communication module focuses on transferring information between controllers, engineering systems, operator interfaces, networks, or other compatible control equipment.

The CM3201 can be used in applications where the control system needs structured communication with external or system-level equipment. Depending on the overall architecture, communication functions may include process information exchange, system diagnostics, status monitoring, configuration-related data, or integration with higher-level automation systems.

The module forms part of the communication layer of the control system rather than acting as an independent controller. Its performance therefore depends not only on the module itself but also on the connected communication infrastructure and system configuration.

Technical Specifications

Product Features

The Triconex CM3201 provides a dedicated communication interface for industrial control system integration.

Key features include:

• Industrial communication module design
• Suitable for Triconex control architectures
• Supports system-level data exchange
• Provides communication between control equipment and connected systems
• Can support operational and diagnostic information transfer
• Designed for industrial control environments
• Supports modular system architectures
• 45 mm module thickness
• Compact 250 × 45 × 200 mm dimensions
• 1.3 kg industrial hardware construction

The module’s communication function allows system information to move between different layers of an automation installation, helping integrate the safety control system with other equipment.

Working Principle

The CM3201 operates as a communication interface within the control system.

When the Triconex system needs to exchange information with another compatible device or system, the communication module provides the required communication path. Data can include operating information, system status, diagnostic information, or other information defined by the control architecture.

A typical communication process includes:

• Establishing the communication connection
• Receiving information from connected system equipment
• Handling communication data according to the system configuration
• Transmitting information to the intended destination
• Monitoring communication status
• Reporting communication or diagnostic conditions when required

The communication module does not replace the controller or safety logic. Instead, it provides the communication infrastructure that allows the control system to exchange information with other equipment.

Role in Industrial Control Systems

The CM3201 occupies the communication layer between the Triconex control system and other system-level equipment.

In a large industrial installation, communication modules help prevent the safety controller from operating as an isolated system and allow necessary information to be exchanged with supervisory or plant-level equipment.

Industrial Applications

The CM3201 can be used in industrial environments where safety control systems require communication with other automation or monitoring equipment.

The actual application depends on the Triconex system architecture, communication requirements, and connected equipment.

Installation and System Integration

Correct installation of the CM3201 requires attention to both physical installation and communication configuration.

Recommended installation steps include:

• Confirm the CM3201 model before installation.
• Verify compatibility with the existing Triconex system.
• Review the system architecture and communication requirements.
• Install the module in the designated position.
• Secure the module correctly.
• Connect the required communication interfaces.
• Check connectors and communication cabling.
• Verify network addressing or communication parameters where applicable.
• Power up the system and inspect the module status.
• Confirm successful communication with the connected equipment.

Communication cables should be routed carefully in industrial control cabinets. Where high-power switching equipment is present, appropriate cable separation and grounding practices can help reduce electrical interference.

Compatible System Components

The CM3201 can be integrated with several types of equipment within an industrial safety and control architecture.

The exact communication arrangement should be determined by the system design and the interfaces supported by the installed hardware.

Recommended Alternative Models

When selecting a replacement, communication interface characteristics, system compatibility, hardware revision, configuration requirements, and network architecture should be checked. A communication module with a similar physical size should not automatically be considered a direct replacement.

Key Advantages

• Provides industrial communication functionality
• Designed for Triconex control architectures
• Supports system-level data exchange
• Helps integrate safety systems with other automation equipment
• Can support operational and diagnostic information transfer
• Suitable for industrial control and safety applications
• Supports modular system architectures
• Compact 250 × 45 × 200 mm dimensions
• Stated weight of 1.3 kg
• Suitable for industrial control cabinet installation

Technical FAQs

What is the role of the CM3201 in a Triconex architecture?

The CM3201 provides communication functionality between the Triconex control system and compatible external or system-level equipment. It operates as part of the communication layer rather than executing the primary safety logic.

Why is communication important in a safety control system?

A safety system may need to exchange status, diagnostic, or relevant process information with supervisory and control equipment. Reliable communication allows the safety system to participate in the broader plant architecture while maintaining its dedicated safety functions.

What should be checked if the CM3201 shows a communication fault?

The module status, communication connectors, cable condition, network configuration, connected equipment, and system parameters should be checked. If the physical connections are correct, system diagnostics can help determine whether the problem is related to the module, network, or remote equipment.

Can a general-purpose communication module be used as a direct replacement for the CM3201?

Not necessarily. The replacement must match the required communication interfaces, Triconex system compatibility, hardware configuration, and supported communication functions. Physical dimensions alone are not sufficient to establish compatibility.
