Product Overview

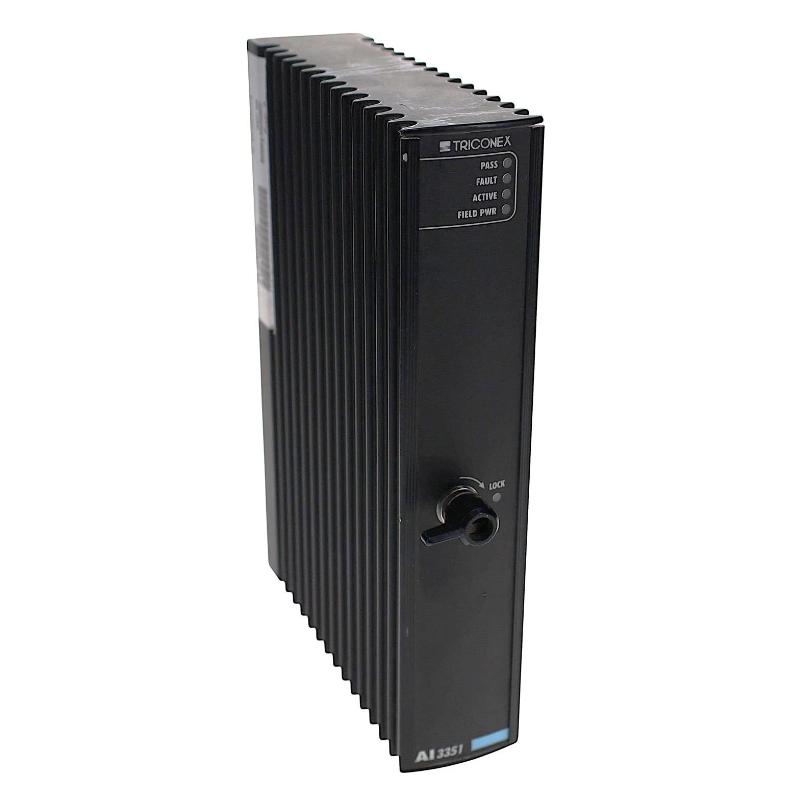

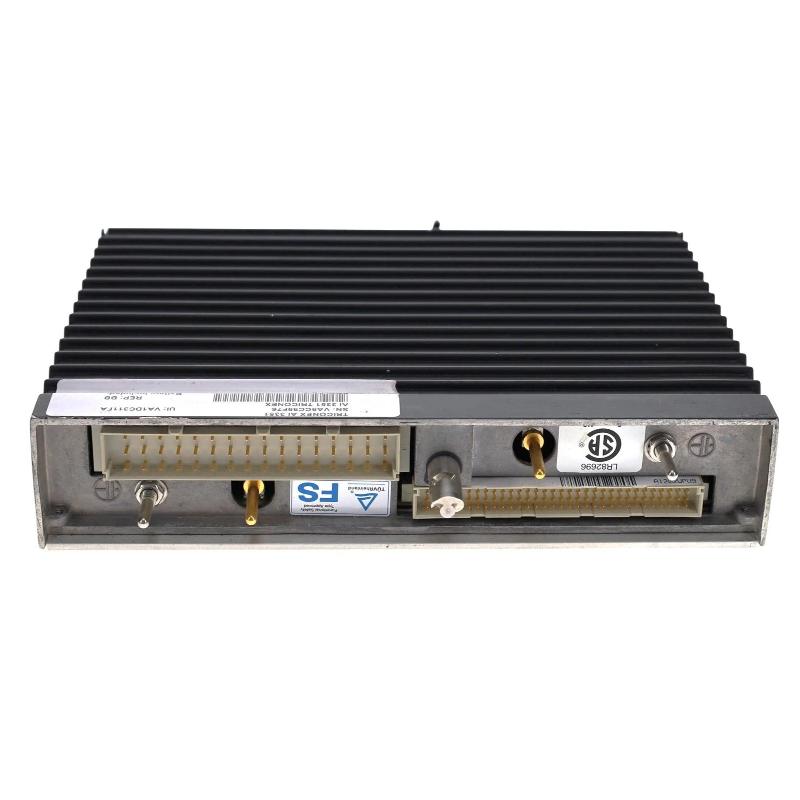

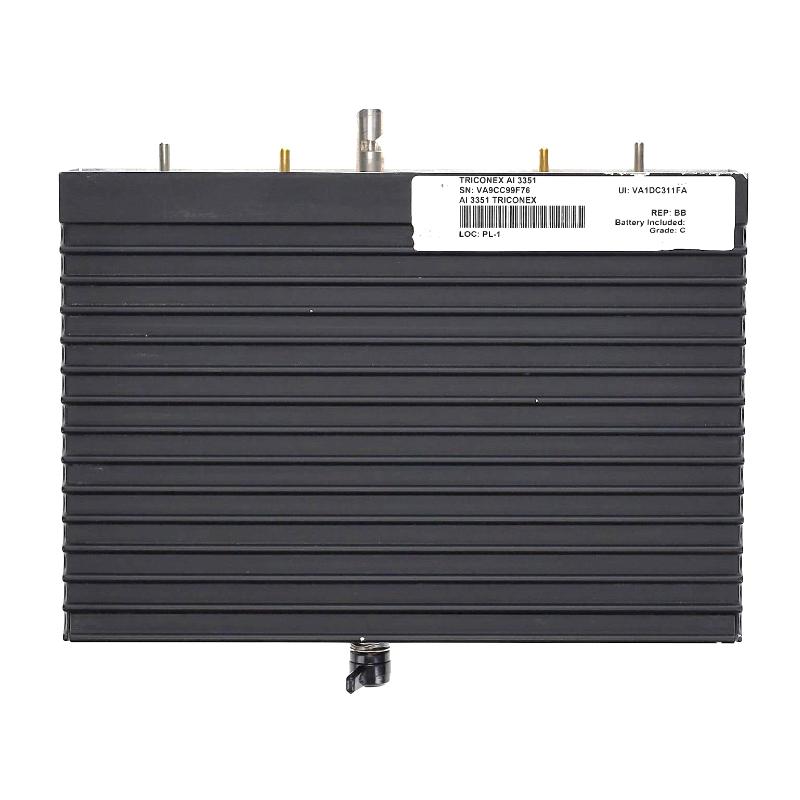

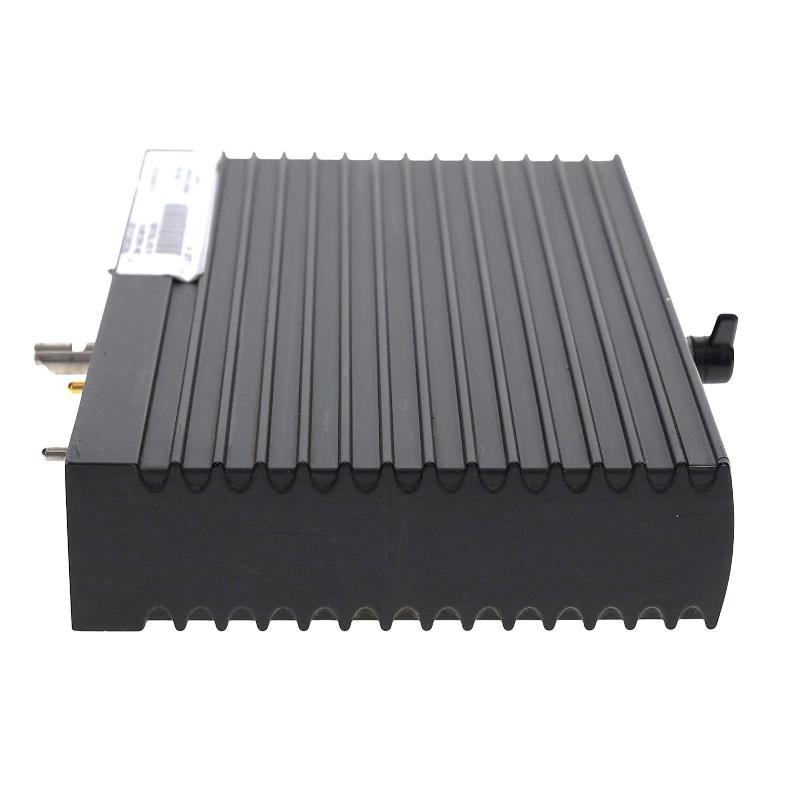

The Triconex AI3351 Analog Input Module is an analog input component designed for industrial control and safety system applications. It is used to receive continuously varying signals from field instruments and provide measurement information to the control system.
Unlike a digital input module, which mainly detects discrete ON/OFF conditions, an analog input module is intended for process variables that change continuously. Typical applications include monitoring pressure, temperature, flow, level, and other measured parameters.
The AI3351 forms part of the input side of the control architecture. Field transmitters and sensors provide the measurement signals, while the module acquires those signals so that the control system can use the resulting information for monitoring, alarms, interlocks, process control, and diagnostic functions.
In an industrial safety system, reliable analog signal acquisition is particularly important because the controller may use measured process conditions when determining whether a process is operating within an acceptable range.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Triconex |
| Model | AI3351 |
| Product Type | Analog Input Module |
| I/O Type | Analog Input |
| Signal Type | Analog |
| Main Function | Analog Signal Acquisition |
| System Role | Process Measurement Input |
| Application | Industrial Safety and Control |
| Typical Application | Pressure, Temperature, Flow, Level Monitoring |
| Installation | Industrial Control System |
| Dimensions | 250 × 45 × 200 mm |
| Weight | 1.86 kg |
| Application Area | Industrial Automation and Safety Systems |
Product Features
The Triconex AI3351 provides an interface between analog field instruments and the control system.
Key features include:
- Analog input module design
- Continuous process signal acquisition
- Suitable for industrial safety and control applications
- Interfaces with compatible field transmitters and sensors
- Supports process condition monitoring
- Can provide measurement information for alarms and interlocks
- Suitable for modular control system architectures
- 45 mm module thickness
- 250 × 45 × 200 mm overall dimensions
- 1.86 kg industrial hardware construction
The module is intended for measurement signals rather than simple discrete status information. This makes it suitable for applications where the actual value or changing condition of a process variable is important.
Working Principle
The AI3351 receives analog signals generated by connected field instruments. The incoming signal represents a physical process condition, such as pressure, temperature, flow, or level.
The module acquires the electrical signal and makes the corresponding measurement information available to the control system. The controller can then use that information according to the programmed application logic.
A typical signal path is:
Field Sensor or Transmitter → AI3351 Analog Input Module → Triconex Controller → Control, Alarm, or Safety Logic
During normal operation, the module continuously acquires the incoming signals. If the measured process condition changes, the corresponding input value changes as well, allowing the control system to respond to the updated process condition.
Role in Industrial Control Systems
The AI3351 provides the measurement interface between field instrumentation and the Triconex control architecture.
| Function | Description |
|---|---|
| Analog Signal Acquisition | Receives continuously varying field signals |
| Process Monitoring | Provides measurement information to the controller |
| Alarm Support | Supplies values used for process limit monitoring |
| Interlock Support | Provides measured conditions for control logic |
| Safety Monitoring | Allows process variables to be evaluated by the safety system |
| Instrument Interface | Connects compatible field transmitters and sensors |
Analog input information can be especially important when a process decision depends on an actual measured value rather than simply whether a device is ON or OFF.
Industrial Applications
The AI3351 can be used in industrial environments where continuous process measurements are required.
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Pressure, flow, and process monitoring |
| Chemical Processing | Process variable measurement |
| Power Generation | Equipment and plant monitoring |
| Petrochemical | Process safety and instrumentation |
| Manufacturing | Machine and process monitoring |
| Water Treatment | Flow, level, and pressure measurement |
| Energy | Equipment condition monitoring |
| Process Automation | Continuous process measurement |
The exact field application depends on the connected instrumentation and the overall Triconex system configuration.
Installation and System Integration
Correct installation requires attention to the input signal, field wiring, grounding, and system configuration.
Recommended installation steps include:
- Confirm the AI3351 model before installation.
- Verify compatibility with the existing Triconex architecture.
- Identify each connected field instrument.
- Confirm the electrical characteristics of the incoming analog signals.
- Install the module in the designated position.
- Connect the field wiring to the appropriate input channels.
- Check terminal assignments and wiring continuity.
- Verify shielding and grounding arrangements.
- Configure the corresponding input points.
- Compare the system readings with the field instrument during commissioning.
Analog signal wiring should be routed carefully, particularly in cabinets containing motors, contactors, variable-frequency drives, or other sources of electrical interference. Proper cable separation and grounding can help maintain stable measurement signals.
Compatible System Components
The AI3351 can be integrated with different components within a Triconex control and safety architecture.
| Compatible Component | Function |
|---|---|
| Triconex Controllers | Process measurement data and execute control logic |
| Pressure Transmitters | Provide pressure measurements |
| Temperature Transmitters | Provide temperature measurements |
| Flow Transmitters | Provide flow information |
| Level Transmitters | Monitor process level |
| Digital Input Modules | Monitor discrete field conditions |
| Digital Output Modules | Send commands to field equipment |
| Communication Modules | Exchange system-level information |
The field instruments connected to the module should be selected according to the required input characteristics and application design.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Triconex AI3351 | Analog Input Module | Continuous signal acquisition | Process and safety monitoring |
| Triconex Analog Input Modules | Analog I/O | Process measurement | Industrial automation |
| Triconex Digital Input Modules | Digital Input | Discrete status monitoring | Equipment and safety monitoring |
| Triconex Digital Output Modules | Digital Output | Discrete equipment control | Safety and process control |
| Triconex Communication Modules | Communication Module | System-level data exchange | Control system integration |
When selecting a replacement, signal characteristics, channel configuration, field wiring, system compatibility, and hardware revision should all be checked. A module with similar dimensions is not necessarily a suitable substitute.
Key Advantages
- Provides analog process signal acquisition
- Suitable for Triconex safety and control architectures
- Supports continuous measurement monitoring
- Interfaces with compatible field transmitters and sensors
- Useful for alarm and interlock functions
- Supports process and safety monitoring
- Suitable for industrial automation applications
- Compact 250 × 45 × 200 mm dimensions
- Stated weight of 1.86 kg
- Suitable for industrial control cabinet installation
Technical FAQs
What process variables can be monitored through an analog input module?
Analog input modules are commonly used for continuously changing variables such as pressure, temperature, flow, level, position, and other instrument measurements. The actual signal type must be compatible with the module and the configured system architecture.
Why is signal quality important when using the AI3351 for safety-related measurements?
The control system relies on the acquired measurement to evaluate process conditions. Electrical interference, poor wiring, grounding problems, or an incorrect signal configuration can affect the measured value and potentially influence alarms or control decisions.
What should be checked if the AI3351 displays an abnormal process value?
The field transmitter should be checked first, followed by the signal wiring, terminal connections, shielding, grounding, input configuration, and associated channel status. Comparing the transmitter output with the value received by the control system can help identify where the problem occurs.
How does the AI3351 differ from the Triconex DI3301?
The AI3351 is intended for continuously varying analog measurements, while the DI3301 is used for discrete field states such as switch, relay, or equipment status signals. The two modules therefore serve different signal-acquisition requirements and are not direct substitutes.
