Introduction

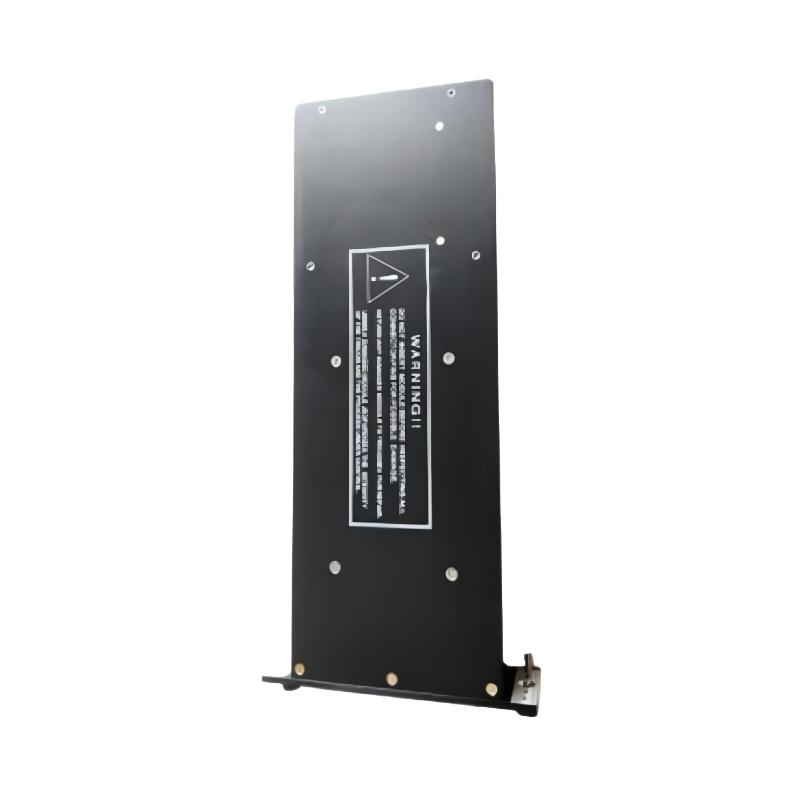

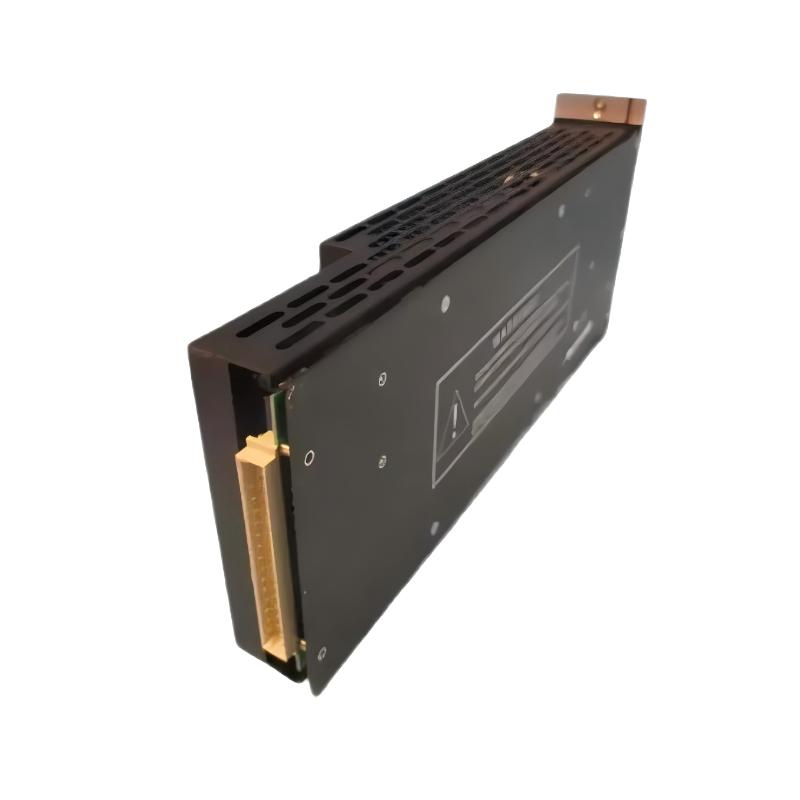

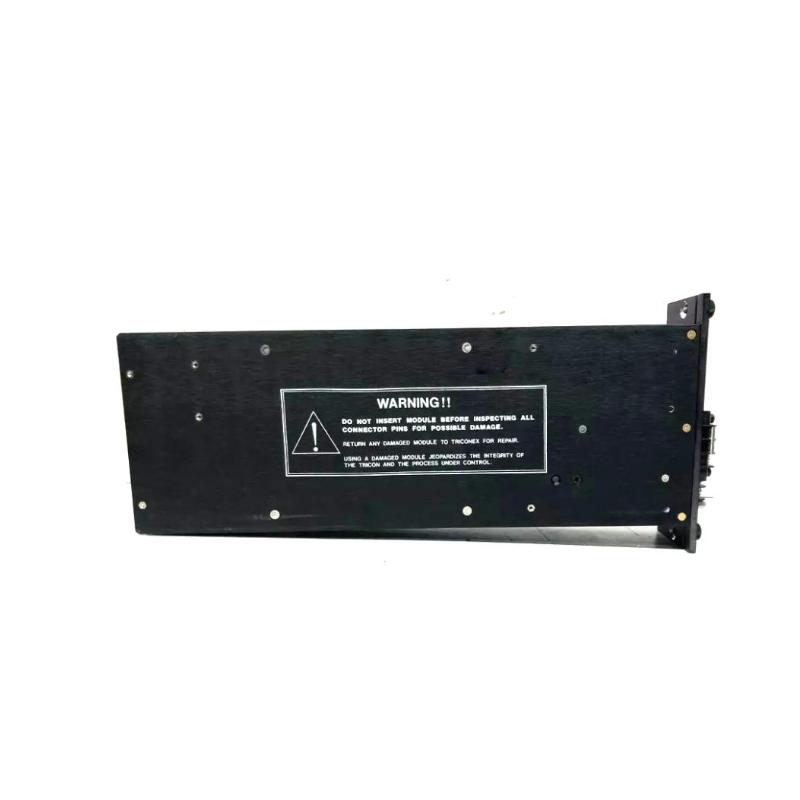

The Triconex 8306A Power Expansion Unit is an industrial power expansion module designed for the Triconex safety control platform developed by Schneider Electric.
This unit extends the power capacity of Triconex systems by distributing and supporting additional power modules within the Safety Instrumented System (SIS). It helps maintain stable power delivery across multiple controllers and I/O modules, ensuring reliable operation in safety-critical industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8306A |
| Product Type | Power Expansion Unit |
| Manufacturer | Schneider Electric |
| System Platform | Triconex Safety Instrumented System |
| Function | Expands and distributes power to system modules |
| Dimensions | 63 × 178 × 394 mm (H × W × D) |
| Weight | 3.3 kg |
Applications
The Triconex 8306A Power Expansion Unit is commonly used in industrial safety systems where additional power capacity is required to support larger control architectures.
Typical applications include:
-
Safety Instrumented Systems (SIS) in oil and gas processing facilities
-
Petrochemical and chemical plant safety control systems
-
Power generation monitoring and turbine protection platforms
-
Industrial automation systems requiring extended power distribution
-
Large Triconex installations with multiple controllers and I/O modules
The unit ensures that power can be efficiently expanded and distributed across the control system infrastructure.
Advantages
-
Power Expansion Capability – Increases the available power capacity for larger systems
-
Stable Power Distribution – Supports reliable electrical delivery to multiple modules
-
Industrial-Grade Reliability – Designed for continuous operation in demanding environments
-
Seamless System Integration – Fully compatible with Triconex safety platforms
-
Compact Rack Installation – Efficiently fits into standard control cabinets
Technical FAQs
Q1: What is the purpose of the Triconex 8306A power expansion unit?
It expands the power capacity of a Triconex system and distributes electrical power to additional modules and system components.
Q2: Where is the 8306A unit installed?
It is installed within a Triconex system chassis or control cabinet as part of the system power infrastructure.
Q3: Which industries commonly use the 8306A module?
Industries such as oil and gas, petrochemical processing, and power generation use it in safety instrumented systems.
Q4: Why is a power expansion unit important in large control systems?
It ensures that sufficient and stable power is available for all controllers, I/O modules, and communication devices within the safety system.
