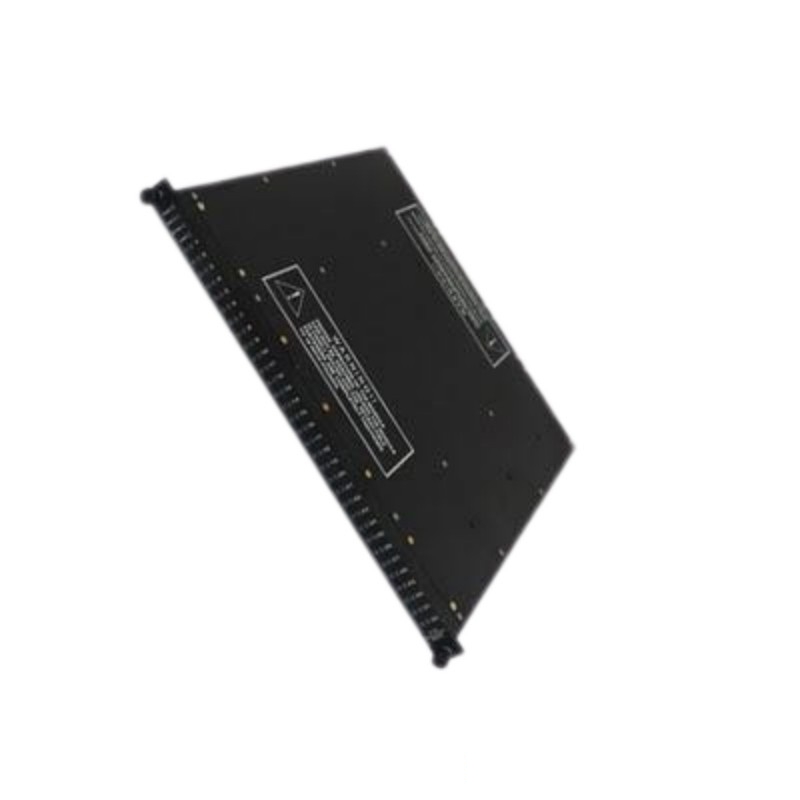

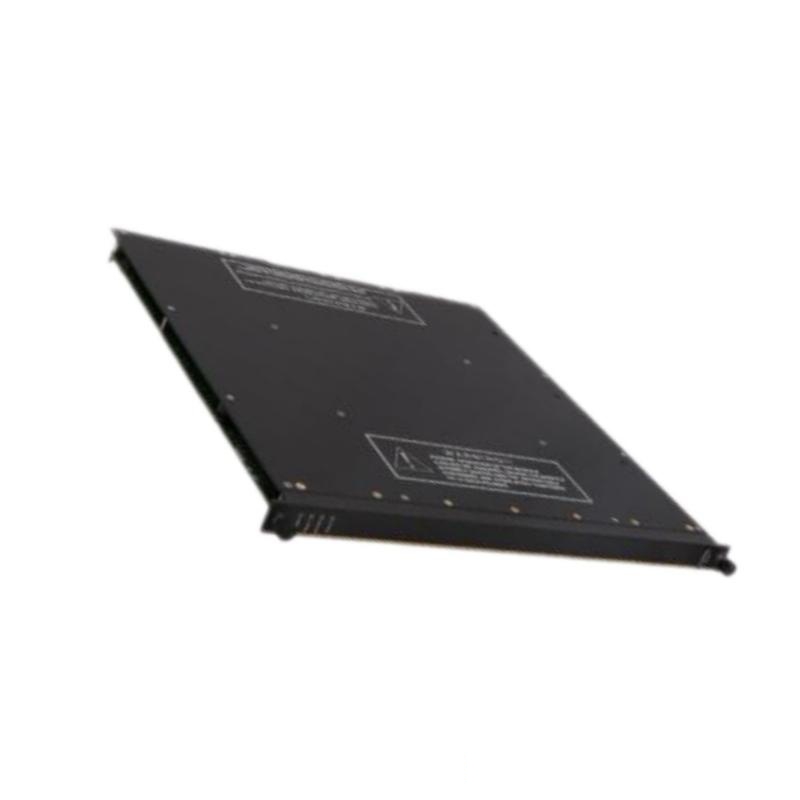

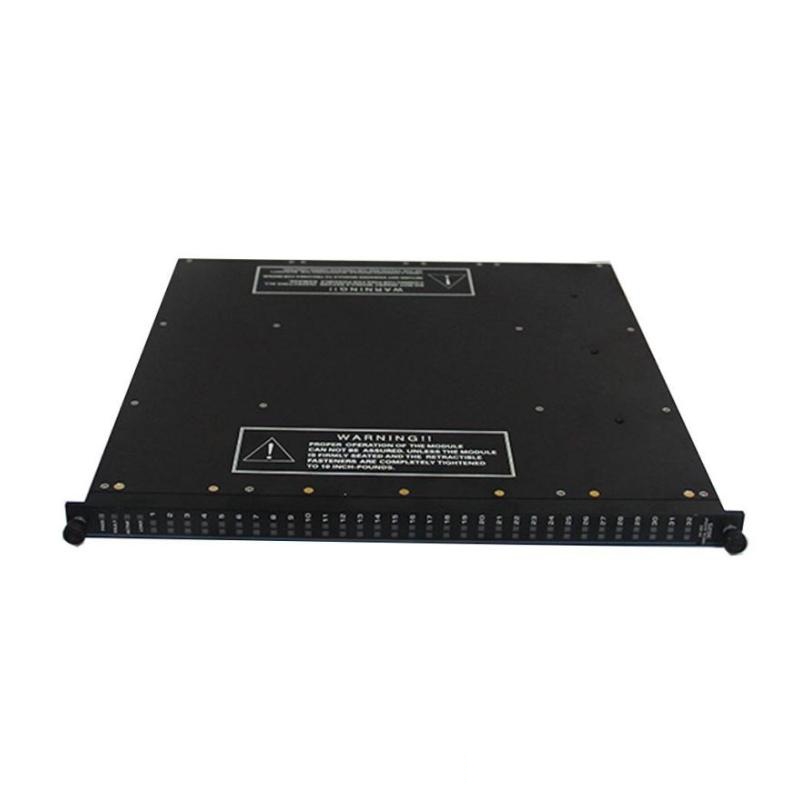

Triconex 3805H Analog Output Module
Product Overview
The Triconex 3805H is a high-performance analog output module designed for use in critical process control applications. It is part of the Triconex Safety System, which is known for providing reliable and fail-safe operation in industries where safety and uptime are of utmost importance. This module is ideal for industries such as oil and gas, chemical processing, power generation, and manufacturing.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | Analog Output Module |
| Model Number | 3805H |
| Brand | Triconex |
| Series | Triconex 3000 Series |
| Dimensions (L x W x H) | 114.3 × 127 × 107.95 mm |
| Weight | 1.5 kg |
| Channels | 8 Analog Output Channels |
| Output Range | 4-20 mA, 0-10 V |
| Power Supply | 24V DC |
| Mounting Type | Rack Mount |
| Communication Protocol | Modbus, Triconex Protocol |
| Temperature Range | -40°C to +70°C |
| Signal Resolution | 16-bit |
| Certification | CE, UL, and FM |
Product Applications
The 3805H Analog Output Module is designed for industrial environments that require reliable and precise control of analog signals. Some of its common applications include:
-
Process Control: Used for controlling valves, pumps, and other equipment requiring accurate analog control.
-
Flow and Pressure Control: It can provide analog signals for flowmeters and pressure regulators in critical processes.
-
Temperature Control: Ideal for controlling temperature systems by sending precise output signals to controllers and actuators.
-
Level Control: Used in systems where continuous level measurements need to be communicated in real-time to ensure safety and efficiency.
Product Advantages
-
High Accuracy and Reliability: Provides highly accurate analog output signals with a 16-bit resolution, ensuring precision in critical control systems.
-
SIL 3 Certified: As part of the Triconex Safety System, the 3805H meets the highest safety standards, including SIL 3 certification, making it suitable for high-risk environments.
-
Wide Temperature Range: The module operates reliably in harsh environments with a temperature range of -40°C to +70°C.
-
Robust Communication Protocols: It supports Modbus and Triconex Protocol, making it highly adaptable to various industrial systems.
-
Compact and Rugged Design: The compact size and rugged construction ensure the module is suitable for use in confined spaces and industrial settings that require high durability.
Brand
-
Brand: Triconex
-
The Triconex 3000 Series is a well-known family of safety modules that delivers superior performance and reliability in process control, automation, and safety applications.
Related Models or Products
Here are five related models from the Triconex 3000 Series:
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| Triconex 3805A | 8-Channel Analog Output Module | 114.3 × 127 × 107.95 mm | 1.5 kg |
| Triconex 3806H | High-Density Analog Input/Output Module | 114.3 × 127 × 107.95 mm | 1.7 kg |
| Triconex 3807H | High-Speed Analog Output Module | 114.3 × 127 × 107.95 mm | 1.6 kg |
| Triconex 3810H | High-Density Digital Input/Output Module | 114.3 × 127 × 107.95 mm | 1.4 kg |
| Triconex 3804H | 4-Channel Digital Input Module | 114.3 × 127 × 107.95 mm | 1.2 kg |
Popular Triconex Models
Here are five other Triconex models used in safety and process control systems:
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| Triconex 3604 | Safety Controller Module | 185 × 260 × 155 mm | 3.2 kg |
| Triconex 3801 | Safety I/O Module | 180 × 230 × 120 mm | 1.6 kg |
| Triconex 3701 | Digital Input Module | 160 × 220 × 100 mm | 1.3 kg |
| Triconex 3004 | Analog Input/Output Module | 140 × 200 × 120 mm | 1.8 kg |
| Triconex 2800 | Communication Processor Module | 160 × 230 × 140 mm | 2.0 kg |
FAQs
-
Q: What is the weight of the Triconex 3805H module?
A: The weight of the Triconex 3805H is 1.5 kg. -
Q: What is the output range of the 3805H module?
A: The 3805H offers outputs in the range of 4-20 mA and 0-10 V. -
Q: Can the 3805H module be used in hazardous environments?
A: Yes, the module is built to withstand harsh industrial environments, with a wide temperature range of -40°C to +70°C. -
Q: How many channels does the 3805H module have?
A: The module has 8 analog output channels. -
Q: What communication protocols are supported by the 3805H?
A: The 3805H supports Modbus and Triconex Protocol. -
Q: What is the space requirement for the 3805H module?
A: The module has dimensions of 114.3 × 127 × 107.95 mm. -
Q: Is the 3805H suitable for SIL 3 safety applications?
A: Yes, the 3805H is part of the Triconex Safety System and is SIL 3 certified. -
Q: Can the 3805H be mounted on a standard DIN rail?
A: Yes, the 3805H can be mounted using a DIN rail. -
Q: How many different models are available in the Triconex 3000 Series?
A: There are various models in the Triconex 3000 Series, including analog input/output, digital input/output, and safety controller modules. -
Q: Is the 3805H compatible with other Triconex products?
A: Yes, the 3805H is fully compatible with other Triconex modules and integrates easily with the Triconex Safety System.
