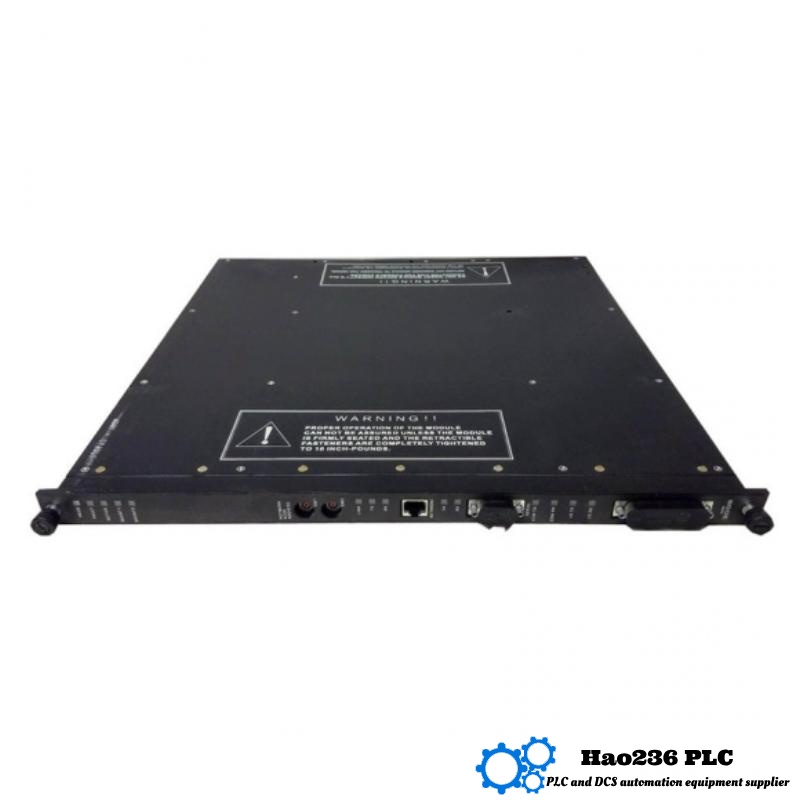

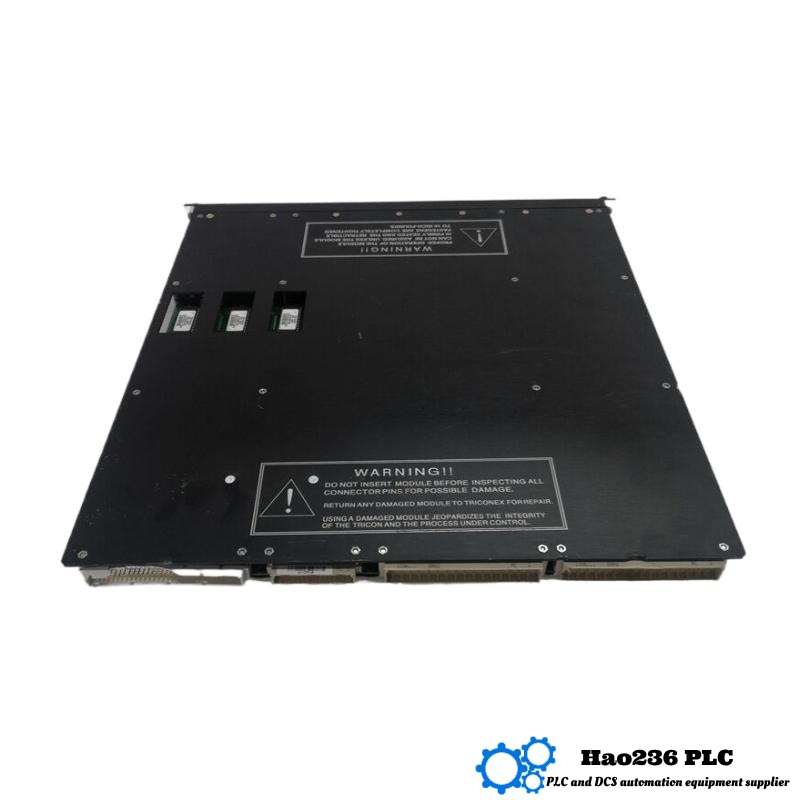

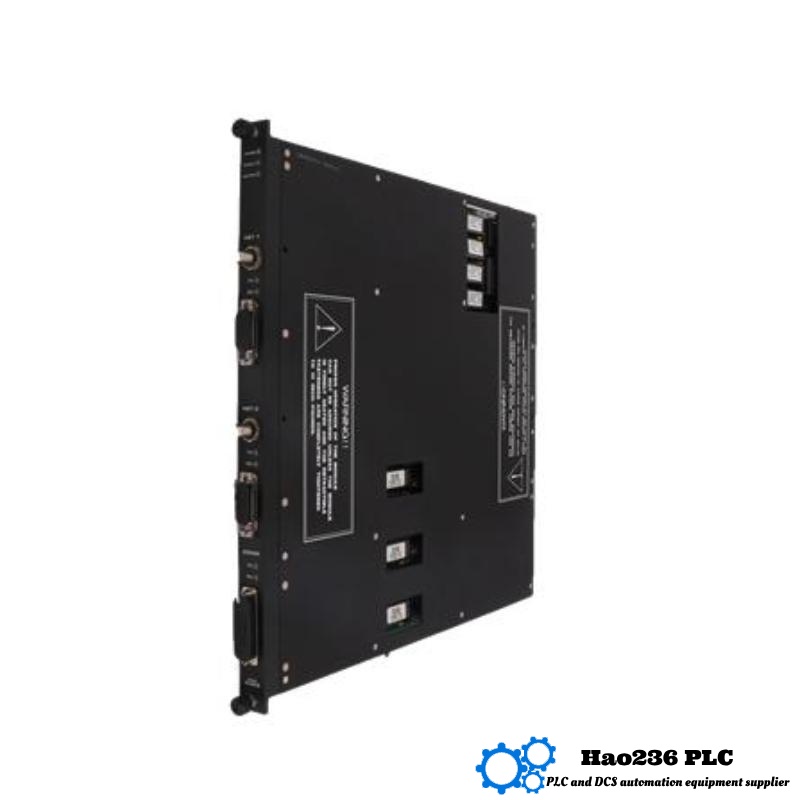

Triconex 3515 Pulse Input Module
Product Introduction
The Triconex 3515 is a high-performance pulse input module designed for use in safety-critical applications within the Triconex fault-tolerant control system family. Known for its rugged design and precise signal processing capabilities, the 3515 module captures pulse signals from various field devices such as flow meters, encoders, and other pulse-generating sensors.
The module is engineered to operate reliably in demanding industrial environments, ensuring continuous and accurate pulse counting necessary for process control and safety instrumented systems (SIS). Certified to meet SIL 3 standards, the 3515 module is part of the robust Triconex safety platform, favored in industries where safety and operational continuity are paramount.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3515 |
| Module Type | Pulse Input Module |
| Input Channels | 4 pulse input channels |
| Input Signal Type | Digital pulse signals |
| Maximum Input Frequency | Up to 10 kHz |
| Input Voltage Range | 5 to 24 V DC |
| Power Supply | Powered by Triconex rack |
| Response Time | Less than 10 ms |
| Operating Temperature | 0°C to +70°C |
| Dimensions (WxHxD) | 270 x 46 x 253 mm |
| Weight | 3.03 kg |
| Safety Integrity Level | SIL 3 Certified |
| Brand | Triconex (Schneider Electric) |
Product Applications
The Triconex 3515 pulse input module is widely used in industrial sectors requiring reliable pulse measurement and safety integrity:
-
Flow measurement for liquids and gases in oil & gas pipelines
-
Speed monitoring of rotating equipment such as turbines and motors
-
Counting pulses from level and pressure sensors for process control
-
Monitoring and control in chemical processing plants
-
Safety instrumented systems in power generation facilities
-
Industrial automation setups requiring fault-tolerant pulse inputs
-
Refinery batch process monitoring and material tracking
Its ability to accurately process high-frequency pulse signals ensures that critical safety and process data is captured without loss or distortion.
Product Advantages
-
SIL 3 Certified: Provides highest safety level compliance for critical operations.
-
High Reliability: Designed for fail-safe, redundant operation to maintain system integrity.
-
Fast Response: Capable of handling pulse frequencies up to 10 kHz for timely control actions.
-
Multiple Channels: Four independent input channels enable flexible system design.
-
Robust Construction: Built to withstand harsh industrial conditions and temperature variations.
-
Integrated Diagnostics: Offers extensive health monitoring and fault detection features.
-
Seamless Integration: Fully compatible with Triconex safety systems and existing rack infrastructure.
-
Accurate Signal Processing: Minimizes noise and interference to provide precise pulse data.
Brand Information
Triconex，The brand’s hallmark is its Triple Modular Redundancy (TMR) technology that guarantees fault tolerance and operational continuity in mission-critical environments worldwide.
Related Models in the Same or Similar Series
| Model Number | Module Type | Channels | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|
| 3515 | Pulse Input Module | 4 | 270 x 46 x 253 | 3.03 kg | High-frequency pulse input |
| 3511 | Pulse Input Module | 4 | 270 x 46 x 253 | 3.03 kg | Pulse inputs with SIL 3 compliance |
| 3501 | Digital Input Module | 16 | 270 x 46 x 253 | 3.0 kg | Standard digital input for SIS |
| 3521 | Analog Input Module | 8 | 270 x 46 x 253 | 3.1 kg | Analog signal input module |
| 3541 | Analog Output Module | 8 | 270 x 46 x 253 | 3.1 kg | Analog output for process control |
Popular Triconex Models
| Model Number | Module Type | Key Features | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|
| 3515 | Pulse Input Module | 4 channels, SIL 3 | 270 x 46 x 253 | 3.03 kg | High-speed pulse input |
| 3501 | Digital Input Module | 16 channels, SIL 3 | 270 x 46 x 253 | 3.0 kg | Core digital input module |
| 3521 | Analog Input Module | 8 channels, SIL 3 | 270 x 46 x 253 | 3.1 kg | Accurate analog input processing |
| 3531 | Analog Output Module | 8 channels, SIL 3 | 270 x 46 x 253 | 3.1 kg | Analog output for actuator control |
| 3551 | Digital Output Module | 16 channels, SIL 3 | 270 x 46 x 253 | 3.0 kg | Digital outputs for control tasks |
FAQ (Frequently Asked Questions)
Q1: What are the physical dimensions of the Triconex 3515 module?
A1: The module measures 270 x 46 x 253 mm.
Q2: How much does the 3515 module weigh?
A2: It weighs approximately 3.03 kilograms.
Q3: How many pulse input channels are available on the 3515?
A3: It has 4 independent pulse input channels.
Q4: What is the maximum pulse frequency the module can process?
A4: The module supports pulse frequencies up to 10 kHz.
Q5: What input voltage range does the 3515 accept?
A5: It accepts pulse inputs ranging from 5 to 24 V DC.
Q6: Is the Triconex 3515 SIL certified?
A6: Yes, it is certified to SIL 3 standards.
Q7: Can the 3515 operate in harsh environments?
A7: Yes, it operates reliably in temperatures from 0°C to +70°C.
Q8: Does the module support diagnostic features?
A8: Yes, it offers comprehensive diagnostics and fault monitoring.
Q9: Is the 3515 compatible with other Triconex modules?
A9: Yes, it integrates seamlessly with other Triconex system modules.
Q10: What industries typically use the Triconex 3515 module?
A10: It is widely used in oil & gas, petrochemical, power generation, and other process industries.
