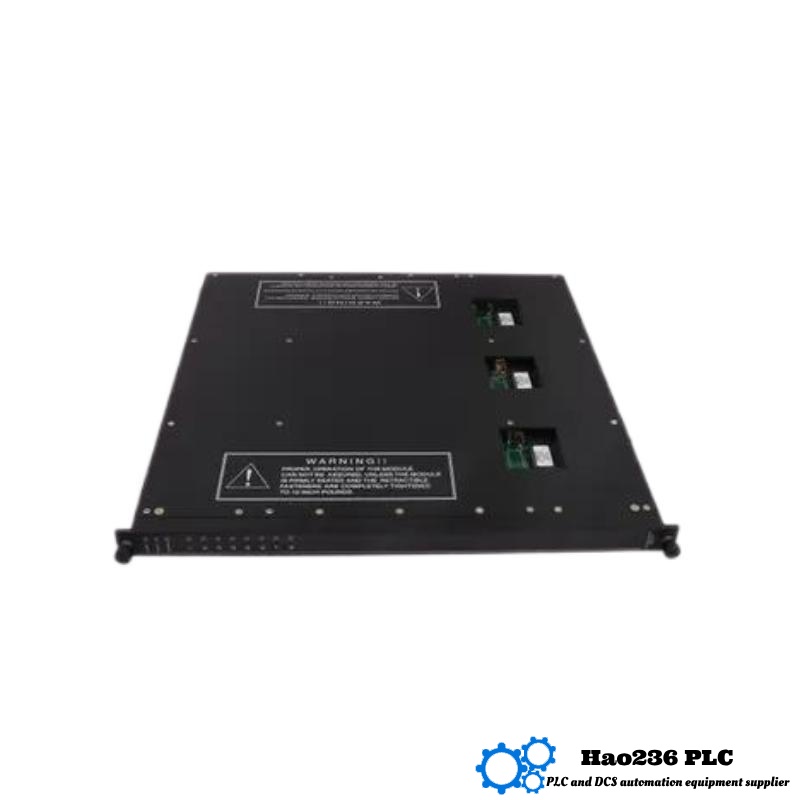

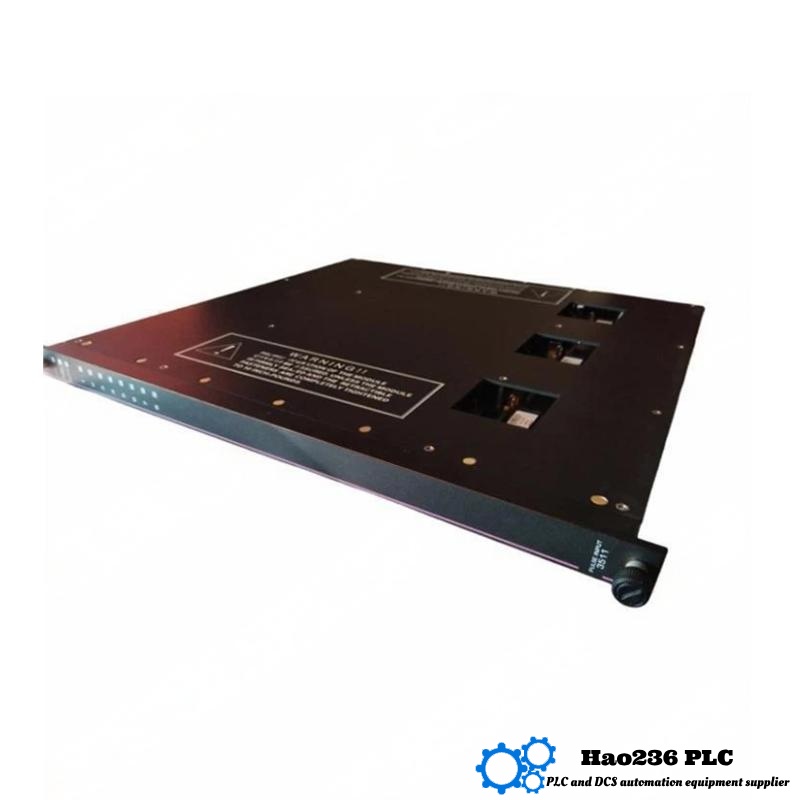

Triconex 3511 Pulse Input Module
Product Introduction
The Triconex 3511 is a specialized pulse input module designed for use within the Triconex safety and critical control system platforms. Known for its high reliability and robust engineering, the 3511 module captures and processes pulse signals for precise measurement and control applications. Built with safety and redundancy in mind, it supports the rigorous requirements of process industries where uptime, accuracy, and fault tolerance are critical.
This module forms an integral part of Triconex’s fault-tolerant safety systems, widely used in applications requiring SIL 3 safety integrity level compliance. The 3511 is engineered to handle pulses from devices such as flow meters, speed sensors, and other pulse-generating instrumentation, converting these signals into actionable data for system logic and control.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3511 |
| Module Type | Pulse Input Module |
| Input Channels | 4 pulse input channels |
| Input Signal Type | Digital pulses |
| Max Input Frequency | Up to 10 kHz |
| Input Voltage Range | 5 to 24 V DC |
| Power Supply | Powered by the Triconex rack |
| Response Time | < 10 ms |
| Operating Temperature | 0°C to +70°C |
| Dimensions (WxHxD) | 270 x 46 x 253 mm |
| Weight | 3.03 kg |
| Safety Integrity Level | SIL 3 Certified |
| Brand | Triconex (Schneider Electric) |
Product Applications
The Triconex 3511 Pulse Input Module is utilized extensively across industries requiring reliable pulse signal processing under safety-critical conditions:
-
Flow measurement in oil & gas pipelines
-
Rotational speed monitoring in turbines and motors
-
Pulse counting from level and pressure transmitters
-
Process control systems in petrochemical and chemical plants
-
Safety instrumented systems (SIS) in power generation
-
Industrial automation requiring redundant and fail-safe pulse inputs
-
Refining operations monitoring batch processes and material handling
The module’s ability to handle high-frequency pulses accurately ensures precise measurement critical for control loops and safety shutdowns.
Product Advantages
-
SIL 3 Certified: Meets the highest safety integrity standards for critical applications.
-
Fault Tolerant Design: Provides continuous operation and diagnostics to minimize downtime.
-
High Input Frequency: Supports pulse rates up to 10 kHz for high-speed measurement.
-
Multiple Channels: Four independent pulse inputs allow versatile use in complex systems.
-
Robust Build: Designed to operate reliably in harsh industrial environments.
-
Easy Integration: Fully compatible with Triconex safety systems and rack configurations.
-
Accurate Signal Processing: Minimizes noise and signal degradation ensuring clean pulse counts.
-
Comprehensive Diagnostics: Supports proactive maintenance and quick fault detection.
Brand Information
The Triconex brand, is a global leader in safety and critical control systems. Renowned for its triple modular redundancy (TMR) technology, Triconex delivers unmatched reliability and safety in industrial automation, serving markets such as oil & gas, power, chemical, and manufacturing.
Related Models in the Same or Similar Series
| Model Number | Module Type | Channels | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|
| 3511 | Pulse Input Module | 4 | 270 x 46 x 253 | 3.03 kg | High-frequency pulse input |
| 3501 | Digital Input Module | 16 | 270 x 46 x 253 | 3.0 kg | Standard digital inputs for safety SIS |
| 3521 | Analog Input Module | 8 | 270 x 46 x 253 | 3.1 kg | Analog signal inputs for control |
| 3541 | Analog Output Module | 8 | 270 x 46 x 253 | 3.1 kg | Analog output for actuators |
| 3551 | Digital Output Module | 16 | 270 x 46 x 253 | 3.0 kg | Digital output control |
Popular Triconex Models
| Model Number | Module Type | Key Features | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|
| 3511 | Pulse Input Module | 4 channels, SIL 3 | 270 x 46 x 253 | 3.03 kg | Pulse inputs for safety systems |
| 3501 | Digital Input Module | 16 channels, SIL 3 | 270 x 46 x 253 | 3.0 kg | Core digital input module |
| 3521 | Analog Input Module | 8 channels, SIL 3 | 270 x 46 x 253 | 3.1 kg | Analog inputs for process control |
| 3531 | Analog Output Module | 8 channels, SIL 3 | 270 x 46 x 253 | 3.1 kg | Analog output for actuators |
| 3551 | Digital Output Module | 16 channels, SIL 3 | 270 x 46 x 253 | 3.0 kg | Digital outputs for control |
FAQ (Frequently Asked Questions)
Q1: What are the dimensions of the Triconex 3511 module?
A1: The dimensions are 270 x 46 x 253 mm.
Q2: How much does the 3511 module weigh?
A2: It weighs approximately 3.03 kilograms.
Q3: How many pulse input channels does it support?
A3: The module supports 4 independent pulse input channels.
Q4: What is the maximum pulse frequency the 3511 can handle?
A4: It can handle pulse frequencies up to 10 kHz.
Q5: What input voltage does the module require?
A5: It operates with input pulses in the range of 5 to 24 V DC.
Q6: What safety certification does the 3511 have?
A6: It is certified for SIL 3 safety integrity level.
Q7: Can the 3511 operate in harsh industrial environments?
A7: Yes, it is designed to function reliably from 0°C to +70°C.
Q8: Is the 3511 compatible with other Triconex safety system modules?
A8: Yes, it integrates fully within the Triconex rack system.
Q9: Does the module support fault diagnostics?
A9: Yes, it provides comprehensive diagnostics for maintenance and troubleshooting.
Q10: What industries commonly use the Triconex 3511?
A10: It is widely used in oil & gas, petrochemical, power generation, and manufacturing sectors.
