1. Product Overview

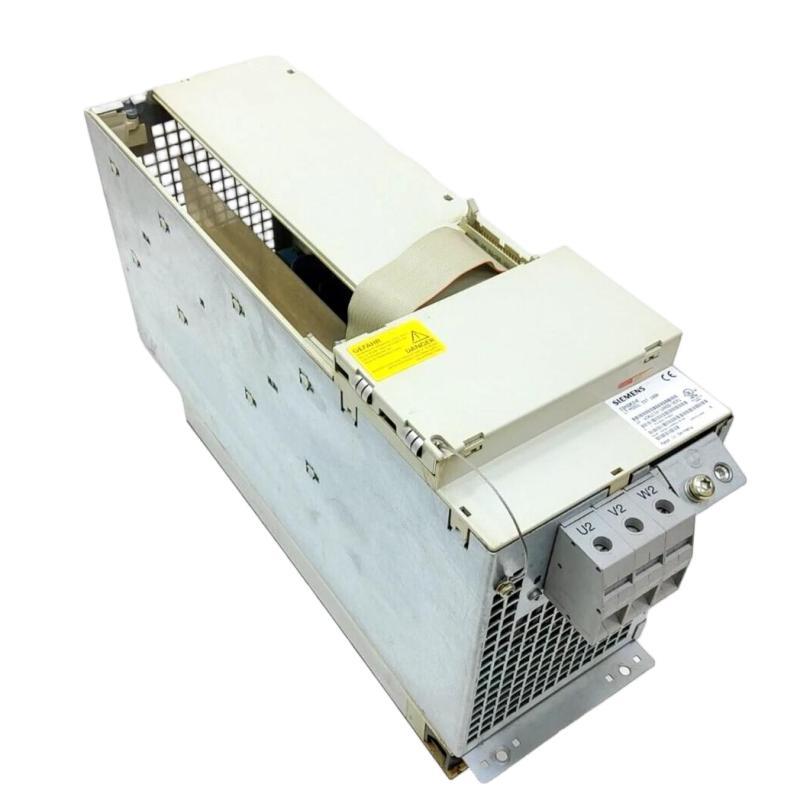

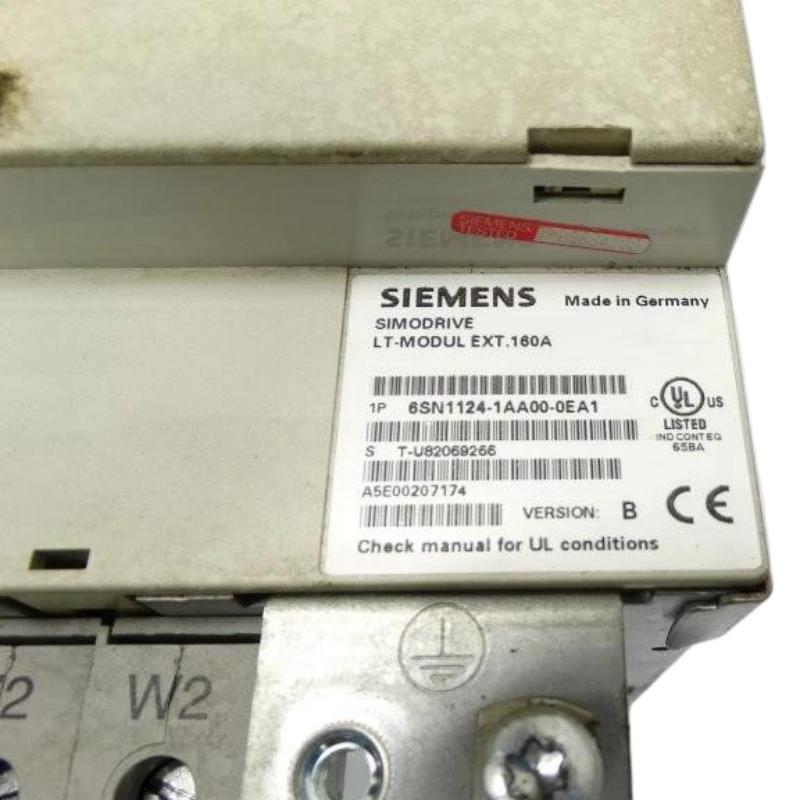

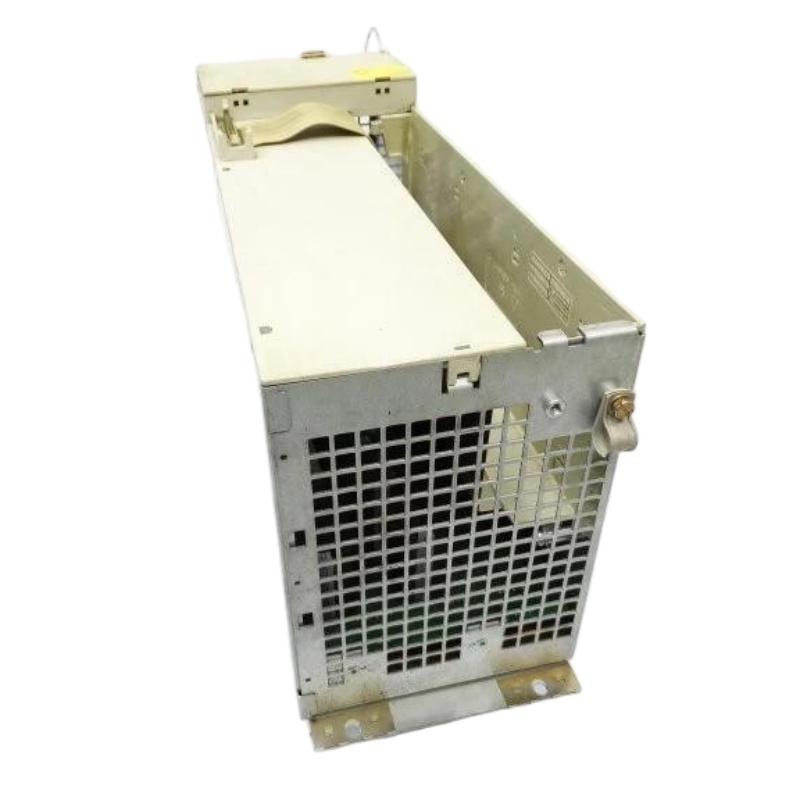

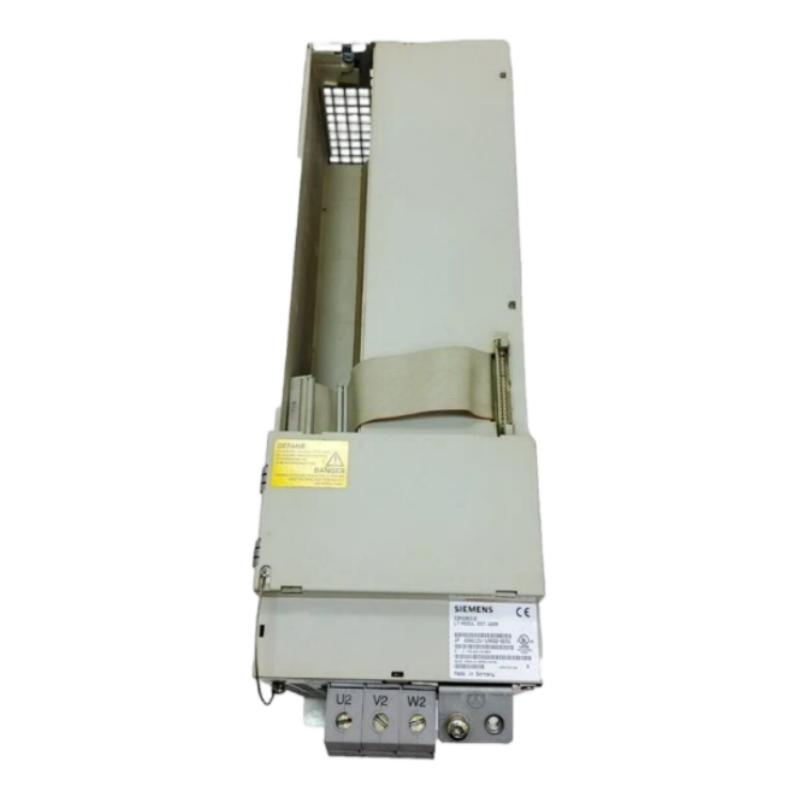

The Siemens 6SN1124-1AA00-0EA1 Power Module is a single-axis power module in the Siemens SIMODRIVE 611 drive system family. It is designed for industrial motion control applications, where controlled electrical power is supplied to a compatible motor drive configuration.
As part of a CNC or machine-tool drive system, the power module works with the associated drive components to support motor operation, acceleration, deceleration, and controlled motion. Its external cooling arrangement makes correct heat dissipation and cabinet integration important considerations during installation and maintenance.
The 6SN1124-1AA00-0EA1 is associated with a 160 A transistor current rating. Motor-rated current depends on the motor type and operating conditions, so the correct current rating must be selected according to the installed motor and the system configuration.
This module is suitable for evaluation in existing SIMODRIVE 611 installations where the original hardware configuration, motor requirements, and cooling arrangement are compatible. Before purchasing or replacing the unit, confirm the complete part number, hardware condition, electrical specifications, and compatibility with the existing drive system.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6SN1124-1AA00-0EA1 |
| Product Type | Power Module |
| Product Family | SIMODRIVE 611 |
| Number of Axes | 1 |
| Transistor Current Rating | 160 A |
| Cooling Method | External cooling |
| Motor Current Rating | Depends on motor type and operating conditions |
| Dimensions | 152 × 483 × 305 mm |
| Weight | 13 kg |
| Application | Industrial drive and motion control systems |
| Typical Equipment | CNC machinery, machine tools, and industrial production equipment |
| Installation | Compatible SIMODRIVE 611 drive assembly |
| Replacement Requirements | Verify electrical, mechanical, cooling, and system compatibility |
The dimensions and weight above are the supplied product specifications. Electrical ratings and motor-current values should be checked against the applicable technical documentation and the specific installed configuration before commissioning.
3. Function and Working Principle
The primary function of a power module is to provide controlled electrical power for a connected motor within a compatible drive system. In the Siemens SIMODRIVE 611 architecture, the power module operates as part of a larger assembly that includes the required supply, control, and motor-related components.
The drive system manages motor operation according to the commands and feedback used by the machine controller. Depending on the application, this can support precise positioning, speed regulation, coordinated movement, and controlled machine sequences.
3.1 Power Conversion
A drive power module processes electrical energy from the drive system’s DC link and provides a controlled motor output. The exact operating conditions depend on the system configuration, motor type, and applicable drive specifications.
3.2 Single-Axis Operation
The 6SN1124-1AA00-0EA1 is identified as a single-axis module. It is intended for a designated motor axis within a compatible SIMODRIVE 611 installation. The motor, control components, and associated drive hardware must be selected as a coordinated system.
3.3 Motor Control Integration
The power module operates alongside the appropriate control and interface components. These components work together to execute the machine’s motion commands and support the required drive functions.
3.4 Thermal Management
The module uses an external cooling arrangement. Heat generated during power conversion must be dissipated through the intended cooling structure. Incorrect mounting, restricted airflow, or an unsuitable cabinet arrangement can lead to excessive temperature and unreliable operation.
The module’s precise electrical limits, permissible motor combinations, and installation requirements should always be confirmed before use.
4. Role in Industrial Automation Systems
The Siemens 6SN1124-1AA00-0EA1 can be an important component in a compatible motion control installation.
CNC Machine Tools
CNC machines require coordinated control of spindle and feed axes to perform machining operations. A compatible power module supports the operation of its assigned axis within the overall drive architecture.
Precision Motion Control
Industrial machines often require controlled speed, torque, and positioning. The power module works with the appropriate control components and motor to provide the required drive output.
Automated Manufacturing
Production machinery uses drive systems to coordinate moving parts, tooling, and mechanical assemblies. Reliable power conversion helps maintain the intended machine sequence and motion performance.
Legacy Equipment Maintenance
Many industrial facilities continue to operate established SIMODRIVE 611 installations. Maintaining the correct power module can help support repairs and reduce the need for unnecessary changes to the wider machine control system.
Machine Modernization
During a retrofit, the existing module may be assessed for reuse or replacement. Any modernization project should evaluate drive compatibility, motor requirements, cabinet cooling, controller support, and commissioning requirements before hardware changes are made.
5. Industrial Applications
5.1 CNC Milling and Turning Machines
CNC milling and turning equipment relies on coordinated motor control to perform machining operations. A suitable SIMODRIVE power module can support an assigned axis in a correctly configured drive system.
5.2 Industrial Machine Tools
Grinding machines, drilling equipment, and other machine tools require stable and controlled motor operation. The appropriate drive hardware helps provide the electrical power required by the connected motor.
5.3 Automated Production Lines
Manufacturing lines use motion systems to coordinate positioning mechanisms, transfer equipment, and machine sequences. Compatible drive components support the required movement of individual machine axes.
5.4 Material Processing Equipment
Certain metalworking and material-processing machines use controlled drives to regulate mechanical movement. The suitability of this module depends on the required motor performance and the approved system configuration.
5.5 Existing SIMODRIVE Installations
Where a machine already uses the SIMODRIVE 611 platform, replacing a failed power module with a verified compatible unit can simplify maintenance planning. The complete hardware configuration must be checked before installation.
These applications describe typical environments for compatible industrial drive hardware. They do not establish suitability for every machine or motor.
6. Installation and System Integration
Installation must be carried out by qualified personnel using the applicable Siemens documentation and site safety procedures. The following steps provide a general checklist rather than a substitute for model-specific instructions.
Step 1: Confirm the Part Number
Verify that the module label reads 6SN1124-1AA00-0EA1. Check the existing module, equipment drawings, spare-parts list, and drive configuration to confirm that the replacement is correct.
Step 2: Isolate the Drive System
Disconnect the relevant power sources and follow the site’s lockout/tagout procedure. Drive systems can retain hazardous energy in DC-link capacitors after the incoming supply has been switched off. Wait for the specified discharge period and verify the safe state using the approved procedure before handling the module.
Step 3: Inspect the Installation Area
Check the cabinet, mounting surfaces, connectors, and surrounding equipment for damage, contamination, or overheating. Ensure that the installation arrangement supports the module’s external cooling requirements.
Step 4: Verify Electrical Compatibility
Confirm the drive supply arrangement, DC-link requirements, motor connections, protective measures, and cable specifications. Do not infer terminal assignments or electrical limits from the model number alone.
Step 5: Check Cooling Requirements
Because the module uses external cooling, verify the correct heat-sink mounting arrangement and the required airflow or heat-removal path. Ensure that the cooling structure is unobstructed and correctly installed.
Step 6: Mount the Module
Install the module according to the approved mechanical arrangement. Use the specified fasteners and tightening torques, and ensure that all required mechanical and electrical connections are properly secured.
Step 7: Inspect Connections
Check the relevant power and motor connections, protective grounding, control interfaces, and associated components. Confirm that cables are routed and secured in accordance with the installation documentation.
Step 8: Restore Power and Commission
Restore power only after the installation has been checked and the system is ready for commissioning. Review drive diagnostics and status information, then perform the approved functional tests before returning the machine to normal operation.
7. Common Problems and Troubleshooting
Power-module faults can result from the module itself or from associated components, wiring, cooling, supply conditions, or system configuration. Troubleshooting should follow a systematic process.
| Symptom | Possible Causes | Recommended Checks |
|---|---|---|
| Drive does not become operational | Supply problem, incorrect installation, or system fault | Review supply conditions, drive status, and diagnostic messages |
| Motor does not move | Missing enable command, control fault, motor connection issue, or drive fault | Check control signals, motor connections, and system diagnostics |
| Overtemperature warning | Cooling restriction, excessive load, or unsuitable installation | Inspect the cooling arrangement and verify operating conditions |
| Drive trips during operation | Electrical fault, overload, motor problem, or incompatible configuration | Review fault history and verify motor and drive specifications |
| Intermittent drive operation | Loose connection, unstable supply, or thermal problem | Inspect connections and assess supply and cooling conditions |
| Replacement module is not accepted by the system | Incorrect part number or configuration incompatibility | Verify the complete model and supported hardware configuration |
| Fault persists after replacement | Root cause may be outside the power module | Check associated components, cabling, control hardware, and power supply |
7.1 Power Supply Checks
Confirm that the drive system receives the specified supply and that associated supply components are operating correctly. Electrical measurements must be performed by qualified personnel using approved procedures.
7.2 Cooling Checks
Inspect the external cooling arrangement for obstruction, contamination, loose mounting, or inadequate heat removal. Check the operating environment and machine duty cycle against the specified limits.
7.3 Motor and Cable Checks
Motor faults, damaged insulation, incorrect connections, or cable problems may cause the drive to trip. Follow the manufacturer’s diagnostic procedure before disconnecting or testing motor circuits.
7.4 Configuration Checks
Verify that the module is suitable for the installed motor and drive architecture. Review relevant drive parameters and diagnostic records before changing settings.
7.5 Replacement Assessment
If the fault remains after supply, cooling, wiring, motor, and configuration checks, further testing may be required. Replace the module only after confirming that it is faulty or unsuitable and that the replacement is compatible.
8. Preventive Maintenance
Preventive maintenance helps preserve drive-system reliability and can reduce unplanned machine downtime.
- Inspect cooling components: Check the external heat-removal arrangement for obstruction and contamination.
- Inspect electrical connections: Look for loose terminals, damaged cables, and signs of overheating during scheduled maintenance.
- Monitor drive diagnostics: Record recurring alarms and investigate their causes.
- Review operating conditions: Confirm that motor load, duty cycle, and cabinet environment remain within the approved limits.
- Maintain cabinet cleanliness: Prevent dust and debris from interfering with cooling or electrical connections.
- Keep technical records: Maintain accurate module identification, wiring diagrams, parameter backups, and replacement history.
- Protect spare modules: Store replacement equipment in suitable conditions and protect it against moisture, contamination, and electrostatic discharge.
- Follow safety procedures: Observe the required isolation and DC-link discharge procedures before servicing the drive.
Maintenance intervals should be determined by the machine manufacturer’s recommendations, the operating environment, and the site’s maintenance policy.
9. Compatibility and Replacement Considerations
Selecting a replacement for the Siemens 6SN1124-1AA00-0EA1 requires more than matching its dimensions or general product description.
| Selection Factor | What to Verify |
|---|---|
| Exact model | Confirm 6SN1124-1AA00-0EA1 and any relevant hardware identification |
| Drive family | Confirm compatibility with the existing SIMODRIVE 611 installation |
| Number of axes | Verify that the module’s single-axis configuration meets the machine requirements |
| Current rating | Match the module to the motor type and required operating conditions |
| Cooling method | Confirm the required external cooling arrangement |
| Mechanical fit | Check mounting dimensions, heat-sink arrangement, and cabinet space |
| Electrical interface | Verify supply, DC-link, motor, and control connections |
| System configuration | Confirm compatibility with the associated drive and control components |
| Product condition | Evaluate whether the unit is new, refurbished, used, or tested |
| Commissioning | Determine whether inspection, parameter verification, or additional functional testing is required |
The 6SN1124-1AA00-0EA1 is part of an established drive platform, so replacement decisions should consider the installed machine’s complete configuration. A related part number should not be treated as a direct substitute without checking its specifications and suitability.
10. Key Benefits of Correct Module Selection
Integration with Existing Drive Systems
Selecting the correct module helps maintain the intended SIMODRIVE 611 architecture and can simplify maintenance of compatible legacy equipment.
Support for Single-Axis Motion
The module’s single-axis design is suited to installations where an individual motor axis requires a compatible power stage.
Defined Cooling Arrangement
Its external cooling configuration allows the system designer to account for heat dissipation as part of the overall cabinet and drive layout.
Easier Spare-Parts Management
Accurate model identification helps maintenance teams select suitable replacement equipment and maintain consistent inventory records.
More Efficient Troubleshooting
Correct documentation and hardware matching make it easier to distinguish module faults from problems involving the motor, cabling, cooling, supply, or control system.
These benefits depend on correct selection, proper installation, and operation within the manufacturer’s specified limits.
11. Frequently Asked Questions
Q1: What is the Siemens 6SN1124-1AA00-0EA1?
It is a single-axis power module in the Siemens SIMODRIVE 611 drive system family, intended for compatible industrial motor-control applications.
Q2: What are the dimensions of the 6SN1124-1AA00-0EA1?
The supplied dimensions are 152 × 483 × 305 mm.
Q3: How much does the module weigh?
The supplied product weight is 13 kg.
Q4: How many axes does this module support?
The model is identified as a single-axis power module. Its use must match the intended axis and the overall drive configuration.
Q5: What is the module’s current rating?
The module is associated with a 160 A transistor current rating. The permissible motor current varies with the motor type and operating conditions, so the correct values must be verified for the specific application.
Q6: What cooling method does the module use?
The 6SN1124-1AA00-0EA1 uses external cooling. The prescribed mounting and heat-removal arrangement must be followed during installation.
Q7: Can it replace another SIMODRIVE 611 power module?
Not automatically. Confirm the complete part number, current requirements, motor compatibility, cooling method, and system configuration before selecting a replacement.
Q8: Why might the drive trip after the module has been installed?
Potential causes include incorrect wiring, an incompatible motor or module configuration, supply problems, cooling issues, or a fault in associated equipment. Review diagnostic information and follow the approved commissioning procedure.
Q9: Is the module suitable for CNC machines?
It may be suitable for CNC machinery using a compatible SIMODRIVE 611 drive configuration. The intended axis, motor requirements, and installation arrangement must be confirmed.
Q10: What safety precautions are required before servicing the module?
Isolate the power supply, follow the site’s lockout/tagout procedure, allow the DC link to discharge for the specified period, and verify the safe state using approved methods before handling the equipment.
12. Conclusion
The Siemens 6SN1124-1AA00-0EA1 Power Module is a single-axis SIMODRIVE 611 component intended for compatible industrial motion-control systems. Its supplied dimensions of 152 × 483 × 305 mm and weight of 13 kg are useful for preliminary identification, handling, and installation planning.
For dependable operation, verify the module’s electrical characteristics, motor-current requirements, external cooling arrangement, and compatibility with the existing drive configuration before installation or replacement. Proper isolation, careful wiring inspection, systematic commissioning, and preventive maintenance help support reliable operation and reduce avoidable downtime in industrial automation equipment.
