1. Product Overview

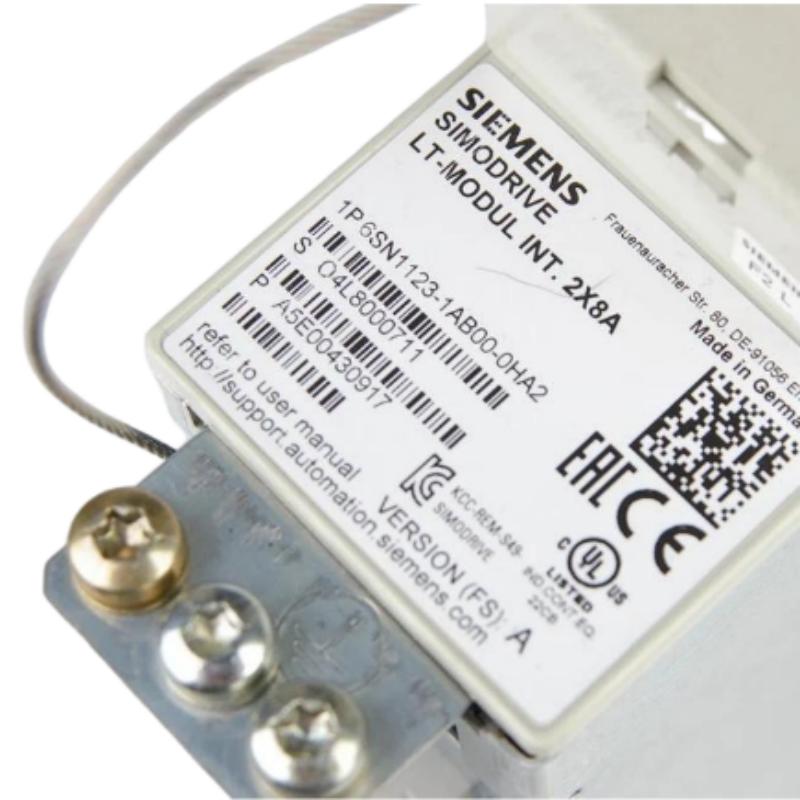

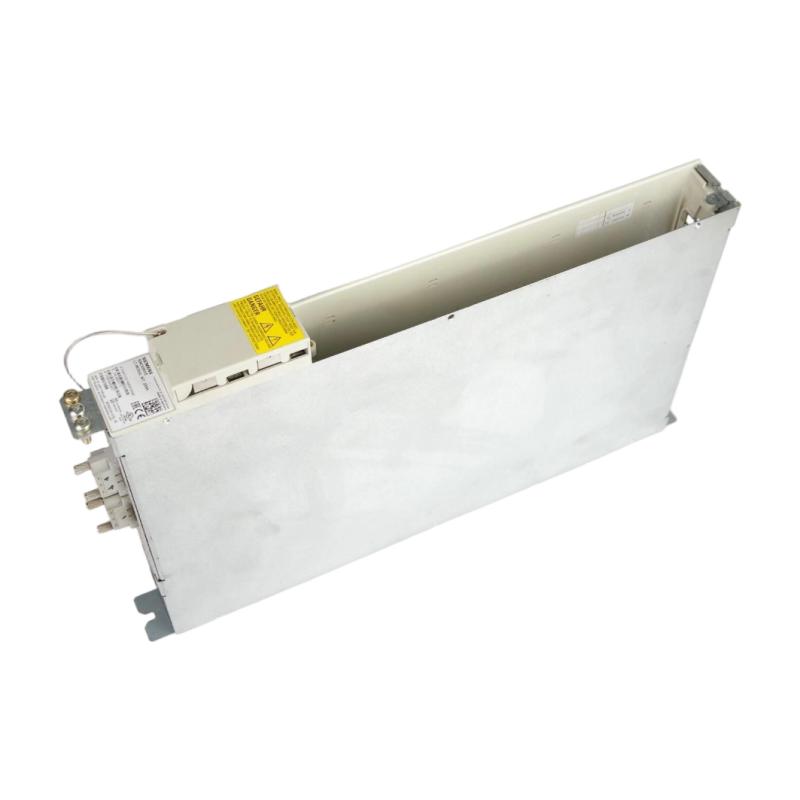

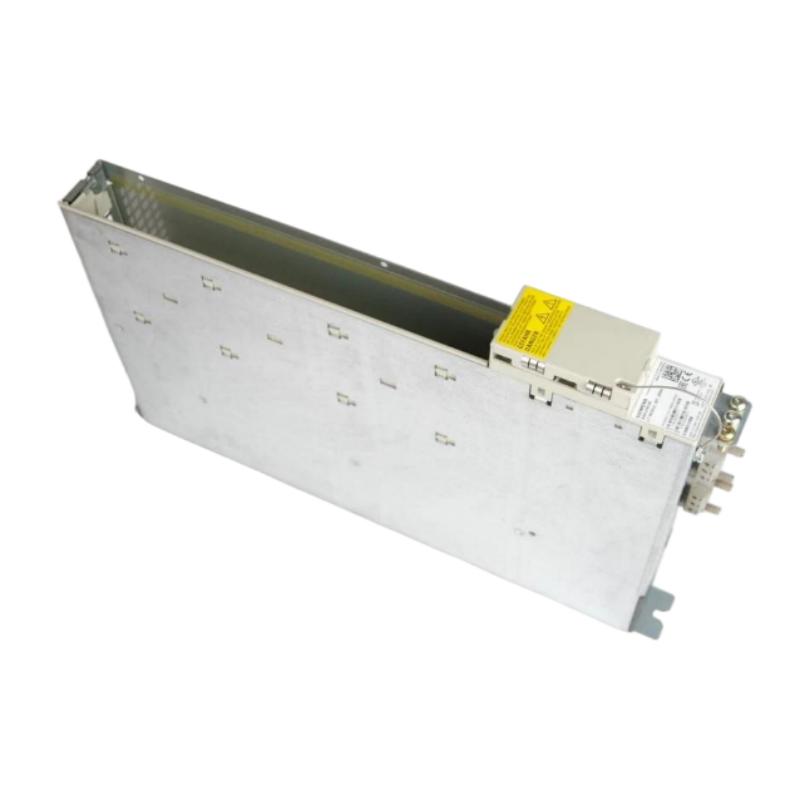

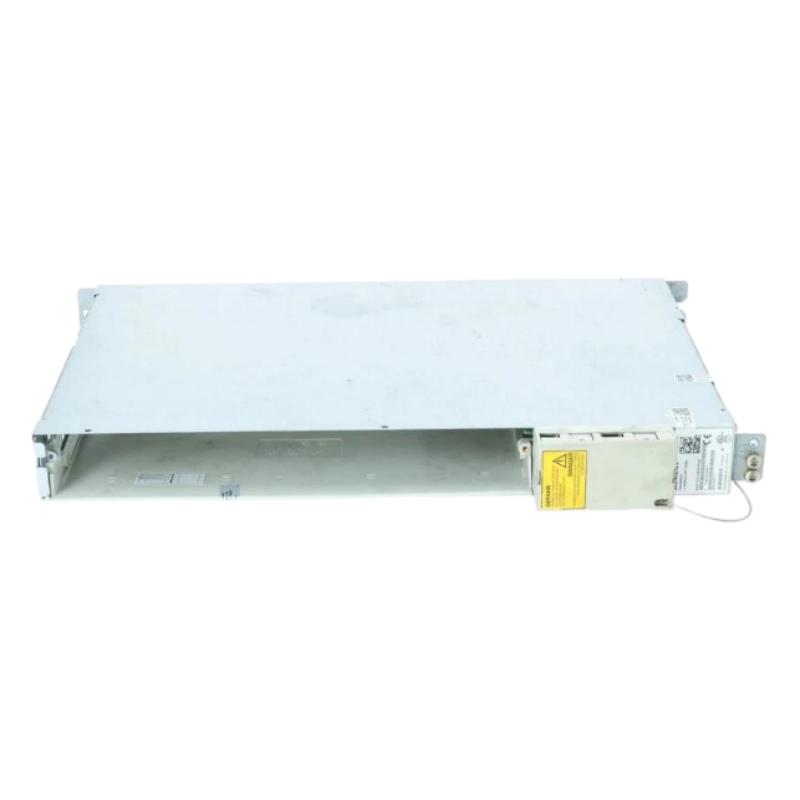

The Siemens 6SN1123-1AB00-0HA2 SIMODRIVE 611 Power Module is a two-axis drive power module designed for industrial motion control applications, particularly CNC machine tools and automated manufacturing equipment. As part of the Siemens SIMODRIVE 611 drive system, it works with compatible control modules and associated drive components to provide power for feed and spindle motor applications.
In CNC machining centers, milling machines, lathes, and other precision production equipment, drive modules play an essential role in converting electrical energy into controlled motor operation. Reliable drive performance supports coordinated axis movement, consistent machine operation, and accurate execution of programmed machining tasks.
The 6SN1123-1AB00-0HA2 is specified as a two-axis, 8 A power module with internal cooling. Its stated motor current ratings are 3 A for the feed drive and 3 A for the main spindle drive. These ratings are important when checking compatibility with the motors and control architecture of an existing SIMODRIVE installation.
This model is particularly relevant to maintenance teams responsible for legacy Siemens CNC systems. Correct identification is important because modules within the same product family can differ in current ratings, cooling arrangements, and supported applications.
The supplied physical specifications are 305 × 51 × 533 mm and 5.7 kg. Confirm the mechanical drawing and mounting requirements for the exact unit before installation.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6SN1123-1AB00-0HA2 |
| Product Series | SIMODRIVE 611 |
| Product Type | Two-Axis Power Module |
| Rated Module Current | 8 A |
| Feed Drive Motor Current | 3 A |
| Main Spindle Motor Current | 3 A |
| Cooling Method | Internal cooling |
| Dimensions | 305 × 51 × 533 mm, as supplied |
| Weight | 5.7 kg, as supplied |
| Primary Application | CNC and industrial motion control |
| System Role | Drive power conversion for compatible feed and spindle applications |
| Mounting Width | Approximately 50 mm |
| Product Lifecycle | Legacy / discontinued product; verify current service options |
Technical note: The dimensions and weight above follow the supplied product information. Verify the orientation of the dimensional measurements against the original mechanical drawing. Electrical installation must follow the applicable Siemens SIMODRIVE documentation, including DC-link requirements, motor connections, protective measures, and system compatibility.
3. Function and Working Principle
The SIMODRIVE 611 system uses modular drive components to control electric motors in industrial machines. The power module forms part of the drive assembly and works with a compatible control module to execute the required motor-control functions.
3.1 Drive Power Conversion
The power module operates within the SIMODRIVE drive architecture, where electrical energy is converted and controlled to support motor operation. The control electronics determine the required drive behavior, while the power stage supplies the electrical output needed by the connected motor system.
The exact power and control connections depend on the system configuration. The module must be installed with the correct compatible components and wiring arrangement.
3.2 Two-Axis Drive Architecture
The 6SN1123-1AB00-0HA2 is identified as a two-axis module. In a suitable installation, the drive configuration supports feed and spindle-related applications within the SIMODRIVE 611 architecture.
Feed axes control machine movement, such as table travel or tool positioning. Spindle drives provide the rotation required for machining operations. The specific motor allocation and configuration must be confirmed from the machine’s original electrical design.
The two-axis designation does not mean that the module can be connected to any two motors. Motor ratings, control-unit compatibility, wiring, and drive-system configuration must all be verified.
3.3 Internal Cooling
The module uses an internal cooling arrangement. Heat generated during power conversion must be dissipated according to the manufacturer’s installation requirements.
Adequate cabinet ventilation, correct mounting, and unobstructed airflow are important for maintaining reliable operation. Excessive temperature can contribute to drive alarms, protective shutdowns, or accelerated component degradation.
3.4 Integration with CNC Control
In a CNC machine, the numerical control system calculates motion commands and coordinates the required drive responses. Compatible control electronics process those commands and regulate the connected motors through the drive system.
The power module is one part of this architecture. Overall performance depends on the CNC controller, control module, drive power module, motor feedback devices, motors, and mechanical transmission.
4. Role in Industrial Automation Systems
4.1 CNC Feed-Axis Control
Feed axes move machine components along programmed paths. Depending on the machine design, these axes may control a table, carriage, spindle head, or tool assembly.
The drive system supplies controlled motor operation so that the machine can follow its programmed trajectory. Correct module selection and motor matching are important for stable movement and reliable machining.
4.2 Main Spindle Applications
The spindle provides the rotational motion needed for operations such as milling, turning, drilling, and grinding. Within a compatible SIMODRIVE installation, the power module contributes to the drive architecture that supports the configured motor application.
The motor type and operating requirements must match the module’s electrical ratings and the complete drive configuration.
4.3 Multi-Axis Machine Coordination
Industrial machine tools frequently coordinate several motion axes. The CNC controller manages their relationship, while the drive system provides the required motor control.
A correctly configured two-axis module can form part of this architecture where its ratings and interfaces are appropriate for the machine design.
4.4 Machine Availability and Maintenance
Drive-module faults can interrupt machining operations and lead to production downtime. Maintaining an accurate record of module references, motor assignments, parameter settings, and diagnostic events helps maintenance teams investigate faults more efficiently.
For legacy equipment, preserving compatible spare parts and documenting the original drive configuration can be especially important.
5. Typical Industrial Applications
5.1 CNC Machining Centers
CNC machining centers use coordinated motor drives to move tools and workpieces along programmed axes. SIMODRIVE 611 components may be found in compatible legacy installations where reliable axis movement is essential to production.
5.2 CNC Milling Machines
Milling machines require controlled feed movement and spindle operation to produce parts to specified dimensions. The drive power module supports the wider drive system when correctly matched to the machine’s motors and control electronics.
5.3 CNC Lathes
CNC lathes use spindle rotation and controlled feed movement to machine cylindrical components. The suitability of this module depends on the original drive arrangement, motor ratings, and control-unit configuration.
5.4 Precision Manufacturing Equipment
Other compatible machine tools may use SIMODRIVE 611 components for coordinated motion control. Before reusing the module in another machine, engineers should verify the original electrical design and the complete drive configuration.
5.5 Legacy Industrial Equipment
Older automated production systems may continue operating with established SIMODRIVE hardware. In these environments, the 6SN1123-1AB00-0HA2 can be relevant as a maintenance or replacement component when the existing system requires the same reference.
6. Installation and System Integration
Power modules operate with hazardous electrical energy and stored DC-link energy. Installation, testing, and replacement should be carried out only by qualified personnel following the applicable Siemens documentation and site safety procedures.
6.1 Verify System Compatibility
Before installation, confirm:
- The complete part number: 6SN1123-1AB00-0HA2
- Compatibility with the existing SIMODRIVE 611 system
- The supported control module and system configuration
- The required feed and spindle motor ratings
- The DC-link and power-supply requirements
- The internal cooling and cabinet ventilation requirements
- The motor connections and feedback arrangements
- The relevant hardware revision and machine documentation
Do not substitute another SIMODRIVE module based only on its appearance or physical width.
6.2 Inspect the Module
Before installation, inspect the housing, connectors, power terminals, and identification label for signs of damage. Check for corrosion, contamination, overheating, damaged contacts, or evidence of moisture exposure.
For refurbished or previously used equipment, obtain an appropriate condition assessment and confirm that the unit is suitable for the intended application.
6.3 Observe Electrical Safety Requirements
Before removing or installing the module:
- Shut down the machine using the approved procedure.
- Isolate the relevant electrical supplies.
- Apply the site’s lockout/tagout process.
- Wait for the specified DC-link discharge period.
- Verify the absence of hazardous voltage using suitable test equipment and the approved procedure.
- Follow the manufacturer’s instructions for handling and installation.
Never assume that a DC link is safe simply because the machine has been switched off. Stored electrical energy can remain after isolation.
6.4 Check Mounting and Connections
Install the module in the specified position and ensure that the mechanical and electrical interfaces match the system design.
Check the relevant power connections, motor connectors, control interfaces, protective-earth arrangements, and cable routing against the official documentation. Use the prescribed terminal hardware and tightening torques.
Do not guess terminal assignments or use a wiring diagram from a similar but different model.
6.5 Verify Cooling and Cabinet Conditions
The internal cooling arrangement requires the installation to meet the specified environmental and airflow conditions.
Inspect ventilation paths and remove accumulated dust where the maintenance procedure permits. Confirm that adjacent components do not obstruct airflow and that the cabinet temperature remains within the documented operating limits.
6.6 Commission the Drive System
Commissioning should follow the approved procedure for the complete SIMODRIVE installation. Verify the module configuration, control-unit compatibility, motor assignments, and relevant parameters before enabling the drive.
Test the machine under controlled conditions and confirm that axis movement, motor response, and diagnostic status are consistent with the original system design. Record the final settings and test results.
7. Troubleshooting Common Problems
Drive faults can originate from the power module, control module, motor, feedback system, wiring, cooling conditions, or incoming electrical supply. Troubleshooting should be based on the actual diagnostic messages and the machine’s service documentation.
7.1 Drive Does Not Enable
Possible causes:
- Incorrect control-unit configuration
- Active drive or CNC alarm
- Power-supply or DC-link problem
- Incorrect interlock or enable signal
- Loose electrical connection
- Fault in another component of the drive system
Recommended checks:
Record the exact alarm code and check the complete drive system’s diagnostic status. Verify the control configuration, power connections, and enable conditions according to the approved service procedure.
Do not replace the power module until the other possible causes have been investigated.
7.2 Axis Movement Is Unstable
Possible causes:
- Motor feedback problems
- Incorrect drive parameters
- Motor or mechanical transmission faults
- Poor electrical connections
- Control-system configuration issues
- Faults in associated drive components
Recommended checks:
Review the CNC and drive diagnostics, inspect relevant connections, and verify the motor and feedback configuration. Determine whether the problem affects one axis or multiple axes before deciding which component requires further testing.
7.3 Overtemperature or Cooling Alarm
Possible causes:
- Blocked ventilation
- Excessive cabinet temperature
- Accumulated dust
- Abnormal machine loading
- Cooling-system degradation
- Internal hardware fault
Recommended checks:
Check the cabinet environment and airflow against the specified installation requirements. Inspect ventilation paths and review the alarm history. If the fault persists after external conditions are corrected, follow the manufacturer’s diagnostic procedure.
7.4 Power Module Fault
Possible causes:
- Electrical overload or short circuit
- Incorrect motor or drive configuration
- Supply or DC-link abnormality
- Damaged power components
- Faults in connected motors or cables
Recommended checks:
Record the exact fault message and investigate the associated electrical and motor circuits using the prescribed service procedure. High-voltage measurements and internal power-stage testing must be performed only by qualified personnel with suitable equipment.
7.5 Fault Returns After Module Replacement
If a replacement module develops the same fault, investigate the surrounding drive system rather than assuming that the replacement is defective.
Check motor cables, motor condition, parameter settings, cooling, power supply, control-unit compatibility, and the original fault history. A persistent external problem can damage a replacement unit or cause the same protective shutdown.
8. Compatible System Components
The Siemens 6SN1123-1AB00-0HA2 should be used only with components confirmed to be compatible with the SIMODRIVE 611 system and the intended machine configuration.
| Component Category | Function |
|---|---|
| Compatible SIMODRIVE control module | Provides the control interface for the configured drive |
| Compatible feed motor | Supports the relevant machine feed axis |
| Compatible spindle motor | Provides spindle rotation where supported by the configuration |
| CNC controller | Generates and coordinates programmed motion commands |
| Motor feedback devices | Provide position or speed feedback where required |
| Power-supply and DC-link components | Provide the electrical supply required by the drive system |
| Motor and power cables | Connect the drive to the appropriate electrical equipment |
| Cabinet cooling and ventilation | Help maintain the specified operating environment |
| Diagnostic and engineering tools | Support configuration, monitoring, and troubleshooting |
This table describes general component categories. Confirm exact compatible part numbers, electrical ratings, and system arrangements from the original machine documentation before ordering or installing components.
9. Replacement and Alternative Selection
When sourcing a replacement for the Siemens 6SN1123-1AB00-0HA2, matching the product family alone is insufficient. SIMODRIVE power modules differ in current ratings, axis configuration, cooling method, and electrical characteristics.
The model is a legacy product, so purchasing and maintenance teams should confirm availability, condition, and service options before planning a replacement.
| Selection Criterion | What to Verify |
|---|---|
| Complete part number | Match 6SN1123-1AB00-0HA2 exactly |
| Axis configuration | Confirm the two-axis design |
| Current rating | Verify the required 8 A module rating and motor-specific ratings |
| Motor compatibility | Match the feed and spindle motor requirements |
| Cooling method | Confirm compatibility with the internally cooled design |
| Control-unit compatibility | Verify the associated SIMODRIVE control module |
| Power-system compatibility | Check the supply and DC-link requirements |
| Mechanical dimensions | Confirm the installation envelope and mounting arrangement |
| Electrical connections | Match connectors, terminal assignments, and cable requirements |
| Condition and testing | Confirm whether the unit is new, refurbished, or used and what testing is provided |
| Lifecycle and service support | Verify current spare-parts and repair options |
Do not replace this module with another power module simply because the nominal current or physical dimensions appear similar. Any substitute must be validated against the complete drive architecture and the machine manufacturer’s requirements.
10. Key Advantages and Maintenance Considerations
10.1 Two-Axis Drive Capability
The module’s two-axis design supports suitable feed and spindle configurations within the SIMODRIVE 611 architecture, subject to the specified motor and control-unit requirements.
10.2 Integration with Established CNC Systems
For compatible legacy machines, retaining the correct module reference can help preserve the original drive configuration and reduce unnecessary changes to the control architecture.
10.3 Internal Cooling Design
The internal cooling arrangement is part of the module’s installation design. Following the prescribed ventilation and environmental requirements helps support dependable operation.
10.4 Support for Maintenance and Repair
Correct product identification helps maintenance teams source an appropriate spare, plan repairs, and document the configuration of older machine tools.
10.5 Importance of Lifecycle Planning
The SIMODRIVE 611 family is a legacy drive platform. Maintenance teams should consider spare-part availability, repair capability, machine criticality, and the long-term service strategy when planning continued operation.
11. Frequently Asked Questions
Q1: What is the Siemens 6SN1123-1AB00-0HA2?
It is a Siemens SIMODRIVE 611 two-axis power module designed for compatible industrial drive applications, including CNC feed and spindle systems.
Q2: How many axes does the module support?
The model is specified as a two-axis power module. The actual motor allocation depends on the original drive configuration.
Q3: What is its rated current?
The module is identified with an 8 A rating. Its stated motor current ratings are 3 A for the feed drive and 3 A for the main spindle drive. These figures refer to different rating definitions and should not be treated as interchangeable.
Q4: What cooling method does it use?
The 6SN1123-1AB00-0HA2 uses internal cooling. Installation must follow the manufacturer’s environmental and ventilation requirements.
Q5: What are the dimensions and weight?
The supplied dimensions are 305 × 51 × 533 mm, and the supplied weight is 5.7 kg. Verify the measurement orientation against the original mechanical drawing.
Q6: Is the module suitable for every Siemens CNC machine?
No. Compatibility depends on the SIMODRIVE configuration, control module, motor ratings, power system, and machine-specific design.
Q7: What should be checked before replacing the module?
Verify the complete part number, axis configuration, current ratings, cooling method, control-unit compatibility, power connections, motor specifications, and installation dimensions.
Q8: Why might a SIMODRIVE power module trigger an alarm?
Potential causes include power-supply problems, motor or cable faults, cooling issues, incorrect configuration, overload, or an internal module fault. The exact alarm and system diagnostics should guide troubleshooting.
Q9: Can the module be replaced with a similar-current model?
Not automatically. Axis configuration, cooling, electrical interfaces, motor ratings, and control-system compatibility must all match the application.
Q10: Is lifecycle status important when purchasing this module?
Yes. As a legacy component, availability and service options can vary. Buyers should verify the unit’s condition, testing history, warranty terms, and compatibility before purchase.
12. Conclusion
The Siemens 6SN1123-1AB00-0HA2 SIMODRIVE 611 Power Module is a two-axis drive component intended for compatible CNC and industrial motion-control systems. Its specified 8 A module rating, internal cooling design, and feed and spindle motor applications make accurate identification essential when maintaining an existing installation.
For maintenance engineers and spare-parts buyers, the most important considerations are compatibility with the original SIMODRIVE architecture, correct motor ratings, appropriate electrical connections, and compliance with installation and safety procedures.
The supplied dimensions of 305 × 51 × 533 mm and weight of 5.7 kg provide a starting point for identification and planning. Before purchasing or installing a replacement, verify the exact mechanical drawing, electrical specifications, and current service options for the complete part number.
