- Siemens
- 6SN1118-0DJ21-0AA1
- High Performance Digital Control Loop Block
- Germany
- 305 × 51 × 152 mm
- 0.712 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

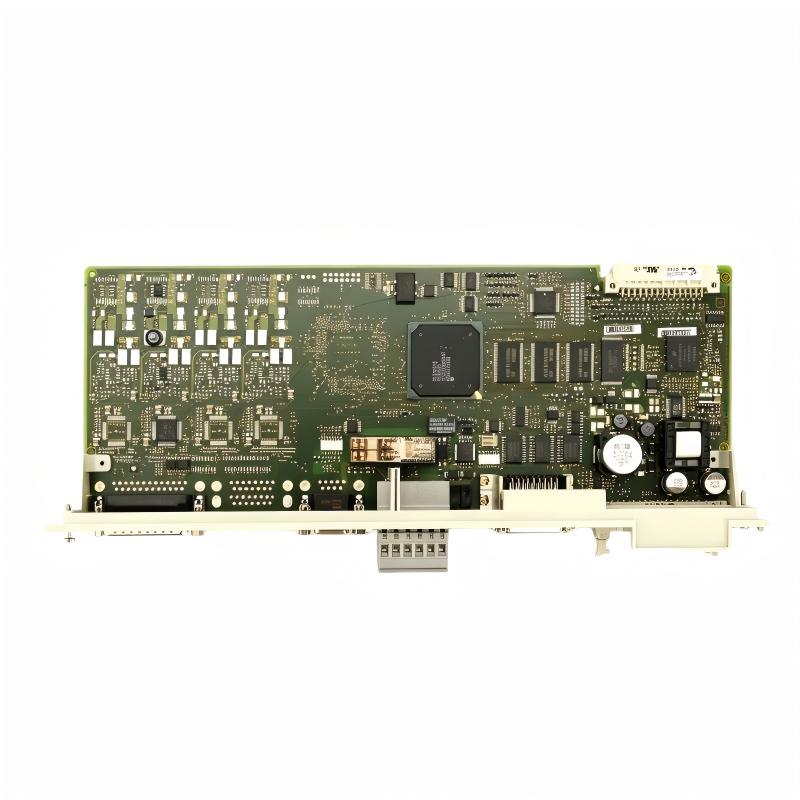

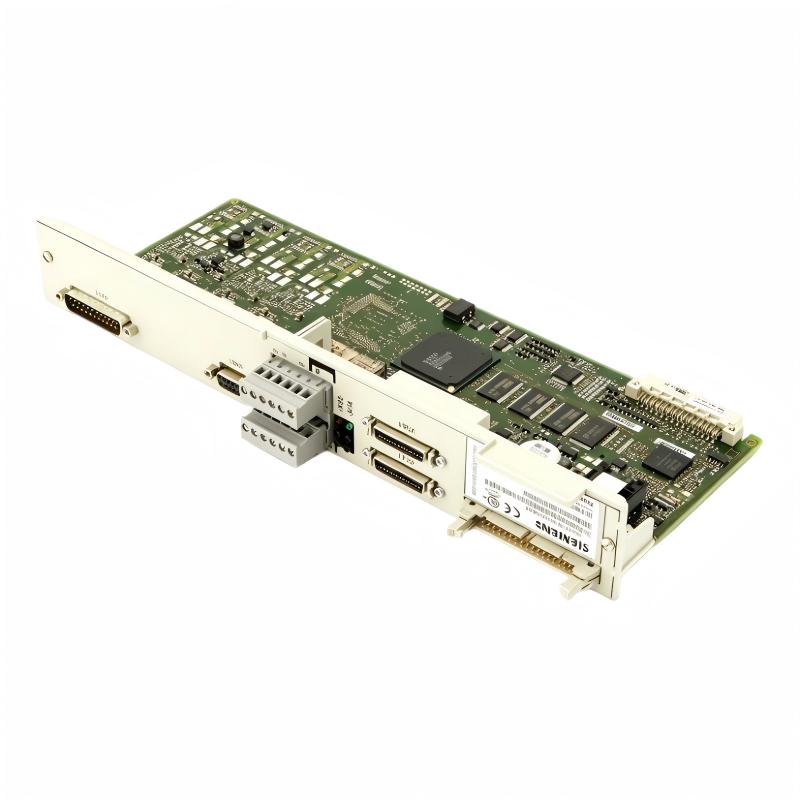

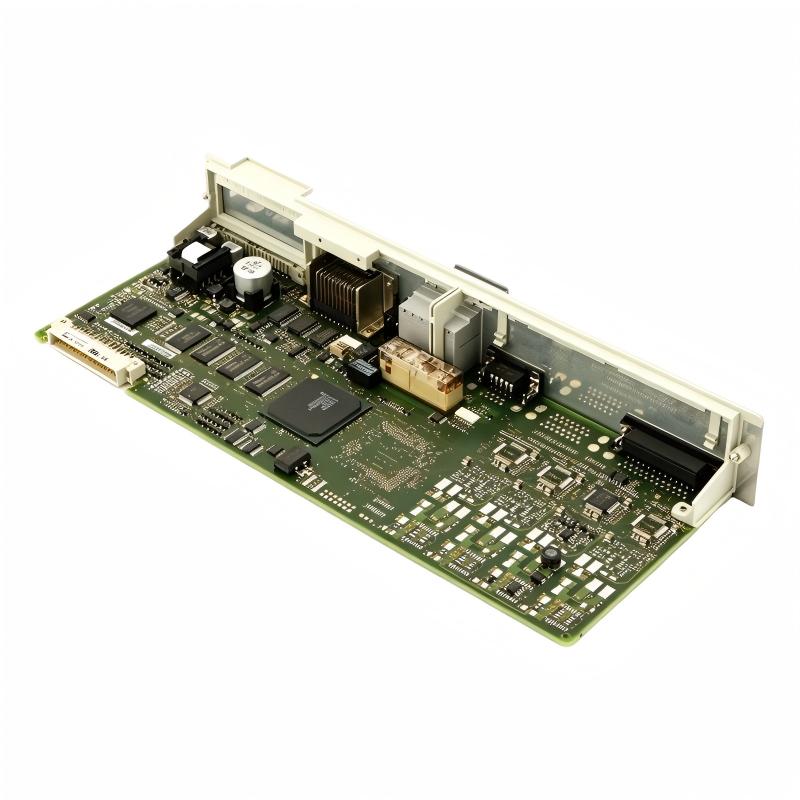

The Siemens 6SN1118-0DJ21-0AA1 is a single-axis high-performance digital control loop block for the SIMODRIVE 611 drive system. Its configuration supports a drive with a SIN/COS 1 Vpp encoder interface and requires a compatible NC software version. It is used in CNC and industrial motion-control installations where a dedicated drive axis must respond to programmed movement commands and encoder feedback.
Consider a CNC machining center in which one feed axis moves a table or tool slide along a programmed path. The CNC controller specifies the required movement, while the drive system regulates motor operation and evaluates feedback from the encoder. The 6SN1118-0DJ21-0AA1 handles the control functions for that axis within the larger SIMODRIVE architecture.
The SIN/COS 1 Vpp encoder interface is a key selection detail. The feedback device and signal interface must match the control unit’s configuration. A machine using a different encoder technology may require a different control-unit variant or a compatible feedback arrangement. The full order number should therefore be checked before replacing an existing module.
This control loop block is part of the drive-control hardware, not a complete servo drive. It works with the appropriate SIMODRIVE power module, motor, encoder, and CNC controller. The control software is loaded as part of the system initialization process, making NC software compatibility an important commissioning consideration.
For maintenance teams, this model is relevant when servicing a single-axis digital drive or diagnosing faults involving encoder feedback, axis response, or drive configuration. Before attributing a fault to the control unit, it is worth checking the encoder signal, motor and power connections, drive parameters, and the software version used by the machine.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DJ21-0AA1 |
| Product Family | SIMODRIVE 611 |
| Drive System | SIMODRIVE 611 Digital |
| Product Type | High Performance Digital Control Loop Block |
| Control Configuration | High-performance digital closed-loop control |
| Number of Axes | 1 |
| Encoder Interface | SIN/COS 1 Vpp |
| Drive Application | Digital drive control |
| Software Requirement | Compatible NC software required; manufacturer-listed configuration specifies software from version 06.04.09 |
| System Integration | Compatible SIMODRIVE 611 power module and drive configuration |
| Typical Application | CNC machine tools and single-axis motion control |
| Dimensions | 305 × 51 × 152 mm |
| Weight | 0.712 kg |
Product Features
- Single-axis control: Handles the control functions for one drive axis within the SIMODRIVE 611 digital system.
- High-performance configuration: Intended for drive applications requiring the corresponding high-performance control class.
- SIN/COS 1 Vpp encoder interface: Supports the specified incremental encoder signal arrangement.
- Digital closed-loop control: Uses the configured feedback and drive hardware to regulate axis operation.
- CNC system integration: Works with the higher-level controller and its programmed motion commands.
- Software-dependent operation: Requires a compatible NC software configuration for initialization and operation.
- Modular drive architecture: Integrates with the appropriate SIMODRIVE power module and motor.
- Axis-specific servicing: Helps maintenance teams identify the control hardware assigned to an individual drive axis.
Working Principle
The 6SN1118-0DJ21-0AA1 participates in a digital closed-loop drive process. The CNC controller provides movement commands, the control loop processes the required axis response, and the associated power module drives the motor. Encoder feedback supplies information about the motor’s movement for use by the configured control system.
A simplified signal path is:
CNC Controller → 6SN1118-0DJ21-0AA1 → SIMODRIVE Power Module → Motor → Machine Axis
SIN/COS 1 Vpp Encoder → Feedback Interface → Closed-Loop Control
When the CNC program commands an axis to move, the drive system regulates the motor according to the required motion profile. The encoder supplies SIN/COS signals through the configured feedback interface, allowing the control system to evaluate the drive’s actual response.
For example, a machine tool may need to move a slide to a programmed position before starting a cutting operation. The controller issues the movement command, and the drive system regulates the motor while using feedback to monitor its response. The resulting positioning behavior depends on the control parameters, encoder installation, motor characteristics, power module, and mechanical transmission.
The encoder interface must be matched to the connected feedback device. A signal-format mismatch can prevent the control system from interpreting position information correctly and may lead to drive faults or unsuccessful commissioning. Encoder wiring, shielding, connector assignment, and the configured feedback type are therefore useful first checks when an axis behaves unexpectedly.
Software compatibility is another part of the operating process. During system initialization, drive software is transferred from the CNC system to the control board. If the NC software version or drive configuration is incompatible, the axis may not initialize as expected. The control unit should therefore be assessed as one element of the complete SIMODRIVE system rather than as an independent replacement part.
Role in a SIMODRIVE 611 Digital Drive Architecture
The 6SN1118-0DJ21-0AA1 acts as the high-performance control loop block for one axis. It connects the motion commands from the CNC controller with the drive hardware and encoder feedback used to regulate motor operation.
CNC Controller → Control Loop Block → Power Module → Motor → Machine Axis
SIN/COS 1 Vpp Encoder → Feedback Interface → Control Loop
| System Element | Function |
|---|---|
| 6SN1118-0DJ21-0AA1 | Handles high-performance digital closed-loop control for one axis |
| SIMODRIVE 611 Power Module | Supplies electrical power to the connected motor |
| Drive Motor | Converts electrical drive output into mechanical movement |
| SIN/COS 1 Vpp Encoder | Supplies the configured incremental feedback signals |
| CNC Controller | Generates motion commands and coordinates machine operations |
| NC Software | Provides the compatible drive software and system configuration |
| Machine-Axis Mechanics | Transfer motor movement to a table, slide, or other controlled mechanism |
| Encoder Cable | Carries feedback signals to the control interface |
| Motor Power Cable | Connects the power module to the drive motor |
Correct operation depends on compatibility between the control loop block, power module, encoder, software, and assigned machine axis.
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Controlling a dedicated feed axis during machining |
| CNC Turning Centers | Regulating an individual axis within the machine’s digital drive system |
| Machining Centers | Moving a table or tool slide according to programmed trajectories |
| Precision Machine Tools | Using encoder feedback for closed-loop axis regulation |
| Grinding Machines | Controlling axis movement during grinding cycles |
| Special-Purpose Machine Tools | Providing single-axis digital control for dedicated machinery |
| Automated Production Equipment | Regulating a controlled axis within a programmed sequence |
| CNC Retrofit Projects | Replacing an existing control block after verifying encoder and software compatibility |
| Machine Tool Maintenance | Investigating encoder-related faults and unexpected axis behavior |
| Industrial Positioning Systems | Controlling a single axis in a compatible SIMODRIVE installation |
Installation and Maintenance

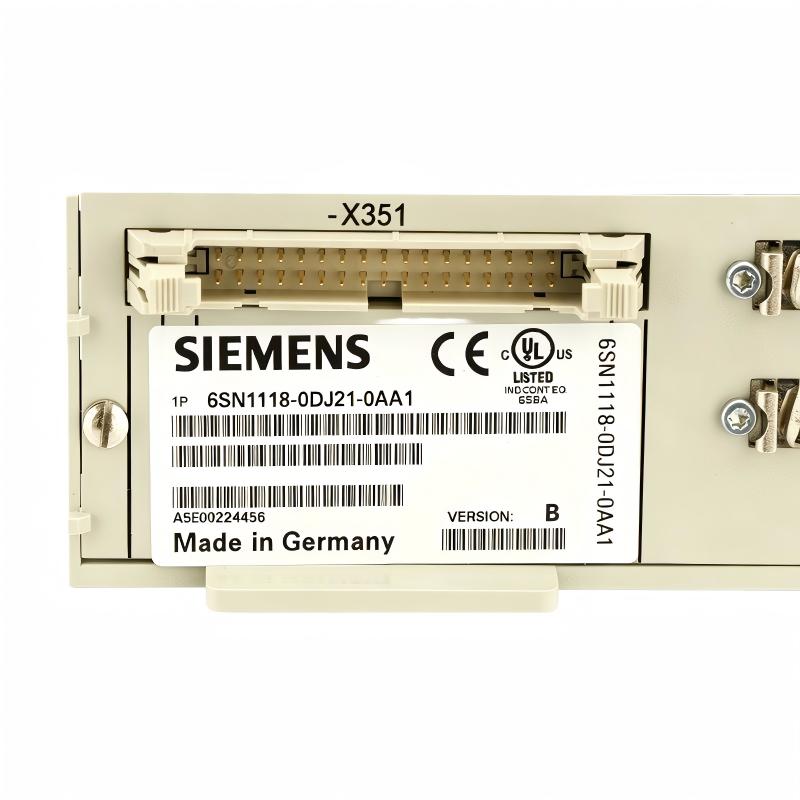

- Verify the complete order number: Confirm that the control block is 6SN1118-0DJ21-0AA1 and distinguish it from related variants with different encoder interfaces or control configurations.
- Check the encoder interface: Verify that the connected feedback device uses the specified SIN/COS 1 Vpp signal arrangement.
- Confirm NC software compatibility: Check the installed NC software version against the requirements of the drive configuration before commissioning the replacement.
- Identify the power module: Confirm that the associated SIMODRIVE 611 power module is compatible with the control block and connected motor.
- Verify the axis assignment: Ensure that the control unit is assigned to the intended machine axis in the CNC configuration.
- Inspect encoder wiring: Check the feedback cable, connector seating, shielding, and signal routing if the drive reports encoder errors or unstable feedback.
- Check motor connections: Inspect the motor power connections and associated drive hardware if the axis fails to move or responds inconsistently.
- Review drive parameters: Compare the current settings with the machine’s commissioning records before modifying control-loop parameters.
- Investigate following errors: Compare the commanded movement with the available encoder feedback and drive status to identify possible control, feedback, or mechanical issues.
- Inspect mechanical transmission: Check couplings, screws, guides, and other motion components if the motor operates but the controlled mechanism does not move as expected.
- Follow electrical safety procedures: Isolate hazardous electrical energy and follow the machine’s approved servicing procedures before removing the control block or handling drive connections.
- Record commissioning results: Document the installed order number, encoder type, software compatibility, axis assignment, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMODRIVE 611 Digital Drive System | Provides the drive architecture for the control loop block |
| Compatible SIMODRIVE 611 Power Module | Supplies power to the associated motor |
| Compatible Drive Motor | Produces the mechanical movement required by the controlled axis |
| SIN/COS 1 Vpp Encoder | Supplies the specified incremental feedback signals |
| CNC Controller | Generates motion commands and coordinates machine operations |
| Compatible NC Software | Provides the drive software required by the installed configuration |
| Encoder Feedback Cable | Carries encoder signals to the control interface |
| Motor Power Cable | Connects the power module to the motor |
| Machine-Axis Mechanics | Transfer motor movement to the controlled machine element |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DJ21-0AA0 | Digital High-Performance 1-Axis Control Unit | Related single-axis variant; verify encoder and software compatibility |
| Siemens 6SN1118-0DJ21-0AA2 | High-Performance Digital Control Loop Block | Related model identified as a successor variant; verify the machine’s hardware and software requirements |
| Siemens 6SN1118-0DJ23-0AA1 | Digital High-Performance 1-Axis Control Unit | Related single-axis variant with a different encoder configuration |
| Siemens 6SN1118-0DK21-0AA1 | Digital High-Performance 2-Axis Control Unit | Two-axis option for installations requiring control of two axes |
| Siemens 6SN1118-0DM31-0AA1 | Digital High-Standard 2-Axis Control Unit | Different control-performance class for applications suited to the high-standard configuration |
Key Advantages
- Provides high-performance digital control for one drive axis.
- Supports a SIN/COS 1 Vpp encoder interface.
- Integrates with the SIMODRIVE 611 digital drive architecture.
- Works with CNC motion commands and compatible NC software.
- Allows dedicated control hardware to be serviced at the individual-axis level.
Technical FAQs
What encoder type is associated with the 6SN1118-0DJ21-0AA1?
This model is specified for a SIN/COS 1 Vpp encoder interface. The connected encoder and feedback wiring must match the control unit’s signal requirements.
Why is the NC software version important when replacing this control loop block?
The drive software is transferred from the CNC system to the control board during initialization. The installed NC software must meet the requirements of the selected control-unit configuration for the drive to initialize and operate correctly.
Can the 6SN1118-0DJ21-0AA1 control two axes?
This model is the single-axis high-performance variant. Applications requiring two-axis control should be assessed against the corresponding two-axis SIMODRIVE control-unit family and the machine’s drive configuration.
What should be checked if the drive reports an encoder fault after installation?
Check that the encoder uses the correct SIN/COS 1 Vpp interface, then inspect feedback wiring, connectors, shielding, axis assignment, and drive configuration. Also verify software compatibility and the associated power-module setup before concluding that the control block is defective.
