Product Overview

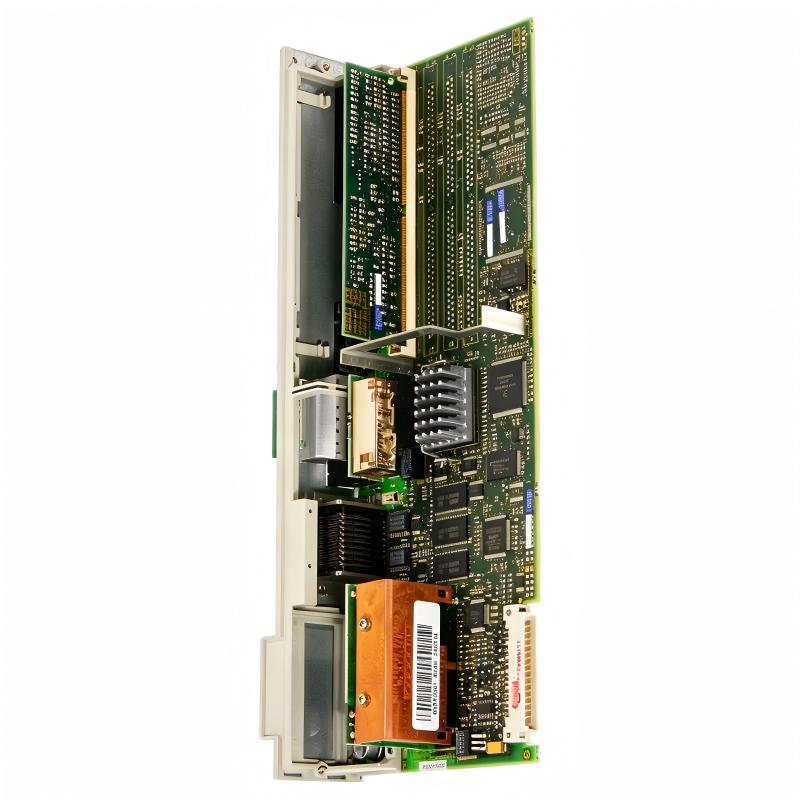

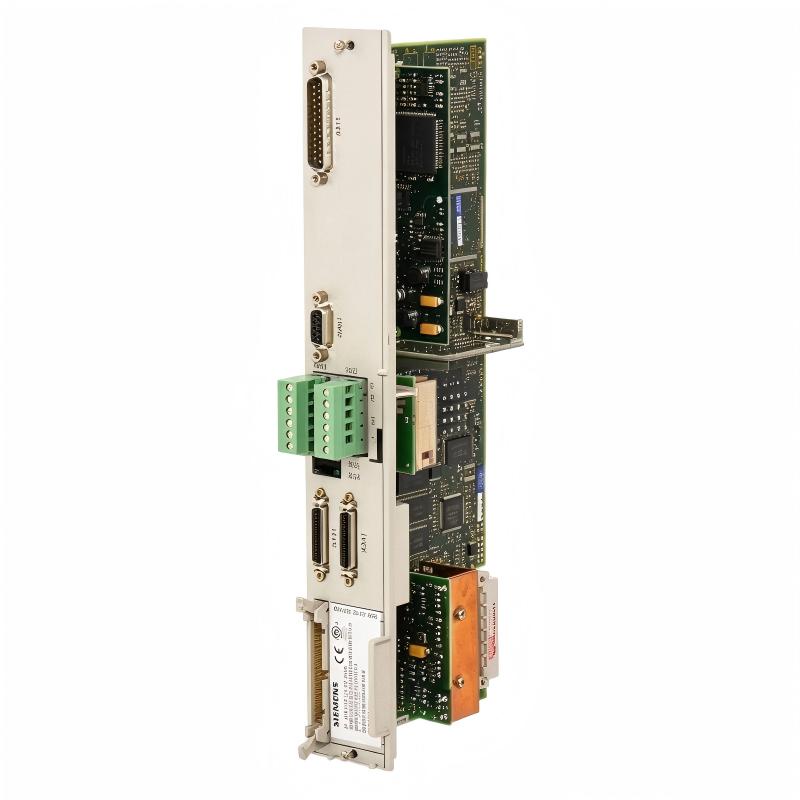

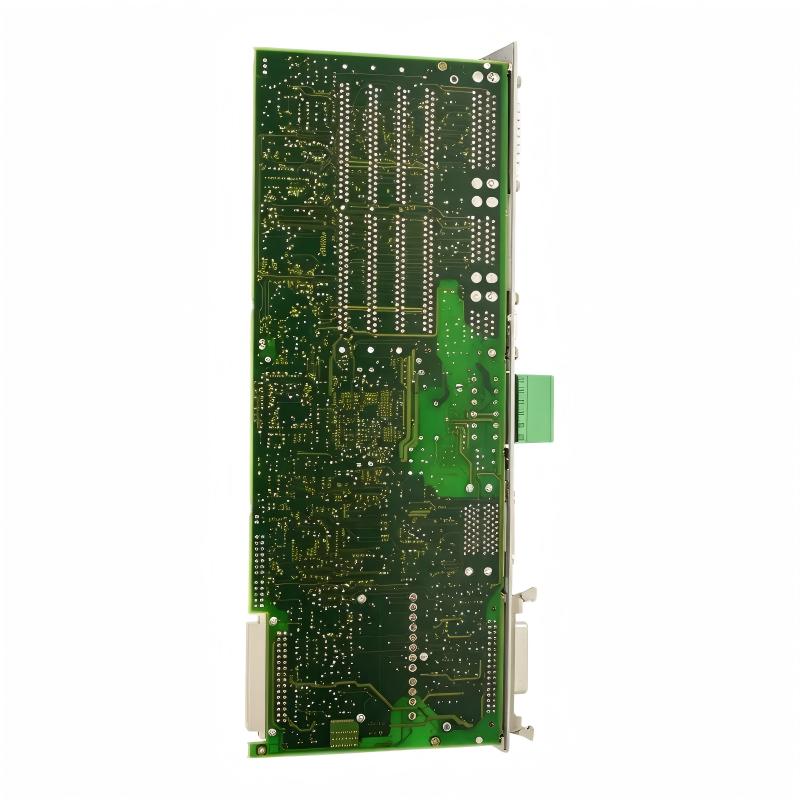

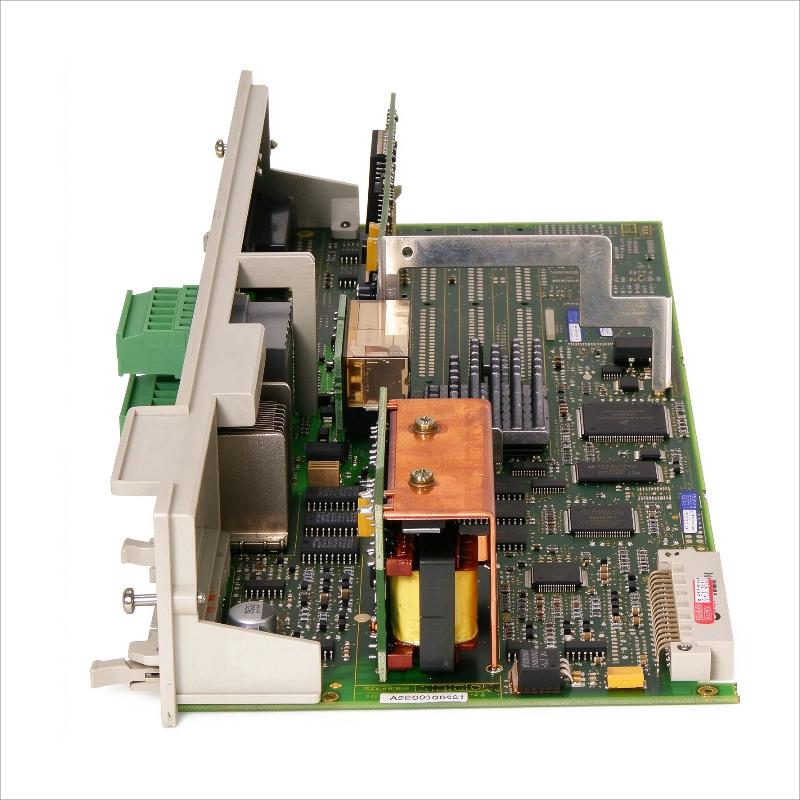

The Siemens 6SN1118-0DJ21-0AA0 is a single-axis digital high-performance control unit in the SIMODRIVE 611 drive system. It handles closed-loop control for one drive axis, making it suitable for CNC machines and production equipment where a dedicated axis must follow commanded movement while responding to position and speed feedback.
In a CNC milling machine, for example, a feed axis may move a table or tool slide along a programmed path while cutting forces vary throughout the operation. The control unit processes the axis-control requirements within the drive system, working with the associated power module, motor, feedback equipment, and CNC controller. Its single-axis configuration is particularly relevant when the machine architecture assigns an individual control unit to a specific drive axis.
The high-performance designation distinguishes this unit from standard-control variants in the SIMODRIVE 611 digital family. Selecting the correct control class matters when matching the drive hardware to the machine’s motion requirements. The control unit is not a standalone servo drive; it relies on compatible power hardware and the appropriate system configuration to operate.
This model also has a specific hardware and software compatibility context. The installed NC software version, drive configuration, and associated power module must be checked before commissioning or replacement. A control unit that fits the same general product family may still differ in its supported functions or system requirements.
For maintenance engineers, the most useful diagnostic approach is to consider the complete axis-control chain. If a machine develops following errors, irregular movement, or an axis that does not respond to commands, the control unit should be assessed alongside the feedback system, power module, motor connections, mechanical transmission, and controller configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DJ21-0AA0 |
| Product Family | SIMODRIVE 611 |
| Drive System | SIMODRIVE 611 digital |
| Product Type | Digital High-Performance 1-Axis Control Unit |
| Control Class | High-performance |
| Number of Axes | 1 |
| Control Method | Digital closed-loop drive control |
| Drive Configuration | Single-axis control |
| Typical Application | CNC feed-axis and industrial motion-control systems |
| System Integration | Compatible SIMODRIVE 611 digital drive architecture |
| Software Compatibility | Verify the NC software version and drive configuration for the installed system |
| Dimensions | 311 x 51 × 140 mm |
| Weight | 0.712 kg |
Product Features
- Single-axis control: Handles one drive axis within the SIMODRIVE 611 digital architecture.
- High-performance control class: Supports demanding motion-control applications requiring a suitable high-performance drive configuration.
- Digital closed-loop operation: Works with the associated feedback and drive hardware to regulate axis movement.
- CNC integration: Fits into machine-tool control systems where axis movement follows programmed commands.
- Modular drive architecture: Operates alongside compatible SIMODRIVE power modules and motors.
- Dedicated axis configuration: Allows the drive architecture to allocate control hardware to an individual axis.
- System-dependent operation: Requires compatible NC software, power hardware, feedback equipment, and configured drive parameters.
Working Principle
The 6SN1118-0DJ21-0AA0 functions within a digital closed-loop drive system. The CNC controller issues movement commands, the control unit handles the associated axis-control functions, and the connected drive hardware converts those commands into motor movement.
A simplified control path is:
CNC Controller → 6SN1118-0DJ21-0AA0 → SIMODRIVE Power Module → Motor → Machine Axis
Axis Feedback → Control Unit → Closed-Loop Regulation
When a CNC program requests a movement, the control system establishes the required axis response. The power module supplies the motor, while the configured feedback equipment reports the actual drive or axis behavior. The control loop uses this information to regulate movement according to the system’s configured control functions.
Consider a machine tool moving a slide toward a programmed cutting position. The axis must respond to changes in commanded speed and load while maintaining the required motion profile. The control unit participates in regulating this process, but the final performance depends on the motor, power module, feedback configuration, mechanical transmission, and drive parameters.
Because this is a single-axis unit, its configuration must correspond to the intended axis within the machine. The CNC controller’s axis assignment, the drive power module, and the feedback connections must all be consistent. Incorrect mapping or incompatible hardware can lead to commissioning difficulties or unexpected axis behavior.
The software configuration is another important consideration. Before replacing the control unit, maintenance personnel should verify the NC software version and the existing drive configuration. If the axis fails to respond or reports a following error, checking feedback signals, drive status, motor connections, and mechanical movement can help isolate the cause without assuming that the control unit itself is faulty.
Role in a SIMODRIVE 611 Digital Drive Architecture
The 6SN1118-0DJ21-0AA0 provides the control functions for one axis within the SIMODRIVE 611 digital system. It works between the higher-level motion controller and the associated drive hardware, with feedback contributing to the regulation of actual movement.
CNC Controller → Single-Axis Control Unit → Power Module → Motor → Machine Axis
| System Element | Function |
|---|---|
| 6SN1118-0DJ21-0AA0 | Handles digital high-performance control for one drive axis |
| SIMODRIVE 611 Power Module | Supplies electrical power to the connected motor |
| Drive Motor | Converts electrical drive output into mechanical movement |
| Feedback Equipment | Reports the configured drive or axis measurements |
| CNC Controller | Generates movement commands and coordinates machining operations |
| Machine-Axis Mechanics | Transfer motor movement to a table, slide, spindle, or other controlled mechanism |
| Drive Connections | Carry the required power and control signals between system components |
The unit’s suitability depends on the selected control class, power module, feedback configuration, NC software, and machine-axis requirements.
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Controlling an individual feed axis during programmed machining |
| CNC Turning Centers | Regulating a dedicated machine axis within the drive system |
| Machining Centers | Controlling table or tool-slide movement |
| Grinding Machines | Managing axis movement during precision grinding operations |
| Special-Purpose Machine Tools | Providing single-axis control for dedicated machinery |
| Automated Production Equipment | Regulating a controlled mechanical axis within a coordinated sequence |
| CNC Retrofit Projects | Replacing a single-axis control unit after checking system compatibility |
| Machine Tool Servicing | Investigating axis response, following errors, and drive-control faults |
| Industrial Positioning Equipment | Controlling a dedicated axis where the installed SIMODRIVE architecture is appropriate |
Installation and Maintenance
- Verify the complete order number: Confirm that the existing unit is 6SN1118-0DJ21-0AA0 and distinguish it from related variants with different suffixes or software requirements.
- Check the control class: Verify that the machine requires a high-performance control unit rather than a different SIMODRIVE 611 digital control variant.
- Confirm power-module compatibility: Identify the connected SIMODRIVE power module and ensure that the combination is supported by the system configuration.
- Review NC software compatibility: Check the installed NC software version and the requirements associated with the replacement control unit.
- Verify the axis assignment: Confirm that the unit is assigned to the intended machine axis in the CNC configuration.
- Inspect feedback connections: Check the applicable feedback cables, connectors, shielding, and signal routing when the axis reports position or speed errors.
- Check drive wiring: Inspect the connections between the power module and motor if the axis fails to move or responds inconsistently.
- Review drive parameters: Compare the existing configuration with the machine’s commissioning documentation before modifying control-loop or axis settings.
- Investigate following errors: Compare commanded movement with available feedback and drive diagnostics to distinguish control, feedback, and mechanical problems.
- Inspect mechanical components: Check couplings, screws, guides, and other transmission components if the motor operates but the machine axis does not move as expected.
- Follow electrical safety procedures: Isolate hazardous electrical energy and follow the machine’s approved servicing procedures before removing the control unit or handling drive connections.
- Document commissioning results: Record the replacement reference, software compatibility checks, axis assignment, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMODRIVE 611 Digital Drive System | Provides the system architecture for the control unit |
| Compatible SIMODRIVE 611 Power Module | Supplies power to the connected motor |
| Compatible Drive Motor | Produces the mechanical movement required by the controlled axis |
| Compatible Feedback Equipment | Supplies the measurements required by the configured closed-loop system |
| CNC Controller | Generates motion commands and coordinates machine operations |
| Motor Power Cables | Connect the power module to the drive motor |
| Feedback Cables | Carry feedback signals to the relevant control interface |
| Machine-Axis Mechanics | Transfer motor movement to the controlled machine element |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DJ21-0AA1 | Digital High-Performance 1-Axis Control Unit | Related successor variant; verify software and hardware compatibility |
| Siemens 6SN1118-0DJ21-0AA2 | SIMODRIVE 611 Digital High-Performance 1-Axis Control Unit | Related model variant; confirm the exact configuration before substitution |
| Siemens 6SN1118-0DJ23-0AA0 | Digital High-Performance 1-Axis Control Unit | Related single-axis high-performance variant with a different configuration; verify feedback requirements |
| Siemens 6SN1118-0DK21-0AA0 | Digital High-Performance 2-Axis Control Unit | Two-axis option for systems requiring control of two axes |
| Siemens 6SN1118-0DM31-0AA0 | Digital High-Standard 2-Axis Control Unit | Different control class for applications suited to the high-standard configuration |
Key Advantages
- Provides dedicated digital control for one drive axis.
- Belongs to the SIMODRIVE 611 high-performance control family.
- Integrates with compatible drive power modules and feedback equipment.
- Supports CNC machine-axis control within a configured digital drive system.
- Allows individual axis hardware to be identified and serviced separately.
Technical FAQs
What does the 1-axis designation mean for the 6SN1118-0DJ21-0AA0?
The unit is configured to control one drive axis. The associated motor, power module, feedback equipment, and CNC axis assignment must be matched to that single-axis configuration.
What should be verified before replacing this unit with the 6SN1118-0DJ21-0AA1?
Check the hardware and software compatibility requirements, the existing drive configuration, and the machine’s commissioning documentation. A related model number alone does not guarantee that all installed functions and software requirements will remain compatible.
Can this control unit be used without a SIMODRIVE power module?
No. The control unit is part of the SIMODRIVE drive architecture and does not independently supply the motor power required to move the axis. It must operate with compatible drive power hardware and the rest of the configured system.
Which checks are useful when the controlled axis fails to follow its command?
Check the CNC axis assignment, drive status, feedback connections, power module, motor wiring, and mechanical transmission. Also verify the installed NC software and drive parameters. These checks help narrow down whether the issue originates in the control configuration, feedback path, power hardware, or machine mechanics.
