Product Overview

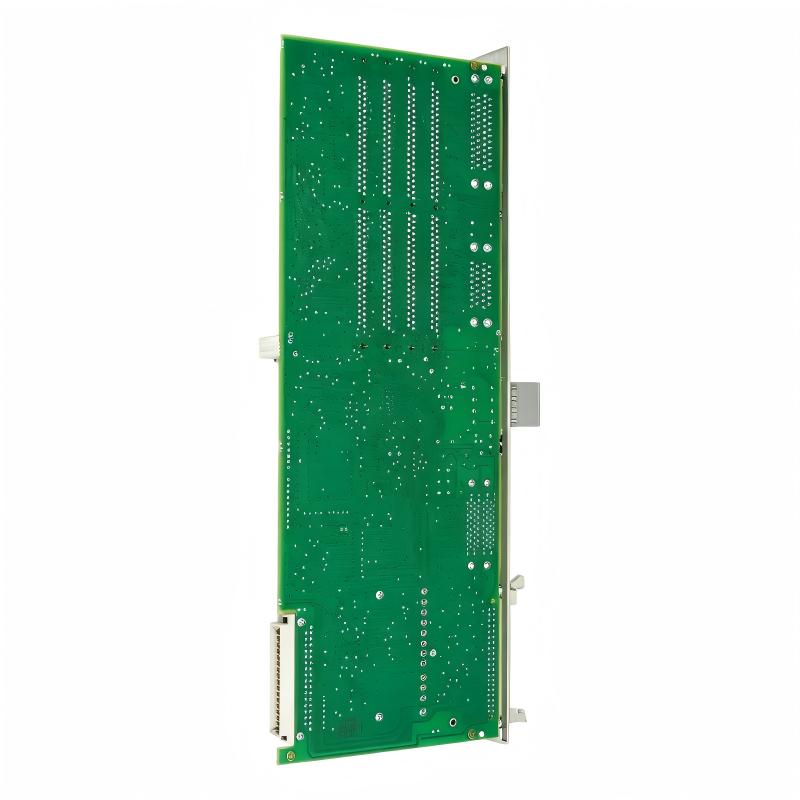

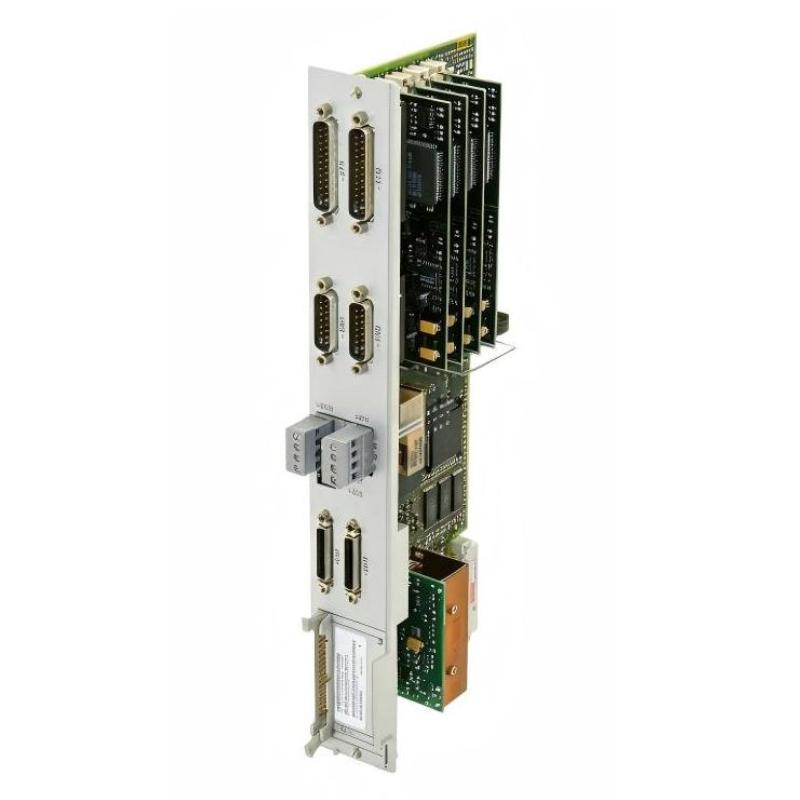

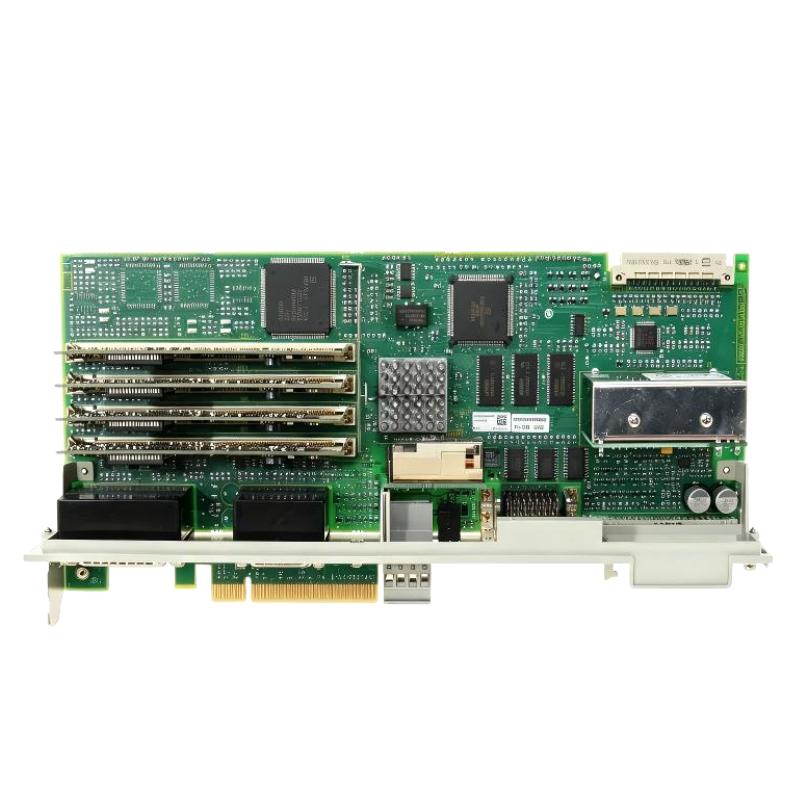

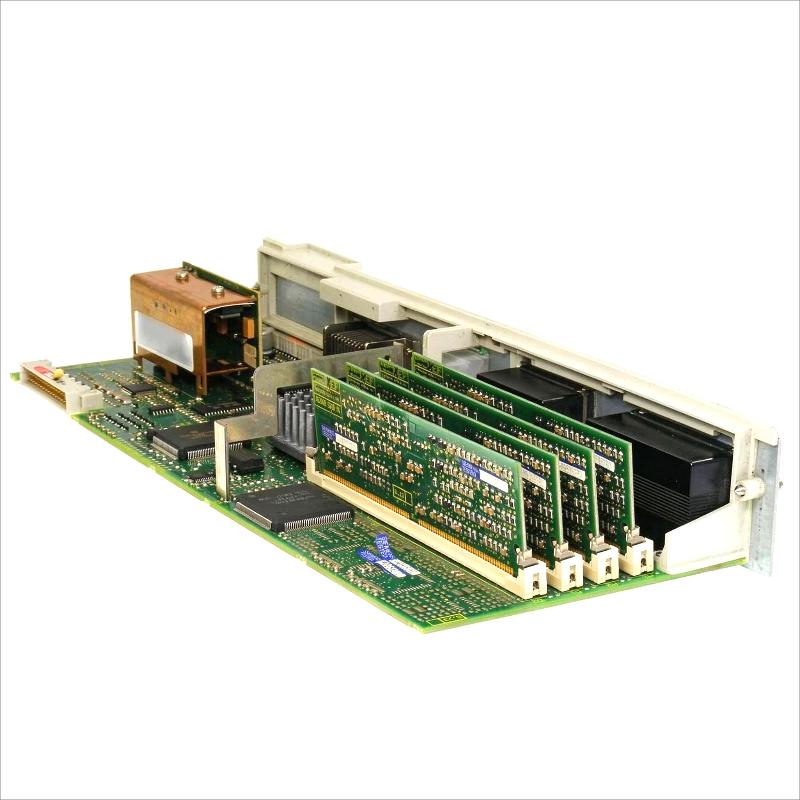

The Siemens 6SN1118-0DH23-0AA1 is a two-axis digital closed-loop Performance control unit for the SIMODRIVE 611-D drive system. It supports digital feed and main-spindle drives with a direct measuring system using voltage signals. Its role is to regulate drive movement within a CNC motion-control architecture, where commanded movement must be coordinated with feedback from the machine.
In a CNC machining center, feed axes move the workpiece table or cutting tool along programmed paths, while the spindle drive controls the rotational movement required for machining. The 6SN1118-0DH23-0AA1 supports two-axis control within the associated drive configuration, making it relevant to machines that require coordinated digital drive control and direct position feedback.
The direct measuring system is a defining feature of this model. When a machine uses a separate position-measuring device to monitor movement at the machine axis, the control system can use that feedback rather than relying exclusively on motor-side measurements. This arrangement is useful when evaluating positioning deviations caused by mechanical transmission effects, although the actual performance depends on the complete machine mechanics and control configuration.
The voltage-signal interface also matters during replacement. Related SIMODRIVE 611-D control units may support current-signal measuring systems or different axis configurations. A replacement must match the installed feedback equipment, drive hardware, and CNC configuration; sharing the same product family does not guarantee interchangeability.
The 6SN1118-0DH23-0AA1 is a plug-in control unit rather than a standalone drive. It works with the appropriate SIMODRIVE power hardware, motors, measuring devices, and higher-level controller. For maintenance engineers, identifying the exact model and checking the feedback arrangement are essential steps before diagnosing following errors or replacing a control unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DH23-0AA1 |
| Product Family | SIMODRIVE 611 |
| Drive System | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Performance Control Unit |
| Number of Axes | 2 |
| Drive Type | Digital drives |
| Drive Applications | Feed drives and main-spindle drives |
| Control Configuration | Performance closed-loop control |
| Measuring System | Direct measuring system |
| Measuring-System Signal Type | Voltage signals |
| Control Function | Digital closed-loop drive control |
| Installation Type | Plug-in control unit |
| System Integration | Compatible SIMODRIVE 611-D drive architecture |
| Typical Application | CNC machine tools and industrial motion-control systems |
| Dimensions | 330 × 76 × 152 mm |
| Weight | 0.7 kg |
Product Features
- Two-axis digital control: Supports two controlled axes within a compatible SIMODRIVE 611-D configuration.
- Performance closed-loop control: Handles feedback-based regulation for demanding digital drive applications.
- Feed and main-spindle drive support: Accommodates the specified drive applications within the appropriate system configuration.
- Direct measuring system: Supports feedback taken from a direct position-measuring device.
- Voltage-signal feedback: Matches the specified direct measuring system interface for this model.
- Plug-in installation: Integrates into the SIMODRIVE 611 drive architecture alongside compatible power hardware.
- CNC motion-control integration: Works with the higher-level controller to regulate commanded machine movement.
- Model-specific feedback configuration: Requires the correct measuring-system type and compatible drive components.
Working Principle
The 6SN1118-0DH23-0AA1 operates as part of a closed-loop drive-control process. The CNC controller generates movement commands, the drive hardware actuates the motor, and the measuring system returns position information for use by the control system.
A simplified control path is:
CNC Controller → 6SN1118-0DH23-0AA1 → SIMODRIVE Power Module → Motor → Machine Axis
Direct Measuring System → Voltage-Signal Feedback → Closed-Loop Control
When a CNC program commands an axis to move, the control system regulates the associated drive according to the required movement and available feedback. The direct measuring device reports the measured position through the voltage-signal interface, allowing the control loop to evaluate the relationship between commanded and actual motion.
Consider a machining center moving a table along a programmed contour. Cutting forces can vary as the tool enters and leaves the workpiece, affecting the mechanical load on the feed axis. Feedback from the direct measuring system helps the control system identify deviations from the commanded movement and regulate the drive response within the limits of the configured system.
Direct measurement is particularly relevant when the position of the machine axis needs to be monitored independently of the motor’s rotational position. A measuring device located along the machine axis can report movement at that point, helping account for certain effects introduced by couplings, screws, and other mechanical transmission components.
The feedback signal type must match the control unit’s interface. The 6SN1118-0DH23-0AA1 is associated with a direct measuring system using voltage signals, so the measuring device, wiring, and interface configuration should be verified before commissioning. Incorrect feedback configuration can interfere with position evaluation and complicate drive troubleshooting.
The control unit does not independently determine the complete machining sequence. Its operation depends on the CNC program, drive parameters, power module, motor, measuring equipment, and mechanical arrangement of the machine.
Role in a SIMODRIVE 611-D Drive Architecture
The 6SN1118-0DH23-0AA1 acts as the two-axis Performance control element within a compatible SIMODRIVE 611-D installation. It connects the CNC motion commands with the drive-control process and the feedback received from the direct measuring system.
CNC Controller → Digital Control Unit → Drive Power Module → Motor → Feed Axis or Main Spindle
Direct Measuring System → Voltage-Signal Feedback Interface → Control Unit
| System Element | Function |
|---|---|
| 6SN1118-0DH23-0AA1 | Performs two-axis closed-loop control using the specified direct measuring system configuration |
| SIMODRIVE 611 Power Module | Supplies the electrical power required by the associated drive motor |
| Feed-Drive Motor | Produces controlled linear or rotary movement through the machine mechanics |
| Main-Spindle Drive Components | Support spindle rotation in the configured drive arrangement |
| Direct Measuring System | Measures position at the designated machine location |
| CNC Controller | Generates movement commands and coordinates machining operations |
| Machine-Axis Mechanics | Transfer motor movement to the table, slide, or other controlled mechanism |
| Feedback Wiring | Carries voltage-signal measuring information to the control interface |
| Motor Power Cables | Connect the power module to the associated motor |
The control unit’s suitability depends on the number of axes, measuring-system signal type, drive hardware, and machine configuration. These elements must be considered together when planning a replacement or diagnosing a control problem.
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Regulating feed-axis movement during contour machining |
| CNC Machining Centers | Coordinating table and tool movement within a multi-axis system |
| CNC Turning Centers | Controlling compatible feed and spindle-drive functions |
| Precision Machine Tools | Using direct position feedback to monitor machine-axis movement |
| Grinding Machines | Regulating feed movement during controlled grinding operations |
| Special-Purpose Machine Tools | Integrating digital closed-loop control into dedicated production machinery |
| Automated Machining Cells | Coordinating machine-axis movement with CNC program execution |
| Feed-Drive Systems | Controlling table slides and other machine feed mechanisms |
| Main-Spindle Drive Systems | Supporting spindle-drive control within a compatible SIMODRIVE configuration |
| Machine Tool Maintenance | Investigating feedback faults, following errors, and axis-position deviations |
Installation and Maintenance
- Verify the complete order number: Confirm that the control unit is 6SN1118-0DH23-0AA1. Related SIMODRIVE 611-D variants can differ in feedback type, axis configuration, and control functions.
- Check the drive architecture: Identify the installed SIMODRIVE 611-D power modules, motors, CNC controller, and controlled axes before replacement.
- Confirm direct measuring system compatibility: Verify that the machine uses the direct position-measuring arrangement supported by this control-unit configuration.
- Check voltage-signal feedback: Ensure that the measuring device and feedback interface match the voltage-signal configuration associated with the model.
- Inspect feedback connections: Examine connectors, shielding, cable routing, and contact condition if the machine reports positioning errors or inconsistent feedback.
- Verify axis assignments: Confirm that the two controlled axes correspond to the intended machine movements and controller configuration.
- Review the established parameters: Refer to the machine’s existing commissioning records before changing control-loop, measuring-system, or axis-related settings.
- Inspect the power hardware: If an axis cannot move correctly, check the associated power module, motor connections, and drive status rather than assuming the control unit is defective.
- Investigate following errors: Compare commanded movement with measured position and available drive diagnostics to help distinguish feedback faults from mechanical or drive-related problems.
- Check mechanical transmission components: Inspect relevant couplings, ball screws, linear guides, and other motion components when the measured movement differs from the expected response.
- Follow electrical safety procedures: Isolate hazardous electrical energy and follow the machine’s approved servicing procedures before removing the plug-in unit or handling drive connections.
- Document replacement and commissioning: Record the order number, feedback signal type, axis assignments, parameter changes, and functional test results after servicing.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMODRIVE 611-D Drive System | Provides the drive architecture for the control unit |
| Compatible SIMODRIVE 611 Power Module | Supplies power to the associated motor |
| Compatible Digital Feed-Drive Motor | Converts drive output into controlled machine-axis movement |
| Compatible Main-Spindle Drive Components | Support spindle operation within the configured drive system |
| Direct Position Measuring System | Supplies measured position feedback for the configured control loop |
| Compatible Voltage-Signal Feedback Interface | Carries the measuring-system signals required by this variant |
| CNC Controller | Generates movement commands and coordinates machining sequences |
| Feedback Signal Cables | Carry position-measuring signals to the control unit |
| Motor Power Cables | Connect the power module to the motor |
| Machine-Axis Mechanics | Transfer motor movement to the table, slide, or other controlled element |
Recommended Related Models
| Model | Product Type | Configuration Consideration |
|---|---|---|
| Siemens 6SN1118-0DH23-0AA0 | SIMODRIVE 611-D Control Unit | Related two-axis direct measuring system configuration using voltage signals; verify the exact control designation |
| Siemens 6SN1118-0DH22-0AA1 | Closed-Loop Plug-In Performance Control Unit | Two-axis configuration with direct measuring system using current signals |
| Siemens 6SN1118-0DG23-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit | One-axis configuration with direct measuring system using voltage signals |
| Siemens 6SN1118-0DH21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit | Related two-axis configuration without direct measuring system support |
| Siemens SIMODRIVE 611-D | Digital Drive System | Drive platform for compatible digital feed and main-spindle applications |
Key Advantages
- Supports two-axis digital closed-loop control.
- Accommodates direct measuring systems using voltage signals.
- Handles feed and main-spindle drive applications within the specified configuration.
- Integrates with compatible SIMODRIVE 611-D power hardware and CNC systems.
- Supports feedback-based regulation of machine-axis movement.
Technical FAQs
What distinguishes the 6SN1118-0DH23-0AA1 from the 6SN1118-0DH22-0AA1?
The main difference is the direct measuring system’s signal type. The 6SN1118-0DH23-0AA1 uses voltage signals, whereas the 6SN1118-0DH22-0AA1 is configured for current signals. The replacement must match the installed measuring device and feedback interface.
Can this control unit be used for both feed and main-spindle drive applications?
The product configuration covers digital feed and main-spindle drives. Whether it can serve a particular axis or spindle depends on the installed drive hardware, machine configuration, controller, and associated software requirements.
Why is direct measuring-system feedback relevant to CNC positioning accuracy?
Direct measuring-system feedback reports movement at the designated machine location. This can help the control system account for certain mechanical effects between the motor and the measured axis. The actual positioning performance depends on the measuring device, mechanical arrangement, and control-loop configuration.
What should be checked if an axis develops a following error after this unit is installed?
Check the measuring-system signal type, feedback wiring, connector assignment, axis mapping, and existing drive parameters. The associated power module, motor, and mechanical transmission should also be examined. These checks help determine whether the problem originates in feedback configuration, drive operation, or machine mechanics.
