Product Overview

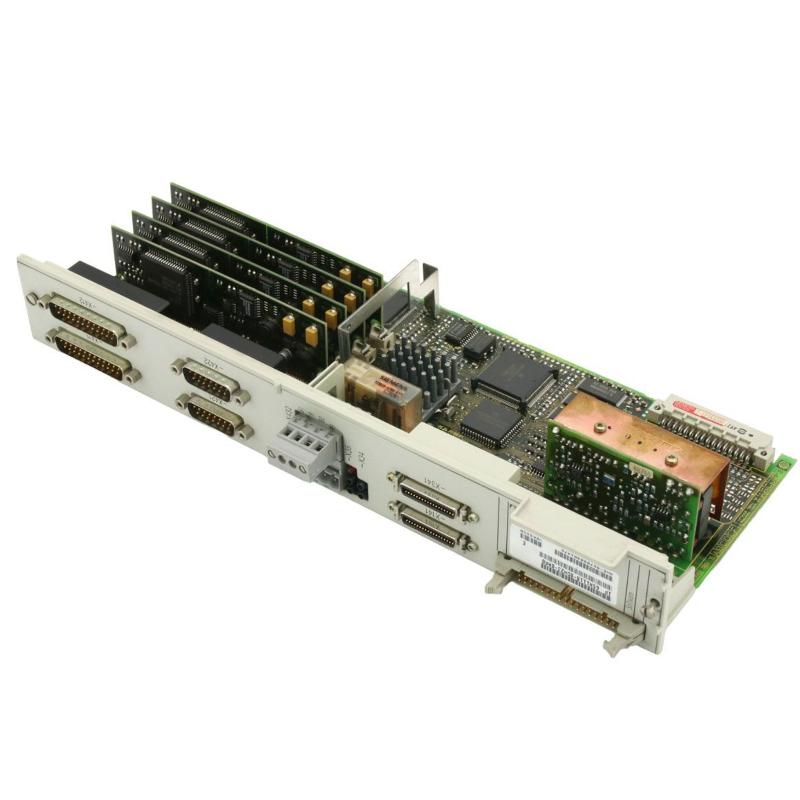

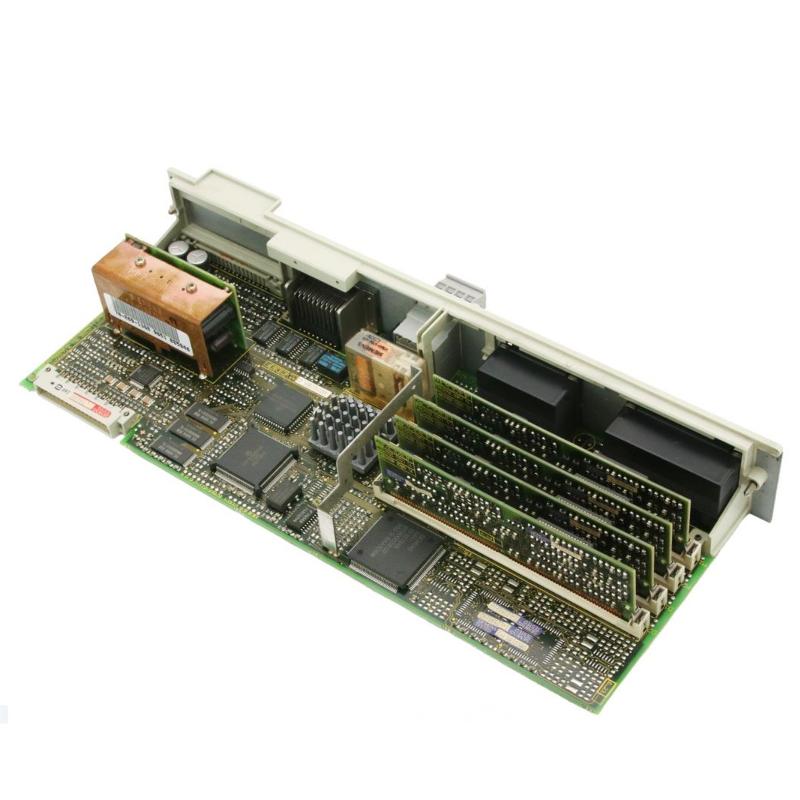

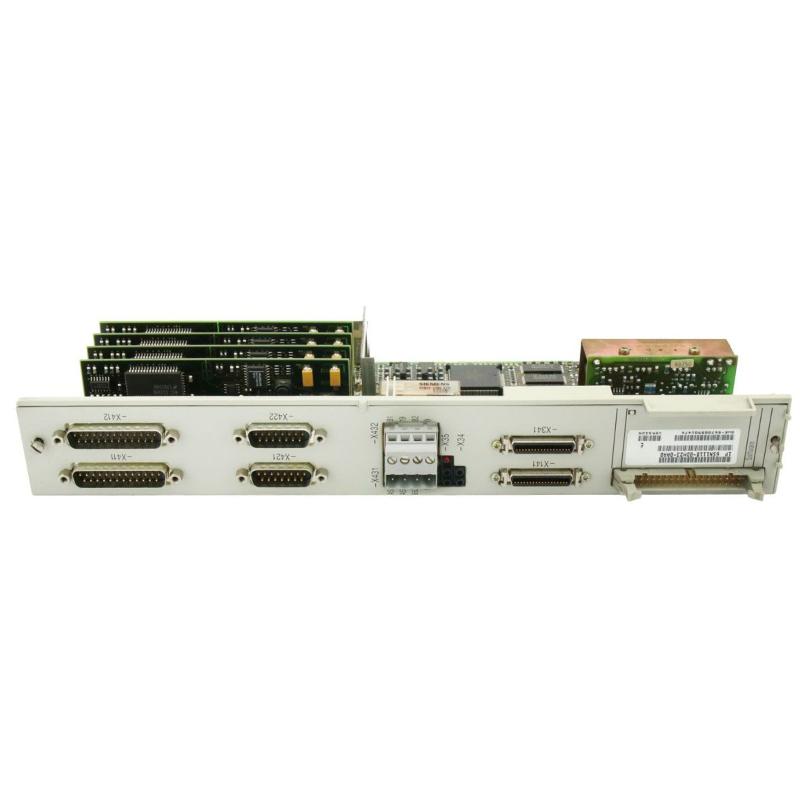

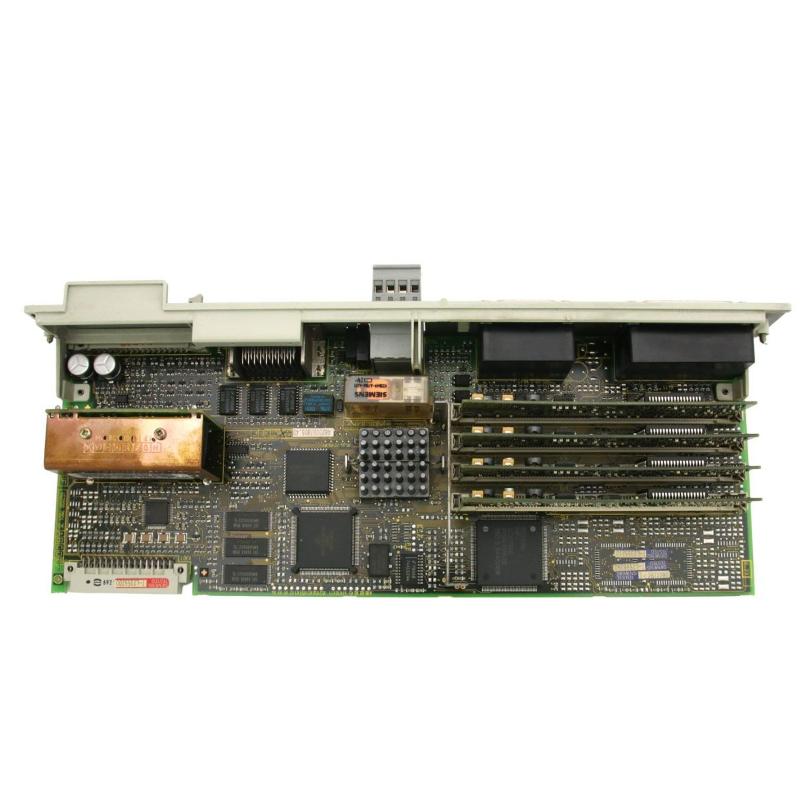

The Siemens 6SN1118-0DH22-0AA0 is a two-axis digital closed-loop control unit for the SIMODRIVE 611-D drive system. Its specific configuration combines performance closed-loop control for digital feed drives with a direct measuring system using current signals. It is intended for applications where the drive controller must coordinate motor movement with feedback from the machine’s measuring system.
In a CNC machining center, the feed axes must follow programmed movement commands while maintaining the required relationship between commanded and actual position. The 6SN1118-0DH22-0AA0 handles the closed-loop control functions for two digital axes, making it relevant to machine-tool configurations that require coordinated feed-axis operation. Its direct measuring system configuration is particularly relevant when feedback is taken from a separate measuring device associated with the machine axis rather than relying exclusively on motor-mounted feedback.
The model’s configuration details matter when selecting a replacement. The 6SN1118-0DH22-0AA0 is specified for current-signal feedback through a direct measuring system. Related SIMODRIVE 611-D control units may instead use voltage signals, omit the direct measuring system, or have different axis configurations. These differences affect the feedback arrangement and must be checked against the existing drive installation.
As a plug-in control unit within the SIMODRIVE 611 system, this module works with the associated drive hardware rather than operating as an independent servo drive. The complete system includes the drive power section, motor, feedback equipment, and higher-level CNC or motion controller. Correct operation depends on matching the control unit’s configuration to the installed hardware and machine-axis requirements.
For maintenance engineers, the most useful starting point is to identify the installed control-unit variant and its feedback arrangement before investigating positioning errors, following errors, or axis synchronization problems. A controller with the wrong measuring-system configuration may not be a suitable substitute even if it belongs to the same SIMODRIVE family.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DH22-0AA0 |
| Product Family | SIMODRIVE 611 |
| Drive System | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Control Unit |
| Control Configuration | Performance Closed-Loop Control |
| Number of Axes | 2 |
| Drive Type | Digital drive |
| Intended Drive Application | Feed drive |
| Measuring System | Direct measuring system |
| Measuring-System Signal Type | Current signals |
| Control Function | Digital closed-loop axis control |
| Installation Type | Plug-in control unit |
| Typical Application | CNC machine tools and precision feed-axis control |
| Compatible System Hardware | Matching SIMODRIVE 611-D drive components |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 1 kg |
Product Features
- Two-axis closed-loop control: Supports control of two digital drive axes within a compatible SIMODRIVE 611-D configuration.
- Performance control configuration: Intended for applications requiring performance-oriented closed-loop feed-drive control.
- Direct measuring system support: Accommodates the specified direct measuring system arrangement.
- Current-signal feedback: Distinguishes this variant from related control units configured for voltage-signal feedback.
- CNC feed-axis application: Suits machine-tool systems where controlled axis movement must follow programmed trajectories.
- Plug-in system integration: Installs within the associated SIMODRIVE 611 drive architecture.
- Feedback-based motion control: Uses the configured measuring-system feedback as part of the closed-loop control process.
- Variant-specific configuration: Helps identify the correct control unit when servicing or matching an existing drive system.
Working Principle
The 6SN1118-0DH22-0AA0 participates in a closed-loop motion-control process. The CNC or higher-level controller supplies movement commands, while the control unit regulates the associated digital drive axes using the configured feedback arrangement.
A simplified control path is:
CNC Controller → SIMODRIVE 611-D Control Unit → Drive Power Section → Feed-Axis Motor → Machine Axis
Direct Measuring System → Feedback Interface → Closed-Loop Control
When a CNC program commands an axis to move, the control system establishes the required motion reference. The drive system actuates the motor, and the direct measuring system supplies feedback associated with the actual machine-axis movement. The closed-loop controller uses the feedback to evaluate the difference between commanded and measured motion and regulate the drive accordingly.
Consider a CNC milling machine moving a workpiece table along a programmed path. If the actual axis movement differs from the commanded trajectory because of changing mechanical loads or dynamic operating conditions, the feedback-based control process allows the system to respond to that deviation. The resulting motion depends on the complete drive configuration, mechanical transmission, measuring system, and controller parameters.
The direct measuring system configuration is an important distinction for this model. In applications where a linear measuring device monitors the machine axis, feedback can reflect movement at the measured machine location rather than only the motor’s rotational position. This can help the control system account for mechanical effects between the motor and the measured axis, provided the complete machine and measuring arrangement are configured appropriately.
The current-signal specification must also be respected when checking feedback wiring or replacing the control unit. A related module configured for voltage signals should not be assumed interchangeable without verifying the measuring-system interface and the machine’s electrical configuration.
Role in a SIMODRIVE 611-D Drive Architecture
The 6SN1118-0DH22-0AA0 functions as the closed-loop control element for two digital axes within the SIMODRIVE 611-D drive system. It works alongside the drive power hardware and measuring equipment to regulate axis movement according to the commands received from the machine controller.
CNC Controller → SIMODRIVE 611-D Control Unit → Drive Power Module → Motor → Feed Axis
Direct Measuring System → Control Unit Feedback Interface
| System Element | Function |
|---|---|
| 6SN1118-0DH22-0AA0 | Performs closed-loop control for two digital axes using the specified direct measuring system configuration |
| SIMODRIVE 611 Drive Power Module | Supplies the power required by the connected drive motor |
| Feed-Axis Motor | Produces the mechanical movement commanded by the control system |
| Direct Measuring System | Measures machine-axis movement and supplies feedback |
| CNC Controller | Generates motion commands and coordinates machining operations |
| Machine-Axis Mechanics | Converts motor output into movement of the table, slide, or other controlled machine element |
| Feedback Wiring | Carries measuring-system signals to the appropriate control interface |
The control unit’s suitability depends on the drive architecture, feedback signal type, axis assignment, and associated hardware. These items should be checked together when commissioning or servicing a SIMODRIVE 611-D installation.
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Closed-loop control of feed axes during programmed cutting movements |
| CNC Turning Centers | Coordinating controlled axis motion during turning and contour operations |
| Precision Machine Tools | Using direct measuring-system feedback in axis-control applications |
| Machining Centers | Coordinating feed movement across two controlled digital axes |
| Automated Grinding Equipment | Regulating axis movement where accurate positioning is required |
| Special-Purpose Machine Tools | Integrating two-axis digital feed-drive control into dedicated machinery |
| Multi-Axis CNC Systems | Controlling two axes as part of a larger coordinated drive architecture |
| Industrial Positioning Systems | Regulating feed movement using compatible feedback hardware |
| Retrofit and Repair Projects | Replacing a control unit after confirming the original feedback and drive configuration |
| Machine Tool Maintenance | Investigating axis following errors and feedback-related motion problems |
Installation and Maintenance
- Verify the complete order number: Confirm that the installed unit is 6SN1118-0DH22-0AA0. Similar SIMODRIVE 611-D modules can differ in axis count, measuring-system support, and feedback signal type.
- Check the drive architecture: Identify the associated SIMODRIVE 611 power modules, controlled axes, and CNC controller before installing a replacement.
- Confirm the measuring-system type: Verify that the machine uses the direct measuring system configuration required by this model.
- Check current-signal compatibility: Inspect the feedback interface specifications and wiring arrangement. Do not substitute a voltage-signal variant without confirming compatibility.
- Inspect the feedback connections: Check connectors, cable routing, shielding, and contact condition if the machine reports position deviations or feedback errors.
- Verify axis assignments: Confirm that the two controlled axes correspond to the correct machine movements and controller configuration.
- Review the control parameters: Check the established axis-control and measuring-system parameters against the machine’s commissioning documentation before making adjustments.
- Inspect the drive power hardware: If an axis cannot move correctly, check the associated power module, motor connections, and drive-system status rather than assuming the control unit is the cause.
- Investigate following errors systematically: Compare commanded movement, measured position, and available drive diagnostics to distinguish feedback problems from mechanical resistance or drive faults.
- Check mechanical transmission components: Inspect couplings, ball screws, linear guides, and other relevant mechanisms when feedback indicates movement that does not match the command.
- Follow safe servicing procedures: Isolate hazardous electrical energy and follow the machine’s approved procedures before removing the plug-in unit or handling drive connections.
- Document replacement and commissioning results: Record the exact control-unit reference, feedback configuration, axis assignments, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMODRIVE 611-D Drive System | Provides the drive architecture in which the control unit operates |
| Compatible SIMODRIVE 611 Power Module | Supplies power to the associated digital drive |
| Compatible Feed-Axis Motor | Converts electrical drive output into controlled mechanical movement |
| Direct Measuring System | Supplies machine-axis feedback for the specified control configuration |
| CNC Controller | Generates movement commands and coordinates machining sequences |
| Feedback Signal Cables | Carry measuring-system signals to the control interface |
| Motor Power Cables | Connect the power module to the associated motor |
| Machine-Axis Mechanics | Transmit motor movement to the machine slide, table, or other controlled element |
Recommended Related Models
| Model | Product Type | Main Configuration Difference |
|---|---|---|
| Siemens 6SN1118-0DH21-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Control Unit | Two-axis digital drive configuration without a direct measuring system |
| Siemens 6SN1118-0DH23-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Control Unit | Related two-axis configuration using voltage signals with a direct measuring system |
| Siemens 6SN1118-0DH22-0AA1 | SIMODRIVE 611-D Control Unit | Related order-number variant; verify the exact configuration and compatibility before substitution |
| Siemens 6SN1118-0DG22-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Control Unit | One-axis configuration with a direct measuring system and current signals |
| Siemens SIMODRIVE 611-D | Digital Drive System | Drive platform for compatible digital feed and spindle-drive applications |
Key Advantages
- Controls two digital axes within a compatible SIMODRIVE 611-D system.
- Supports performance closed-loop feed-drive control.
- Accommodates a direct measuring system using current signals.
- Integrates into the existing SIMODRIVE 611 drive architecture.
- Supports feedback-based regulation of machine-axis movement.
Technical FAQs
Why is the direct measuring system configuration important when replacing this control unit?
The 6SN1118-0DH22-0AA0 is specified for a direct measuring system using current signals. A replacement must match the machine’s feedback arrangement; a module intended for voltage signals or a system without direct measuring feedback may not be electrically or functionally compatible.
Can this unit control two feed axes simultaneously?
The module is a two-axis control unit. It can serve two digital axes within a compatible SIMODRIVE 611-D configuration. Actual coordination depends on the CNC controller, drive hardware, axis configuration, and machine application.
What should be checked if the machine develops a following error after replacement?
Check the measuring-system wiring, feedback signal compatibility, axis assignments, configured parameters, and mechanical transmission. Also verify that the replacement control unit matches the original direct measuring system arrangement. A following error alone does not establish that the control unit itself is defective.
Is the 6SN1118-0DH23-0AA0 a direct substitute for the 6SN1118-0DH22-0AA0?
Not automatically. These related variants differ in measuring-system signal type: the 0DH22 version is associated with current signals, whereas the 0DH23 version uses voltage signals. The replacement must match the installed feedback interface and the rest of the drive configuration.
