- Siemens
- 6SN1118-0DG21-0AA1
- Closed-Loop Plug-In Performance Control Unit
- Germany
- 356 × 76 × 203 mm
- 0.712 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

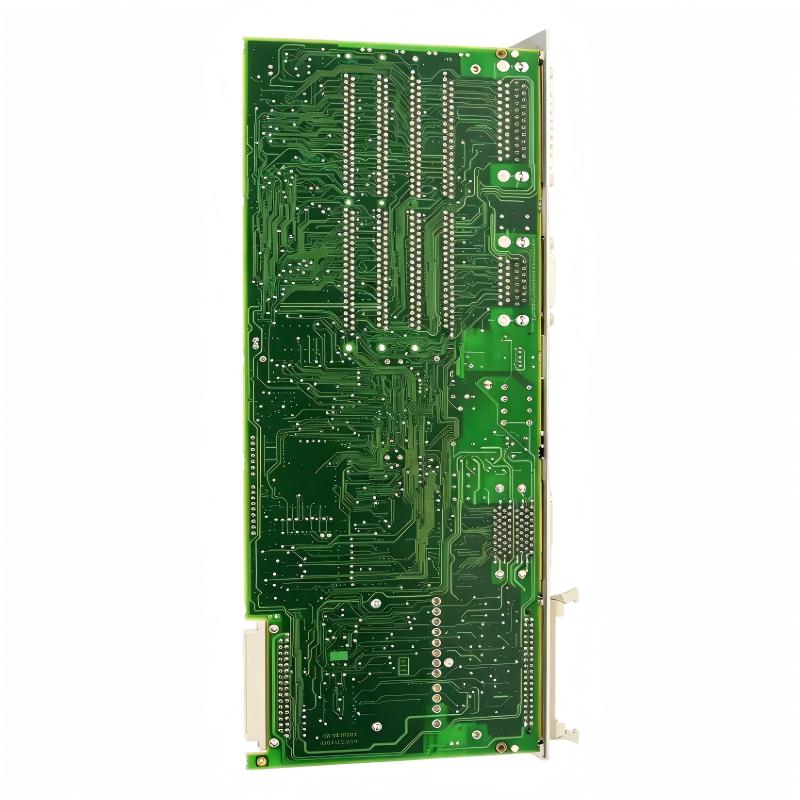

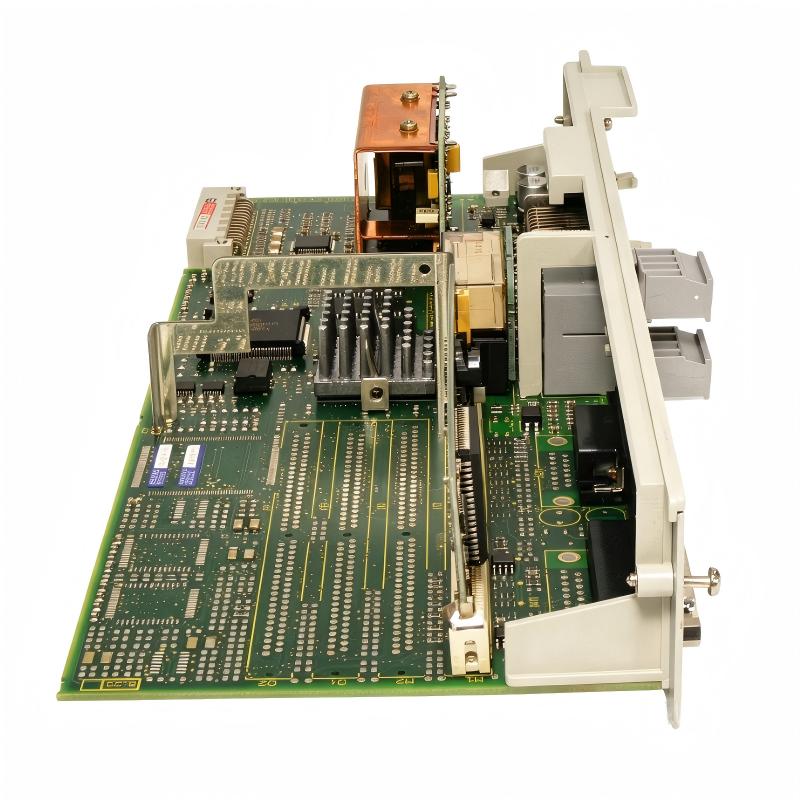

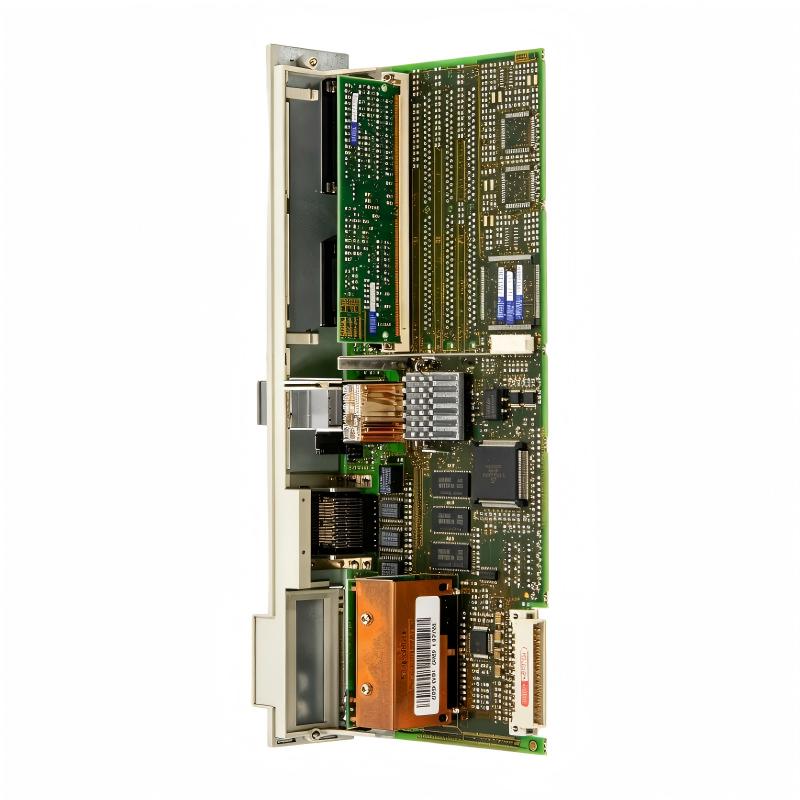

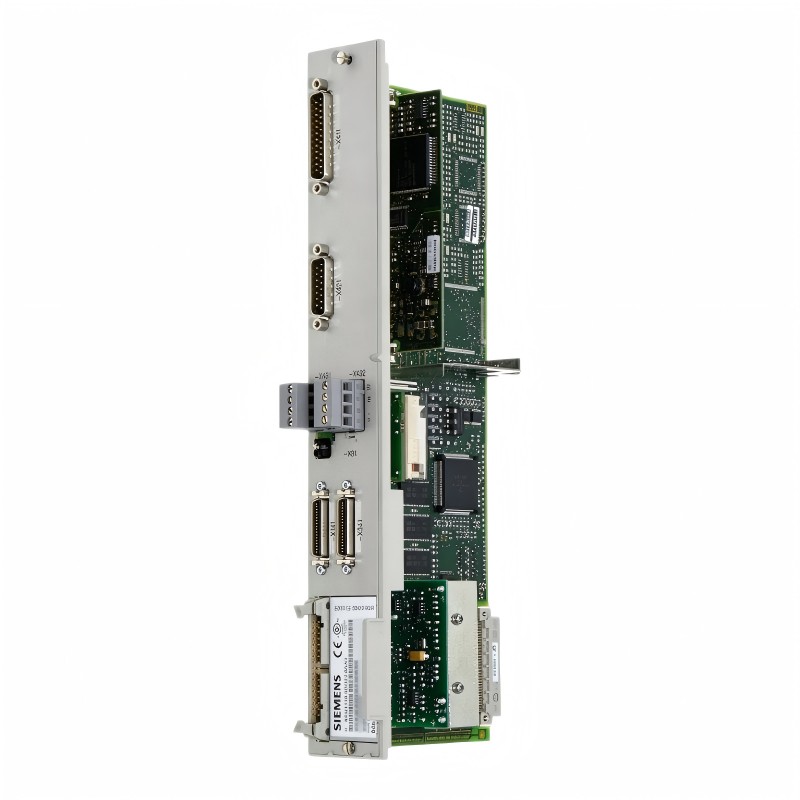

The Siemens 6SN1118-0DG21-0AA1 is a SIMODRIVE 611-D closed-loop plug-in performance control unit for one axis in compatible digital drive systems. It is intended for feed-drive and main-spindle-drive applications in CNC machine tools, where the drive control must regulate motor operation in response to commands from a higher-level numerical control system.
This unit belongs to the SIMODRIVE 611-D digital drive family. Its role is distinct from that of the power module: the control unit manages the drive-control functions, while the associated power section supplies the electrical energy required by the motor. Together with the motor feedback arrangement and machine controller, these components form the drive system responsible for controlled axis movement.
The single-axis configuration is useful in modular drive installations where individual control units are assigned to specific feed axes or spindle drives. The numerical control determines the required movement, and the drive system regulates the motor according to its configured control parameters and feedback signals.
The performance-control designation distinguishes this model from SIMODRIVE 611-D variants with different control specifications. It should be selected according to the intended drive application, power-module compatibility, motor configuration, and numerical-control requirements rather than treated as a universal replacement for other 6SN1118 control units.
For example, in a CNC machining center, a compatible control unit can regulate a feed motor that moves a carriage or machine table through a ball-screw mechanism. The numerical control coordinates the programmed path, while the drive system manages the motor response required to follow the command.
The 6SN1118-0DG21-0AA1 is therefore intended for a defined position within a compatible SIMODRIVE 611-D architecture. Its operating characteristics depend on the complete drive configuration, including the control unit, power module, motor, feedback system, and machine-control program.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DG21-0AA1 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Performance Control Unit |
| Axis Configuration | 1 axis |
| Drive Application | Digital feed drives and main-spindle drives |
| Control Technology | Digital |
| Control Category | Performance closed-loop control |
| Installation Type | Plug-in control unit |
| System Function | Closed-loop drive control |
| Dimensions | 356 × 76 × 203 mm |
| Weight | 0.712 kg |
Product Features
- Single-axis control: Provides drive-control functions for one axis in a compatible SIMODRIVE 611-D system.
- Performance closed-loop regulation: Supports controlled motor operation using the configured drive-control and feedback arrangement.
- Digital drive compatibility: Integrates into the SIMODRIVE 611-D digital drive architecture.
- Feed-drive applications: Supports compatible CNC axes requiring regulated motor movement.
- Main-spindle applications: Fits specified spindle-drive configurations within the supported system architecture.
- Modular installation: Works with the corresponding drive power module rather than supplying motor power independently.
- Numerical-control integration: Receives drive commands as part of a coordinated CNC motion-control system.
- Axis-specific parameters: Requires settings appropriate to the connected motor, feedback arrangement, and mechanical transmission.
- Drive-system coordination: Operates alongside the power section and associated monitoring and feedback components.
- Machine-tool integration: Supports compatible digital-drive installations in CNC equipment.
Working Principle
The 6SN1118-0DG21-0AA1 regulates one drive axis within a SIMODRIVE 611-D system. It processes the drive-control requirements associated with the commanded movement and works with the power module and motor feedback arrangement to control the connected motor.
Numerical Control → SIMODRIVE 611-D Control Unit → Power Module → Drive Motor → Mechanical Axis
The numerical control generates movement commands based on the machine program. The control unit processes the associated drive requirements, while the power module supplies the motor with the electrical power needed to produce motion.
The motor converts electrical energy into mechanical rotation. In a feed-drive application, this rotation may pass through a ball screw or another mechanical transmission to move a machine slide, carriage, or table. The configured feedback system provides the information needed for the drive to regulate motor behavior.
The control unit operates as one part of the larger motion-control architecture. Its response depends on the correct interaction between the numerical control, drive parameters, motor, feedback components, and power section. A configuration error or fault in any of these elements can affect axis performance.
During commissioning, the engineer should verify the axis assignment, drive parameters, motor feedback, and response to controlled movement commands. Unexpected motion, unstable regulation, or failure to respond should be investigated across the complete drive system rather than attributed automatically to the control unit.
Role in a SIMODRIVE 611-D Control Architecture
The 6SN1118-0DG21-0AA1 occupies the control position between the numerical control system and the drive power section. It regulates the assigned axis, while the power module provides motor power and the mechanical transmission converts motor rotation into the required machine movement.
CNC Numerical Control → SIMODRIVE 611-D Control Unit → Power Module → Drive Motor → Machine Axis
| System Component | Function |
|---|---|
| Siemens 6SN1118-0DG21-0AA1 | Provides single-axis performance closed-loop control |
| SIMODRIVE 611-D Power Module | Supplies electrical power to the connected motor |
| Digital Feed-Drive Motor | Produces controlled movement for the assigned machine axis |
| Main-Spindle Motor | Provides spindle rotation in compatible configurations |
| Motor Feedback System | Supplies feedback signals used by the configured drive-control arrangement |
| Numerical Control System | Generates movement commands and coordinates machine operation |
| Mechanical Transmission | Transfers motor rotation to the machine axis or spindle |
| Drive Power Supply | Supplies electrical energy to the drive system |
| Machine Interlock System | Coordinates permitted operation with machine conditions and protective functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Regulating a compatible feed axis during programmed machining |
| CNC Turning Machines | Supporting controlled feed movement or compatible spindle-drive operation |
| Machining Centers | Integrating a single drive axis into the numerical-control architecture |
| Grinding Machines | Regulating compatible feed mechanisms |
| Precision Machine Tools | Controlling motor operation within the configured drive system |
| Automated Production Machinery | Operating a compatible digital drive axis |
| Machine-Tool Feed Systems | Moving a carriage, slide, or table through a controlled drive mechanism |
| Spindle-Drive Systems | Supporting compatible main-spindle applications |
| CNC Retrofit Projects | Replacing a matching control unit in an existing SIMODRIVE 611-D installation |
| Industrial Maintenance | Restoring a compatible single-axis drive configuration |
Installation and Maintenance
- Confirm the model reference: Verify that 6SN1118-0DG21-0AA1 matches the intended SIMODRIVE 611-D application and single-axis configuration.
- Review the drive architecture: Identify the associated power module, motor, feedback arrangement, and numerical control before replacement.
- Isolate the electrical system: Disconnect the relevant supplies and follow the machine’s lockout and stored-energy discharge procedures.
- Record the existing settings: Document the axis assignment, drive parameters, module position, and associated connections before removal.
- Inspect the plug-in interface: Check the mounting and electrical interfaces for contamination, damage, or signs of overheating.
- Check the connected motor: Confirm that the motor and feedback arrangement match the intended drive configuration.
- Install the control unit: Fit the module into the designated SIMODRIVE 611-D position according to the system installation procedure.
- Inspect associated connections: Check the control, feedback, and power-module interfaces before restoring electrical power.
- Restore drive parameters: Apply the appropriate settings for the installed motor, feedback system, and machine axis.
- Verify axis assignment: Confirm that the numerical-control configuration and drive hardware refer to the same axis.
- Test controlled movement: Carry out the approved commissioning procedure and observe the motor response before returning the machine to production.
- Document maintenance results: Record the installed reference, parameter changes, diagnostic findings, and commissioning results.
Related Components
| Component | Function |
|---|---|
| Siemens 6SN1118-0DG21-0AA1 | Single-axis SIMODRIVE 611-D performance closed-loop control unit |
| SIMODRIVE 611-D Power Module | Supplies power to the associated drive motor |
| Digital Feed-Drive Motor | Produces movement for a machine feed axis |
| Main-Spindle Motor | Provides spindle rotation in compatible machine configurations |
| Motor Feedback Components | Supply feedback information for the drive-control arrangement |
| Numerical Control System | Generates movement commands and coordinates machine operation |
| Mechanical Feed Transmission | Converts motor rotation into linear or rotary movement |
| SIMODRIVE 611-D Drive System | Provides the modular digital-drive architecture |
| Drive Power Supply | Supplies electrical energy to the drive system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6SN1118-0DG21-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Digital feed and main-spindle drives |
| Siemens 6SN1118-0DG21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Single-axis digital feed and main-spindle drives |
| Siemens 6SN1118-0DG23-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Compatible drives using a direct measuring system |
| Siemens 6SN1118-0DJ21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Related drive-control configuration for compatible CNC systems |
| Siemens SIMODRIVE 611-D | Digital Drive System | Compatible feed-drive and main-spindle-drive applications |
| Siemens Digital Feed-Drive Motors | Servo Motors | Controlled axis movement in compatible machine tools |
Key Advantages
- Provides single-axis performance closed-loop control within a compatible SIMODRIVE 611-D system.
- Supports digital feed-drive and main-spindle-drive applications.
- Integrates with the corresponding power module and numerical control.
- Supports regulated motor operation through the configured feedback arrangement.
- Fits modular CNC drive architectures requiring a dedicated single-axis control unit.
Technical FAQs
What applications is the 6SN1118-0DG21-0AA1 intended for?
It is intended for compatible SIMODRIVE 611-D digital feed-drive and main-spindle-drive applications. The control unit manages one axis and must be matched to the associated power module, motor, feedback arrangement, and numerical-control system.
What distinguishes a performance control unit from other SIMODRIVE 611-D variants?
The performance designation identifies a specific drive-control category within the SIMODRIVE 611-D family. Other variants can have different control specifications or feedback arrangements, so model selection should follow the intended machine and drive configuration.
Does this control unit provide the motor’s power supply?
No. The associated power module supplies the motor’s main electrical power. The control unit handles the drive-control functions and works with the configured feedback arrangement to regulate motor operation.
What should be checked if the axis does not respond after installation?
Check the control-unit installation, power-module status, motor and feedback connections, axis assignment, drive parameters, and numerical-control configuration. A fault in the power section or feedback circuit can also prevent correct movement.
