Product Overview

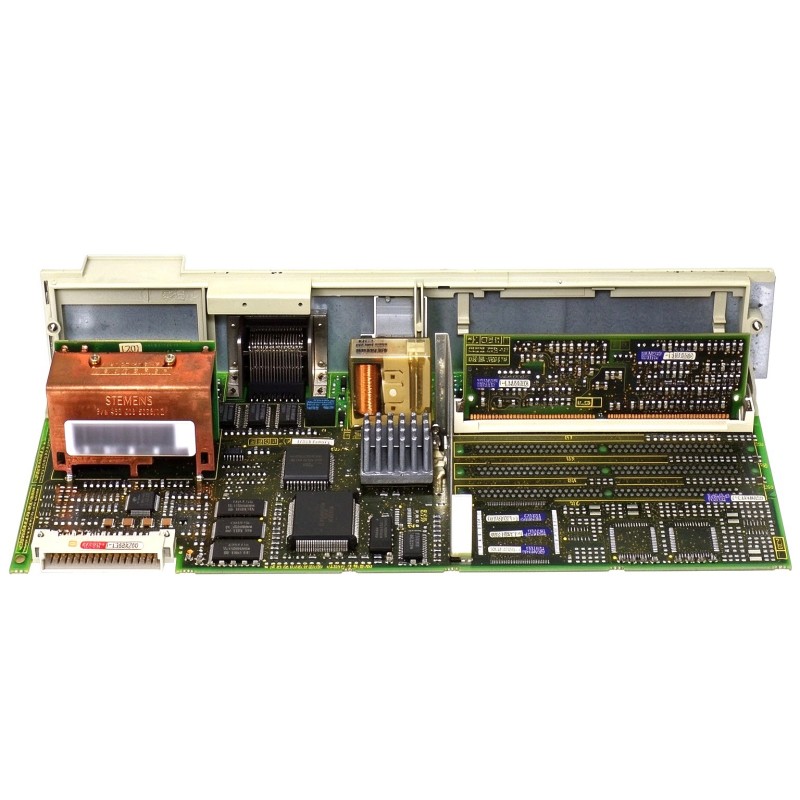

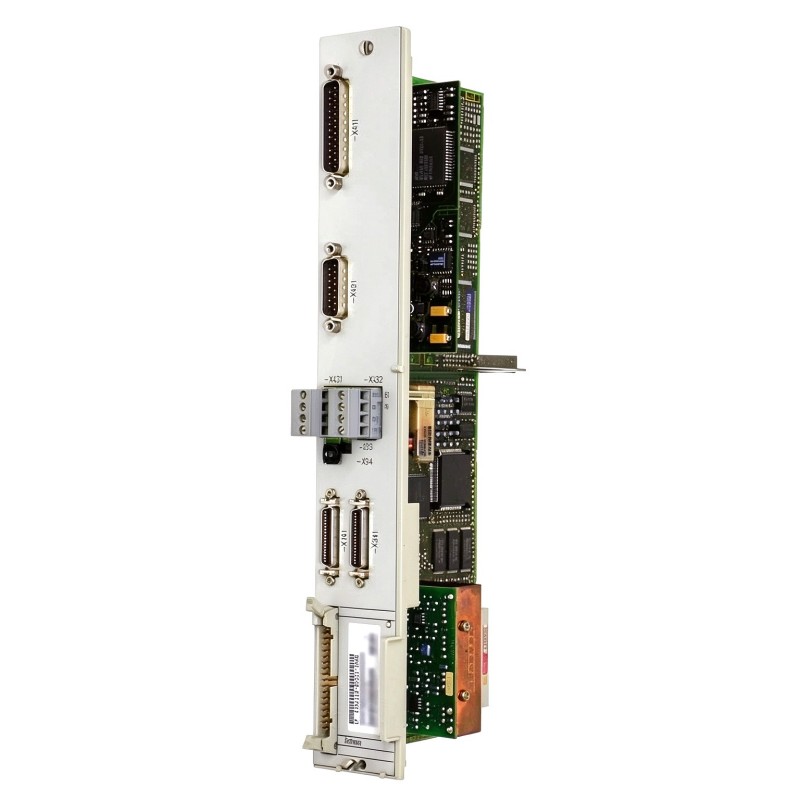

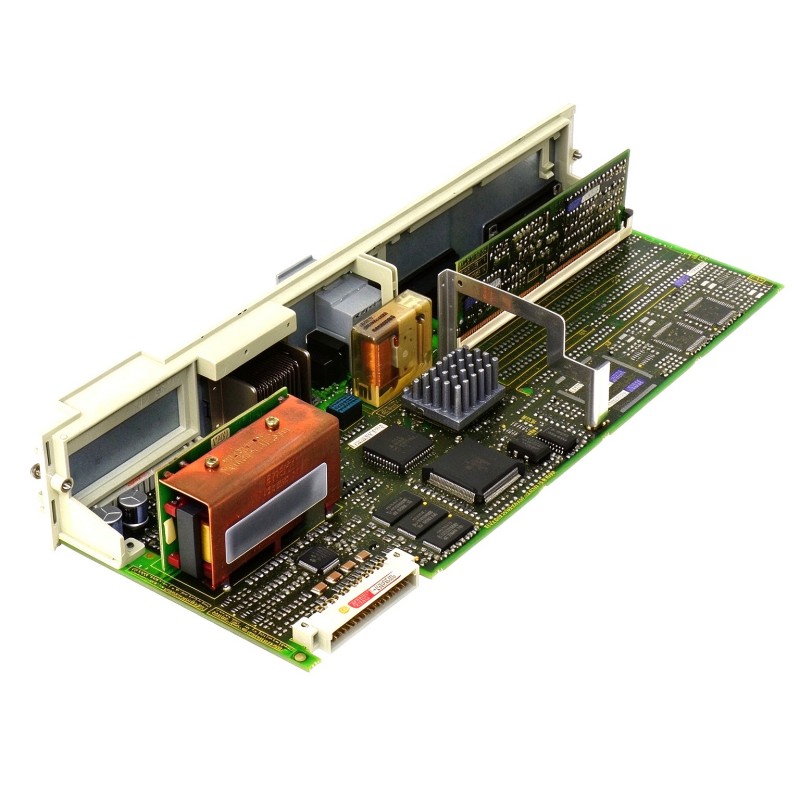

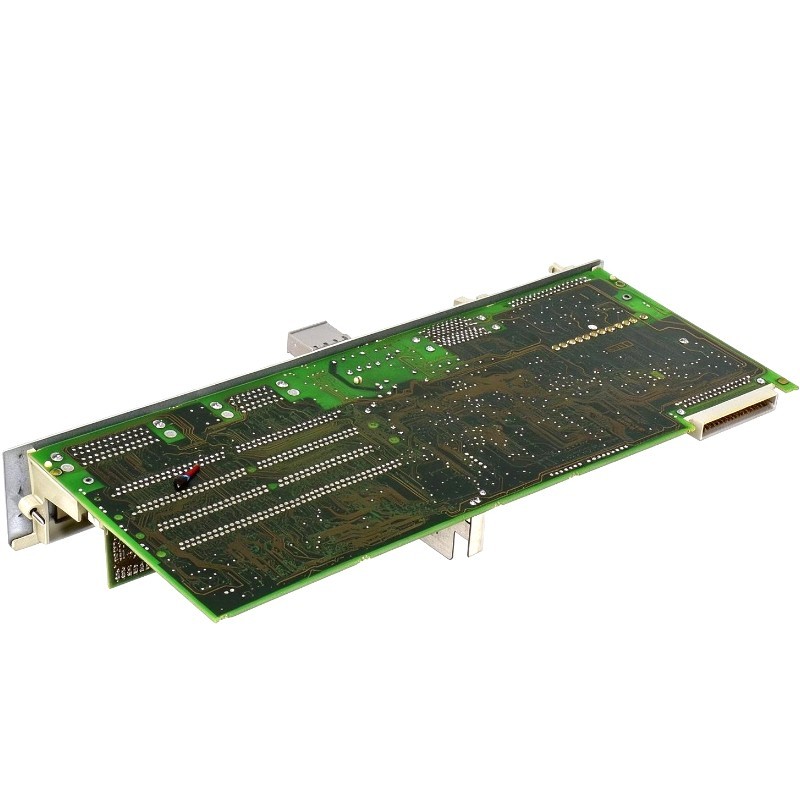

The Siemens 6SN1118-0DG21-0AA0 is a SIMODRIVE 611-D closed-loop plug-in control unit configured for one axis. It is intended for digital feed-drive and main-spindle-drive applications and uses performance closed-loop control without a direct measuring system. The unit forms part of the SIMODRIVE 611 digital drive architecture used in compatible CNC machine tools and industrial motion systems.
Unlike a drive power module, this control unit does not directly supply the motor’s main operating power. Its role is to manage the drive-control functions for the assigned axis, working with the corresponding power section, motor feedback arrangement, and higher-level numerical control system. The complete drive configuration determines how commanded movement is translated into motor operation.
The single-axis arrangement is suited to machine architectures in which each drive-control unit is assigned to a particular feed axis or spindle drive. Depending on the application, the controlled axis may operate a machine slide, tool carriage, or another mechanism requiring regulated motion. The control unit processes the relevant drive commands and feedback information within the supported SIMODRIVE 611-D configuration.
The designation without direct measuring system is significant when selecting this model. It distinguishes the specified feedback arrangement from configurations that use a direct measurement system for the controlled machine axis. The resulting motion-control arrangement depends on the motor feedback, mechanical transmission, and numerical control architecture used in the machine.
For example, a CNC machine may use a SIMODRIVE 611-D system to regulate a feed motor connected to a ball screw. The numerical control generates the movement command, while the drive system regulates motor operation using its configured feedback arrangement. The mechanical transmission converts motor rotation into linear axis movement.
The 6SN1118-0DG21-0AA0 is therefore a dedicated component for compatible digital-drive installations rather than a general-purpose motor controller. Its performance closed-loop control configuration, single-axis arrangement, and feedback requirements are central to selecting it for a machine-tool drive system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DG21-0AA0 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Control Unit |
| Axis Configuration | 1 axis |
| Drive Application | Digital feed drives and main-spindle drives |
| Control Type | Performance closed-loop control |
| Direct Measuring System | Not included in the specified configuration |
| Drive Architecture | SIMODRIVE 611 digital drive system |
| Installation Type | Plug-in control unit |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.73 kg |
Product Features
- Single-axis control: Provides drive-control functions for one configured axis within a compatible SIMODRIVE 611-D system.
- Performance closed-loop control: Supports regulated motor operation according to the configured drive-control requirements.
- Digital-drive compatibility: Belongs to the SIMODRIVE 611-D architecture for compatible digital feed and spindle drives.
- Feed-drive applications: Supports machine axes requiring controlled feed movement.
- Main-spindle applications: Can be used in the specified drive architecture for compatible main-spindle applications.
- No direct measuring system: Uses the feedback arrangement associated with this model rather than a direct measuring system for the machine axis.
- Power-module integration: Works with the associated power section that supplies motor power.
- Numerical-control integration: Operates as part of a coordinated CNC control architecture.
- Axis-specific configuration: Requires drive settings appropriate to the connected motor, feedback arrangement, and mechanical system.
- Modular drive installation: Fits into the corresponding SIMODRIVE 611 system configuration.
Working Principle
The 6SN1118-0DG21-0AA0 manages closed-loop control for one axis within a SIMODRIVE 611-D digital drive system. It works with the numerical control, power module, and configured motor feedback arrangement to regulate the drive according to the required motion commands.
Numerical Control → SIMODRIVE 611-D Control Unit → Power Module → Motor → Mechanical Axis
The numerical control generates the command for the required movement or operating condition. The control unit processes the drive-control requirements and uses the configured feedback information to regulate motor operation. The associated power module supplies the electrical energy required by the motor.
Because this model is specified without a direct measuring system, its control arrangement does not rely on a separate direct position-measurement device on the machine axis. The actual feedback configuration and achievable positioning performance depend on the installed motor, measurement arrangement, mechanical transmission, and control settings.
In a CNC feed-drive application, the motor may drive a ball screw that moves a table or carriage. The control unit regulates the motor according to the command and feedback signals, while the numerical control coordinates the axis with the other machine movements.
The performance closed-loop control designation identifies the intended control configuration, but it does not mean that the control unit operates independently of the rest of the drive. Correct operation requires the compatible power section, motor, feedback arrangement, and numerical control to work together.
During commissioning, engineers should verify the configured axis, drive parameters, feedback signals, and motor response. Unexpected movement, unstable operation, or an axis that fails to respond can originate from the control configuration, power module, feedback circuit, or mechanical system.
Role in a SIMODRIVE 611-D Control Architecture
The 6SN1118-0DG21-0AA0 occupies the drive-control position between the higher-level numerical control and the power section. It regulates one drive axis, while the power module supplies motor power and the machine’s mechanical transmission converts motor rotation into the required movement.
CNC Numerical Control → SIMODRIVE 611-D Control Unit → Power Module → Digital Drive Motor → Machine Axis
| System Component | Function |
|---|---|
| Siemens 6SN1118-0DG21-0AA0 | Provides single-axis performance closed-loop control |
| SIMODRIVE 611-D Power Module | Supplies electrical power to the connected drive motor |
| Digital Feed-Drive Motor | Produces controlled mechanical movement |
| Main-Spindle Motor, Where Applicable | Drives the machine spindle within a compatible configuration |
| Motor Feedback System | Supplies the feedback signals used by the drive-control arrangement |
| Numerical Control System | Generates motion commands and coordinates machine operation |
| Mechanical Transmission | Transfers motor movement to the machine axis or spindle |
| Drive Power Supply | Supplies the electrical energy required by the drive system |
| Machine Interlock System | Coordinates permitted operation with machine conditions and protective functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Regulating a compatible feed axis within a SIMODRIVE 611-D installation |
| CNC Turning Machines | Supporting controlled feed or spindle-drive operation in the specified architecture |
| Machining Centers | Integrating a single drive axis into the machine’s numerical-control system |
| Grinding Machines | Controlling compatible feed mechanisms requiring closed-loop regulation |
| Precision Machine Tools | Regulating motor operation within the configured feedback arrangement |
| Automated Production Machinery | Controlling a compatible digital drive axis |
| Machine-Tool Feed Systems | Operating a carriage, slide, or table through the associated motor and transmission |
| Spindle-Drive Systems | Supporting compatible main-spindle applications within the specified drive architecture |
| CNC Retrofit Projects | Replacing a matching control unit in an existing SIMODRIVE 611-D system |
| Industrial Maintenance | Restoring a compatible single-axis drive configuration after control-unit replacement |
Installation and Maintenance
- Confirm the control-unit reference: Verify that 6SN1118-0DG21-0AA0 matches the required SIMODRIVE 611-D single-axis configuration.
- Review the drive architecture: Identify the associated power module, motor, feedback arrangement, and numerical control before replacing the unit.
- Isolate the drive system: Disconnect the relevant electrical supplies and follow the machine’s lockout procedures and stored-energy discharge requirements.
- Record the existing configuration: Document the axis assignment, drive parameters, module position, and associated connections before removal.
- Inspect the plug-in interface: Check the mounting and electrical interfaces for damage, contamination, or signs of overheating.
- Check the feedback arrangement: Confirm that the installed motor feedback configuration corresponds to the control unit’s specified application without a direct measuring system.
- Install the control unit: Fit the module into the designated SIMODRIVE 611-D position according to the system installation procedure.
- Inspect associated connections: Check the relevant control, feedback, and power-module connections before restoring power.
- Restore drive parameters: Apply the appropriate settings for the installed motor, feedback arrangement, and machine axis.
- Verify axis assignment: Confirm that the control unit is assigned to the intended axis and that the numerical control configuration matches the drive hardware.
- Test controlled movement: Carry out the approved commissioning procedure and check motor response, feedback behavior, and axis operation before returning the machine to production.
- Record maintenance results: Document the replacement reference, parameter changes, diagnostic findings, and commissioning results for future service work.
Related Components
| Component | Function |
|---|---|
| Siemens 6SN1118-0DG21-0AA0 | Single-axis SIMODRIVE 611-D performance closed-loop control unit |
| SIMODRIVE 611-D Power Module | Supplies power to the associated drive motor |
| Digital Feed-Drive Motor | Produces mechanical movement for a machine axis |
| Main-Spindle Motor | Provides spindle rotation in compatible machine configurations |
| Motor Feedback Components | Supply the feedback information required by the drive-control arrangement |
| Numerical Control System | Generates motion commands and coordinates machine movements |
| Mechanical Feed Transmission | Converts motor rotation into linear or rotary machine movement |
| SIMODRIVE 611 Digital Drive System | Provides the modular architecture for compatible drive applications |
| Drive Power Supply | Supplies electrical energy to the drive system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6SN1118-0DG21-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Control Unit, 1 Axis | Digital feed and main-spindle drives without a direct measuring system |
| Siemens 6SN1118-0DG21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Control Unit, 1 Axis | Related single-axis drive configuration |
| Siemens 6SN1118-0DG23-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Digital feed and main-spindle drives with a direct measuring system |
| Siemens 6SN1118-0DG23-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 1 Axis | Related digital-drive configuration with a direct measuring system |
| Siemens SIMODRIVE 611-D | Digital Drive System | Compatible CNC feed-drive and spindle-drive applications |
| Siemens Digital Feed-Drive Motors | Servo Motors | Controlled feed-axis movement in compatible machine tools |
Key Advantages
- Provides single-axis control for compatible SIMODRIVE 611-D systems.
- Supports performance closed-loop control for the specified digital-drive arrangement.
- Serves compatible feed-drive and main-spindle-drive applications.
- Integrates with the associated power module and numerical control.
- Supports machine-tool drive architectures that do not use a direct measuring system for the controlled axis.
Technical FAQs
What is the intended application of the 6SN1118-0DG21-0AA0?
It is intended for a single axis in compatible SIMODRIVE 611-D digital feed-drive or main-spindle-drive applications. The drive configuration must match the model’s specified control and feedback arrangement.
What does “without direct measuring system” mean for this model?
It identifies a configuration that does not use a separate direct measuring system for the machine axis. The applicable motor feedback and control arrangement determine how the drive regulates motion.
Does the control unit supply the motor’s main power?
No. The associated SIMODRIVE 611-D power module supplies the motor’s electrical power. The control unit manages the drive-control functions and works with the configured feedback signals.
What should be checked if the axis behaves incorrectly after replacement?
Check the module installation, power-module status, motor and feedback connections, axis assignment, drive parameters, and numerical-control configuration. Incorrect feedback settings or a fault elsewhere in the drive system can affect movement even when the control unit is installed correctly.
