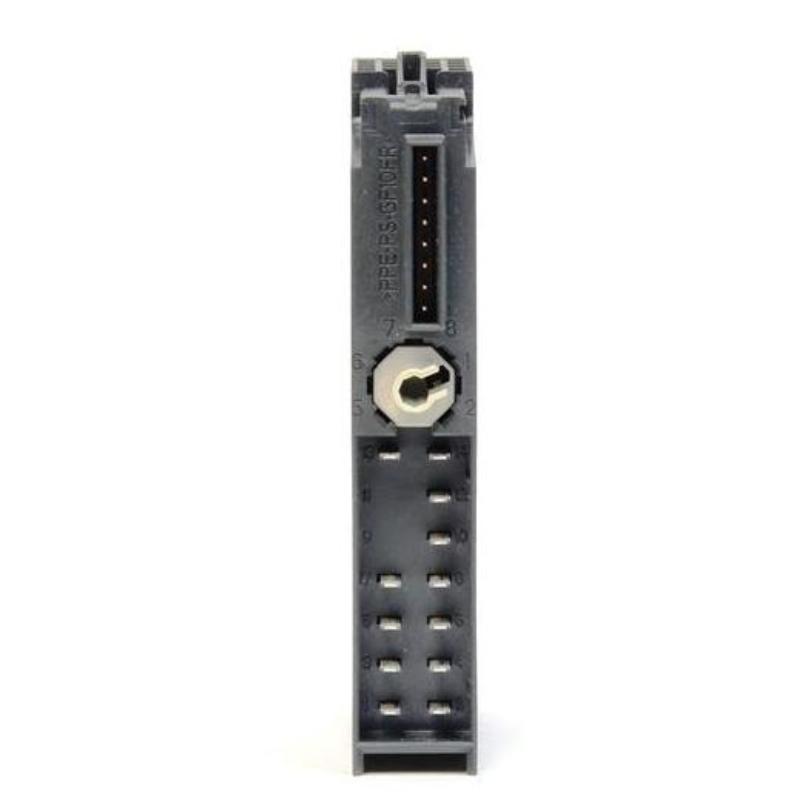

Product Overview

The Siemens 6ES7131-4BB01-0AB0 is a High Feature digital input electronic module for the SIMATIC ET 200S distributed I/O system. It provides two 24 V DC digital inputs and adds configurable input-delay settings and diagnostic functions that distinguish it from standard ET 200S digital input modules.

This module is useful when a machine requires more than basic ON/OFF signal acquisition. For example, a production line may use proximity sensors to confirm component positions while the control system also needs to detect sensor-supply faults. The 6ES7131-4BB01-0AB0 supports input-delay selection and encoder short-circuit diagnostics, helping maintenance personnel identify certain electrical problems without relying entirely on external measurements.

The module supports four selectable input-delay settings: 0.1 ms, 0.5 ms, 3 ms, and 15 ms. This allows the input response to be matched more closely to the switching behavior of connected sensors and the timing requirements of the machine. Shorter settings are useful when faster signal recognition is needed, while longer settings can help suppress unwanted switching caused by signal fluctuations, provided the application permits the additional delay.

As part of the ET 200S modular I/O platform, the electronic module operates with a compatible terminal module and communicates through the station’s backplane bus. It can be installed near the field devices, reducing the need to route every sensor signal back to a central control cabinet.

For replacement or system expansion, the High Feature designation is important. A standard two-channel 24 V DC input module may appear similar, but it does not necessarily provide the same parameterization, diagnostics, or interrupt functionality.

Technical Specifications

Product Features

• Two 24 V DC digital inputs: Collects discrete signals from compatible industrial sensors and switches.
• High Feature input design: Adds parameterization and diagnostic functions beyond basic standard-input operation.
• Four input-delay settings: Selectable delays of 0.1, 0.5, 3, and 15 ms support different signal-response requirements.
• Encoder short-circuit diagnostics: Helps identify specified short-circuit conditions associated with the sensor supply.
• Red SF group-fault indicator: Provides a visual indication of reported module faults.
• Individual green channel LEDs: Allows technicians to check the state of each input during commissioning.
• Hardware interrupt support: Can notify the controller of configured events without relying solely on ordinary cyclic input processing.
• Isochronous operation support: Allows use in compatible synchronized I/O configurations.
• Electronic encoder-supply protection: Helps protect the sensor supply against specified short-circuit conditions.
• ET 200S distributed I/O integration: Fits into a modular field-level control architecture with compatible station components.

Working Principle

The 6ES7131-4BB01-0AB0 receives binary signals from field devices and makes the resulting input states available to the ET 200S station. Its High Feature functions allow the input response and selected diagnostic behavior to be configured for the application.

A typical signal path is:

24 V DC Sensor → 6ES7131-4BB01-0AB0 → ET 200S Backplane Bus → Interface Module → PLC

When a connected sensor switches, the module evaluates the input voltage against its specified logic thresholds. The selected input delay determines how long the input circuitry processes a transition before recognizing the new state. Four delay settings are available: 0.1 ms, 0.5 ms, 3 ms, and 15 ms.

Consider a conveyor system in which a proximity sensor detects the arrival of a metal component. If the signal changes rapidly as the component passes the sensing point, the selected delay affects how the input transition is recognized. The appropriate setting depends on the sensor output, signal quality, machine speed, and the controller’s timing requirements. A longer delay should not be selected without checking whether it could cause the machine to miss a short event.

The module also supports diagnostic reporting for specified encoder short-circuit conditions. If a supported fault is detected, the diagnostic function and SF group-fault indicator can help narrow the troubleshooting process to the relevant sensor-supply circuit. The exact diagnostic response depends on the configured functions and system arrangement.

Where hardware interrupts are configured, selected input events can trigger an interrupt response in the controller. This is useful when an application needs event handling beyond ordinary cyclic input updates. The module still depends on the ET 200S interface, controller configuration, and user program to determine what action follows the input event.

Role in a SIMATIC ET 200S Distributed I/O Architecture

The 6ES7131-4BB01-0AB0 acts as the field-level digital signal interface within an ET 200S station. It acquires sensor signals and provides additional input processing and diagnostic functions before the data is passed to the controller.

Field Sensors → 6ES7131-4BB01-0AB0 → ET 200S Backplane Bus → Interface Module → PLC

The High Feature functions are particularly relevant when input timing, sensor diagnostics, or event-based processing forms part of the machine’s commissioning and maintenance requirements.

Industrial Applications

Installation and Maintenance

1. Confirm the complete article number: Verify 6ES7131-4BB01-0AB0 before installation or replacement. The HF designation matters because standard ET 200S input modules may not provide equivalent diagnostic and parameterization functions.
2. Check terminal-module compatibility: Confirm that the selected terminal module supports the electronic module and matches the existing station arrangement.
3. Verify the 24 V DC supply: Check the field supply voltage and polarity against the module’s specified operating range.
4. Confirm sensor electrical characteristics: Check the sensor output type, switching voltage, current consumption, and off-state leakage current where two-wire sensors are used.
5. Set the input delay deliberately: Select 0.1, 0.5, 3, or 15 ms according to the signal characteristics and required response time. Do not use the shortest setting automatically for every application.
6. Check the diagnostic configuration: Verify that the intended encoder short-circuit diagnostic function is configured appropriately for the connected sensor arrangement.
7. Review hardware interrupt settings: If the application uses interrupts, confirm the selected events and ensure that the PLC program handles them correctly.
8. Inspect channel assignments: Match each field sensor to the correct input channel and controller address.
9. Observe the status LEDs: Use the green channel indicators to compare the module’s input states with the actual switching behavior of the connected devices.
10. Test the sensor supply protection: Where applicable, verify the sensor supply and diagnostic response using the approved commissioning procedure. Do not create a live short circuit as an improvised test.
11. Investigate reported faults systematically: Check sensor wiring, the supply circuit, terminal contacts, configured parameters, and the reported diagnostic information before replacing the module.
12. Record the final configuration: Document the input-delay values, sensor assignments, diagnostic settings, interrupt configuration, and any changes made during commissioning.

Compatible System Components

Recommended Related Models

Key Advantages

• Two 24 V DC digital inputs in a modular ET 200S electronic module.
• Four selectable input-delay settings for application-specific signal processing.
• Encoder short-circuit diagnostics and a red SF group-fault indicator.
• Individual green input-status LEDs for commissioning and troubleshooting.
• Parameterizable hardware interrupt support.
• Isochronous operation support in compatible system configurations.

Technical FAQs

How does the 6ES7131-4BB01-0AB0 differ from the standard 6ES7131-4BB01-0AA0?

The 6ES7131-4BB01-0AB0 is the High Feature version. It supports configurable input delays, encoder short-circuit diagnostics, an SF group-fault indicator, and parameterizable hardware interrupts. The standard 6ES7131-4BB01-0AA0 has a fixed typical input delay of 3 ms and does not provide the same High Feature functionality.

Which input-delay setting should be used for a proximity sensor?

The choice depends on the sensor’s switching behavior, the duration of the signal, the machine cycle, and the required response time. The available settings are 0.1, 0.5, 3, and 15 ms. A shorter delay improves response to brief transitions, while a longer delay may help filter unwanted switching. The selected value should be verified during commissioning.

What does the red SF LED indicate?

The SF LED is the module’s group-fault indicator. When it signals a fault, check the diagnostic information available through the configured ET 200S system and investigate relevant sensor-supply wiring or supported encoder short-circuit conditions. The LED alone does not identify every possible fault source.

Can the module use hardware interrupts instead of cyclic input monitoring?

The module supports parameterizable hardware interrupts. In a compatible ET 200S configuration, selected input events can generate an interrupt for the controller to process. The relevant interrupt settings and PLC program must be configured correctly, and the complete system response must be tested against the application’s timing requirements.
