Product Overview

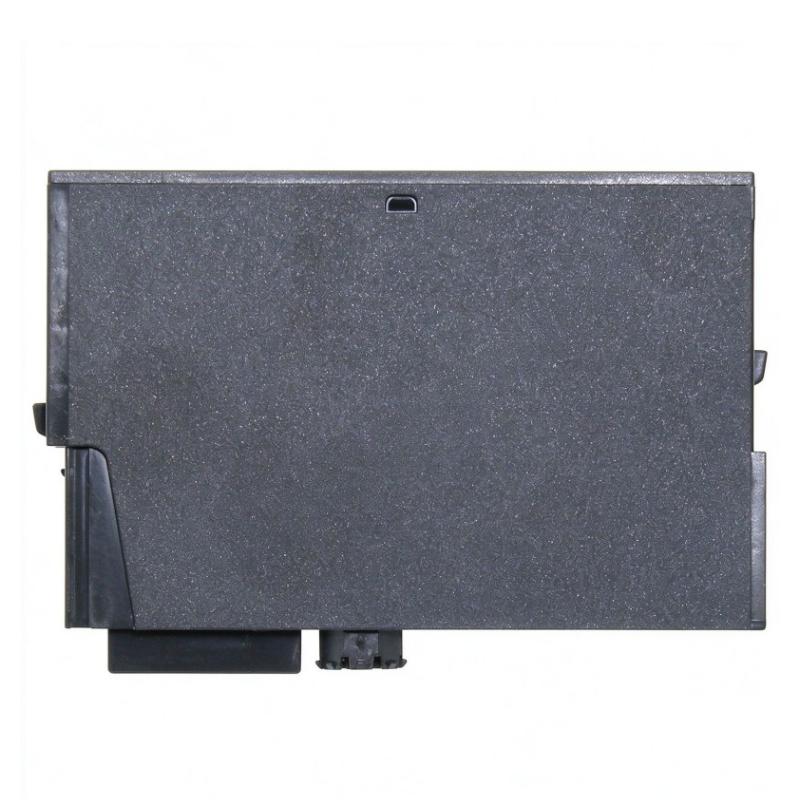

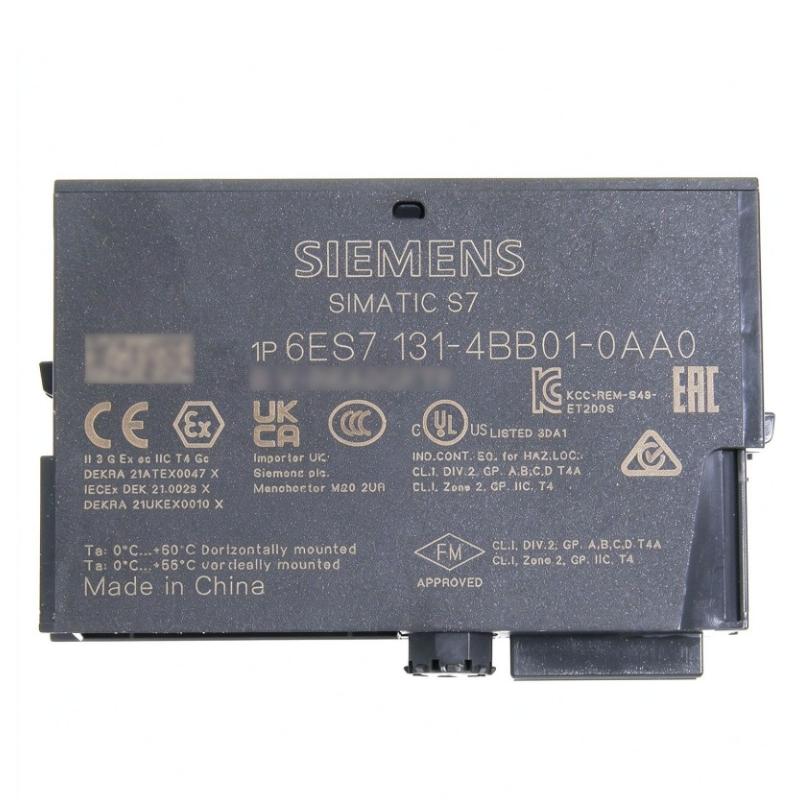

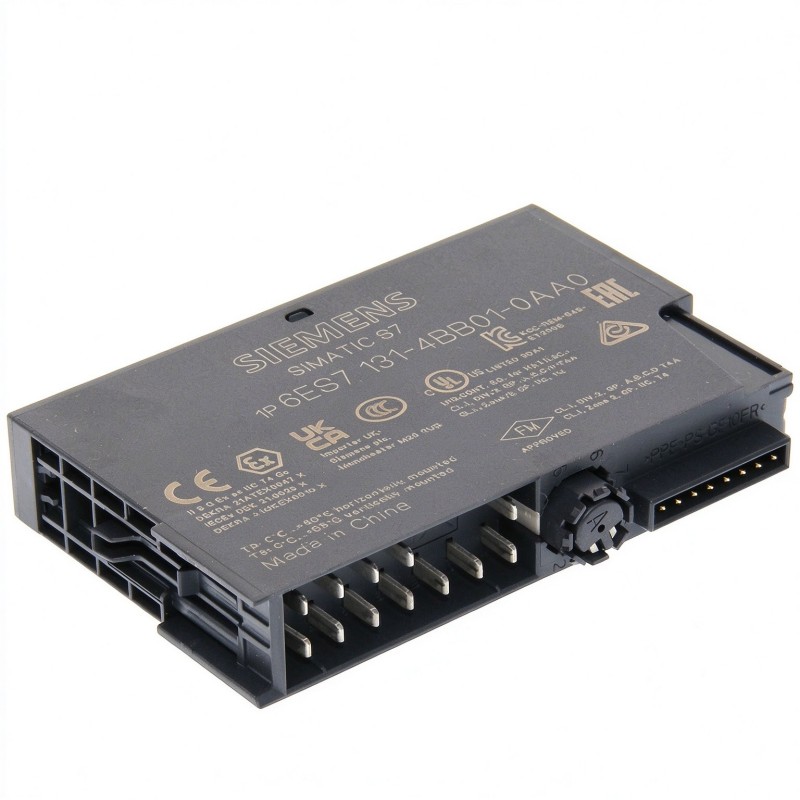

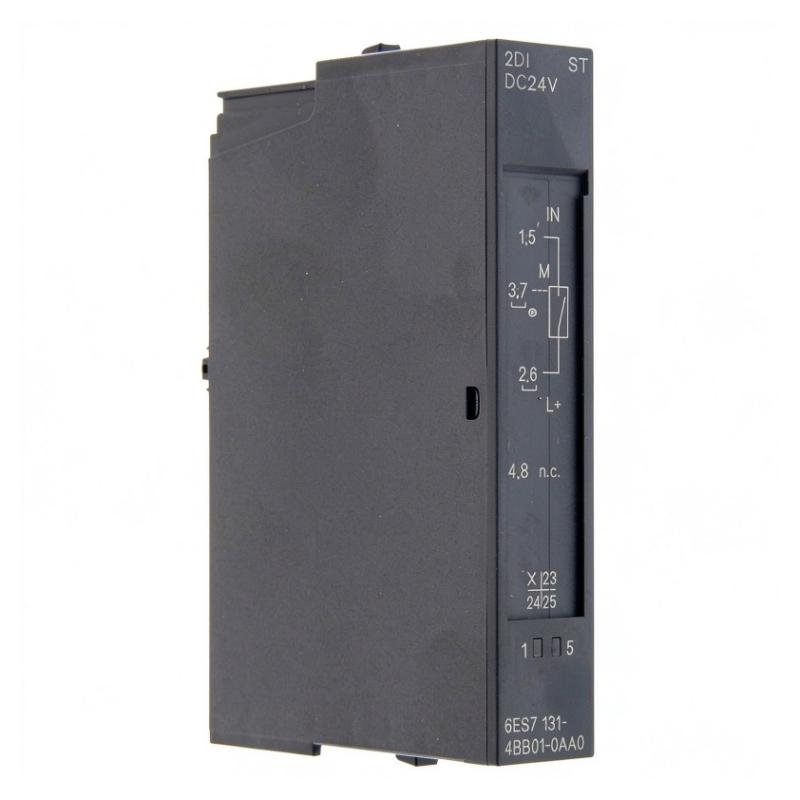

The Siemens 6ES7131-4BB01-0AA0 is a digital input electronic module for the SIMATIC ET 200S distributed I/O system. It provides two standard 24 V DC digital inputs for collecting binary signals from field devices such as proximity switches, pushbuttons, limit switches, and compatible two-wire sensors.
In a machine control cabinet, this module can be used to monitor whether a cylinder has reached its end position, whether a protective door is closed, or whether a conveyor sensor has detected a workpiece. The incoming signals are converted into digital input states that the controller can use in its operating sequence, interlocks, and machine status logic.
The module belongs to the ET 200S modular I/O platform, where individual electronic modules are installed on the appropriate terminal modules within a distributed station. Rather than routing every field signal directly to a central PLC cabinet, the ET 200S station can be positioned closer to the equipment being monitored. This arrangement is useful on production lines with sensors distributed across several machine sections.
The 6ES7131-4BB01-0AA0 accepts standard 24 V DC signals and provides a green status LED for each input channel. Its input delay is typically 3 ms for both signal transitions, making it suitable for many conventional machine-status and position-detection tasks. Applications involving high-speed pulse acquisition or specialized diagnostic requirements need a different assessment of the required input characteristics.
When replacing an installed module, the complete article number matters. The ET 200S family includes standard and high-feature input variants with different functions, so a module with the same channel count and nominal voltage should not automatically be treated as an equivalent replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6ES7131-4BB01-0AA0 |
| Product Family | SIMATIC ET 200S |
| Product Type | Digital Input Electronic Module |
| Module Designation | 2DI DC24V ST |
| Number of Digital Inputs | 2 |
| Rated Input Voltage | 24 V DC |
| Signal Level for Logic 0 | -30 to +5 V DC |
| Signal Level for Logic 1 | +15 to +30 V DC |
| Typical Input Current | 7 mA at 24 V DC |
| Typical Input Delay | 3 ms |
| Input Delay Range | 2–4.5 ms |
| Input Characteristic | IEC 61131, Type 1 |
| Channel Status Indication | Green LED per input |
| Sensor Compatibility | Compatible two-wire sensors, subject to specified leakage-current limits |
| Backplane Bus Current Consumption | 10 mA maximum at 3.3 V DC |
| Typical Power Dissipation | 0.4 W |
| Sensor Supply Output Current | Up to 500 mA, subject to system conditions |
| Potential Isolation | Digital inputs isolated from the backplane bus |
| Insulation Test Voltage | 500 V DC |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.171 kg |
Product Features
- Two digital input channels: Collects two independent binary signals from compatible field devices.
- 24 V DC signal interface: Supports common industrial control signals from switches and sensors.
- Standard input characteristics: Uses an IEC 61131 Type 1 input characteristic.
- Channel-level status LEDs: Green indicators help technicians check the switching state of each input.
- Typical 3 ms input delay: Suitable for many standard position, presence, and machine-status signals.
- ET 200S modular integration: Fits into the distributed I/O architecture using the appropriate terminal module.
- Two-wire sensor support: Can accommodate compatible two-wire sensors within the specified electrical limits.
- Backplane isolation: Separates the digital input circuits from the backplane bus according to the module’s specified isolation arrangement.
Working Principle
The 6ES7131-4BB01-0AA0 receives discrete electrical signals from field devices and converts them into input states for the ET 200S station. It does not interpret the machine sequence itself; that logic is handled by the connected controller.
A typical signal path is:
Field Sensor or Switch → 6ES7131-4BB01-0AA0 → ET 200S Backplane Bus → Interface Module → PLC
When a connected sensor changes state, its output voltage moves into the corresponding input signal range. A voltage between +15 V and +30 V DC is recognized as logic 1, while a voltage between -30 V and +5 V DC corresponds to logic 0. The input circuitry applies its specified switching characteristics and delay before the resulting state is made available to the control system.
For example, a proximity sensor installed beside a conveyor can indicate that a product has reached a defined position. The controller reads the associated input state and uses it to advance the sequence, stop a motor, or trigger another machine operation. The module supplies the electrical input interface; the actual response depends on the PLC program and the rest of the control architecture.
Each channel has a green status LED, which provides a useful first check during commissioning. If the sensor operates but the expected input state is absent, troubleshooting should include the sensor supply, signal voltage, wiring, terminal connections, and channel assignment in the controller configuration.
The module’s standard input delay is not intended to replace specialized high-speed counting or motion-control inputs. Where short pulses or precise event timing are important, the input response must be evaluated against the application’s timing requirements.
Role in a SIMATIC ET 200S Distributed I/O Architecture
The 6ES7131-4BB01-0AA0 acts as the field-level digital signal interface within an ET 200S station. It collects binary signals close to the machine and passes the resulting input states through the station’s backplane bus to the network interface and controller.
Field Devices → Digital Input Module → ET 200S Station Bus → Interface Module → PLC
| System Element | Function |
|---|---|
| 6ES7131-4BB01-0AA0 | Acquires two standard 24 V DC digital input signals |
| Compatible ET 200S Terminal Module | Provides the electrical connection and mounting interface for the electronic module |
| ET 200S Backplane Bus | Transfers I/O data within the station |
| ET 200S Interface Module | Connects the distributed I/O station to the control network |
| PLC or SIMATIC Controller | Processes input states and executes machine logic |
| Proximity Sensor | Detects the presence or position of a target |
| Limit Switch | Reports a mechanical position or end-of-travel condition |
| Pushbutton or Selector Switch | Supplies a discrete operator command |
| 24 V DC Control Supply | Powers compatible field sensors and associated control circuits |
The exact terminal module, interface module, and station configuration must match the installed ET 200S system. The input module itself does not provide the complete distributed I/O station or network connection.
Industrial Applications
| Application | Typical Use |
|---|---|
| Conveyor Systems | Detecting workpiece presence and conveyor position |
| Packaging Machinery | Monitoring product sensors and machine-position switches |
| Assembly Lines | Confirming component presence at individual workstations |
| Material Handling | Reading limit switches and position-detection signals |
| Pneumatic Automation | Monitoring cylinder end-position sensors |
| Machine Tools | Collecting discrete machine-status and interlock signals |
| Automated Production Cells | Sending sensor states to the PLC for sequence control |
| Industrial Equipment Cabinets | Consolidating local digital signals within a distributed I/O station |
| Process Equipment | Monitoring discrete equipment states and auxiliary switches |
| General Manufacturing | Acquiring standard 24 V DC signals from field devices |
Installation and Maintenance
- Verify the complete article number: Confirm 6ES7131-4BB01-0AA0 before installation or replacement. Similar ET 200S modules may have different input characteristics or diagnostic functions.
- Check the terminal module: Ensure that the installed terminal module is compatible with the electronic module and the existing station arrangement.
- Confirm the field signal voltage: Verify that the connected devices provide signals within the specified 24 V DC input ranges.
- Inspect sensor wiring: Check signal conductors, common connections, terminal assignments, and wiring condition before applying power.
- Verify the sensor type: Confirm that each connected sensor is electrically compatible with the module, including the permissible leakage current of two-wire sensors.
- Check the ET 200S station configuration: Confirm that the electronic module is correctly positioned and represented in the controller’s hardware configuration.
- Inspect channel assignments: Make sure each field device is connected to the intended input channel and that the PLC program uses the corresponding address.
- Observe the channel LEDs: Compare the green status indicators with the actual states of the connected sensors or switches.
- Test both input transitions: Operate each field device and verify that the controller recognizes both the active and inactive states.
- Check signal timing: If the controller misses a signal, assess whether the module’s 2–4.5 ms input delay is compatible with the duration of the signal and the application’s scan or event-handling requirements.
- Investigate unexpected input states: Check the field device, supply voltage, wiring, terminal contacts, and configuration before concluding that the electronic module has failed.
- Document the final arrangement: Record the module reference, channel assignments, connected sensors, and any relevant changes to the station configuration.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMATIC ET 200S Terminal Module | Provides the mounting and electrical connection interface |
| Siemens ET 200S Interface Module | Connects the distributed I/O station to the control network |
| Siemens SIMATIC S7 PLC | Processes input states and executes machine logic |
| 24 V DC Power Supply | Supplies compatible field sensors and control circuits |
| Three-Wire Proximity Sensor | Provides a discrete position or presence signal |
| Compatible Two-Wire Sensor | Supplies a switching signal within the module’s electrical limits |
| Limit Switch | Reports mechanical position or end-of-travel status |
| Pushbutton or Selector Switch | Provides operator commands to the control system |
| ET 200S Backplane Bus | Transfers data between the electronic module and interface module |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6ES7131-4BB00-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Earlier 2-channel 24 V DC standard input configuration; verify exact compatibility |
| Siemens 6ES7131-4BB01-0AB0 | SIMATIC ET 200S Digital Input Electronic Module, High Feature | Applications requiring high-feature input functions and additional diagnostics |
| Siemens 6ES7131-4BD01-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Higher-channel-count digital input applications |
| Siemens 6ES7132 Series | SIMATIC ET 200S Digital Output Electronic Modules | Switching actuators and other discrete output loads |
| Siemens SIMATIC ET 200S | Distributed I/O System | Modular field-level signal acquisition and control |
Key Advantages
- Two independent 24 V DC digital inputs in one electronic module.
- Standard input characteristics for common industrial switching signals.
- Individual green status LEDs for quick channel checks.
- Typical 3 ms input delay for conventional machine-status applications.
- Integration into a modular ET 200S distributed I/O station.
- Support for compatible two-wire sensors within specified electrical limits.
Technical FAQs
Can the 6ES7131-4BB01-0AA0 connect directly to a 24 V DC proximity sensor?
Yes, provided the sensor’s output type, voltage levels, wiring arrangement, and leakage current meet the module’s input specifications. For a two-wire sensor, verify the permissible off-state leakage current as well as the active-state voltage.
What do the green LEDs indicate on this ET 200S input module?
Each green LED indicates the state of its associated digital input. During commissioning, the LEDs can help determine whether a field signal is reaching the module, although they do not by themselves confirm that the PLC program is using the correct input address.
Is the 6ES7131-4BB01-0AA0 suitable for detecting very short pulses?
Its typical input delay is 3 ms, with a specified range of 2–4.5 ms for both switching directions. Very short pulses may not be detected reliably, depending on their duration and the complete control-system timing. Applications requiring high-speed pulse acquisition should use an input solution specified for that purpose.
Can the 6ES7131-4BB01-0AA0 replace the high-feature 6ES7131-4BB01-0AB0?
They should not be treated as equivalent solely because both are two-channel 24 V DC input modules. The high-feature variant offers different functions, including additional diagnostic capabilities. Check the existing hardware configuration and required functionality before selecting a replacement.
