Product Overview

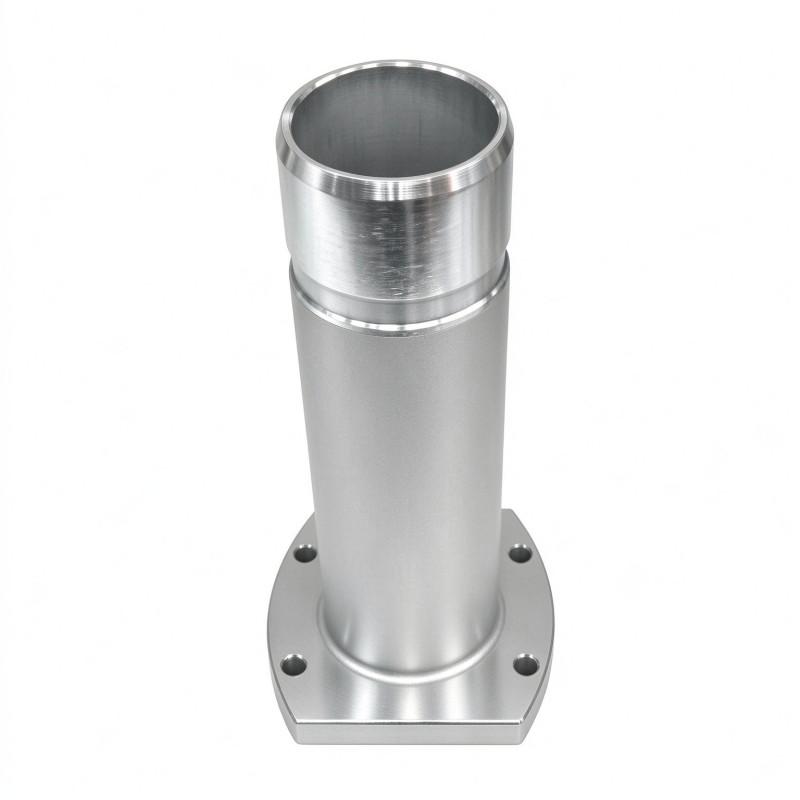

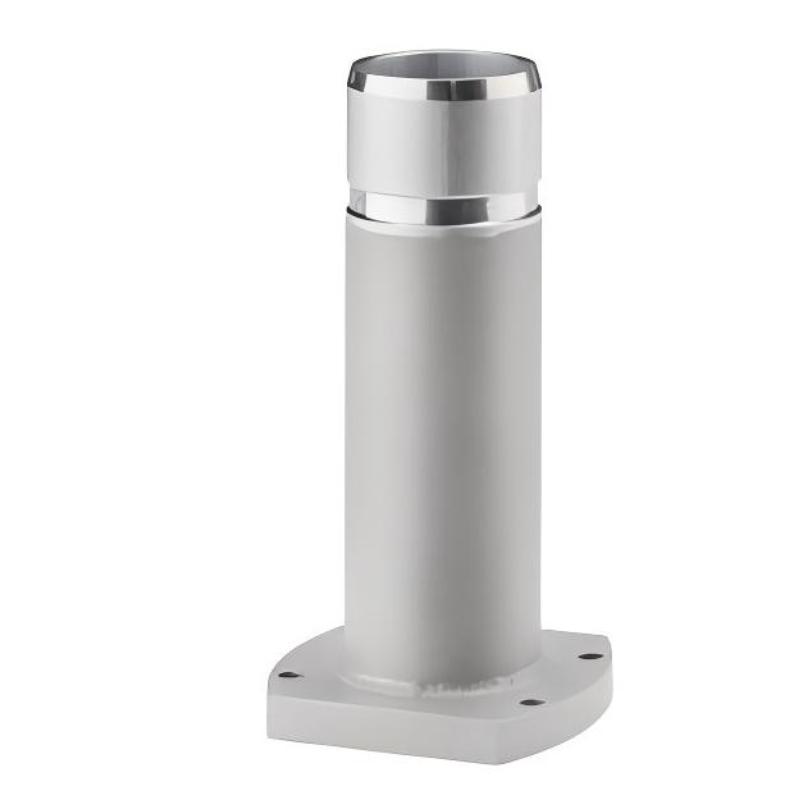

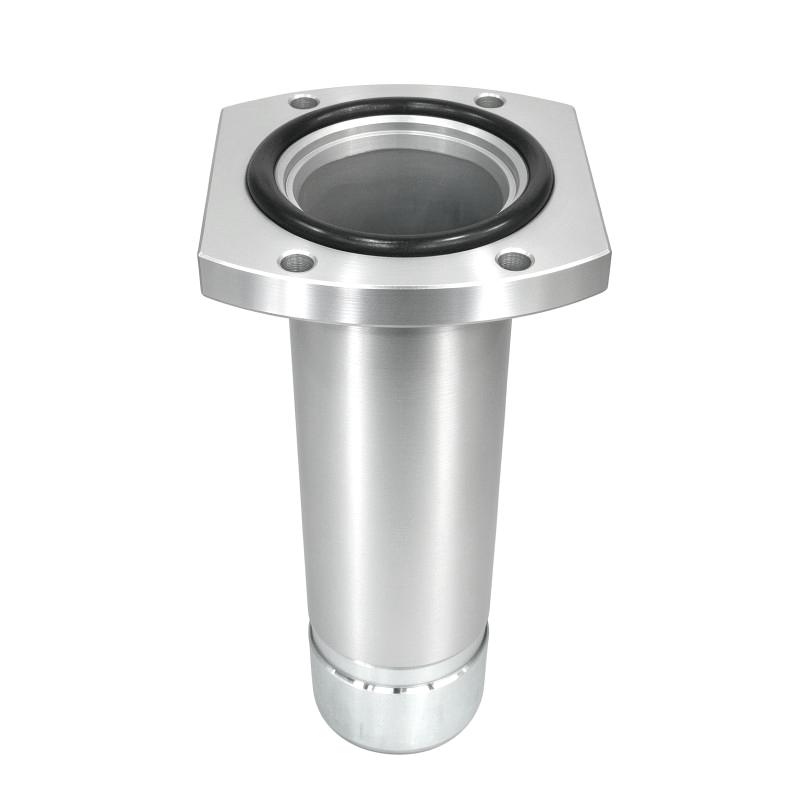

The Siemens 6AV7674-1KF00-0AA0 Round Pipe Adapter For PRO Devices is a mechanical mounting accessory for Siemens SIMATIC HMI PRO devices prepared for an extendable support arm with a round-tube connection. It provides the interface between the HMI mounting point and the support arm, allowing the operator panel to be installed in a suitable position near a machine, production cell, or industrial workstation.
In many industrial installations, the HMI needs to be positioned where operators can monitor production status and access machine controls without standing directly beside the electrical cabinet. A support-arm arrangement allows the panel to be mounted above the work area, beside a machine enclosure, or at the end of an articulated mounting structure. The adapter establishes the mechanical connection needed for this arrangement.
The 6AV7674-1KF00-0AA0 is specified for the transition from a size-48 round tube to a flange plate compatible with the basic adapter interface. Its steel construction with a powder-coated RAL 9006 finish suits the mechanical mounting requirements of industrial HMI installations. The adapter is intended for PRO devices prepared for the corresponding support-arm connection; it should not be assumed compatible with every SIMATIC HMI panel or every support-arm design.
The adapter’s upper interface uses a ring groove and set-screw fastening arrangement to secure the compatible PRO device. At the lower end, the mechanical interface connects to the support-arm structure. Correct engagement at both interfaces is essential because the mounting assembly must support the panel while maintaining its intended position during routine operator interaction.
This component is particularly relevant when a machine builder is assembling a fully enclosed HMI workstation and needs the panel mounted on a support arm rather than directly on a cabinet door. The adapter handles the mechanical transition; it does not provide electrical communication, display functionality, or control logic.
Before installation, confirm that the HMI is prepared for the specified round-tube support-arm arrangement and that the supporting structure uses the matching interface. The installed assembly must also preserve the protection requirements of the complete PRO device mounting system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AV7674-1KF00-0AA0 |
| Product Type | Round Pipe Adapter For PRO Devices |
| Product Type Designation | Flange Mount |
| Product Category | SIMATIC HMI Mounting Accessory |
| Primary Function | Mechanical mounting interface between a PRO device and a support arm |
| Mounting Arrangement | Round tube to flange plate |
| Round Tube Interface | Size 48 round tube |
| Enclosure Diameter at Interface | 48.3 mm |
| Flange Plate Interface | Compatible with the basic adapter interface |
| Flange Plate Hole Spacing | 40 mm |
| Flange Plate Depth Hole Spacing | 63 mm |
| Material | Steel |
| Surface Finish | Powder-coated, RAL 9006 |
| Protection Rating | IP65 all-round when installed |
| Compatible Equipment | PRO devices prepared for extendable round-tube support-arm mounting |
| Scope of Supply | 1 pipe adapter |
| Dimensions | 76.3 × 168 × 80 mm |
| Weight | 0.898 kg |
Product Features
- Round-tube mounting interface: Connects the specified support-arm structure to the mounting interface for compatible PRO devices.
- Flange plate connection: Provides the mechanical transition between the round-tube connection and the flange plate.
- Set-screw fastening: Uses the specified ring-groove arrangement to secure the compatible HMI device.
- Industrial metal construction: Steel construction supports the mechanical requirements of an HMI mounting assembly.
- Powder-coated finish: RAL 9006 coating provides the specified surface finish for the adapter.
- PRO device compatibility: Intended for HMI PRO devices prepared for the corresponding round-tube support-arm arrangement.
- Basic adapter interface: Uses the matching interface required by the mounting system.
- Enclosure protection support: Supports an IP65 all-round installation when correctly integrated into the specified system.
- Single-piece supply: Includes one pipe adapter for the mounting arrangement.
- Flexible operator positioning: Enables a compatible HMI panel to be positioned on a support arm rather than mounted directly to a cabinet surface.
Working Principle
The 6AV7674-1KF00-0AA0 works as a mechanical interface rather than an electronic component. Its function is to connect two mounting arrangements with different geometries: the round-tube support-arm structure and the flange interface used by the compatible PRO device mounting system.
Support Arm → Round-Tube Interface → Adapter Body → Flange Interface → PRO HMI Device
The lower interface engages with the matching support-arm connection. Once correctly fitted, the adapter provides the mounting point for the HMI device. At the upper end, the ring groove allows the compatible PRO device to be secured using set screws according to the applicable assembly procedure.
When the HMI is installed, the adapter transfers the mechanical load from the panel into the support arm. The complete assembly must be suitable for the panel’s load and the forces generated by operator interaction. The support arm, connecting hardware, and mounting surfaces therefore need to be checked as a complete mechanical system.
The adapter does not compensate for an incompatible support arm or an unsuitable mounting structure. Incorrect interface dimensions, loose fastening hardware, or improper engagement can cause movement at the joint. During installation, the mating surfaces and fastening points should be inspected before the HMI is placed into service.
The specified IP65 all-round protection applies when the adapter is correctly installed in the intended system. Maintaining that protection depends on the compatible HMI, the mounting interfaces, and the installation procedure. The adapter should not be treated as an independent electronic enclosure or as a substitute for the sealing requirements of the complete PRO assembly.
Role in a Siemens SIMATIC HMI PRO Mounting System

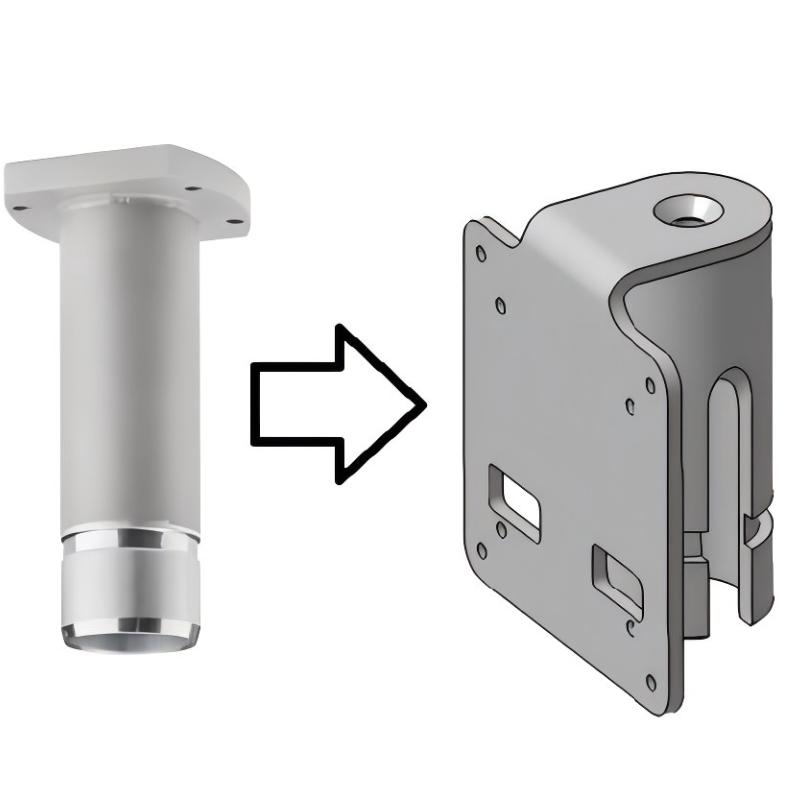

The round pipe adapter forms the mechanical connection between the HMI and its support-arm mounting structure. It allows a compatible PRO device to be positioned at the operator’s working location while keeping the display and control interface separate from the main machine cabinet.
Machine or Production Cell → Support Arm → 6AV7674-1KF00-0AA0 Adapter → SIMATIC HMI PRO Device
| System Component | Function |
|---|---|
| Siemens 6AV7674-1KF00-0AA0 | Connects the compatible PRO device mounting interface to the support arm |
| SIMATIC HMI PRO Device | Displays machine status and provides the operator interface |
| Round-Tube Support Arm | Supports the HMI and positions it near the operating area |
| Basic Adapter Interface | Provides the matching mechanical connection for the mounting arrangement |
| Set Screws | Secure the compatible HMI at the specified ring-groove interface |
| Support-Arm Extension Components | Extend or reposition the HMI mounting structure where applicable |
| Machine Control System | Executes control functions and supplies operating information to the HMI |
| Industrial Ethernet or Other Communication Connection | Carries data between the HMI and the connected automation system, depending on configuration |
The adapter handles the mechanical side of the installation. Electrical connections, communication cabling, HMI configuration, and machine-control functions remain separate parts of the overall system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Automotive Assembly Lines | Positioning an HMI beside workstations where operators monitor assembly operations |
| Packaging Machinery | Mounting the operator panel near machine access points and adjustment areas |
| Material Handling Systems | Supporting HMI placement near conveyor controls and transfer stations |
| Industrial Robotics Cells | Positioning the operator interface outside the immediate robot working area where appropriate |
| Food and Beverage Production | Integrating a compatible PRO HMI into a machine-side support-arm installation |
| Pharmaceutical Equipment | Mounting an operator panel at a designated equipment operating position |
| Machine Tool Workstations | Providing a mechanical interface for HMI mounting beside machining equipment |
| Production Inspection Stations | Positioning the HMI near inspection equipment for status display and operator input |
| Automated Assembly Equipment | Supporting operator access to machine settings and production information |
| Industrial Test Systems | Mounting the HMI at a convenient position on a compatible support-arm structure |
The mounting arrangement should be selected according to the HMI model, support-arm geometry, required operator access, and environmental conditions. Applications requiring a particular enclosure protection level must be assessed using the complete installed assembly.
Installation and Maintenance
- Verify device compatibility: Confirm that the HMI is a PRO device prepared for the specified extendable round-tube support-arm connection.
- Check the support-arm interface: Verify that the arm uses the matching size-48 round-tube connection and compatible flange interface.
- Inspect the adapter: Check the steel body, flange plate, ring groove, and mounting surfaces for deformation or damage before assembly.
- Prepare the mounting structure: Ensure the support arm and its attachment to the machine or workstation can carry the complete HMI assembly.
- Align the lower connection: Position the adapter at the support-arm interface and confirm that the mating surfaces engage correctly.
- Secure the support-arm joint: Use the specified fastening method and tightening requirements for the installed support-arm system.
- Position the HMI device: Align the compatible PRO device with the adapter’s upper mounting interface without forcing the connection.
- Engage the set-screw arrangement: Position the HMI correctly at the ring groove and secure it according to the applicable installation instructions.
- Check mechanical stability: Verify that the adapter, support arm, and HMI remain firmly connected and that there is no unwanted movement at the joint.
- Inspect cable routing: Ensure that communication and power cables are routed without excessive tension, sharp bends, or interference with support-arm movement.
- Verify enclosure protection: Check the installed interfaces and applicable sealing arrangements to confirm that the complete assembly meets its required protection level.
- Include the adapter in inspections: During routine maintenance, check for loose fasteners, visible damage, corrosion, and changes in mounting stability.
If movement develops at the HMI mounting point, inspect the adapter interfaces, set screws, support-arm joints, and mounting structure before returning the assembly to normal operation.
Related Components
| Component | Function |
|---|---|
| Siemens 6AV7674-1KF00-0AA0 | Round pipe adapter for PRO device support-arm mounting |
| Siemens 6AV7674-0KA00-0AA0 | Basic adapter for fully enclosed HMI mounting arrangements |
| Siemens 6AV7674-1LB40-0AA0 | Round tube plug for the corresponding PRO device mechanical interface |
| Siemens SIMATIC HMI Comfort Panels PRO | Operator panels intended for compatible PRO mounting systems |
| Siemens SIMATIC HMI Unified Comfort Panels PRO | HMI devices used with compatible PRO mounting accessories |
| Round-Tube Support Arm | Supports and positions the mounted HMI |
| Support-Arm Extension Components | Extend or modify the mounting arrangement where compatible |
| HMI Fastening Hardware | Secures the panel to the specified mounting interface |
Recommended Related Models
| Model / Product Reference | Product Type | Typical Application |
|---|---|---|
| Siemens 6AV7674-1KF00-0AA0 | Round Pipe Adapter For PRO Devices | Round-tube support-arm mounting for compatible PRO HMI devices |
| Siemens 6AV7674-0KA00-0AA0 | Basic Adapter for Fully Enclosed HMI | Basic mechanical interface in compatible PRO mounting arrangements |
| Siemens 6AV7674-1LB40-0AA0 | Round Tube Plug | Closes the corresponding mechanical interface when the support-arm connection is not required |
| Siemens 6AV7674-1LB15-0AA0 | Keyboard Tray for PRO Devices | Adds an operator keyboard mounting option in compatible PRO installations |
| Siemens 6AV7674-1LX00-0AA0 | Handles for HMI PRO Devices | Provides handles for compatible HMI PRO device configurations |
| Siemens 6AV6881-0AD56-0AA0 | Flange Mount Adapter VESA 100/75 | Alternative mounting arrangement for compatible PRO devices |
Key Advantages
- Provides the mechanical transition between the round-tube support arm and the PRO device mounting interface.
- Supports operator-panel installation at a suitable working position.
- Uses a steel construction with a specified powder-coated finish.
- Supports IP65 all-round protection when installed in the intended compatible system.
- Integrates with the corresponding SIMATIC HMI PRO mounting accessories.
- Helps keep the HMI mounting arrangement mechanically organized and serviceable.
Technical FAQs
Which HMI devices can be mounted with the 6AV7674-1KF00-0AA0 adapter?
It is intended for Siemens PRO devices prepared for an extendable support arm with a round-tube connection. Confirm the exact HMI model and mounting preparation before installation, because not every SIMATIC HMI panel uses the same mechanical interface.
What is the difference between this adapter and the basic adapter?
The 6AV7674-1KF00-0AA0 provides the round-tube-to-flange mounting transition for the specified support-arm arrangement. The basic adapter serves as a different mechanical interface within the PRO mounting system. Their functions are related, but they are not interchangeable without checking the mounting design.
Does the adapter itself provide IP65 protection?
The specified IP65 all-round protection applies when the adapter is installed correctly in the intended compatible system. The protection level depends on the complete assembly and its interfaces, so correct installation and the relevant sealing arrangements must be maintained.
Can the adapter be used with any industrial support arm that has a round tube?
No. The round-tube connection, flange interface, fastening arrangement, and load requirements must match. A support arm with a similar-looking tube may still have an incompatible mechanical interface. Check the support-arm specification and the HMI mounting requirements before assembly.
