Product Overview

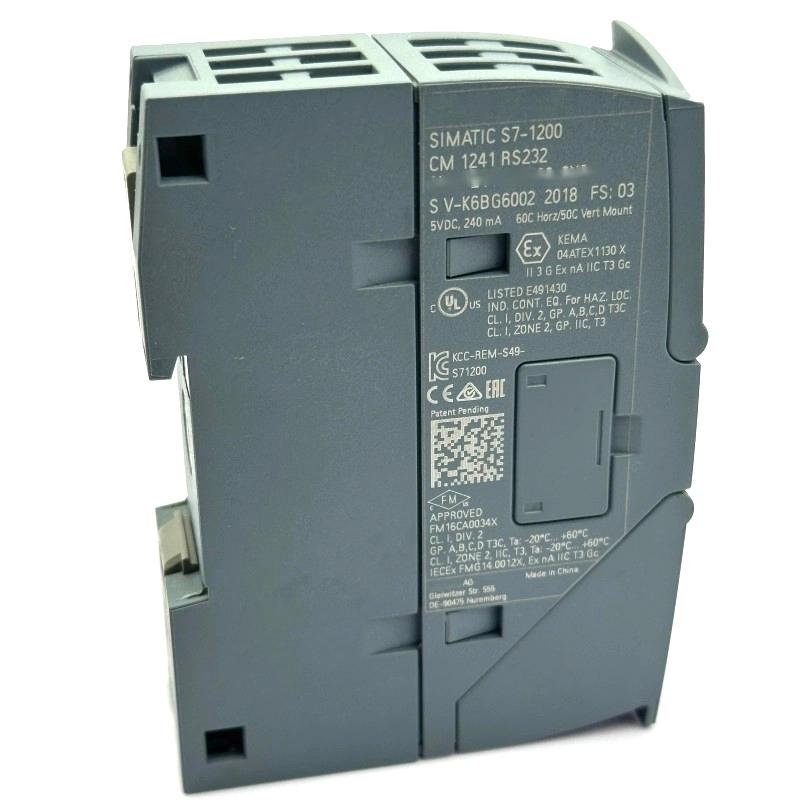

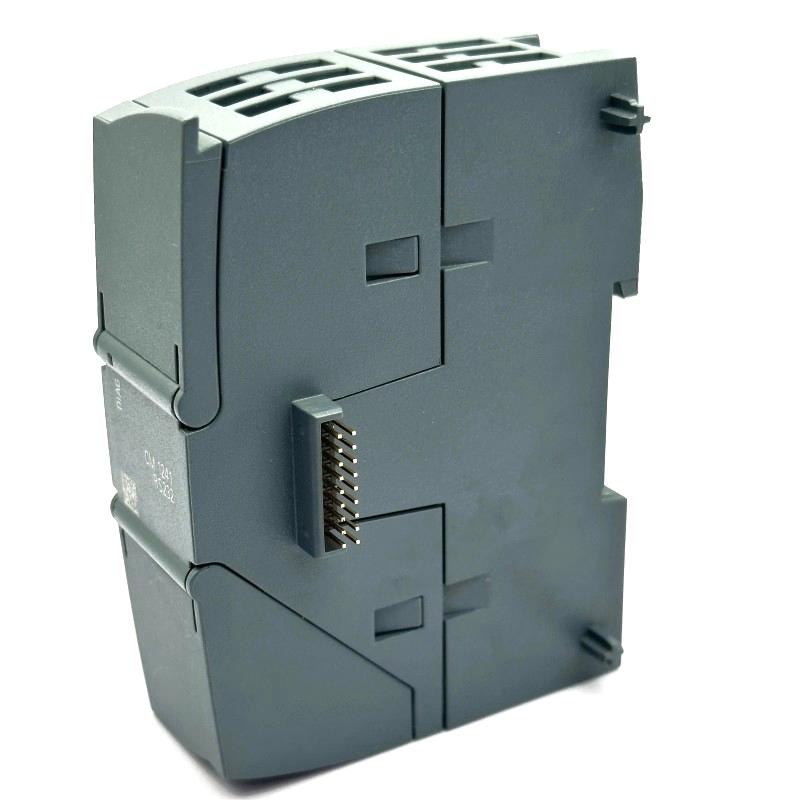

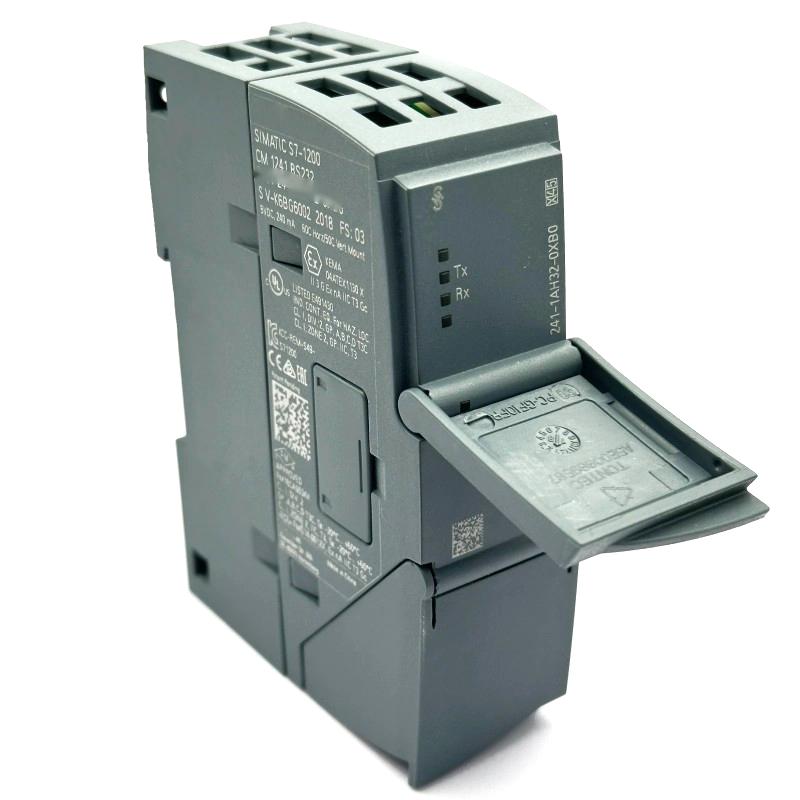

The Siemens 6AG2241-1AH32-1XB0 is a SIPLUS S7-1200 CM 1241 RS232 RAIL communication module. It adds an RS-232 serial interface to a SIMATIC S7-1200 PLC, allowing the controller to exchange data with compatible serial devices such as instruments, barcode readers, printers and other equipment that supports the required communication protocol.

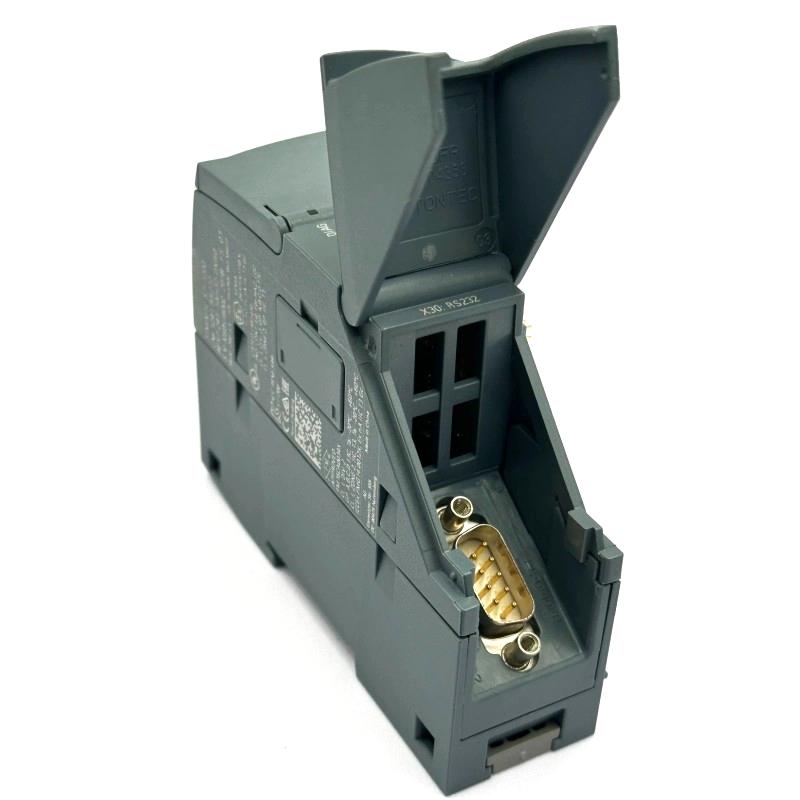

The module uses a 9-pin D-sub connector and supports Freeport communication. Its protocol capabilities include Modbus RTU master and slave operation, making it useful for applications that need to integrate serial field devices into a PLC-based control system. Communication parameters and message handling must be configured to match the connected equipment.
As a SIPLUS RAIL variant, the module incorporates conformal coating and supports specified railway-related environmental conditions. It is suitable for compatible S7-1200 installations where serial communication is needed alongside the controller’s other I/O and network interfaces.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG2241-1AH32-1XB0 |
| Product Family | SIPLUS extreme S7-1200 CM 1241 RAIL |
| Product Type | Communication Module |
| Module Designation | CM 1241 RS232 RAIL |
| Automation Platform | SIMATIC S7-1200 |
| Serial Interface | RS-232C (V.24) |
| Number of Interfaces | 1 |
| Connector Type | 9-pin D-sub |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage | 20.4–28.8 V DC |
| Maximum Current Consumption | 200 mA from the 5 V DC backplane bus |
| Typical Power Loss | 1.1 W |
| Maximum Point-to-Point Cable Length | 10 m |
| Supported Communication | Freeport, ASCII, Modbus RTU master, Modbus RTU slave |
| Environmental Protection | Conformal coating |
| Operating Temperature Range | -25 to +60 °C |
| Short-Term Temperature Capability | Up to +70 °C for 10 minutes under specified conditions |
| Mounting Format | RAIL version |
| Dimensions | 30 × 100 × 75 mm |
| Weight | 0.156 kg |
Product Features
- RS-232 serial communication: Adds a dedicated serial interface to a compatible S7-1200 PLC.
- 9-pin D-sub connection: Provides a standard connector format for supported RS-232 devices and cables.
- Freeport support: Allows user-defined serial message handling for compatible communication requirements.
- Modbus RTU capability: Supports master and slave communication for suitable serial Modbus devices.
- ASCII communication: Supports character-based data exchange for compatible applications.
- SIPLUS conformal coating: Protects electronic assemblies in the specified environmental conditions.
- RAIL environmental specification: Supports the module’s stated operating conditions for railway-related installations.
- PLC integration: Enables serial device data to be incorporated into S7-1200 application logic.
- Compact communication expansion: Adds serial connectivity without requiring a separate external serial gateway for every supported application.
Working Principle
The CM 1241 RS232 exchanges serial data between the S7-1200 CPU and an external device. The PLC application configures the communication parameters and uses the appropriate communication instructions or protocol functions to transmit and receive messages through the module.
In Freeport mode, the application controls the message format and handling. For Modbus RTU, the module can support master or slave communication according to the configured application. The connected device must use compatible serial settings, including baud rate, parity, data bits and stop bits.
The RS-232 interface is intended for point-to-point connections, with a maximum cable length of 10 m under the specified conditions. Correct cable wiring, grounding and communication configuration are important for reliable data exchange. The module does not automatically translate every proprietary serial protocol; application logic or suitable protocol functions may be required.
Role in a SIMATIC S7-1200 Communication Architecture
The 6AG2241-1AH32-1XB0 acts as a serial communication interface between the S7-1200 controller and compatible external equipment. It enables serial data to be exchanged with the PLC program while the controller continues to manage other control tasks.
| System Component | Function | Relationship to the Module |
|---|---|---|
| SIMATIC S7-1200 CPU | Executes control logic and application code | Processes data received through the serial module |
| 6AG2241-1AH32-1XB0 | Provides RS-232 communication | Exchanges serial messages with external devices |
| RS-232 Cable | Connects the module to a serial device | Carries transmit and receive signals |
| Barcode Reader | Sends scanned data to a controller | Can supply serial data if its interface and protocol are compatible |
| Serial Instrument | Reports measurements or device status | Exchanges data with the PLC through the configured protocol |
| Modbus RTU Device | Exchanges registers and status data | Communicates as a master or slave when configured accordingly |
| Printer or Serial Terminal | Receives data or returns status | Can be connected for supported serial applications |
| TIA Portal | Configures hardware and programs the PLC | Supports module setup and communication programming |
| HMI Panel | Displays operating data | Can present serial-device data processed by the PLC |
| 24 V DC Power Supply | Supplies module power | Provides the rated operating voltage |
Industrial Applications
| Application | Communication Requirement | Role of the Module |
|---|---|---|
| Serial Instrument Integration | Exchange measurements with an RS-232 instrument | Transfers serial data to and from the PLC |
| Barcode and Code Reading | Receive identification strings from compatible readers | Makes scanned data available to the control program |
| Modbus RTU Equipment | Read or write data from serial Modbus devices | Supports configured Modbus RTU master or slave operation |
| Test and Measurement Systems | Collect results from serial testing equipment | Provides a serial path into the S7-1200 application |
| Packaging Machinery | Exchange status or configuration data with peripheral equipment | Adds serial communication to the PLC system |
| Production-Line Tracking | Receive product identifiers from serial devices | Allows the PLC to process received messages |
| Railway-Related Automation | Connect compatible serial equipment in specified environmental conditions | Provides SIPLUS RAIL communication capability |
| Machine Retrofits | Integrate legacy serial devices into an S7-1200 control system | Adds RS-232 connectivity where protocol compatibility is available |
Installation and Maintenance
- Verify the order number: Confirm that 6AG2241-1AH32-1XB0 matches the required CM 1241 RS232 RAIL module.
- Check PLC compatibility: Confirm that the module is supported by the intended S7-1200 CPU and hardware configuration.
- Isolate the equipment: Follow the applicable electrical safety procedure before installation or wiring work.
- Identify the serial device: Confirm that the external equipment supports RS-232 and the communication protocol required by the application.
- Check the cable arrangement: Verify connector pin assignments and signal wiring at both ends of the connection.
- Observe the cable-length limit: Keep the point-to-point RS-232 cable within the specified maximum of 10 m.
- Secure the module: Install the RAIL version according to the applicable mounting instructions and ensure that it is properly retained.
- Verify the power supply: Confirm that the supply is within the specified 20.4–28.8 V DC range.
- Configure serial parameters: Match baud rate, parity, data bits, stop bits and other settings to the connected device.
- Configure the protocol: Set up Freeport, ASCII or Modbus RTU communication according to the application requirements.
- Test data exchange: Verify transmit and receive behavior, message format and response handling during commissioning.
- Record communication settings: Document the connected device, cable arrangement, serial parameters, protocol configuration and diagnostic findings.
Related Components
| Component | Function | Relationship to the Module |
|---|---|---|
| Siemens 6ES7241-1AH32-0XB0 | Standard SIMATIC S7-1200 CM 1241 RS232 module | Base module for the SIPLUS RAIL variant |
| SIMATIC S7-1200 CPU | Executes the PLC program | Processes the serial data |
| RS-232 Cable | Carries serial signals | Connects the module to external equipment |
| Serial Barcode Reader | Outputs scanned identification data | Can communicate through the RS-232 interface |
| Modbus RTU Instrument | Exchanges measurement and status registers | Uses the module when its interface and protocol match |
| Serial Printer | Receives print data or returns status | Can be connected for a supported application |
| 24 V DC Power Supply | Provides module operating power | Supplies the rated voltage |
| TIA Portal | Configures and programs the S7-1200 system | Used for hardware setup and communication logic |
| Siemens 6AG2241-1CH32-1XB0 | SIPLUS S7-1200 CM 1241 RS422/485 RAIL | Related serial module for RS-422/485 interfaces |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 6AG2241-1AH32-1XB0 | SIPLUS S7-1200 CM 1241 RS232 RAIL | Main product | RS-232 serial communication with SIPLUS RAIL environmental characteristics |
| Siemens 6ES7241-1AH32-0XB0 | SIMATIC S7-1200 CM 1241 RS232 | Standard base module | Consider the environmental and mounting requirements |
| Siemens 6AG2241-1CH32-1XB0 | SIPLUS S7-1200 CM 1241 RS422/485 RAIL | Related serial communication module | Select when the device requires RS-422 or RS-485 rather than RS-232 |
| Siemens 6ES7241-1CH32-0XB0 | SIMATIC S7-1200 CM 1241 RS422/485 | Standard RS-422/485 module | Suitable for compatible differential serial interfaces |
| Siemens 6AG2241-1CH30-1XB0 | SIPLUS S7-1200 CB 1241 RS485 RAIL | Related communication board | Consider when the application requires the RS-485 communication-board format |
| Siemens 6AG2242-5DX30-1XE0 | SIPLUS S7-1200 CM 1242-5 RAIL | Related fieldbus communication module | Intended for PROFIBUS DP slave communication rather than RS-232 |
Key Advantages
- Adds RS-232 serial communication to a compatible S7-1200 PLC.
- Supports Freeport, ASCII and Modbus RTU communication functions.
- Uses a 9-pin D-sub connector for compatible serial devices.
- Includes SIPLUS conformal coating and specified RAIL environmental characteristics.
- Allows serial-device data to be incorporated into PLC monitoring and control logic.
Technical FAQs
What types of serial devices can connect to the 6AG2241-1AH32-1XB0?
It can connect to compatible RS-232 devices such as serial instruments, barcode readers and other equipment that uses a supported communication method. Compatibility depends on the connector wiring, electrical interface and protocol used by the device.
Does the CM 1241 RS232 support Modbus RTU?
Yes. The module supports Modbus RTU master and slave operation. The PLC application must be configured for the intended role, and the connected device’s serial parameters and register map must match the implementation.
Can this module communicate with an RS-485 device directly?
No. This model provides an RS-232 interface. A device using RS-485 or RS-422 generally requires a compatible interface module or an appropriate external converter, with protocol and electrical compatibility considered separately.
What is the maximum supported RS-232 cable length?
The specified maximum point-to-point cable length is 10 m. Cable quality, electrical noise and the connected device can affect communication performance, so the installation should remain within the stated limit and use suitable wiring practices.
