Product Overview

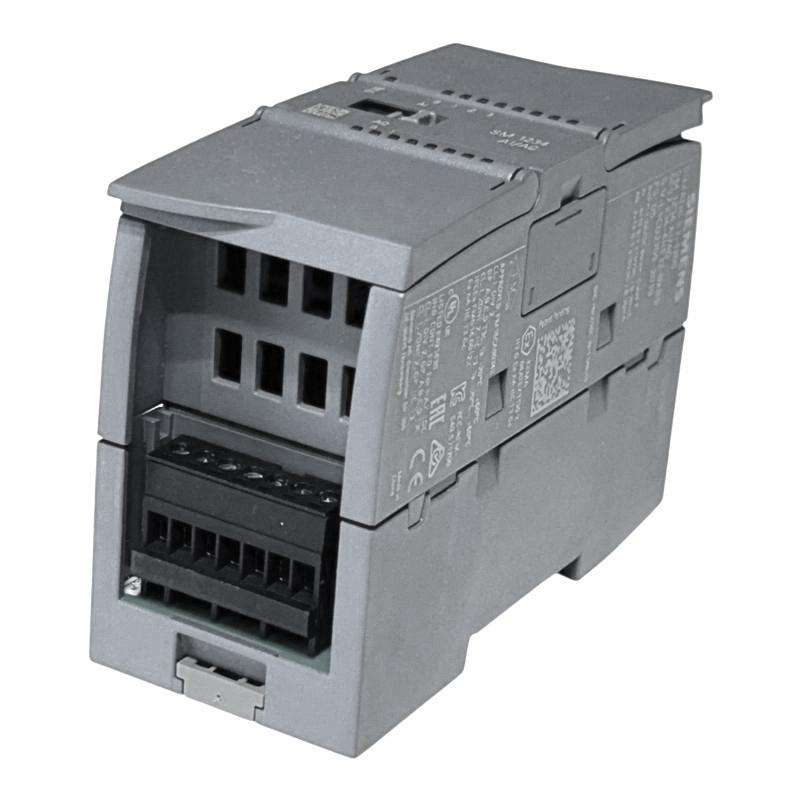

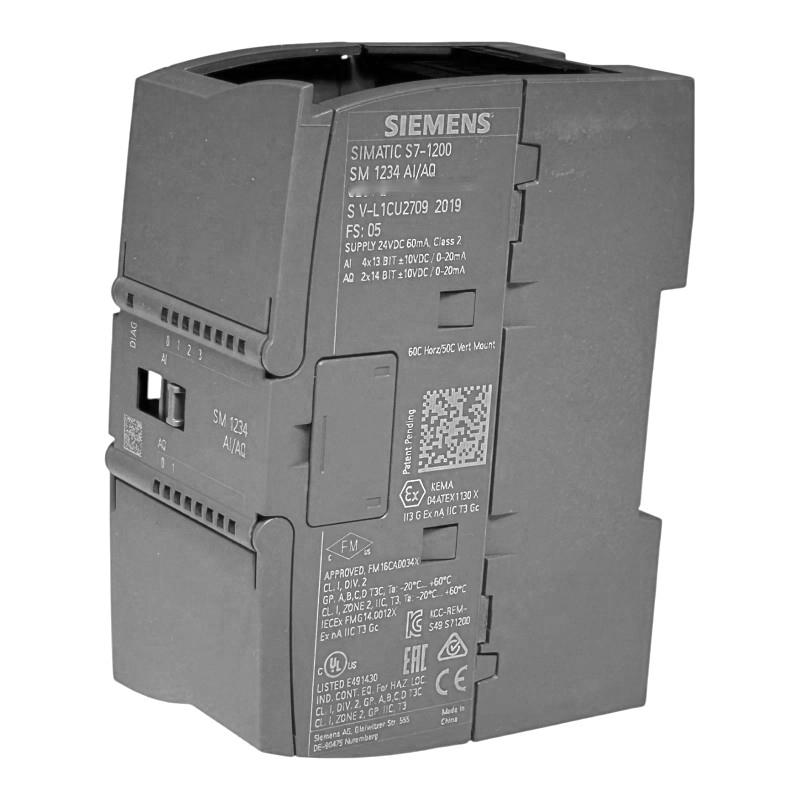

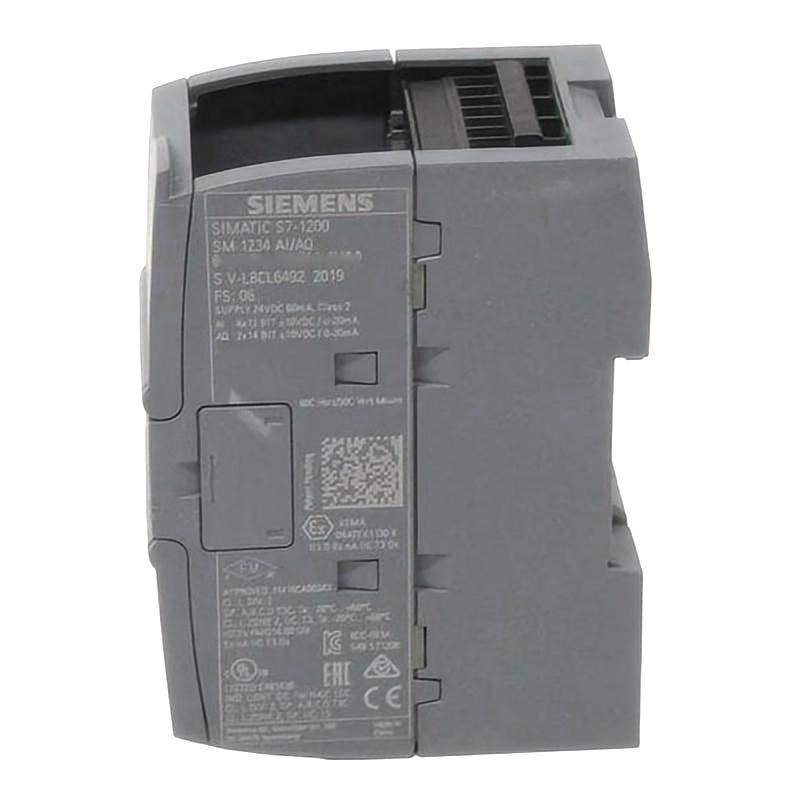

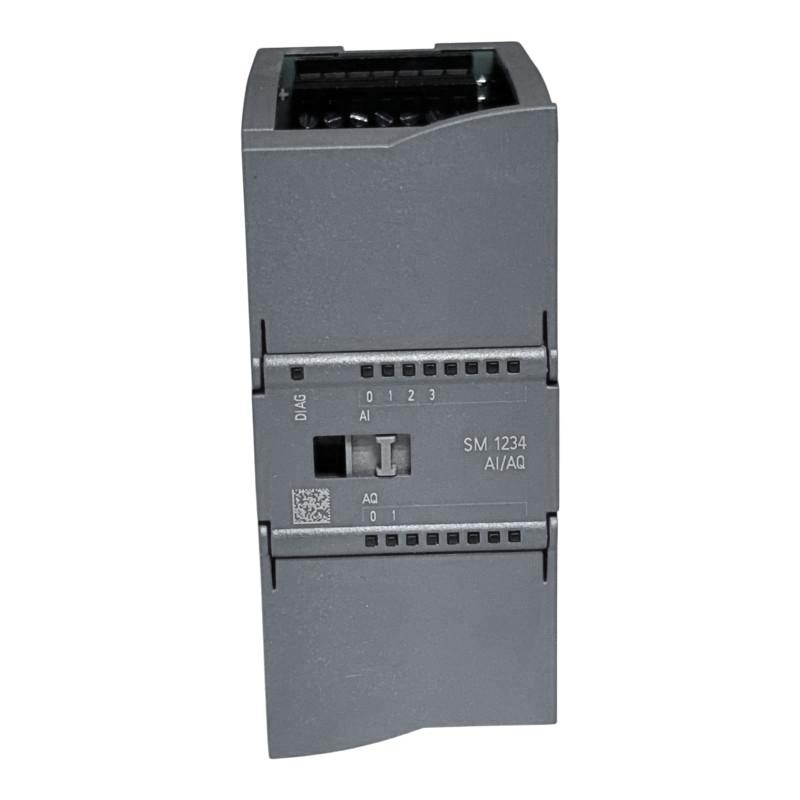

The Siemens 6AG2234-4HE32-1XB1 is a SIPLUS S7-1200 SM 1234 4AI/2AQ RAIL analog input/output module. It combines four analog input channels with two analog output channels, allowing a SIMATIC S7-1200 controller to acquire process signals and issue analog control commands through one module. Its RAIL version incorporates conformal coating and is intended for specified demanding environmental conditions.
On the input side, the module receives voltage or current signals from field instruments such as pressure transmitters, flow sensors and other compatible measuring devices. The PLC can process these values for monitoring, alarms and control calculations. On the output side, the module converts digital values from the control program into analog signals for compatible drives, modulating valves and other actuators.
This combined I/O arrangement is useful for compact control panels and equipment packages that need both measurement and command signals. The module’s signal ranges, channel configuration and environmental limits should be matched to the connected instruments and the operating conditions of the installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG2234-4HE32-1XB1 |
| Product Family | SIPLUS extreme S7-1200 SM 1234 RAIL |
| Product Type | Analog I/O Module |
| Module Designation | SM 1234 4AI/2AQ RAIL |
| Automation Platform | SIMATIC S7-1200 |
| Number of Analog Inputs | 4 |
| Number of Analog Outputs | 2 |
| Input Signal Types | Voltage or current, differential |
| Input Voltage Ranges | ±10 V, ±5 V, ±2.5 V |
| Input Current Ranges | 0–20 mA, 4–20 mA |
| Output Voltage Range | ±10 V |
| Output Current Ranges | 0–20 mA, 4–20 mA |
| Input Resolution | 12 bits plus sign bit |
| Output Resolution | 14-bit voltage; 13-bit current |
| Rated Supply Voltage | 24 V DC |
| Typical Current Consumption at 24 V DC | 60 mA |
| Typical Current Consumption from 5 V DC Backplane Bus | 80 mA |
| Typical Power Loss | 2 W |
| Environmental Protection | Conformal coating |
| Operating Temperature Range | -25 to +55 °C |
| Short-Term Temperature Capability | Up to +70 °C for 10 minutes under specified conditions |
| Module Mounting | RAIL version for direct mounting |
| Dimensions | 45 × 100 × 75 mm |
| Weight | 0.198 kg |
Product Features
- Combined analog I/O: Integrates four analog inputs and two analog outputs in a single module.
- Voltage and current measurement: Accepts supported voltage and current signals from compatible field instruments.
- Analog command generation: Provides voltage or current outputs for compatible control devices.
- Configurable signal ranges: Supports multiple input ranges and selectable output signal types.
- SIPLUS conformal coating: Adds protection for electronic assemblies under specified environmental conditions.
- RAIL construction: Provides a mounting format for installations requiring the corresponding SIPLUS RAIL design.
- S7-1200 integration: Connects analog field signals to the SIMATIC S7-1200 automation platform.
- Diagnostic functions: Supports detection of selected signal-range, output and supply-voltage conditions.
- Compact signal interface: Combines acquisition and output functions where separate input and output modules may otherwise be required.
Working Principle
The module handles analog signals in both directions. For input channels, field voltage or current signals are converted into digital values that the S7-1200 CPU can process. Input ranges are configured for the connected instruments, and the PLC program can scale the resulting values into engineering units such as bar, degrees, flow rate or percentage.
For output channels, the PLC sends digital values to the module, which converts them into the selected voltage or current signals. These outputs can serve as references for compatible drives, proportional actuators or modulating control devices. The specified output range and load requirements must be compatible with the receiving device.
Input and output configuration should be completed in the PLC engineering project before commissioning. Correct signal wiring, grounding, shielding and channel scaling help prevent inaccurate readings or unexpected commands. Diagnostic information can assist with identifying selected conditions such as signal-range errors, output faults or low supply voltage.
Role in a SIMATIC S7-1200 Analog Control Architecture
The 6AG2234-4HE32-1XB1 provides the interface between analog field instruments, PLC control logic and analog-commanded actuators. Its input channels supply process measurements to the controller, while its output channels transmit calculated control signals to connected equipment.
| System Component | Function | Relationship to the Module |
|---|---|---|
| SIMATIC S7-1200 CPU | Executes automation and control logic | Processes input values and generates output commands |
| 6AG2234-4HE32-1XB1 | Acquires and generates analog signals | Provides four inputs and two outputs |
| Pressure Transmitter | Converts pressure into an electrical signal | Supplies a compatible analog input |
| Flow Transmitter | Measures flow and sends a signal | Provides process data to an input channel |
| Temperature Transmitter | Converts temperature measurements into voltage or current | Supplies an analog measurement where supported |
| Variable-Speed Drive | Controls motor speed | Can receive a compatible analog output reference |
| Modulating Control Valve | Adjusts process flow | Can respond to a supported analog output |
| 24 V DC Power Supply | Supplies module operating power | Provides the rated supply voltage |
| TIA Portal | Configures hardware and application logic | Supports channel setup, scaling and diagnostics |
| HMI Panel | Displays process values and operating status | Presents PLC data to operators |
Industrial Applications
| Application | Control Requirement | Role of the Module |
|---|---|---|
| Pump Control Systems | Monitor pressure or flow and adjust pump output | Acquires instrument signals and provides analog drive references |
| HVAC Equipment | Monitor process variables and regulate compatible actuators | Handles measurement and command signals |
| Process Skids | Interface with transmitters and modulating devices | Combines four input channels with two output channels |
| Water Treatment Systems | Monitor pressure, flow and other analog process values | Transfers field measurements to the PLC and outputs control commands |
| Industrial Heating Systems | Monitor process conditions and adjust compatible control equipment | Supports analog acquisition and regulation |
| Packaging Machinery | Exchange analog measurements and actuator references | Provides analog signal handling within the S7-1200 system |
| Machine Automation | Connect sensors and analog-controlled devices | Reduces the need for separate input and output modules in suitable applications |
| Railway-Related Equipment | Acquire and issue analog signals in specified railway environments | Provides the SIPLUS RAIL module format and environmental protection |
Installation and Maintenance
- Verify the order number: Confirm that 6AG2234-4HE32-1XB1 matches the required SIPLUS S7-1200 SM 1234 4AI/2AQ RAIL module.
- Check system compatibility: Confirm that the module is supported by the intended S7-1200 hardware configuration and engineering project.
- Isolate the equipment: Follow site electrical safety procedures before installing, removing or rewiring the module.
- Identify each field signal: Determine whether each input or output uses voltage or current and verify the corresponding signal range.
- Check connected-device requirements: Confirm that transmitters and actuators are compatible with the module’s electrical ranges and load limits.
- Prepare the mounting location: Ensure that the mounting arrangement is suitable for the RAIL version and provides secure support.
- Route analog cables appropriately: Separate signal wiring from likely sources of electrical interference where practical and use suitable shielding practices.
- Verify terminal assignments: Check input, output and supply connections against the applicable wiring diagram before energizing the system.
- Configure input channels: Select the appropriate voltage or current range and configure the required input scaling in the PLC project.
- Configure output channels: Set the output signal type and scaling to match the receiving field devices.
- Test the I/O signals: Compare input readings with known references and verify output signals with suitable measuring equipment during commissioning.
- Record configuration details: Document channel assignments, signal ranges, wiring changes, diagnostic findings and maintenance activities.
Related Components
| Component | Function | Relationship to the Module |
|---|---|---|
| Siemens 6ES7234-4HE32-0XB0 | Standard SIMATIC S7-1200 SM 1234 analog I/O module | Base product for the SIPLUS version |
| SIMATIC S7-1200 CPU | Executes the PLC program | Processes input data and generates output values |
| 24 V DC Power Supply | Supplies operating power | Provides the module’s rated supply |
| Analog Pressure Transmitter | Converts pressure into a compatible electrical signal | Can provide data to an input channel |
| Analog Flow Transmitter | Converts flow into a voltage or current signal | Supplies process measurements |
| Variable-Speed Drive | Controls motor operation | Can receive a compatible analog output command |
| Modulating Control Valve | Regulates fluid or gas flow | Can use a supported analog command |
| Analog Signal Cable | Carries voltage or current signals | Connects the module with field devices |
| TIA Portal | Configures and programs the automation system | Used for hardware configuration and signal scaling |
| SIMATIC HMI Panel | Displays operating values and alarms | Presents data processed by the PLC |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 6AG2234-4HE32-1XB1 | SIPLUS S7-1200 SM 1234 4AI/2AQ RAIL | Main product | Four analog inputs and two analog outputs with SIPLUS RAIL characteristics |
| Siemens 6ES7234-4HE32-0XB0 | SIMATIC S7-1200 SM 1234 Analog I/O Module | Standard base module | Consider the required environmental protection and mounting format |
| Siemens 6AG1234-4HE32-4XB0 | SIPLUS S7-1200 SM 1234 4AI/2AQ | Related SIPLUS analog I/O module | Verify the specific mounting and environmental requirements |
| Siemens 6AG1234-4HE32-2XB0 | SIPLUS S7-1200 SM 1234 4AI/2AQ | Related SIPLUS analog I/O module | Compare its specified environmental limits with the application |
| Siemens 6AG2231-5PD32-1XB0 | SIPLUS S7-1200 SM 1231 RTD RAIL | Related analog input module | Suitable for supported RTD temperature measurements rather than general voltage/current I/O |
| Siemens 6AG2232-4HD32-1XB0 | SIPLUS S7-1200 SM 1232 4AQ RAIL | Related analog output module | Consider when the application requires analog outputs without analog input channels |
Key Advantages
- Combines four analog input channels and two analog output channels.
- Supports common industrial voltage and current signal ranges.
- Connects field measurements and analog control commands through one S7-1200 module.
- Incorporates SIPLUS conformal coating and specified environmental capabilities.
- Supports PLC-based process monitoring, control and diagnostic logic.
Technical FAQs
Can the 6AG2234-4HE32-1XB1 read 4–20 mA transmitter signals?
Yes. Its analog inputs support 4–20 mA as well as 0–20 mA current signals. The relevant channel configuration and PLC scaling must match the connected transmitter.
Can the module control an actuator while monitoring process feedback?
Yes. The four input channels can acquire process measurements, while the two output channels can send compatible analog commands. The PLC program determines how those measurements are used to calculate the output values.
What is the difference between this module and a dedicated analog output module?
This SM 1234 module combines four analog inputs with two analog outputs. A dedicated analog output module may offer more output channels but does not provide the same combined input/output arrangement. Selection depends on the required channel count and signal types.
What should be investigated if an analog output remains fixed at one value?
Check the PLC program and output data, the configured output range, the module’s supply and diagnostic indications, and the wiring to the receiving device. Also verify that the connected load is within the specified limits and that the program is updating the output as expected.
