Product Overview

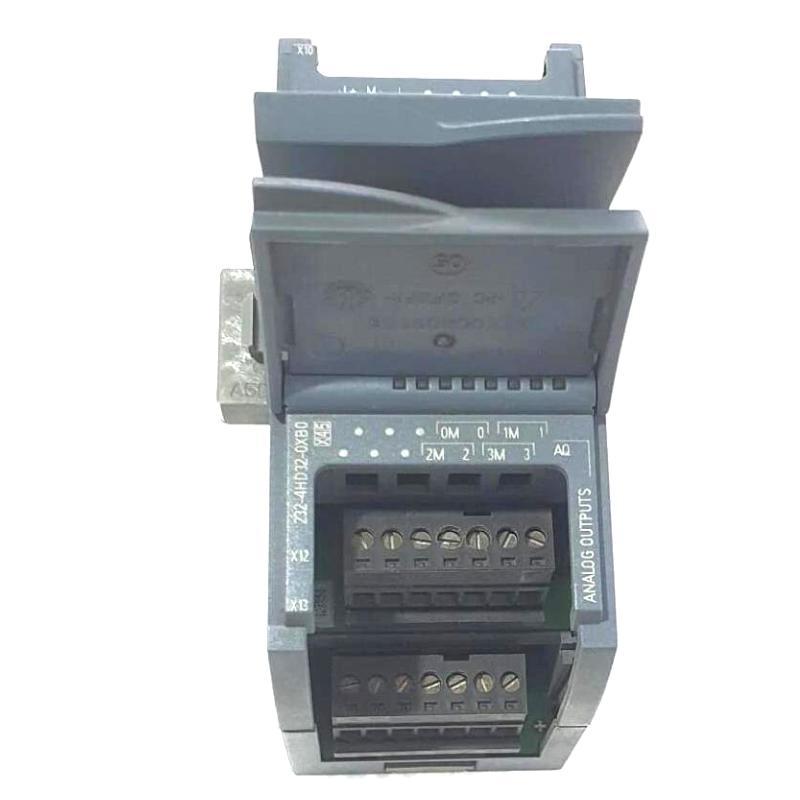

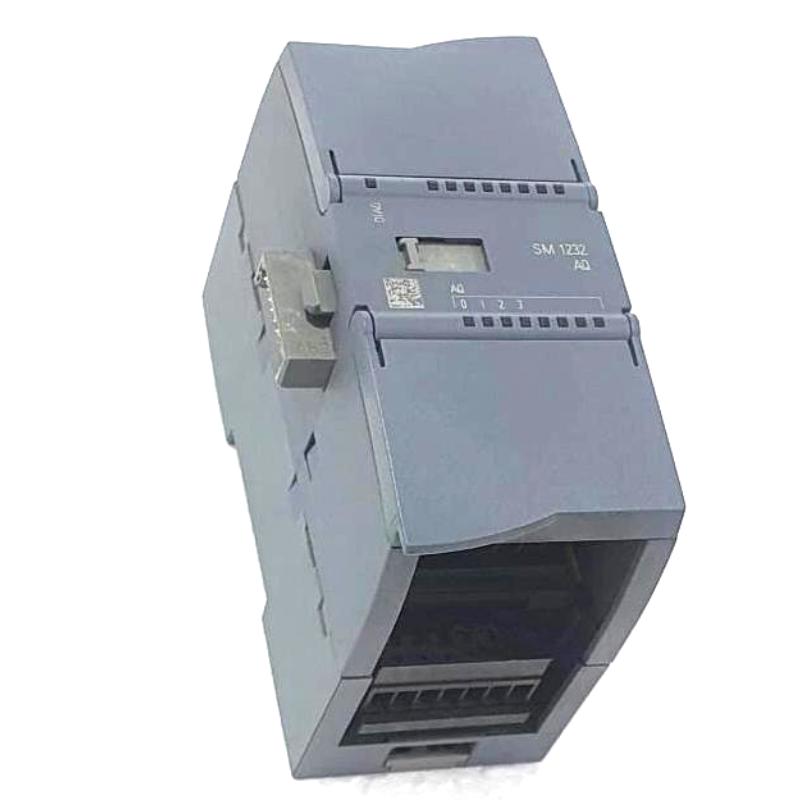

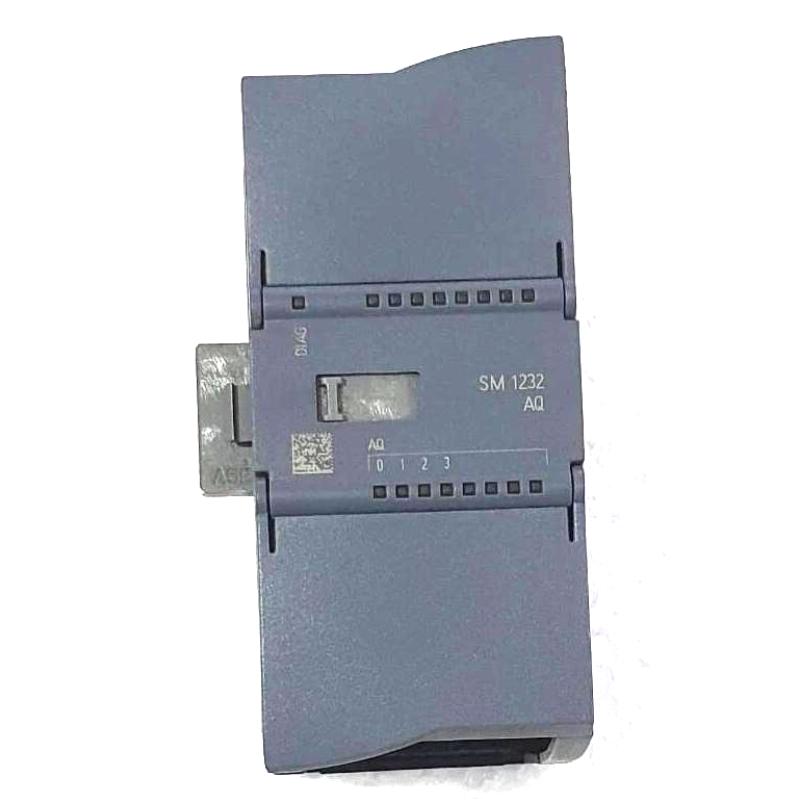

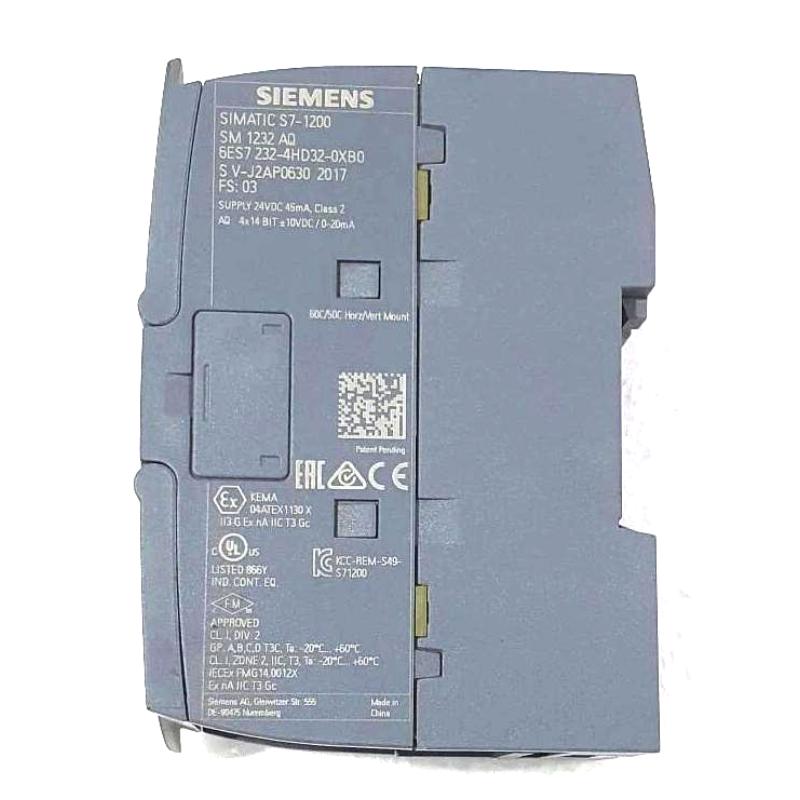

The Siemens 6AG2232-4HD32-1XB0 is a SIPLUS S7-1200 SM 1232 4AQ RAIL analog output module for converting PLC output values into voltage or current signals. It provides four analog output channels and is based on the SIMATIC S7-1200 SM 1232 analog output module, with conformal coating and an extended operating temperature range for demanding industrial and railway-related environments.
In an automation system, the module allows an S7-1200 CPU to command field devices that require continuous analog references rather than simple on/off signals. Typical examples include variable-speed drive references, control valve position commands and other actuators that accept supported voltage or current inputs. The PLC calculates the required output value, and the module converts it into the corresponding electrical signal.
The RAIL version supports direct mounting to a suitable surface and is intended for installations subject to railway environmental requirements. Correct application depends on the signal range required by the connected device, the load characteristics and the module’s environmental operating limits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG2232-4HD32-1XB0 |
| Product Family | SIPLUS extreme S7-1200 SM 1232 RAIL |
| Product Type | Analog Output Module |
| Module Designation | SM 1232 4AQ RAIL |
| Automation Platform | SIMATIC S7-1200 |
| Number of Analog Outputs | 4 |
| Output Signal Type | Voltage or current |
| Voltage Output Range | -10 to +10 V |
| Current Output Range | 0 to 20 mA |
| Voltage Output Resolution | 14 bit |
| Current Output Resolution | 13 bit |
| Rated Supply Voltage | 24 V DC |
| Minimum Load Impedance, Voltage Output | 1 kΩ |
| Maximum Load Impedance, Current Output | 600 Ω |
| Typical Current Consumption from 24 V DC | 45 mA |
| Typical Current Consumption from 5 V DC Backplane Bus | 80 mA |
| Typical Power Loss | 1.5 W |
| Environmental Protection | Conformal coating |
| Operating Temperature Range | -25 to +60 °C |
| Extended Temperature Capability | Up to +70 °C for 10 minutes under specified conditions |
| Railway Standards | EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 |
| Dimensions | 45 × 100 × 75 mm |
| Weight | 0.19 kg |
Product Features
- Four analog output channels: Generates four independent voltage or current signals for compatible control devices.
- Selectable signal type: Supports voltage and current output modes for different actuator interfaces.
- 14-bit voltage resolution: Provides fine output adjustment across the supported voltage range.
- 13-bit current resolution: Supports current-reference generation for compatible field devices.
- SIPLUS conformal coating: Adds protection for electronic assemblies in specified demanding environmental conditions.
- RAIL mounting design: Supports direct mounting in installations requiring a surface-mounted module format.
- Extended temperature operation: Supports the specified operating range for demanding industrial environments.
- S7-1200 integration: Works within a SIMATIC S7-1200 automation architecture for PLC-controlled analog outputs.
- Diagnostic support: Provides diagnostic functions to help identify selected output and supply-related faults.
Working Principle
The S7-1200 CPU calculates an output value according to the control program and writes the value to the module’s output data. The SM 1232 converts this digital value into a corresponding analog voltage or current signal. A connected actuator or drive controller then interprets the signal as a command, such as a speed reference or valve-position demand.
For voltage output, the module supports a range from -10 V to +10 V. For current output, it supports 0 to 20 mA. The connected device must be configured for the selected signal type, and the load must remain within the module’s specified electrical limits. Correct shielding, wiring and grounding practices help reduce interference in analog signal circuits.
The module also supports diagnostic functions for selected conditions, including output-related faults and supply-voltage monitoring. These diagnostics can help maintenance personnel distinguish a wiring or field-device problem from a module or supply issue. Actual control performance depends on the PLC program, output configuration and characteristics of the connected load.
Role in a SIMATIC S7-1200 Analog Control Architecture
The 6AG2232-4HD32-1XB0 converts PLC commands into analog signals used by compatible field devices. It forms the output interface between the controller’s digital processing and equipment that requires a continuously adjustable electrical reference.
| System Component | Function | Relationship to the Module |
|---|---|---|
| SIMATIC S7-1200 CPU | Executes automation and control logic | Supplies digital output values |
| 6AG2232-4HD32-1XB0 | Converts digital values into analog signals | Generates four voltage or current outputs |
| Analog Signal Wiring | Carries output signals to field devices | Transfers the commanded reference |
| Variable-Speed Drive | Controls motor speed according to its configured reference | Can receive a supported analog command |
| Modulating Control Valve | Adjusts fluid or gas flow | Can use an analog signal as a position command |
| Proportional Actuator | Adjusts a controlled mechanical variable | Responds to a compatible analog reference |
| 24 V DC Power Supply | Supplies the module’s rated power | Supports module operation |
| TIA Portal | Configures hardware and application logic | Supports output-channel setup and PLC programming |
| HMI Panel | Displays operating values and commands | Provides an operator interface through the PLC |
| Diagnostic Logic | Evaluates faults and operating conditions | Uses available diagnostics and application status |
Industrial Applications
| Application | Control Requirement | Role of the Module |
|---|---|---|
| Variable-Speed Drive Control | Send a continuously adjustable speed reference | Generates a compatible voltage or current command |
| Process Valve Control | Adjust valve position according to process demand | Supplies the configured analog output signal |
| Pumping Systems | Regulate pump operation through a compatible drive or controller | Provides an analog command from the PLC |
| Heating and Cooling Systems | Adjust equipment output in response to process conditions | Supplies analog references to compatible control equipment |
| Material Handling Equipment | Control actuator movement or speed where analog interfaces are used | Converts PLC output values into field signals |
| Industrial Process Skids | Control several devices requiring analog references | Provides four output channels |
| Railway-Related Automation | Interface with compatible actuators in specified railway environments | Offers SIPLUS RAIL construction and environmental protection |
| Machine Automation | Control proportional devices alongside digital I/O | Adds analog command capability to the S7-1200 system |
Installation and Maintenance
- Verify the order number: Confirm that 6AG2232-4HD32-1XB0 matches the required SIPLUS S7-1200 SM 1232 RAIL module.
- Check the system configuration: Confirm that the module is suitable for the intended S7-1200 hardware and engineering configuration.
- Isolate the equipment: Follow the site’s electrical safety procedures before installing, removing or rewiring the module.
- Confirm the output signal type: Check whether each connected device requires voltage or current control.
- Verify load requirements: Ensure that voltage-output and current-output loads remain within the module’s specified impedance limits.
- Prepare the mounting surface: Ensure that the mounting arrangement is suitable for the RAIL module and provides secure mechanical support.
- Route analog signal cables carefully: Keep signal wiring away from sources of electrical interference where practical and use suitable shielding practices.
- Check terminal assignments: Verify the output channel wiring and power connections against the applicable wiring diagram.
- Configure output channels: Set the required output range and scaling in the PLC engineering project.
- Test each channel: Confirm that the measured output signal corresponds to the programmed value before connecting the system to full operation.
- Review diagnostic indications: Check for output faults, supply-voltage issues or abnormal behavior during commissioning and maintenance.
- Record configuration details: Document channel assignments, output ranges, connected devices and any changes made during servicing.
Related Components
| Component | Function | Relationship to the Module |
|---|---|---|
| Siemens 6ES7232-4HD32-0XB0 | Standard SIMATIC S7-1200 SM 1232 4AQ analog output module | Base module for the SIPLUS RAIL version |
| SIMATIC S7-1200 CPU | Executes control logic | Supplies output data to the module |
| 24 V DC Power Supply | Provides operating power | Supplies the module’s rated voltage |
| Variable-Speed Drive | Controls motor speed | Can receive a compatible analog reference |
| Modulating Control Valve | Adjusts process flow | Can respond to a supported analog command |
| Analog Signal Cable | Carries voltage or current signals | Connects module outputs to field devices |
| TIA Portal | Configures and programs the PLC | Used for module setup and output scaling |
| SIMATIC HMI Panel | Displays process values and operator commands | Provides supervision through the PLC |
| Siemens 6ES7234-4HE32-0XB0 | SM 1234 analog input/output module | Related option when both analog inputs and outputs are needed |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 6AG2232-4HD32-1XB0 | SIPLUS S7-1200 SM 1232 4AQ RAIL | Main product | Four analog outputs with SIPLUS RAIL environmental protection |
| Siemens 6ES7232-4HD32-0XB0 | SIMATIC S7-1200 SM 1232 4AO | Standard base module | Consider the environmental and mounting requirements |
| Siemens 6AG1232-4HD32-4XB0 | SIPLUS S7-1200 SM 1232 4AQ 14Bit | Related SIPLUS analog output module | Check the mounting format and environmental requirements |
| Siemens 6ES7232-4HB32-0XB0 | SIMATIC S7-1200 SM 1232 2AO | Two-channel analog output alternative | Suitable when two output channels meet the application requirements |
| Siemens 6AG2234-4HE32-1XB1 | SIPLUS S7-1200 SM 1234 4AI/2AQ RAIL | Combined analog input/output module | Consider when both analog measurement and output control are required |
| Siemens 6ES7234-4HE32-0XB0 | SIMATIC S7-1200 SM 1234 4AI/2AO | Combined analog I/O module | Check channel count, signal ranges and installation requirements |
Key Advantages
- Provides four analog outputs for voltage- or current-controlled field devices.
- Supports a ±10 V voltage range and a 0–20 mA current range.
- Offers 14-bit voltage and 13-bit current output resolution.
- Adds SIPLUS conformal coating and a specified extended operating temperature range.
- Integrates with SIMATIC S7-1200 control systems for analog command generation.
Technical FAQs
Which signal ranges are available on the 6AG2232-4HD32-1XB0?
The module supports voltage outputs from -10 V to +10 V and current outputs from 0 to 20 mA. Each connected device must be compatible with the selected signal type and configured range.
How many field devices can this module control through analog signals?
It has four analog output channels, allowing it to send independent commands to up to four compatible devices, provided each device’s interface and the application wiring meet the module’s specifications.
What should be checked if the output signal does not match the PLC command?
Check the configured output range, program scaling, channel wiring, module supply and the connected load. Also review the available diagnostic indications and measure the signal at the appropriate test point to help isolate the cause.
What distinguishes the RAIL version from the standard SM 1232 analog output module?
The 6AG2232-4HD32-1XB0 is the SIPLUS SM 1232 4AQ RAIL version. It includes conformal coating, a specified extended operating temperature range and railway-related environmental qualifications. The standard SM 1232 module does not automatically provide the same RAIL environmental characteristics.
