Product Overview

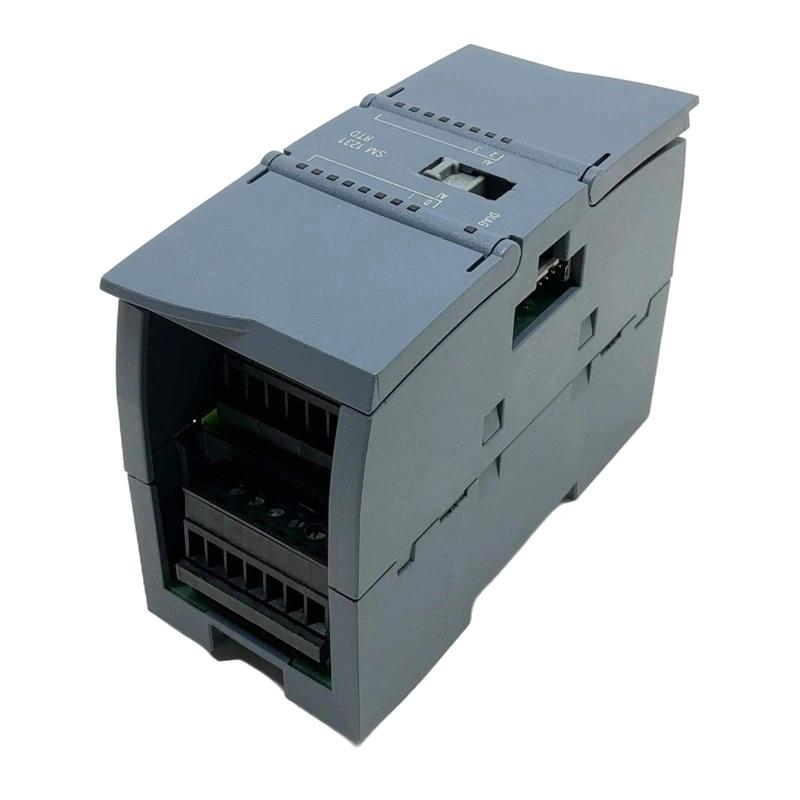

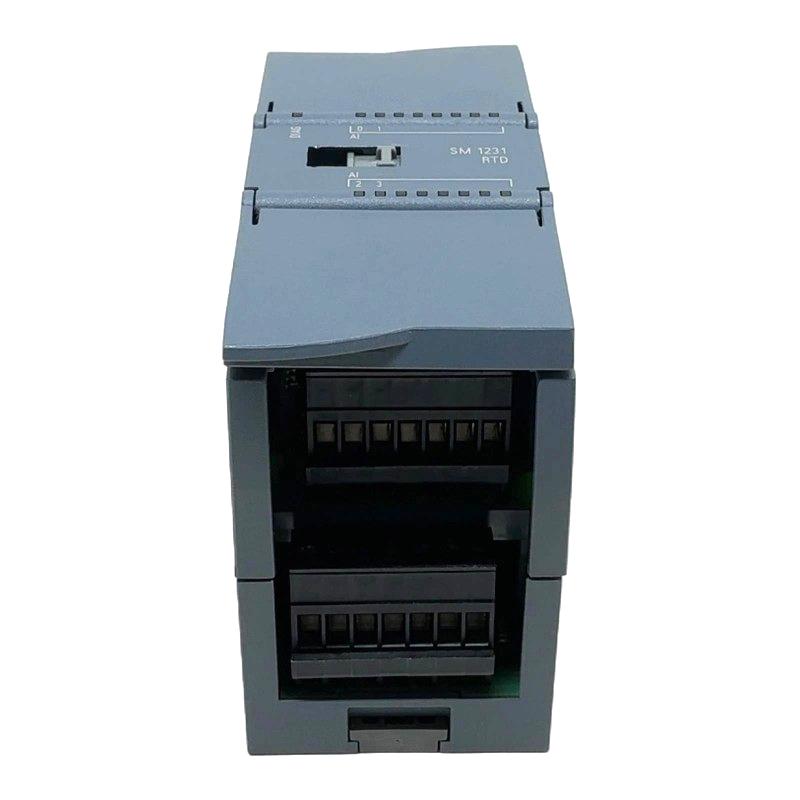

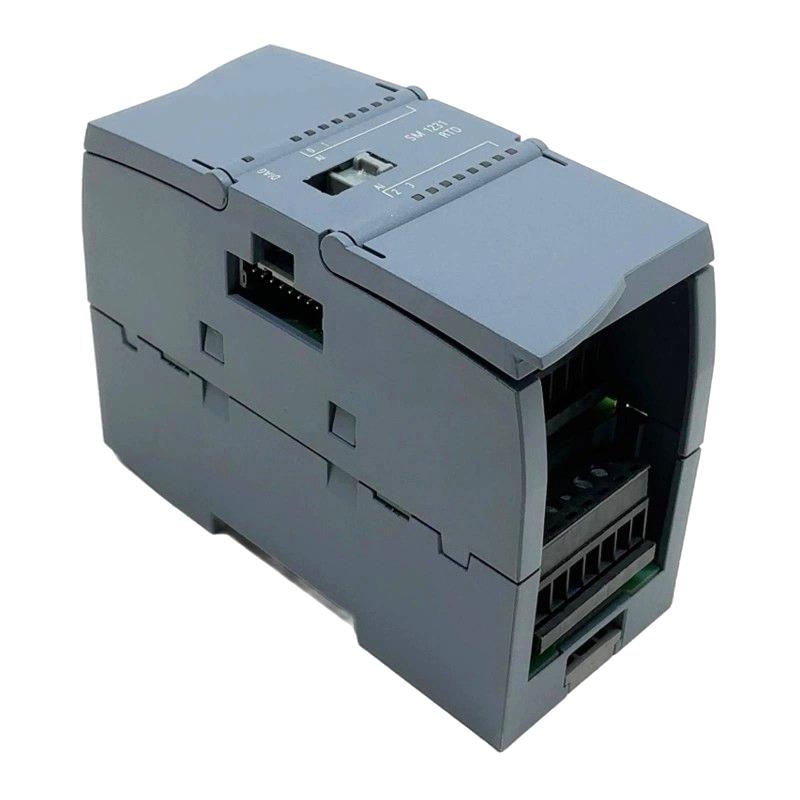

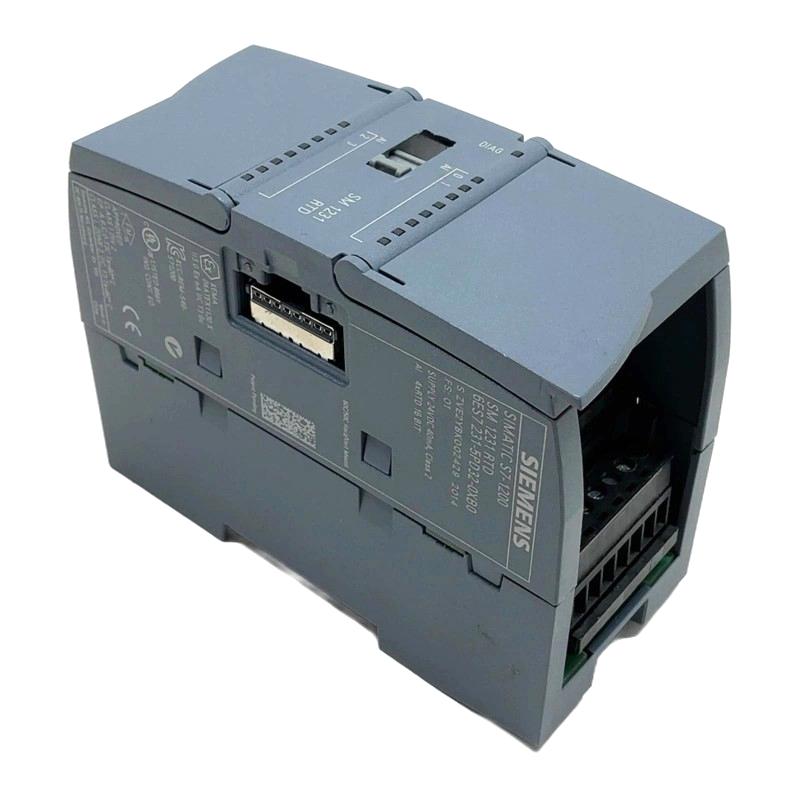

The Siemens 6AG2231-5PD32-1XB0 is a SIPLUS S7-1200 SM 1231 RTD RAIL analog input module for temperature acquisition using resistance temperature detectors (RTDs). It has four RTD input channels and is based on the SIMATIC S7-1200 SM 1231 RTD module, with conformal coating and an extended operating temperature range for demanding industrial environments.
In a PLC-controlled temperature monitoring system, the module receives resistance signals from connected temperature sensors and makes the measured values available to the controller for processing. These readings can support temperature monitoring, alarm thresholds, process sequencing and closed-loop temperature regulation when the application program and associated control equipment are configured accordingly.
The RAIL version is intended for installations where the module needs to be mounted directly to a surface, including applications exposed to mechanical vibration. Its environmental protection characteristics make it suitable for specified conditions beyond those of the standard module, while the connected RTD types and wiring arrangements must still follow the module’s technical requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG2231-5PD32-1XB0 |
| Product Family | SIPLUS extreme S7-1200 SM 1231 RTD RAIL |
| Product Type | Analog Input Module |
| Module Designation | SM 1231 RTD RAIL |
| Automation Platform | SIMATIC S7-1200 |
| Input Type | Resistance temperature detector (RTD) |
| Number of Analog Inputs | 4 |
| Supported Sensor Types | Pt100, Pt200, Pt500, Pt1000, Pt10000, Ni100, Ni120, Ni1000, Cu10 and specified resistance thermometers |
| RTD Wiring | 2-wire, 3-wire or 4-wire, depending on sensor configuration |
| Temperature Units | Celsius or Fahrenheit |
| Rated Supply Voltage | 24 V DC |
| Environmental Protection | Conformal coating |
| Operating Temperature Range | -25 to +60 °C |
| Extended Temperature Capability | Up to +70 °C for 10 minutes under specified conditions |
| Dimensions | 45 × 100 × 75 mm |
| Weight | 0.207 kg |
Product Features
- Four RTD input channels: Acquires temperature signals from up to four supported resistance temperature sensors.
- Direct resistance measurement: Connects supported RTDs without requiring a separate signal amplifier for the specified sensor types.
- Flexible sensor wiring: Supports 2-wire, 3-wire and 4-wire sensor connections according to the selected sensor and installation requirements.
- SIPLUS environmental protection: Conformal coating helps protect electronic assemblies in specified demanding environments.
- Extended temperature operation: Supports an operating range beyond that of many standard indoor PLC modules.
- RAIL mounting format: Supports direct mounting to a surface, useful in installations where vibration resistance is a consideration.
- SIMATIC S7-1200 integration: Fits into an S7-1200-based automation architecture for temperature acquisition and PLC processing.
- Configurable temperature representation: Measured temperature values can be represented in degrees Celsius or Fahrenheit.
Working Principle
An RTD changes electrical resistance in response to temperature. The 6AG2231-5PD32-1XB0 measures the resistance of each connected sensor and converts it into a digital value representing temperature. The PLC program can then use these values for monitoring, alarms, interlocks or temperature-control logic.
The module supports different RTD types, including platinum, nickel and copper sensors. The correct sensor type and wiring arrangement must be selected for each application. Three-wire and four-wire arrangements can help reduce the influence of lead resistance, depending on the measurement configuration and installation.
After the module is configured in the S7-1200 project, the controller can process the acquired values alongside other process signals. For example, a PLC can compare a measured temperature with a configured limit and trigger an alarm or adjust a control output. Accurate results depend on suitable sensor selection, correct wiring, stable installation conditions and appropriate channel configuration.
Role in a SIMATIC S7-1200 Temperature Monitoring Architecture
The module serves as the temperature measurement interface between field RTD sensors and the PLC. It converts sensor resistance into usable process data so the controller can monitor temperature conditions and execute application logic.
| System Component | Function | Relationship to the Module |
|---|---|---|
| RTD Temperature Sensor | Changes resistance according to temperature | Supplies the measurement signal |
| Sensor Wiring | Connects the RTD to the input terminals | Determines the wiring arrangement and influences measurement accuracy |
| 6AG2231-5PD32-1XB0 | Acquires four RTD signals | Converts resistance measurements into digital temperature values |
| SIMATIC S7-1200 CPU | Executes the PLC program | Processes the acquired temperature data |
| Signal Module Bus | Transfers module data within the PLC assembly | Connects the module to the controller system |
| TIA Portal Engineering Software | Configures hardware and application logic | Supports module setup and program development |
| HMI Panel | Displays process values and alarms | Can present temperature data supplied by the PLC |
| Alarm Logic | Evaluates configured temperature limits | Uses the acquired values to identify abnormal conditions |
| Control Output Module | Operates actuators or control devices | Executes control actions commanded by the PLC program |
Industrial Applications
| Application | Temperature Monitoring Requirement | Role of the Module |
|---|---|---|
| Industrial Heating Systems | Monitor process or equipment temperature | Acquires RTD measurements for PLC processing |
| Machine Tool Equipment | Monitor temperatures at selected machine locations | Supplies temperature values for alarms and control logic |
| Production Machinery | Track temperature changes during operation | Supports temperature-based interlocks and monitoring |
| Process Skids | Collect temperature signals from multiple points | Provides four RTD input channels |
| Environmental Test Equipment | Measure temperature across a test setup | Reads supported resistance temperature sensors |
| Industrial Ovens | Monitor temperature at designated measurement points | Supplies readings for temperature supervision |
| Equipment Condition Monitoring | Track thermal changes in mechanical assemblies | Provides RTD data for trend analysis and alarm logic |
| Vibration-Exposed Installations | Acquire temperature signals in demanding mounting environments | Offers a RAIL design intended for direct mounting in suitable installations |
Installation and Maintenance
- Verify the order number: Confirm that 6AG2231-5PD32-1XB0 matches the required SIPLUS S7-1200 RTD RAIL module.
- Check the control-system configuration: Confirm that the module is suitable for the intended S7-1200 hardware configuration and engineering project.
- Isolate the equipment: Follow the site’s electrical safety procedures before installing, removing or rewiring the module.
- Select compatible RTD sensors: Confirm that the sensor type is supported by the module and the intended temperature range.
- Choose the correct wiring method: Use the specified 2-wire, 3-wire or 4-wire arrangement for the selected sensor and measurement requirements.
- Inspect the mounting surface: Ensure that the mounting location is suitable for the RAIL module and that the module can be secured properly.
- Route sensor cables appropriately: Keep signal wiring away from sources of electrical interference where practical and use the required shielding and grounding practices.
- Check terminal connections: Verify that each RTD lead is connected to the correct terminal before applying power.
- Configure the input channels: Set the sensor type and relevant measurement parameters in the PLC engineering project.
- Verify the measured values: Compare channel readings with a suitable reference temperature or sensor check during commissioning.
- Inspect operating conditions: Check for loose wiring, abnormal readings, diagnostic indications or environmental conditions outside the specified limits.
- Document configuration changes: Record sensor assignments, wiring arrangements, channel settings and any maintenance or replacement work.
Related Components
| Component | Function | Relationship to the Module |
|---|---|---|
| Siemens 6ES7231-5PD32-0XB0 | Standard SIMATIC S7-1200 SM 1231 RTD analog input module | Base product for the SIPLUS version |
| SIMATIC S7-1200 CPU | Executes automation logic | Processes temperature values from the module |
| RTD Sensors | Measure temperature through resistance changes | Provide the field signals |
| Siemens Signal Module Bus | Transfers signals and data within the S7-1200 assembly | Supports communication between connected modules |
| TIA Portal | Configures and programs the S7-1200 system | Used for hardware setup and application development |
| SIMATIC HMI Panel | Displays process data and alarms | Presents temperature values made available by the PLC |
| Digital Output Module | Switches compatible field devices | Can execute control actions based on PLC logic |
| Analog Output Module | Provides analog control signals | Can be used in a wider temperature-control system where required |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 6AG2231-5PD32-1XB0 | SIPLUS S7-1200 SM 1231 RTD RAIL | Main product | Four RTD inputs with SIPLUS environmental protection |
| Siemens 6ES7231-5PD32-0XB0 | SIMATIC S7-1200 SM 1231 RTD Analog Input Module | Standard base module | Consider environmental conditions before selecting the standard version |
| Siemens 6AG1231-5PD32-4XB0 | SIPLUS S7-1200 SM 1231 4AI RTD 16Bit | Related SIPLUS RTD input module | Check mounting format and environmental requirements |
| Siemens 6ES7231-5PF32-0XB0 | SIMATIC S7-1200 SM 1231 RTD Analog Input Module | Eight-channel RTD alternative | Suitable only when the required configuration supports this module |
| Siemens 6ES7231-5QD32-0XB0 | SIMATIC S7-1200 SM 1231 TC Analog Input Module | Thermocouple input alternative | Intended for supported thermocouple sensors rather than RTDs |
| Siemens 6ES7234-4HE32-0XB0 | SIMATIC S7-1200 SM 1234 Analog Input/Output Module | Combined analog I/O option | Consider when both analog input and output channels are required |
Key Advantages
- Acquires four RTD temperature signals through a single S7-1200 module.
- Supports multiple RTD sensor types and wiring arrangements.
- Converts resistance measurements into temperature data for PLC processing.
- Uses SIPLUS conformal coating and an extended specified operating temperature range.
- Supports direct surface mounting in suitable RAIL installations.
Technical FAQs
Which temperature sensors can be connected to the 6AG2231-5PD32-1XB0?
The module supports specified RTD types, including Pt100, Pt200, Pt500, Pt1000, Pt10000, Ni100, Ni120, Ni1000 and Cu10. Confirm the exact sensor characteristic and wiring configuration when setting up each input channel.
What is the difference between the SIPLUS module and the standard 6ES7231-5PD32-0XB0?
The 6AG2231-5PD32-1XB0 is the SIPLUS S7-1200 SM 1231 RTD RAIL version, with conformal coating and an extended specified operating temperature range. The standard 6ES7231-5PD32-0XB0 is the base SM 1231 RTD module. Mounting format and environmental requirements should be considered when selecting between them.
Can the module measure temperature using both 3-wire and 4-wire RTD connections?
Yes. The supported RTDs can be connected using 2-wire, 3-wire or 4-wire arrangements, subject to the module’s wiring instructions and sensor configuration. The selected wiring method affects how lead resistance influences the measurement.
What should be checked if one channel reports an implausible temperature?
Check the RTD type configured for that channel, terminal assignments, cable continuity and the sensor itself. Also inspect for loose connections or electrical interference. Comparing the channel reading with a suitable reference can help determine whether the problem originates in the sensor, wiring or configuration.
