Product Overview

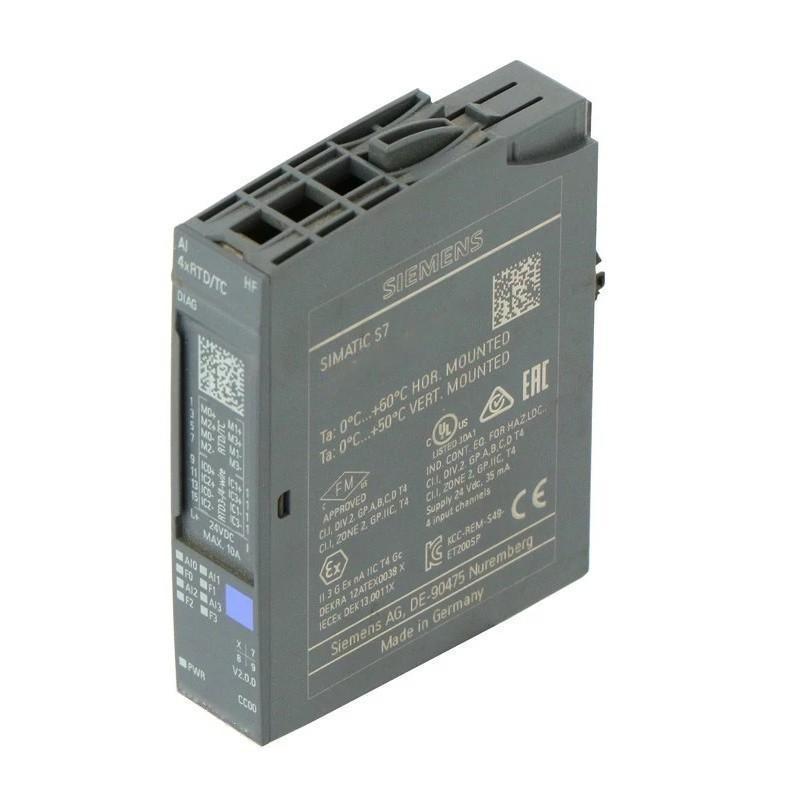

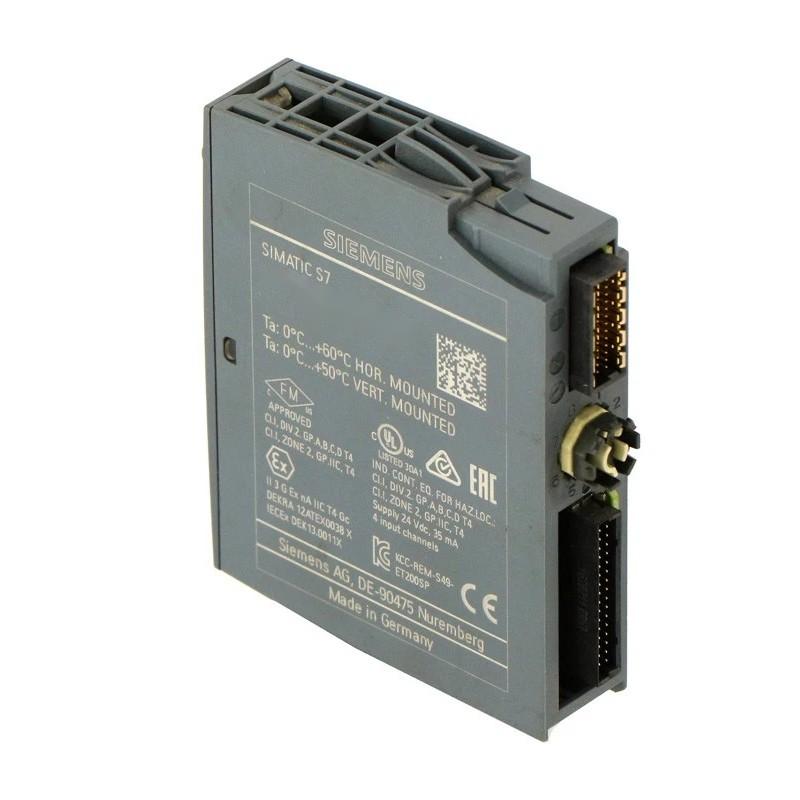

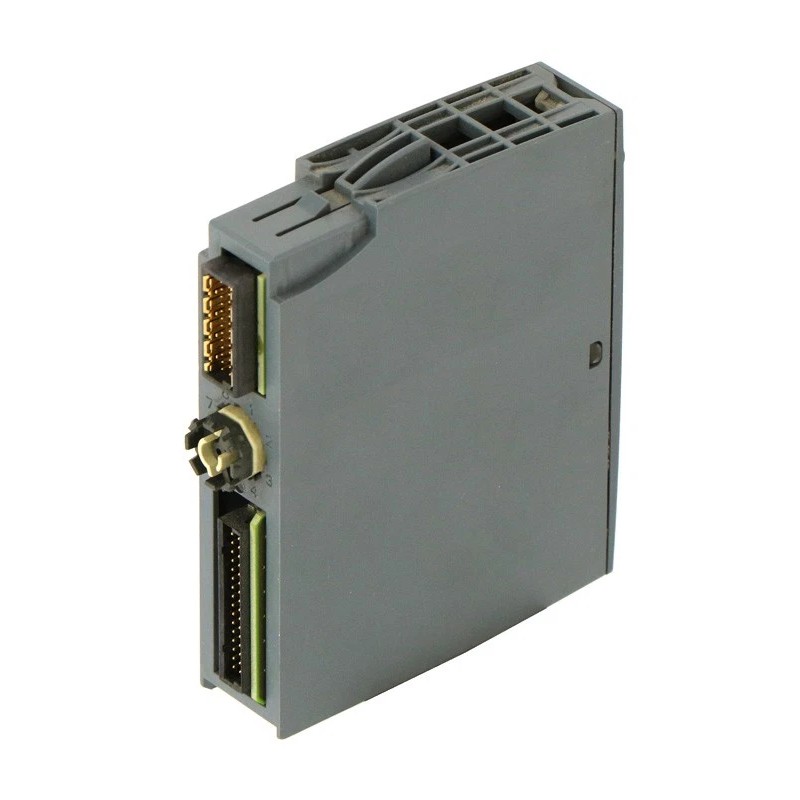

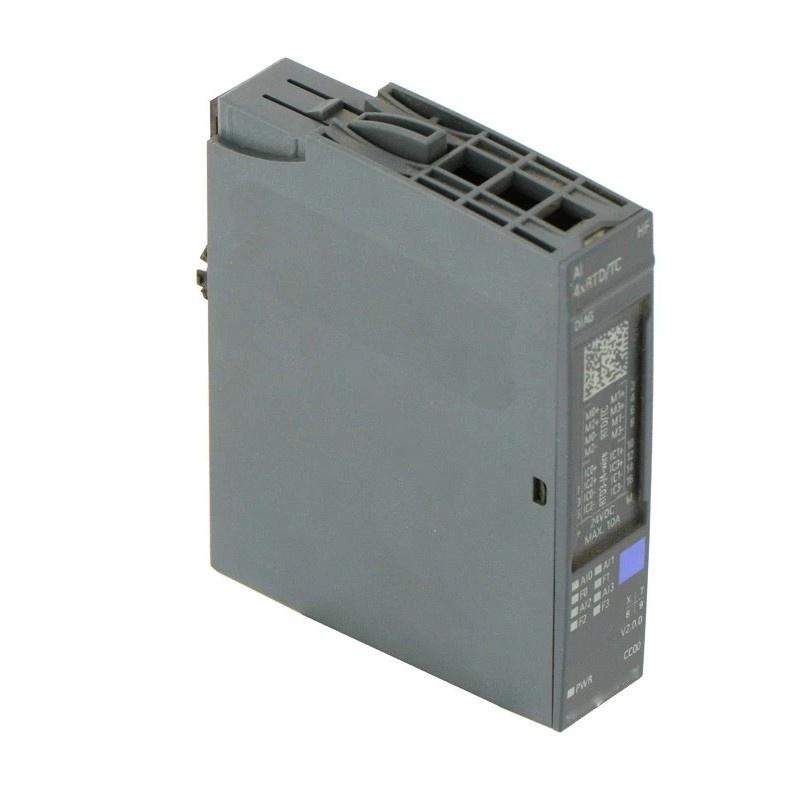

The Siemens 6AG2134-6JD00-1CA1 SIPLUS ET 200SP Analog Input Module belongs to the SIPLUS product range associated with the SIMATIC ET 200SP distributed I/O platform. It is used in automation architectures where process measurements must be acquired from field instruments and made available to a programmable logic controller (PLC).
In a pumping installation, for example, pressure and flow transmitters provide measurements that the controller uses to monitor operating conditions, detect abnormal values, and coordinate equipment responses. An analog input module provides the electrical interface between compatible instruments and the distributed control system, allowing these measurements to become part of the PLC application.
The ET 200SP platform supports modular I/O stations that can be positioned close to field equipment. This arrangement helps organize instrumentation wiring and separates signal acquisition from the controller’s central processing functions. As a SIPLUS product, the 6AG2134-6JD00-1CA1 is associated with Siemens’ product range for applications with specified environmental requirements.
For replacement and project planning, the exact model identification matters. Input characteristics, channel configuration, base-unit requirements, and environmental specifications must match the intended installation before the module is commissioned.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Product Model | 6AG2134-6JD00-1CA1 |
| Product Family | SIPLUS ET 200SP |
| Automation Platform | SIMATIC ET 200SP |
| Product Type | Analog Input Module |
| Module Function | Analog process signal acquisition |
| Signal Category | Analog input |
| System Architecture | Distributed I/O |
| Controller Integration | Through a compatible ET 200SP station interface |
| Field Device Interface | Compatible analog instruments, subject to signal specifications |
| Measurement Parameters | Model-specific input configuration |
| Signal Ranges | Model-specific |
| Installation Context | Industrial automation control cabinet |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.039 kg |
Product Features
- SIPLUS product identification: Identifies the module within Siemens’ SIPLUS range for applications with specified environmental requirements.
- ET 200SP integration: Supports modular distributed I/O arrangements using compatible SIMATIC ET 200SP station components.
- Analog signal acquisition: Receives supported electrical signals from field instruments for processing by the automation controller.
- Process monitoring: Makes acquired measurements available for configured monitoring, alarm handling, and control functions.
- Distributed installation: Supports locating signal acquisition near the equipment being monitored.
- Modular I/O architecture: Allows analog input functions to be incorporated alongside compatible digital and analog modules.
- Project configuration: Requires the installed hardware and channel settings to match the controller engineering project.
- Diagnostic support: Available station and controller diagnostics can help investigate signal, wiring, and configuration problems.
Working Principle
The Siemens 6AG2134-6JD00-1CA1 operates as an analog signal acquisition component within a compatible ET 200SP station. A field instrument measures a process variable and generates an electrical signal corresponding to that measurement. The module receives the supported signal through its input circuitry and makes the resulting measurement data available to the automation controller.
Field Instrument → Analog Input Channel → ET 200SP Station → Interface Module → PLC
For example, a level transmitter monitoring a storage tank may supply a signal representing the current liquid level. The module acquires the signal, and the PLC interprets the measurement according to the configured channel parameters and instrument scaling. The controller can then display the level, generate a high-level alarm, or coordinate a filling or draining sequence.
The precise input ranges, channel arrangement, resolution, and conversion characteristics depend on the module’s specific configuration. These details determine which instruments can be connected and how the controller should interpret the acquired values.
If a displayed measurement differs from the actual process condition, technicians should examine the instrument output, field wiring, channel configuration, and engineering scaling. Reviewing available diagnostics and comparing the reading with a suitable reference measurement can help distinguish a field-device problem from a configuration or module fault.
Role in a Distributed I/O Control Architecture
Within an ET 200SP control architecture, the analog input module provides the measurement interface between field instrumentation and the PLC. The module acquires supported signals, while the station interface transfers the resulting data to the controller for processing.
| System Component | Function | Relationship to the Analog Input Module |
|---|---|---|
| Field Transmitter | Measures pressure, flow, level, temperature, or another process variable | Supplies an electrical signal compatible with the input channel |
| Analog Input Module | Acquires supported analog signals | Makes measurement data available to the automation system |
| ET 200SP Base Unit | Provides mounting and electrical connections | Supports module installation and field wiring |
| ET 200SP Interface Module | Connects the I/O station to the automation network | Transfers station data between the I/O modules and controller |
| SIMATIC PLC | Executes the control program | Processes measurements and determines control responses |
| Industrial Communication Network | Carries data between the controller and distributed station | Supports communication with the station interface |
| HMI Panel | Displays process values, alarms, and operating status | Presents information processed by the controller |
| Engineering Software | Configures hardware and application logic | Defines module setup, input addressing, and signal scaling |
Industrial Applications
| Application Area | Typical Use | Relevance of the Analog Input Module |
|---|---|---|
| Process Automation | Acquiring measurements from compatible pressure, flow, and level transmitters | Supplies process data to PLC logic |
| Water and Wastewater Treatment | Monitoring tank levels, pipeline pressure, and flow rates | Supports measurement-based control and alarm handling |
| Pumping Systems | Monitoring suction pressure, discharge pressure, and flow conditions | Supplies measurements for operating decisions |
| HVAC Systems | Reading compatible temperature and pressure signals | Supports equipment monitoring and regulation |
| Manufacturing Machinery | Acquiring analog measurements at individual machine stations | Integrates process feedback into machine control |
| Chemical Processing | Monitoring variables measured by compatible process instruments | Supports operating-limit checks and process supervision |
| Energy and Utility Systems | Collecting selected operating measurements | Integrates field data into distributed automation |
| Packaging Equipment | Reading analog values from compatible instruments | Supports applications requiring continuous-value feedback |
Installation and Maintenance
- Verify the module identification: Confirm the complete model number 6AG2134-6JD00-1CA1 against the installed hardware and equipment records.
- Confirm station compatibility: Check that the intended ET 200SP interface module, base unit, and station arrangement support the selected module.
- Review the electrical specifications: Establish the supported input types, signal ranges, terminal assignments, and wiring requirements before connecting field instruments.
- Isolate the equipment: Follow the site’s electrical safety and isolation procedures before installing, removing, or wiring the module.
- Inspect the mounting position: Check the mounting rail, base unit, available space, and surrounding conditions against the installation requirements.
- Install the module correctly: Fit the module into its designated position and ensure that it is seated securely in the station.
- Verify instrument compatibility: Confirm that each transmitter’s output signal matches the supported characteristics of the intended input channel.
- Check terminal wiring: Connect field signals according to the applicable wiring arrangement, including specified polarity, shielding, and grounding requirements.
- Configure the hardware: Ensure that the controller engineering project identifies the installed module and the correct ET 200SP station arrangement.
- Set input parameters: Configure the applicable channel settings, measurement range, and engineering scaling according to the connected instrument and application requirements.
- Perform commissioning checks: Compare acquired values with suitable reference measurements and investigate abnormal readings before returning the equipment to normal service.
- Document maintenance work: Record the module identification, channel assignments, wiring changes, configuration updates, diagnostic findings, and test results.
Compatible System Components
| Component | Function | Relationship to the Module |
|---|---|---|
| SIMATIC ET 200SP Interface Module | Connects the I/O station to the controller network | Transfers acquired input data to the PLC |
| ET 200SP Base Unit | Provides mounting and electrical connections | Supports module installation and field wiring |
| ET 200SP Digital Input Module | Acquires discrete field signals | Complements analog measurements with ON/OFF status inputs |
| ET 200SP Digital Output Module | Switches discrete control circuits | Supports control of compatible actuators and auxiliary devices |
| Compatible Analog Transmitters | Measure process variables | Supply supported electrical input signals |
| SIMATIC S7 Controller | Executes automation logic | Processes measurements and determines control actions |
| HMI Panel | Displays operating values and alarms | Presents process information supplied by the controller |
| Engineering Software | Configures hardware and control logic | Supports module setup, addressing, and diagnostics |
Recommended Related Models
| Product or Component Category | Product Type | Relationship |
|---|---|---|
| Siemens 6AG2134-6JD00-1CA1 | SIPLUS ET 200SP Analog Input Module | Specified module for identification and replacement |
| Siemens SIPLUS ET 200SP Analog Input Modules | Analog Input Modules | Related category for distributed process signal acquisition |
| Siemens SIPLUS ET 200SP Analog Output Modules | Analog Output Modules | Complementary category for compatible analog command signals |
| Siemens SIPLUS ET 200SP Digital Input Modules | Digital Input Modules | Related modules for discrete sensor and switch signals |
| Siemens SIPLUS ET 200SP Digital Output Modules | Digital Output Modules | Related modules for discrete actuator and control circuits |
| Siemens SIMATIC ET 200SP Interface Modules | Distributed I/O Interface Modules | Connect compatible I/O stations to the automation network |
| Siemens SIMATIC S7 Controllers | Programmable Logic Controllers | Process measurement data and execute control logic |
Key Advantages
- Analog measurement integration: Connects compatible field instruments to a distributed automation system.
- ET 200SP integration: Supports modular organization of field signal acquisition.
- PLC-based processing: Makes acquired measurements available for monitoring, alarms, and control logic.
- Distributed signal acquisition: Helps organize instrumentation wiring near the equipment being monitored.
- Structured fault diagnosis: Supports systematic checks of field signals, channel settings, and station communication.
- SIPLUS product identification: Distinguishes the module within Siemens’ product range for specified environmental applications.
Technical FAQs
What input signal types and measurement ranges does this model support?
The exact electrical signal types and measurement ranges must be established from the specifications for 6AG2134-6JD00-1CA1. These determine which transmitters can be connected and how the input channels must be configured. Do not assume that another ET 200SP analog input module has identical signal capabilities.
What role does the SIPLUS designation play when selecting this module?
The SIPLUS designation identifies a Siemens product configuration associated with specified environmental requirements. Selection should account for the environmental conditions at the installation site as well as the module’s electrical and system compatibility.
How should engineers verify compatibility with an existing ET 200SP station?
Check the complete module order number, the required base unit, the station interface, and the controller’s hardware configuration. Confirm that the engineering project recognizes the installed hardware and that the intended channel assignments match the actual wiring.
How can a technician distinguish a faulty input module from a transmitter or wiring problem?
Compare the field instrument’s output with the signal reaching the module, then inspect the terminal connections and configured channel parameters. Review station diagnostics and, where appropriate, test the input using a suitable reference signal under approved procedures. This helps narrow the fault to the instrument, wiring, configuration, or module.
