Product Overview

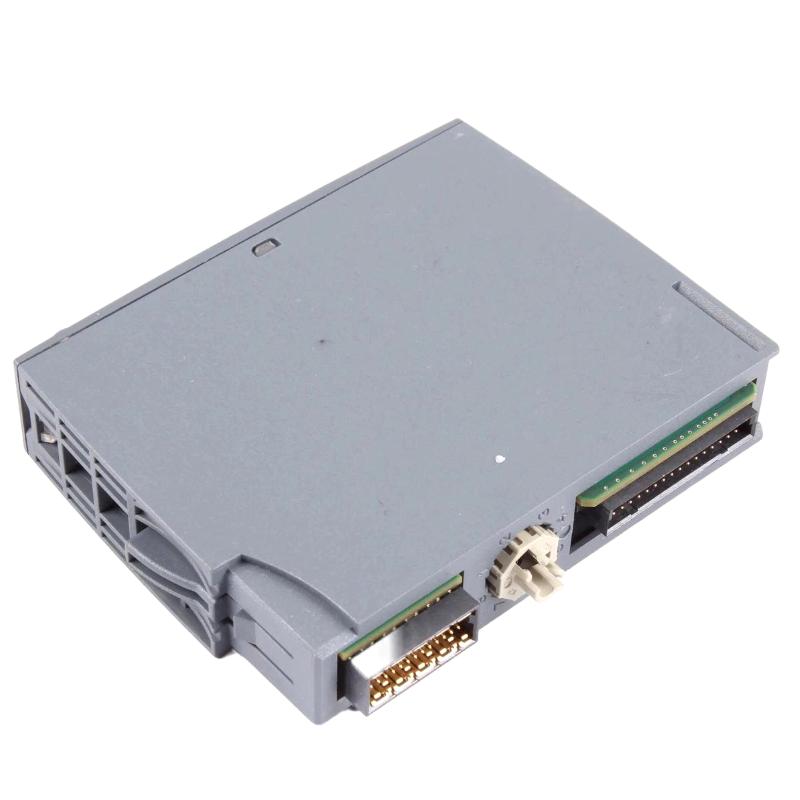

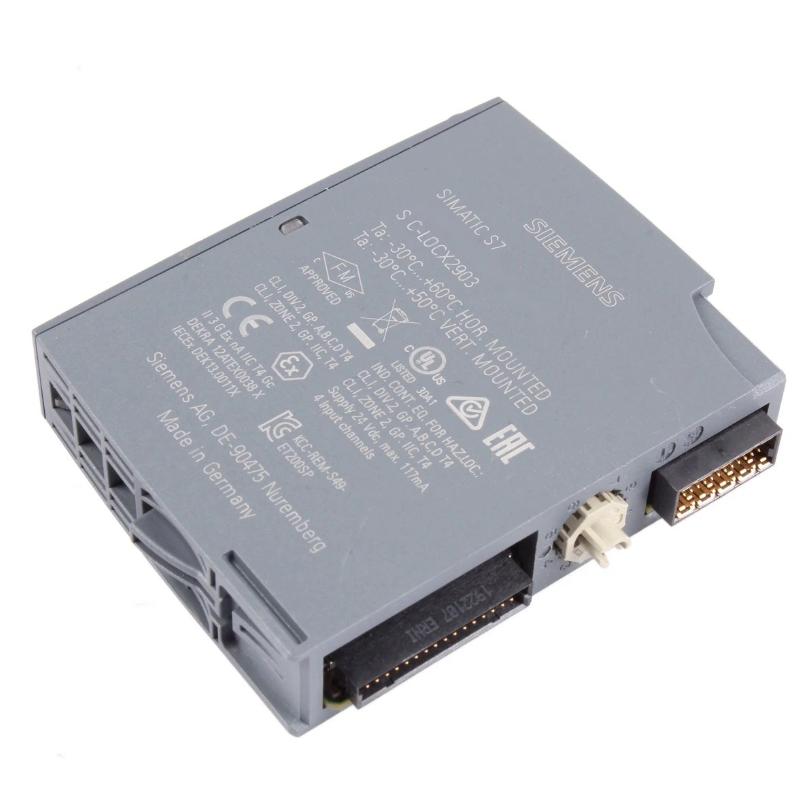

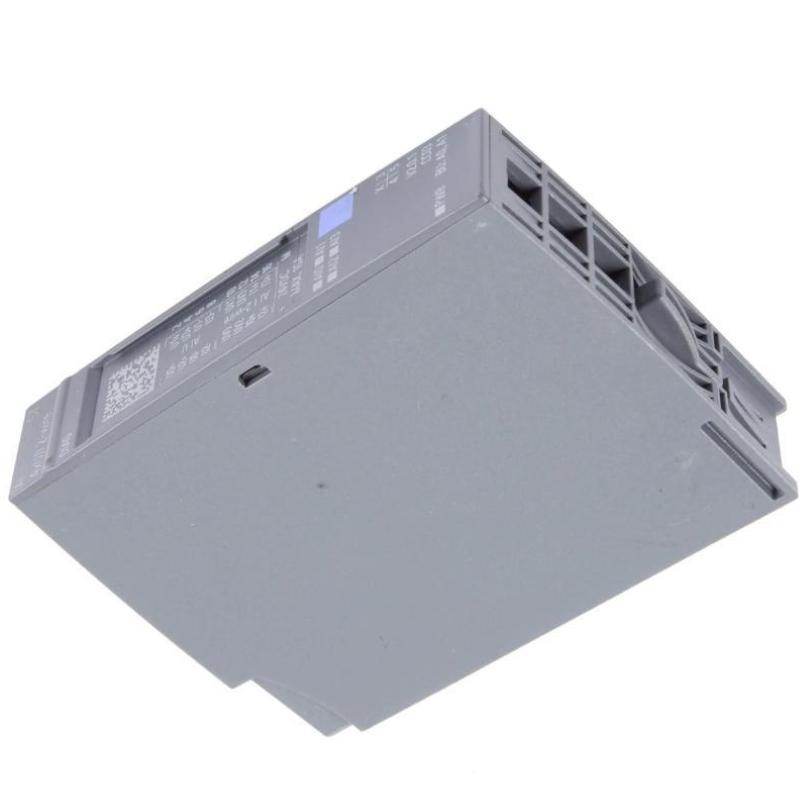

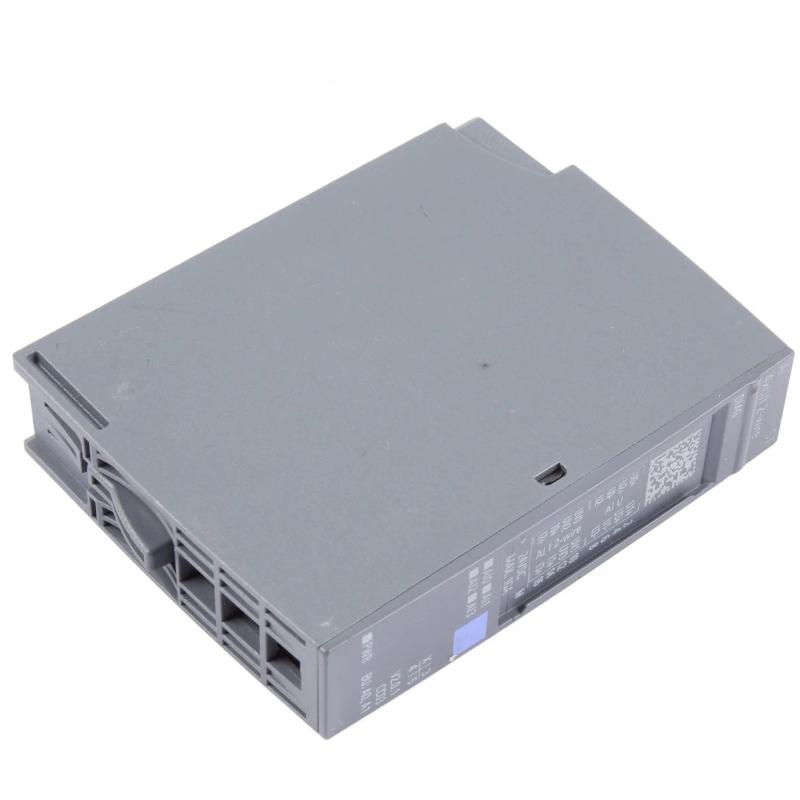

The Siemens 6AG2134-6HD01-1BA1 SIPLUS ET 200SP Analog Input Module belongs to the SIPLUS product range associated with the SIMATIC ET 200SP distributed I/O platform. Analog input modules connect field instruments to PLC-based automation systems, allowing process measurements to be incorporated into monitoring, alarm handling, and control logic.
In a typical process installation, pressure transmitters, flow meters, temperature instruments, and level sensors provide electrical signals representing changing operating conditions. An analog input module acquires supported signals and makes measurement data available to the controller through the distributed I/O station. The PLC can then compare readings against configured limits, display process values on an HMI, or use the measurements to determine the next step in an operating sequence.
The ET 200SP architecture allows I/O modules to be installed close to the machinery or process equipment they serve. This arrangement helps organize field wiring and distributes signal acquisition across different areas of a production line or plant. The SIPLUS designation identifies the module within Siemens’ product range for applications with specified environmental requirements.
For installation or replacement, the complete model number is essential. The supported input signals, channel configuration, electrical characteristics, and compatibility with the station hardware must match the requirements of the existing automation system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Product Model | 6AG2134-6HD01-1BA1 |
| Product Family | SIPLUS ET 200SP |
| Automation Platform | SIMATIC ET 200SP |
| Product Type | Analog Input Module |
| Module Function | Analog process signal acquisition |
| Signal Category | Analog input |
| System Architecture | Distributed I/O |
| Controller Integration | Through a compatible ET 200SP station interface |
| Field Device Interface | Compatible analog instruments, subject to signal specifications |
| Measurement Parameters | Model-specific input configuration |
| Signal Ranges | Model-specific |
| Installation Context | Industrial automation control cabinet |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.042 kg |
Product Features
- SIPLUS product identification: Identifies the module within Siemens’ SIPLUS product range for applications with defined environmental requirements.
- ET 200SP integration: Supports distributed I/O arrangements using compatible SIMATIC ET 200SP station components.
- Analog signal acquisition: Receives supported electrical signals from field instruments for processing by the automation controller.
- Process monitoring: Makes acquired measurements available for configured monitoring, alarm, and control functions.
- Distributed installation: Allows field signals to be collected near the equipment being monitored.
- Modular I/O arrangement: Supports integration with compatible digital and analog I/O modules within the station.
- Hardware configuration: Requires the controller project to match the installed module and its supported channel settings.
- Diagnostic troubleshooting: Helps maintenance personnel investigate signal, wiring, configuration, and station-related faults using available diagnostics.
Working Principle
The Siemens 6AG2134-6HD01-1BA1 operates as an analog signal acquisition component within a compatible ET 200SP station. A field instrument measures a process variable and generates an electrical signal corresponding to that measurement. The module receives the supported signal through its designated input circuit and makes the resulting measurement data available to the controller.
Field Instrument → Analog Input Channel → ET 200SP Station → Interface Module → PLC
For example, a flow transmitter installed on a process pipeline may provide a signal representing the current flow rate. The module acquires the signal, and the PLC interprets the measurement according to the configured input parameters and engineering scaling. The controller can display the value, activate an alarm when the flow falls outside an acceptable range, or use the measurement in a programmed control sequence.
The exact input ranges, channel arrangement, resolution, and conversion characteristics depend on the specific module configuration. These details determine which instruments can be connected and how the controller should interpret the acquired data.
If the displayed process value is incorrect, troubleshooting should include the transmitter output, field wiring, channel parameters, and controller scaling. Checking these elements systematically helps distinguish instrument faults and configuration errors from problems involving the input module or distributed I/O station.
Role in a Distributed I/O Control Architecture
Within an ET 200SP control architecture, the analog input module forms the measurement interface between field instrumentation and the automation controller. The module acquires compatible analog signals, while the station interface transfers the resulting data to the PLC for processing.
| System Component | Function | Relationship to the Analog Input Module |
|---|---|---|
| Field Transmitter | Measures pressure, flow, level, temperature, or another process variable | Supplies an electrical signal compatible with the input channel |
| Analog Input Module | Acquires supported analog signals | Makes measurement data available to the automation system |
| ET 200SP Base Unit | Provides mounting and electrical connections | Supports module installation and field wiring |
| ET 200SP Interface Module | Connects the I/O station to the automation network | Transfers station data between the I/O modules and controller |
| SIMATIC PLC | Executes the control program | Processes acquired measurements and determines control responses |
| Industrial Communication Network | Carries data between the controller and distributed station | Supports communication with the station interface |
| HMI Panel | Displays process values, alarms, and operating status | Presents information processed by the controller |
| Engineering Software | Configures hardware and application logic | Defines module setup, input addressing, and signal scaling |
Industrial Applications
| Application Area | Typical Use | Relevance of the Analog Input Module |
|---|---|---|
| Process Automation | Acquiring measurements from compatible pressure, flow, and level transmitters | Supplies process data to PLC logic |
| Water and Wastewater Treatment | Monitoring tank levels, pipeline pressure, and flow rates | Supports measurement-based control and alarm handling |
| Pumping Systems | Monitoring suction pressure, discharge pressure, and flow conditions | Supplies measurements for operating decisions |
| HVAC Systems | Reading compatible temperature and pressure signals | Supports equipment monitoring and regulation |
| Manufacturing Machinery | Acquiring analog measurements at individual machine stations | Integrates process feedback into machine control |
| Chemical Processing | Monitoring variables measured by compatible process instruments | Supports operating-limit checks and process supervision |
| Energy and Utility Systems | Collecting selected operating measurements | Integrates field data into distributed automation |
| Packaging Equipment | Reading analog values from compatible instruments | Supports applications requiring continuous-value feedback |
Installation and Maintenance
- Verify the module identification: Confirm the complete model number 6AG2134-6HD01-1BA1 against the installed hardware and equipment records.
- Confirm station compatibility: Check that the intended ET 200SP interface module, base unit, and station arrangement support the selected module.
- Review the electrical specifications: Establish the supported input types, signal ranges, terminal assignments, and wiring requirements before connecting field instruments.
- Isolate the equipment: Follow the site’s electrical safety and isolation procedures before installing, removing, or wiring the module.
- Inspect the mounting position: Check the mounting rail, base unit, available space, and surrounding conditions against the installation requirements.
- Install the module correctly: Fit the module into its designated position and ensure that it is seated securely in the station.
- Verify instrument compatibility: Confirm that each transmitter’s output signal matches the supported characteristics of the intended input channel.
- Check terminal wiring: Connect field signals according to the applicable wiring arrangement, including specified polarity, shielding, and grounding requirements.
- Configure the hardware: Ensure that the controller engineering project identifies the installed module and the correct ET 200SP station arrangement.
- Set input parameters: Configure the applicable channel settings, measurement range, and engineering scaling according to the connected instrument and application requirements.
- Perform commissioning checks: Compare acquired values with suitable reference measurements and investigate abnormal readings before returning the equipment to normal service.
- Document maintenance work: Record the module identification, channel assignments, wiring changes, configuration updates, diagnostic findings, and test results.
Compatible System Components
| Component | Function | Relationship to the Module |
|---|---|---|
| SIMATIC ET 200SP Interface Module | Connects the I/O station to the controller network | Transfers acquired input data to the PLC |
| ET 200SP Base Unit | Provides mounting and electrical connections | Supports module installation and field wiring |
| ET 200SP Digital Input Module | Acquires discrete field signals | Complements analog measurements with ON/OFF status inputs |
| ET 200SP Digital Output Module | Switches discrete control circuits | Supports control of compatible actuators and auxiliary devices |
| Compatible Analog Transmitters | Measure process variables | Supply supported electrical input signals |
| SIMATIC S7 Controller | Executes automation logic | Processes measurements and determines control actions |
| HMI Panel | Displays operating values and alarms | Presents process information supplied by the controller |
| Engineering Software | Configures hardware and control logic | Supports module setup, addressing, and diagnostics |
Recommended Related Models
| Product or Component Category | Product Type | Relationship |
|---|---|---|
| Siemens 6AG2134-6HD01-1BA1 | SIPLUS ET 200SP Analog Input Module | Specified module for identification and replacement |
| Siemens SIPLUS ET 200SP Analog Input Modules | Analog Input Modules | Related category for distributed process signal acquisition |
| Siemens SIPLUS ET 200SP Analog Output Modules | Analog Output Modules | Complementary category for compatible analog command signals |
| Siemens SIPLUS ET 200SP Digital Input Modules | Digital Input Modules | Related modules for discrete sensor and switch signals |
| Siemens SIPLUS ET 200SP Digital Output Modules | Digital Output Modules | Related modules for discrete actuator and control circuits |
| Siemens SIMATIC ET 200SP Interface Modules | Distributed I/O Interface Modules | Connect compatible I/O stations to the automation network |
| Siemens SIMATIC S7 Controllers | Programmable Logic Controllers | Process measurement data and execute control logic |
Key Advantages
- Analog measurement integration: Connects compatible field instruments to a distributed automation system.
- ET 200SP integration: Supports modular organization of field signal acquisition.
- PLC-based processing: Makes acquired measurements available for monitoring, alarms, and control logic.
- Distributed signal acquisition: Helps organize instrumentation wiring near the equipment being monitored.
- Structured fault diagnosis: Supports systematic checks of field signals, channel settings, and station communication.
- SIPLUS product identification: Distinguishes the module within Siemens’ product range for specified environmental applications.
Technical FAQs
What is the function of the Siemens 6AG2134-6HD01-1BA1 SIPLUS ET 200SP Analog Input Module?
It is identified as an analog input module in the SIPLUS ET 200SP product family. Its role is to acquire supported analog signals from field instruments and make measurement data available to a compatible automation controller.
Which field instruments can be connected to this module?
Potential applications include compatible pressure, flow, level, and temperature transmitters. The actual instruments that can be connected depend on the module’s specified signal types, electrical ranges, and channel configuration.
What should be checked if an analog input value is incorrect?
Check the transmitter output, terminal wiring, input channel configuration, measurement range, and engineering scaling in the controller project. Available diagnostics and a suitable reference measurement can help identify the source of the discrepancy.
Can this module replace another ET 200SP analog input module?
Not automatically. Modules in the same product family may differ in signal support, channel configuration, electrical characteristics, and environmental specifications. Confirm that the replacement matches the existing station and application requirements.
