- 6AG2132-6MD00-4BB1
- Digital Relay Output Module
- Germany
- 20 × 73 × 58 mm
- 0.036 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

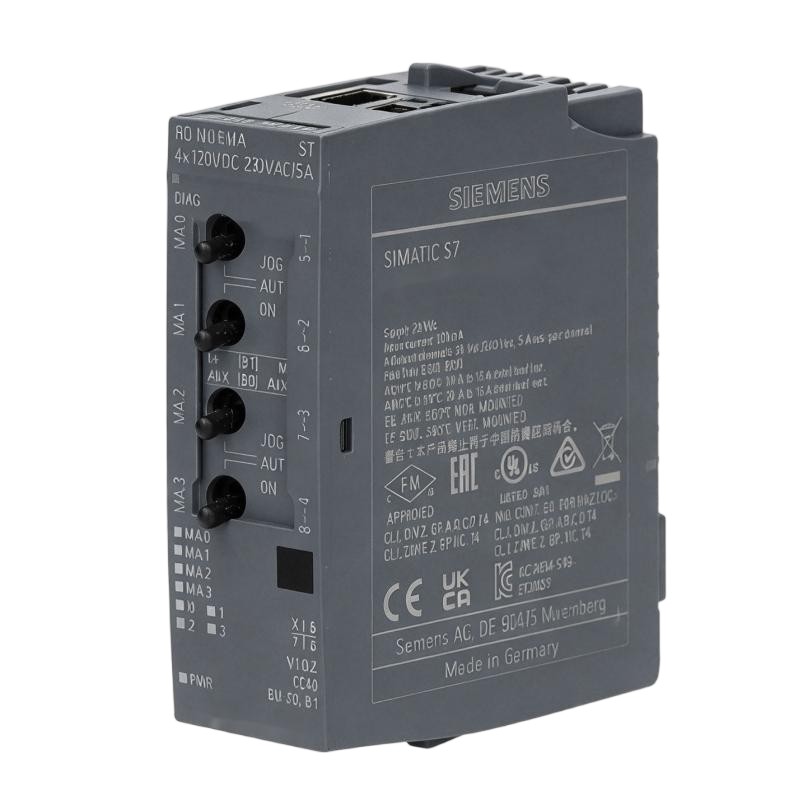

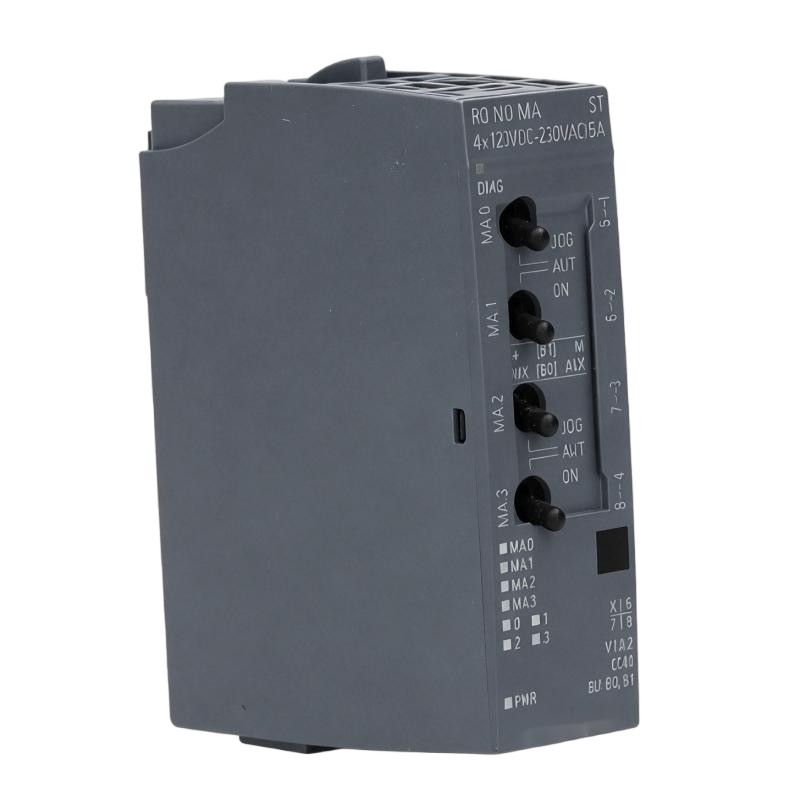

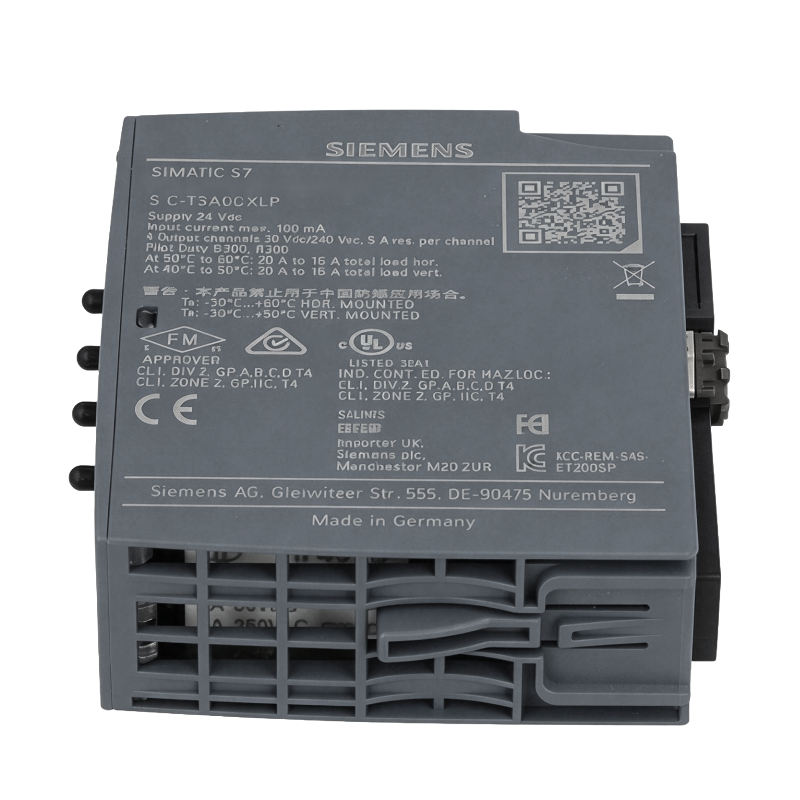

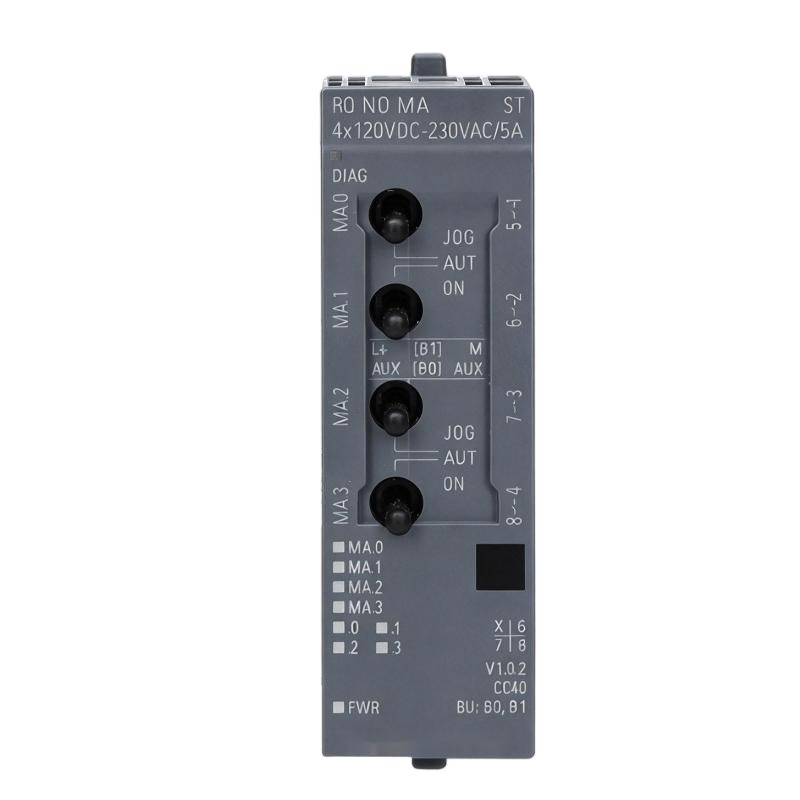

The Siemens 6AG2132-6MD00-4BB1 SIPLUS ET 200SP Digital Relay Output Module is a relay-based digital output component for distributed automation systems. Installed in a compatible ET 200SP station, it connects PLC output commands to external electrical circuits through relay contacts.
In an industrial control cabinet, relay outputs are commonly used for discrete switching tasks involving auxiliary relays, contactor control circuits, indicator devices, and other electrical loads. The PLC determines when an output should change state, and the module performs the corresponding switching action. This arrangement allows the automation program to control external circuits without using the output module as the load’s power source.
The SIPLUS designation identifies this product within Siemens’ SIPLUS portfolio. When selecting the module for a new installation or replacing an existing unit, the complete order number must be checked against the station configuration and the required electrical characteristics. Relay contact ratings, terminal assignments, base-unit compatibility, and the nature of the connected load all affect whether the module is suitable for a particular circuit.
For maintenance teams working with installed ET 200SP systems, accurate identification is especially important when several digital output modules occupy the same I/O station. Confirming the exact model before removal helps avoid wiring errors and prevents an apparently similar module from being installed without verifying its specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Model | 6AG2132-6MD00-4BB1 |
| Product Family | SIPLUS ET 200SP |
| Product Type | Digital Relay Output Module |
| Module Category | Distributed I/O |
| Output Type | Relay Output |
| Signal Type | Digital Output |
| Control System | Compatible PLC and ET 200SP I/O Station |
| Switching Interface | Relay Contacts |
| Installation Type | Distributed I/O Station |
| System Integration | ET 200SP Automation Architecture |
| Primary Function | Switching External Electrical Circuits |
| Maintenance Approach | Module Inspection, Wiring Checks, and Replacement |
| Dimensions | 20 × 73 × 58 mm |
| Weight | 0.036 kg |
Product Features
- Relay-Based Output Switching: Uses relay contacts to switch compatible external circuits in response to digital output commands.
- Distributed I/O Integration: Forms part of a compatible ET 200SP station connected to a PLC or automation controller.
- Discrete Circuit Control: Supports switching tasks in machine and process control cabinets where relay outputs are appropriate.
- External Load Interface: Connects the controller’s output logic to suitable external electrical loads through relay contacts.
- SIPLUS Product Identification: The complete order number distinguishes this version from other ET 200SP output modules and supports accurate spare-parts selection.
- Modular Station Installation: Fits into the station’s modular hardware arrangement when the required base unit and configuration are compatible.
- Maintenance Traceability: Provides a specific model reference for inspection records, fault reports, and replacement planning.
- Circuit-Level Troubleshooting: Allows technicians to investigate the output command, module connections, relay switching path, and external load as separate parts of a fault.
Working Principle
The Siemens 6AG2132-6MD00-4BB1 operates as the relay output stage of a compatible ET 200SP distributed I/O station. The PLC executes the automation program and generates digital output commands, while the station transfers the output data to the assigned module channel.
When an output command is activated, the corresponding relay operates and changes the state of its contact. The contact switches the connected external circuit, allowing a suitable device such as an intermediate relay, contactor coil, or indicator circuit to respond to the control command. When the command changes state, the relay returns to the corresponding inactive condition.
The module performs the switching action rather than supplying the operating power for every connected load. The external circuit must have an appropriate power source, and its voltage, current, and load characteristics must remain within the applicable relay contact ratings. For inductive loads, suitable suppression may be necessary to reduce switching transients and limit electrical stress on the contacts.
The primary output path is:
PLC → ET 200SP Interface Module → 6AG2132-6MD00-4BB1 → Relay Contact → External Load
If the controlled device has a separate status signal, that signal can return through a suitable digital input channel to the PLC. The control program can then compare the commanded output with the reported equipment state. Without separate feedback, the output command alone does not confirm that the external device has physically operated.
Role in a Distributed I/O Control Architecture
The 6AG2132-6MD00-4BB1 occupies the output layer of a distributed automation system. It receives digital output information through the ET 200SP station and uses relay contacts to switch connected external circuits. Its operation depends on the PLC program, the station’s hardware configuration, and the electrical arrangement of the field devices.
| System Component | Function | Relationship to the Relay Output Module |
|---|---|---|
| PLC or Automation Controller | Executes the machine or process program | Generates the digital output commands |
| ET 200SP Interface Module | Connects the I/O station to the controller | Transfers output data between the controller and station |
| ET 200SP Station | Integrates modular input and output components | Provides the installation environment for the module |
| 6AG2132-6MD00-4BB1 | Switches external circuits through relay contacts | Performs the assigned relay output function |
| Base Unit | Provides mounting and electrical connection points | Supports module installation and field wiring |
| External Power Supply | Supplies power to the connected load | Provides the energy used by the switched circuit |
| Intermediate Relay or Contactor | Switches another electrical circuit | May be operated by the module when the electrical requirements are compatible |
| Digital Input Module | Receives field status signals | Can return device feedback to the PLC |
| HMI or Engineering System | Supports operation, configuration, and diagnostics | Helps operators and technicians monitor the wider automation system |
Industrial Applications
| Application Area | Typical Use | Relevance of the Relay Output Module |
|---|---|---|
| Machine Automation | Switching auxiliary electrical circuits during machine sequences | Connects PLC logic with discrete external switching functions |
| Packaging Machinery | Controlling suitable indicators, relays, and auxiliary circuits | Supports programmed switching actions within automated production cycles |
| Assembly Equipment | Switching control circuits for machine mechanisms | Provides relay-based outputs within the distributed I/O station |
| Material Handling | Controlling compatible auxiliary devices and contactor circuits | Supports discrete control tasks in handling equipment |
| Process Control Panels | Switching external electrical circuits from PLC commands | Provides a relay interface between distributed I/O and field wiring |
| Industrial Control Cabinets | Maintaining or replacing output modules in installed stations | Supports model-specific identification and maintenance planning |
| Equipment Refurbishment | Restoring existing ET 200SP automation assemblies | Helps technicians identify the required replacement before reinstallation |
| Machine Diagnostics | Investigating faults in commanded output circuits | Allows the output command, relay path, wiring, and load to be checked separately |
Installation and Maintenance
- Verify the module identification: Confirm that the installed unit and replacement match the complete order number 6AG2132-6MD00-4BB1.
- Isolate the relevant circuits: Follow the applicable electrical isolation procedures before removing the module or handling connected field wiring.
- Check station compatibility: Verify that the module is supported by the installed ET 200SP station and its configured hardware arrangement.
- Inspect the base unit: Examine the mounting position and electrical connection points for damage, contamination, loose connections, or signs of overheating.
- Review field wiring: Confirm conductor assignments and terminal connections, and inspect insulation and terminations for visible damage.
- Verify load requirements: Check the connected load’s voltage, current, and switching characteristics against the applicable relay contact ratings.
- Check inductive-load protection: Where coils or other inductive loads are connected, verify that suitable suppression measures are used when required by the circuit.
- Apply ESD precautions: Use appropriate electrostatic discharge protection when handling the electronic module and avoid unnecessary contact with exposed conductive surfaces.
- Install the module correctly: Fit the module into its intended station position according to the applicable installation procedure. Do not force it into place if alignment is incorrect.
- Confirm the hardware configuration: Check the configured module identity and review relevant station diagnostics before returning the system to operation.
- Perform functional tests: Test the required output commands under approved operating conditions and confirm that the corresponding external circuits respond as expected.
- Document maintenance results: Record the model number, observed fault, wiring inspection, replacement details, and functional test results in the equipment service history.
Related Components
| Component | Function | Relationship to the Module |
|---|---|---|
| Siemens ET 200SP Interface Module | Connects the distributed I/O station to the automation controller | Transfers control data between the controller and station |
| Siemens ET 200SP Base Unit | Provides module mounting and electrical connections | Supports installation and field wiring |
| Siemens PLC | Executes the automation program | Generates the digital output commands |
| Industrial Control Power Supply | Supplies power to control and field circuits | Powers the relevant parts of the control system |
| Intermediate Relay | Switches a downstream electrical circuit | Can provide an additional switching stage where required |
| Contactor | Switches suitable electrical power circuits | May be controlled through a compatible relay output arrangement |
| Siemens ET 200SP Digital Input Module | Receives discrete field signals | Can return status information from controlled equipment |
| Surge Suppression Component | Limits switching transients in suitable circuits | Helps reduce electrical stress when correctly selected for the load |
Recommended Related Models
| Model or Product Category | Product Type | Relationship |
|---|---|---|
| Siemens 6AG2132-6MD00-4BB1 | SIPLUS ET 200SP Digital Relay Output Module | Exact model reference for identification and replacement |
| Siemens 6AG2132-6HD01-4BB1 | SIPLUS ET 200SP Digital Relay Output Module | Related relay output model; verify channel configuration and electrical specifications before considering substitution |
| Siemens SIPLUS ET 200SP Digital Output Modules | Distributed Digital Output Modules | Related product category for discrete output applications |
| Siemens SIPLUS ET 200SP Digital Input Modules | Distributed Digital Input Modules | Complementary category for receiving field status signals |
| Siemens ET 200SP Interface Modules | Distributed I/O Interface Modules | Related station components for communication with the controller |
| Siemens ET 200SP Base Units | I/O Mounting and Connection Components | Related components for module mounting and field wiring |
Key Advantages
- Provides relay-based switching for compatible external circuits.
- Integrates into a compatible ET 200SP distributed I/O station.
- Connects PLC output commands to relay-controlled field devices.
- Supports targeted inspection and replacement within a modular I/O system.
- Helps separate control-command faults from wiring and external-load problems.
- Provides a model-specific reference for spare-parts management and maintenance records.
Technical FAQs
What is the purpose of the Siemens 6AG2132-6MD00-4BB1?
It is a SIPLUS ET 200SP digital relay output module used to switch compatible external electrical circuits in response to digital commands from an automation controller.
What should be checked before replacing this relay output module?
Verify the complete order number, station configuration, base-unit arrangement, terminal assignments, and electrical requirements of the connected loads. Similar model designations do not by themselves establish interchangeability.
Does the relay output module supply power to the connected field device?
The module provides the relay switching action. The connected circuit normally requires its own suitable power arrangement, with the load and supply selected according to the relay contact ratings and application requirements.
Why might an external device fail to respond to an output command?
Possible causes include an incorrect PLC command, station configuration issues, poor terminal connections, a missing external circuit supply, a faulty relay contact, or a problem with the connected device. Separate status feedback, where available, can help distinguish a switching command from successful device operation.
