Product Overview

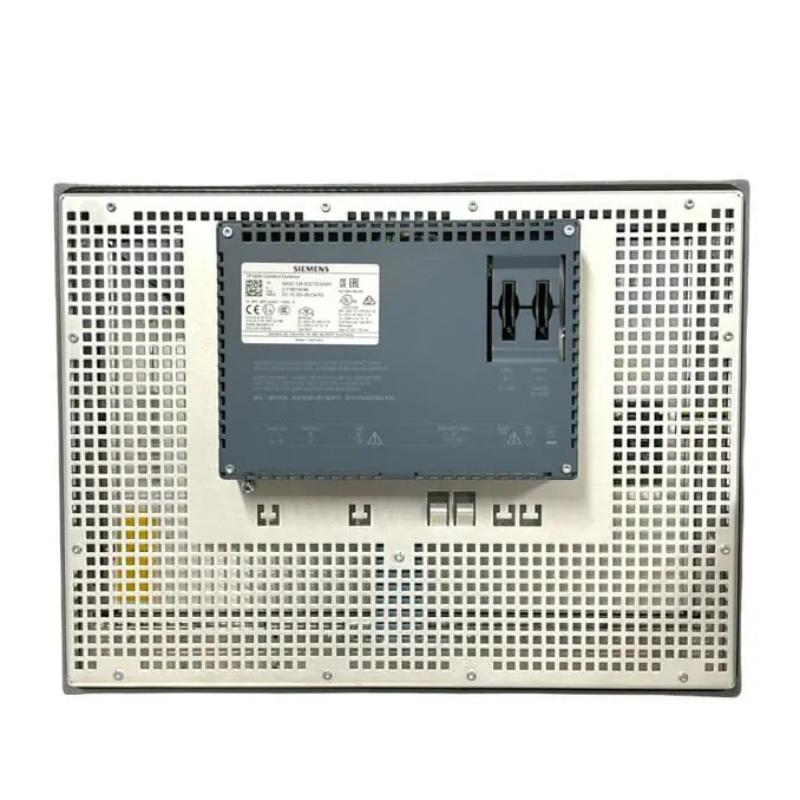

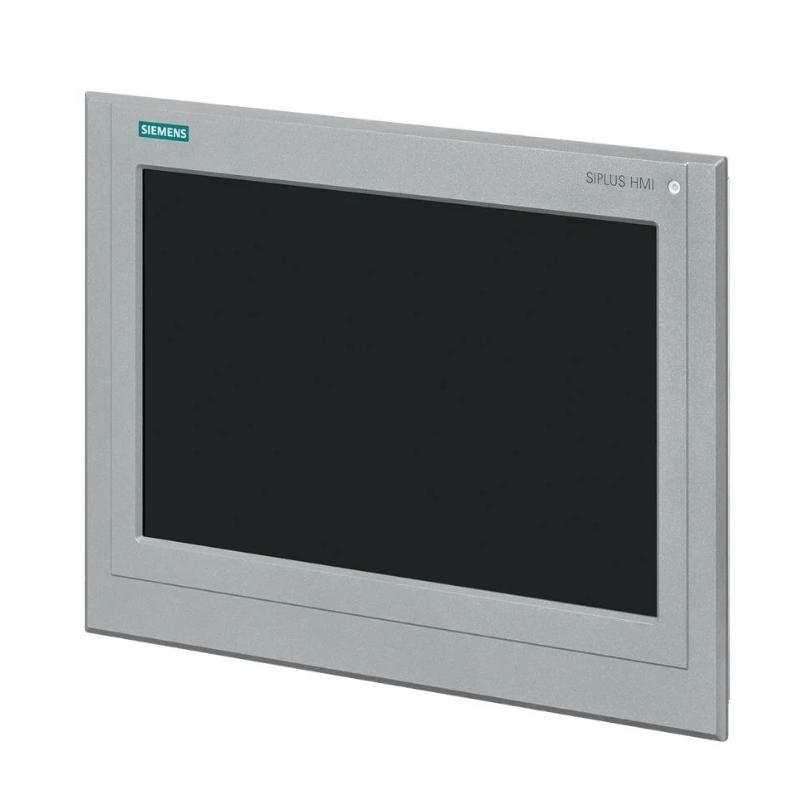

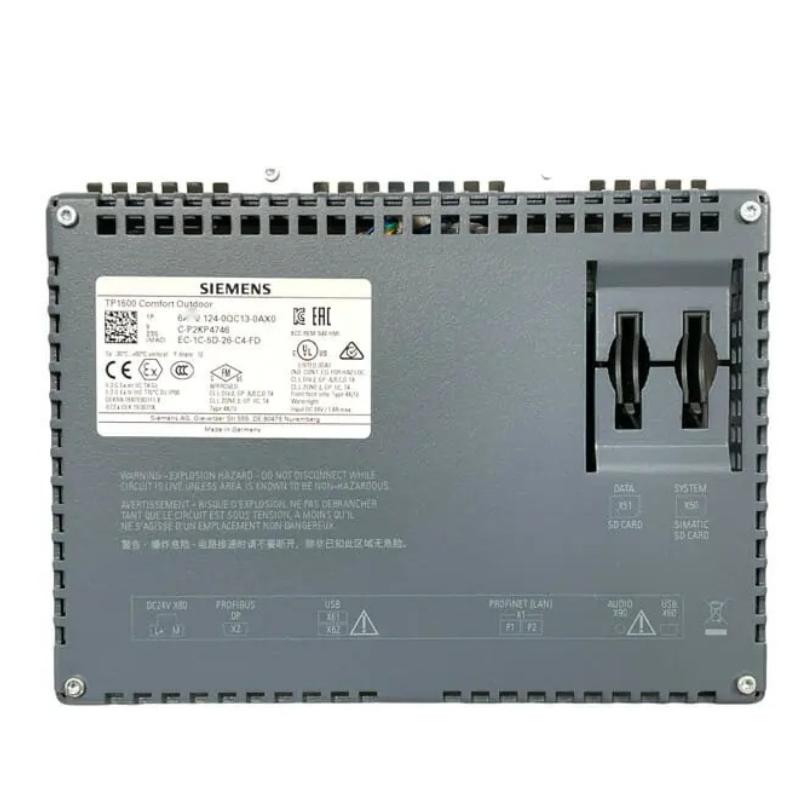

The Siemens 6AG2124-0QC13-1AX0 SIPLUS HMI TP1500 Outdoor RAIL Operator Panel is an industrial human-machine interface intended for operator interaction with automated equipment. Based on the SIMATIC HMI TP1500 Comfort platform, it allows operators to view process information, monitor machine status, acknowledge alarms, and access configured operating functions through a graphical touchscreen interface.

In a distributed automation system, the HMI serves as the link between machine personnel and the control program. Operators can use configured screens to review process values, check equipment states, and issue commands to a connected controller without accessing the PLC directly.

The SIPLUS version is intended for applications requiring the environmental characteristics specified for this product variant. Its suitability depends on the installation conditions, mounting arrangement, and the limits stated in the applicable Siemens documentation. The RAIL designation should also be checked against the exact mounting and installation requirements before integration into a control cabinet or machine enclosure.

Technical Specifications

Product Features

• Based on the SIMATIC HMI TP1500 Comfort platform.
• Provides a touchscreen interface for machine operation and process monitoring.
• Supports configured screens for process values, machine status, and alarm information.
• Allows operators to access control functions exposed through the HMI project.
• Belongs to the Siemens SIPLUS range for specialized industrial operating conditions.
• Supports integration with compatible PLCs and automation networks.
• Suitable for applications requiring a larger operator interface for machine-level supervision.
• Can be incorporated into a control system with the appropriate mounting, wiring, and environmental protection.

Working Principle

The TP1500 Outdoor RAIL panel runs an HMI project containing the screens, tags, alarms, and operator controls configured for the target machine. During operation, it exchanges data with a compatible controller through the selected communication interface.

The controller supplies process values and equipment states. The HMI presents this information on screen so that operators can review current conditions, navigate between displays, and acknowledge configured alarms. When an operator selects a control or enters a value, the HMI sends the corresponding command or data to the controller for processing.

The HMI is not a substitute for the PLC. The PLC continues to execute the machine logic and manage field inputs and outputs, while the operator panel provides visualization and access to permitted functions.

For installations using the SIPLUS variant, the environmental limits and mounting requirements must be checked for the exact order number. Correct installation, suitable enclosure protection, and compatible project configuration are essential to proper operation.

Role in a SIMATIC HMI Control Architecture

Industrial Applications

Installation and Maintenance

1. Confirm the complete order number, 6AG2124-0QC13-1AX0, before installation.
2. Check the applicable Siemens documentation for the exact product variant and its environmental limits.
3. Verify the required mounting method, cutout or mounting arrangement, and installation clearances.
4. Isolate the power supply before connecting or disconnecting electrical wiring.
5. Install the panel using the specified mounting hardware and procedure.
6. Confirm that the mounting surface and enclosure meet the required environmental protection conditions.
7. Connect the power and communication cables according to the approved wiring plan.
8. Verify compatibility between the panel, connected controller, communication interfaces, and HMI project.
9. Configure the panel using the supported version of the Siemens engineering software.
10. Test screen navigation, process tags, operator controls, and alarm handling during commissioning.
11. Inspect the touchscreen, housing, mounting points, connectors, and cable entries during routine maintenance.
12. Back up the HMI project and document configuration changes to simplify future service or replacement.

Compatible System Components

Recommended Related Models

Verify each candidate’s full order number, environmental rating, mounting arrangement, communication interfaces, and engineering software compatibility before selecting a replacement or alternative.

Key Advantages

• Provides a graphical interface for machine operation and monitoring.
• Supports configured process displays, alarms, and operator commands.
• Integrates with compatible Siemens automation systems.
• Gives operators access to machine status without direct PLC access.
• Supports structured troubleshooting through configured diagnostic displays.
• Offers a SIPLUS variant for installations that meet its specified environmental requirements.

Technical FAQs

What is the Siemens 6AG2124-0QC13-1AX0 used for?

It is a SIPLUS HMI TP1500 Outdoor RAIL operator panel used to monitor industrial processes and interact with compatible automation controllers through a configured touchscreen interface.

What is the role of the TP1500 panel in a PLC system?

The panel displays process data and machine status received from the controller. It also sends configured operator inputs to the PLC, while the PLC remains responsible for executing control logic and managing connected equipment.

What should be verified before installing the Outdoor RAIL version?

Check the exact order number’s environmental specifications, permitted operating conditions, mounting requirements, electrical connections, and communication interfaces. The installation must meet the requirements for the actual operating environment.

Can an existing TP1500 Comfort HMI project be used on this panel?

Potentially, but compatibility should be confirmed before transferring the project. Check the target device configuration, supported engineering software version, communication settings, and any hardware-specific features or restrictions.
