Product Overview

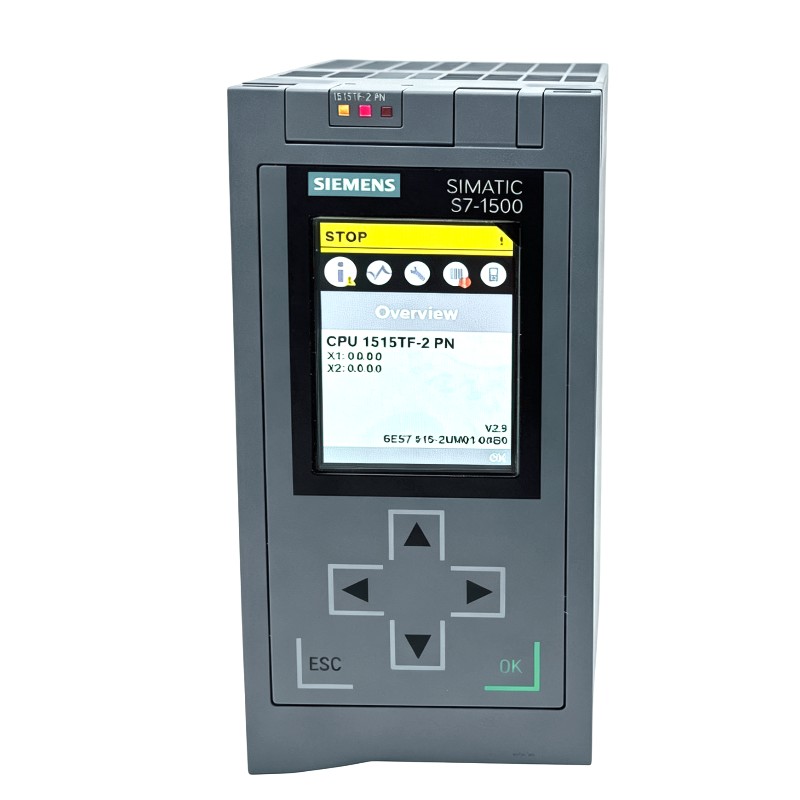

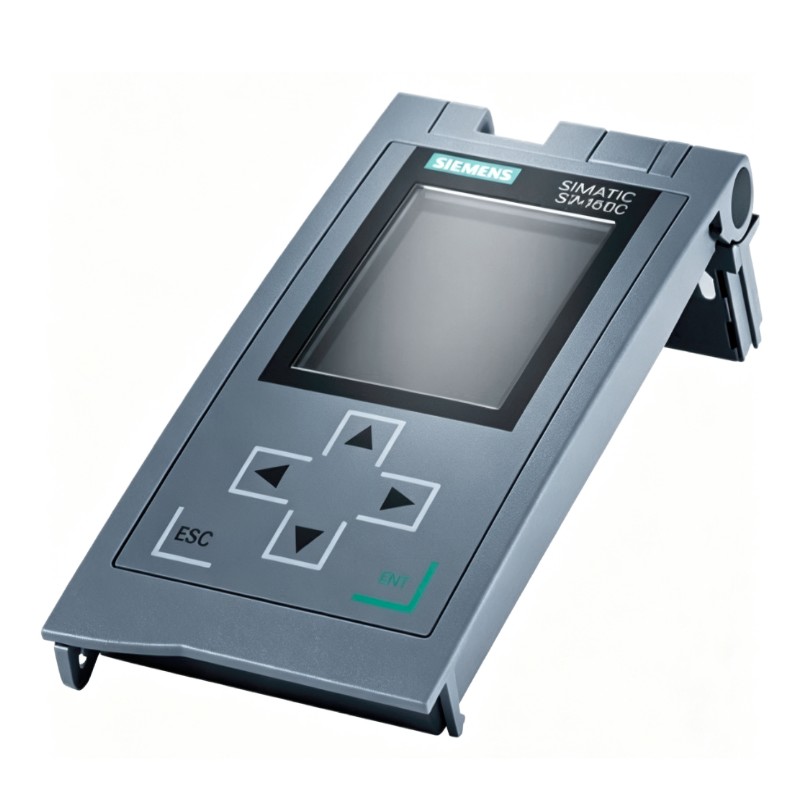

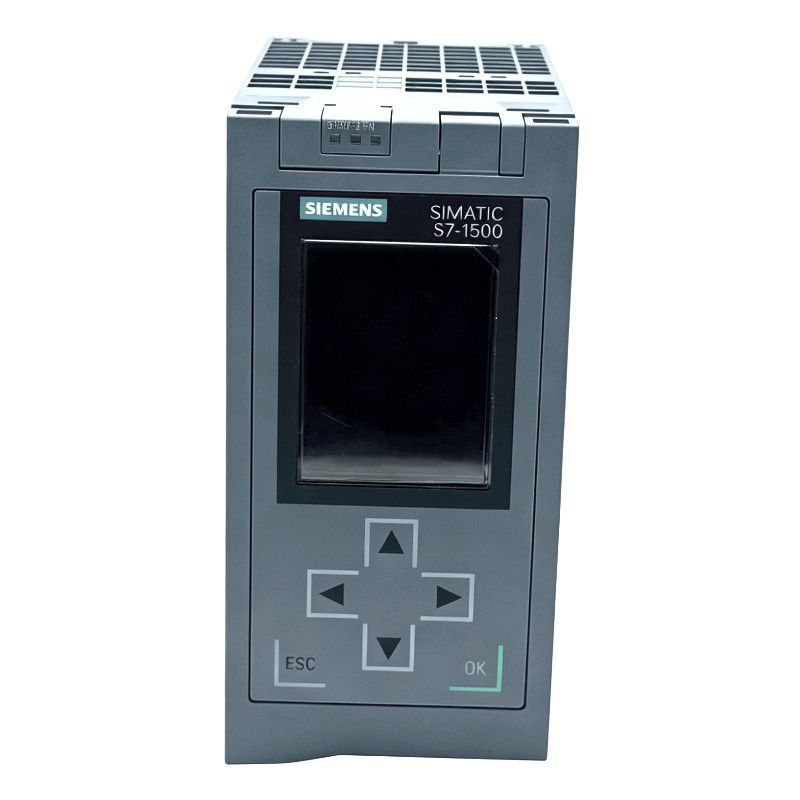

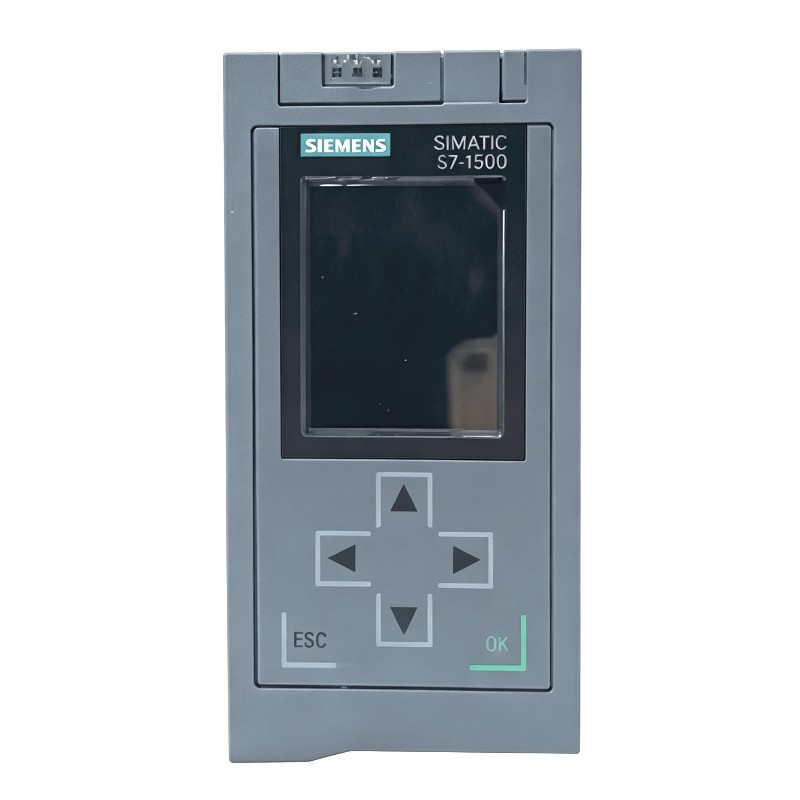

The Siemens 6AG1591-1BA02-2AA0 is a SIPLUS S7-1500 Front Flap CPU 70 mm used as a replacement front assembly for compatible 70 mm S7-1500 CPUs. It belongs to the SIPLUS S7-1500 accessory range and is intended for maintenance, replacement, and service work on installed automation systems.
The front flap is mounted on the front side of the CPU and forms part of the physical operator interface. It protects the front area of the controller while allowing access to the CPU’s local operating and diagnostic elements.
For maintenance teams, this type of component is useful when the existing front flap is damaged or needs replacement while the CPU and its control program remain in service. Replacing the front assembly avoids unnecessary replacement of the complete controller.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Siemens |
| Product Model | 6AG1591-1BA02-2AA0 |
| Product Family | SIPLUS S7-1500 |
| Product Type | Front Flap CPU 70 mm |
| Product Designation | SIPLUS S7-1500 FRONTKLAPPE CPU 70MM |
| Component Function | Front Flap / Spare Part |
| CPU Width | 70 mm |
| Product Platform | SIMATIC S7-1500 |
| Component Category | S7-1500 CPU Accessory |
| Application | CPU Front Assembly Replacement |
| Mounting Position | CPU Front |
| Component Type | Front Assembly |
| SIPLUS Version | Yes |
| Coating | Conformal Coating |
| Operating Temperature | -25 … +60 °C |
| Start-up Temperature | -20 °C |
| Storage/Transport Temperature | -40 … +70 °C |
| Maximum Installation Altitude | 5000 m |
| Weight | 0.152 kg |
Product Features
- SIPLUS S7-1500 front flap for 70 mm CPU assemblies.
- Intended for replacement and maintenance of compatible S7-1500 CPUs.
- Front-mounted mechanical assembly for the CPU.
- Conformal-coated SIPLUS construction.
- Suitable for SIPLUS applications with extended environmental requirements.
- Maintains access to the CPU’s front operating and diagnostic area.
- Can be replaced independently when the CPU remains serviceable.
- Suitable for planned maintenance and corrective service.
- Supports continued use of the installed S7-1500 controller.
Working Principle
The 6AG1591-1BA02-2AA0 is a mechanical front component rather than an active PLC module. It does not execute the user program, process field signals, or handle network communication.
During normal operation, the front flap is mounted directly on the compatible S7-1500 CPU. It forms part of the CPU’s front-facing assembly and protects the associated interface and display area.
During service, the existing front flap can be removed and the replacement assembly installed on the CPU. The controller’s program, I/O modules, network configuration, and connected field devices remain part of the existing automation system.
The SIPLUS construction is intended for applications requiring the environmental characteristics associated with SIPLUS equipment.
Role in a SIPLUS S7-1500 Control Architecture
The front flap is positioned at the physical interface of the CPU and does not participate directly in the PLC control loop.
| System Element | Function |
|---|---|
| SIPLUS S7-1500 CPU | Executes the PLC program and manages the automation process |
| 6AG1591-1BA02-2AA0 | Provides the replacement front flap for compatible 70 mm CPUs |
| SIMATIC Memory Card | Stores the CPU program and configuration data where applicable |
| S7-1500 I/O Modules | Handle process input and output signals |
| PROFINET Devices | Exchange process and diagnostic data with the CPU |
| Power Supply | Supplies the S7-1500 automation station |
| SIMATIC HMI | Provides operator visualization and process control |
| Engineering Station | Used for programming, configuration, commissioning, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Automation | Replacement of damaged CPU front assemblies in S7-1500 control cabinets |
| Machine Control | Maintenance of S7-1500 CPUs installed in production machinery |
| Packaging Equipment | Front assembly replacement during scheduled service |
| Material Handling | Maintenance of controller assemblies in automated handling systems |
| Production Lines | Restoring the physical CPU interface without replacing the complete controller |
| Process Machinery | Service of SIPLUS-based automation equipment |
| Control Cabinet Maintenance | Replacement of worn or damaged front components |
| Retrofit Projects | Maintaining existing S7-1500 installations during equipment upgrades |
Installation and Maintenance
- Confirm CPU compatibility — Verify that the installed controller uses the compatible 70 mm CPU front assembly.
- Check the part number — Compare 6AG1591-1BA02-2AA0 with the installed component and maintenance documentation.
- Shut down the equipment — Stop the machine or process according to the approved operating procedure.
- Isolate the power supply — Follow the applicable electrical isolation and lockout procedure before working on the controller.
- Protect the CPU — Prevent dust, moisture, metal particles, and other contaminants from reaching the exposed front area.
- Remove the existing front flap — Release the existing component carefully to avoid damaging the CPU housing.
- Inspect the mounting area — Check the CPU front section for broken retaining elements, contamination, or mechanical damage.
- Align the replacement part — Position the 6AG1591-1BA02-2AA0 correctly against the CPU front section.
- Secure the assembly — Make sure the replacement front flap is fully seated and mechanically retained.
- Check front operation — Confirm that the flap and accessible CPU operating elements move correctly.
- Restore the controller — Re-energize the system according to the plant commissioning procedure.
- Verify diagnostics — Check the CPU status and diagnostic indications after maintenance and record the replacement in the service documentation.
Compatible System Components
| Component | Function |
|---|---|
| SIMATIC S7-1500 70 mm CPU | Main controller platform associated with the front flap |
| SIPLUS S7-1500 CPU | Controller platform for SIPLUS applications |
| SIMATIC S7-1500 I/O Modules | Local and distributed process signal interfaces |
| SIMATIC ET 200SP | Distributed I/O platform for S7-1500 systems |
| PROFINET Network Components | Controller and field-device communication |
| SIMATIC Memory Card | CPU program and configuration storage |
| S7-1500 Power Supply | Supplies the automation station |
| SIMATIC HMI | Operator visualization and control |
| TIA Portal Engineering System | Programming, configuration, commissioning, and diagnostics |
Recommended Related Models
| Model | Product / Application |
|---|---|
| 6AG1591-1AA01-2AA0 | SIPLUS S7-1500 Front Flap V2 CPU 35 mm |
| 6AG1591-1BA01-2AA0 | SIPLUS S7-1500 Front Flap V2 CPU 70 mm |
| 6ES7591-1BA01-0AA0 | Standard S7-1500 Front Flap V2 CPU 70 mm |
| 6ES7591-1BA02-0AA0 | Standard S7-1500 CPU 70 mm front flap |
| 6AG1591-1BB00-2AA0 | SIPLUS S7-1500 Display Module |
| 6ES7591-1BB00-0AA0 | Standard S7-1500 Display Module |
| 6AG1515-2FM01-2AB0 | SIPLUS S7-1500 CPU platform |
| 6AG1516-3FN01-2AB0 | SIPLUS S7-1500 CPU platform |
| 6AG1518-4FP00-4AB0 | SIPLUS S7-1500 CPU platform |
Key Advantages
- Intended for 70 mm S7-1500 CPU front assembly replacement.
- SIPLUS-specific construction for compatible applications.
- Conformal-coated component.
- Suitable for planned and corrective maintenance.
- Allows replacement of the front component without replacing the complete CPU.
- Maintains the physical operator-facing section of the controller.
- Suitable as a spare part for installed SIPLUS S7-1500 systems.
Technical FAQs
What is Siemens 6AG1591-1BA02-2AA0?
The 6AG1591-1BA02-2AA0 is a SIPLUS S7-1500 Front Flap CPU 70 mm used as a replacement front assembly for compatible S7-1500 CPUs.
Is the 6AG1591-1BA02-2AA0 an active CPU module?
No. It is a front flap assembly and does not perform PLC processing, I/O acquisition, or network communication.
What does CPU 70 mm mean for this product?
CPU 70 mm identifies the CPU width associated with this front flap. The installed CPU should be checked for compatibility before replacement.
Can this front flap be used to replace the complete CPU?
No. The 6AG1591-1BA02-2AA0 is a spare front component. It is used when the existing CPU remains serviceable and only the front assembly needs replacement.
