- Siemens
- 6AG1551-1AB00-7AB0
- Counting and Position Feedback Module
- Germany
- 35 × 147 × 129 mm
- 0.447 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 8
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

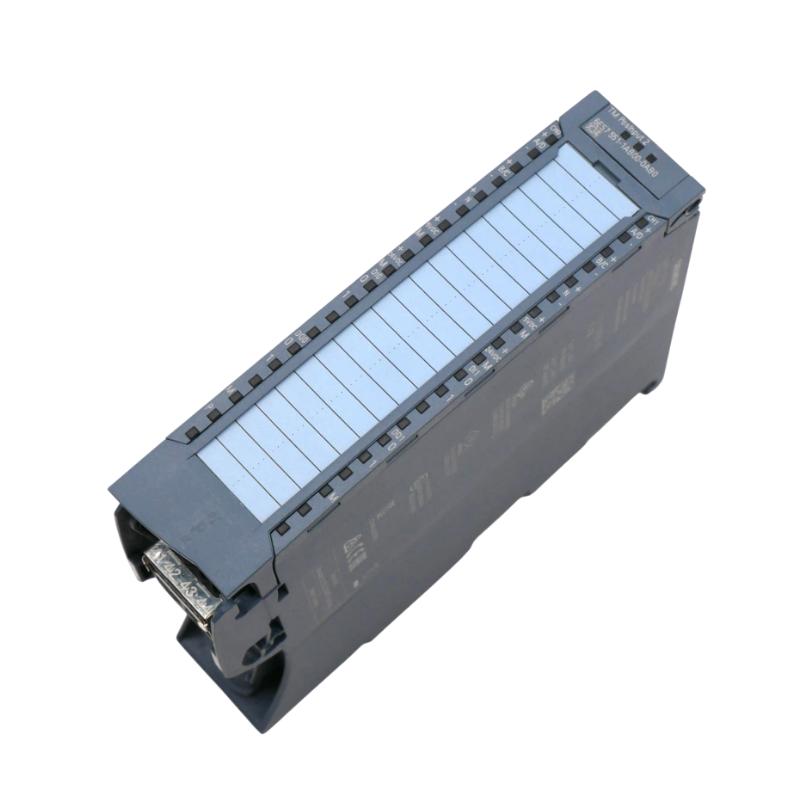

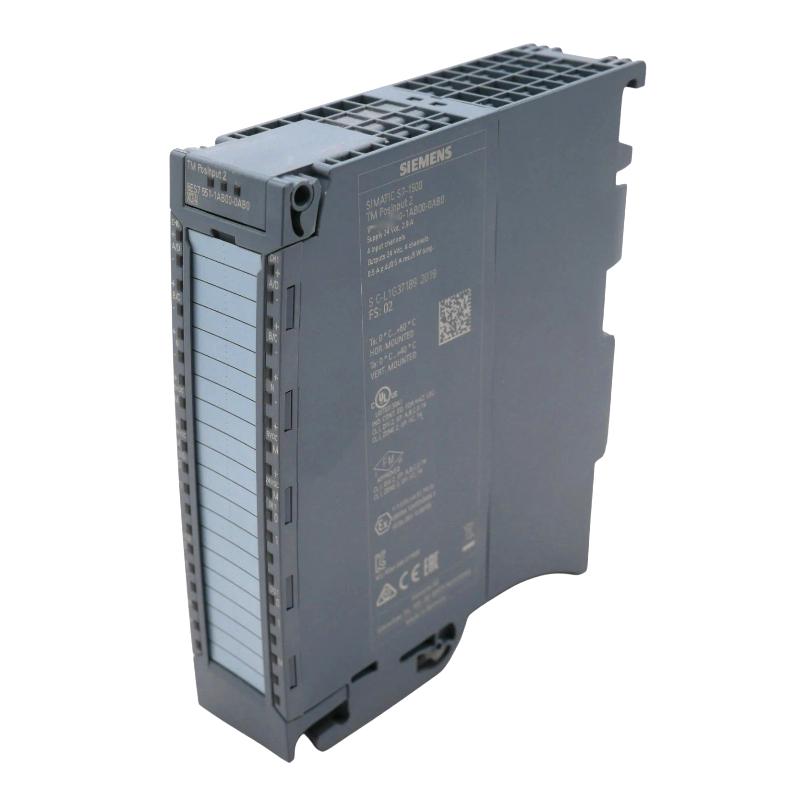

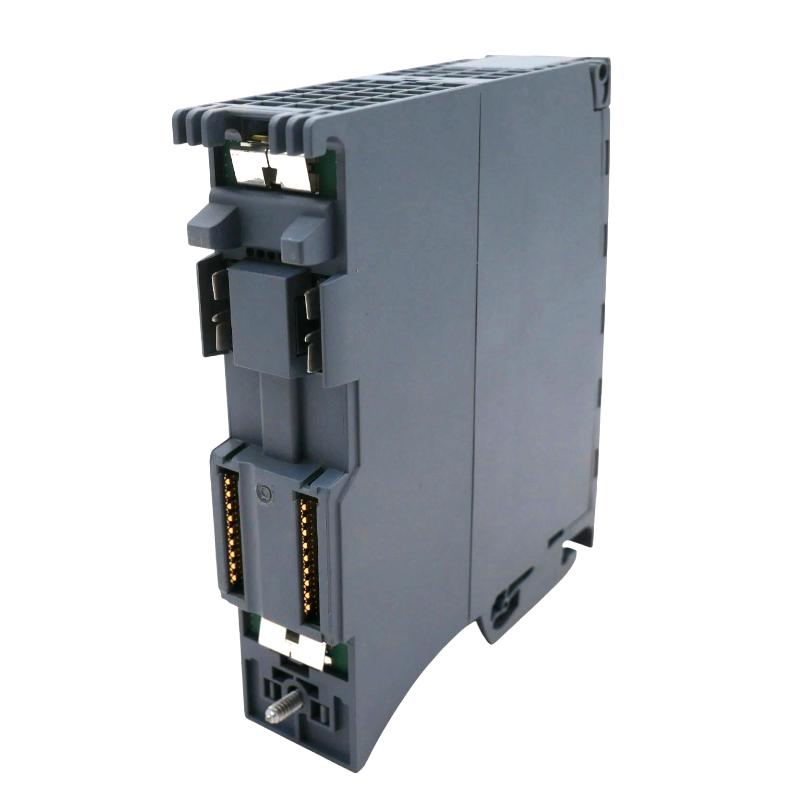

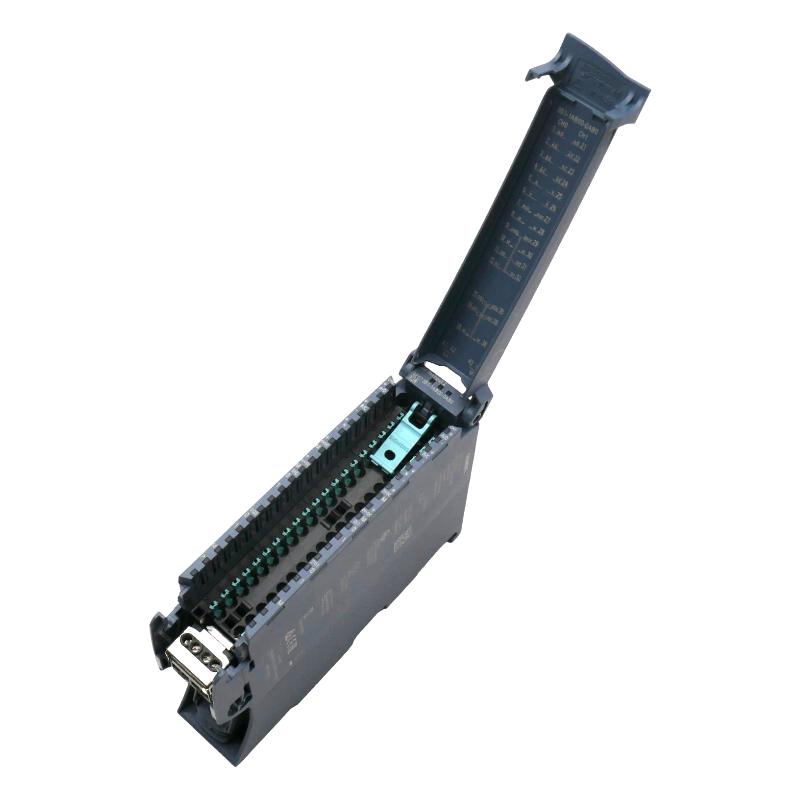

The Siemens 6AG1551-1AB00-7AB0 is a SIPLUS S7-1500 Counting and Position Feedback Module for machine applications that need to track pulse events together with movement or position information. It sits between the feedback device and the PLC application, giving the control system usable information about repetitive events and the movement of a machine mechanism.
A common use case is an indexing machine where an encoder or pulse-generating device follows the movement of a mechanical axis. The feedback signals can be acquired by the module while the S7-1500 program uses the resulting information to determine machine sequence steps, monitor movement, or coordinate the next operation. Similar arrangements are found on conveyors, packaging equipment, automated assembly machines, and material-handling systems.
The module is part of the S7-1500 automation architecture rather than a standalone motion controller. When it is replaced, the complete feedback chain should be checked: the connected sensor or encoder, signal wiring, module configuration, PLC logic, and actual mechanical movement all affect the final position information.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1551-1AB00-7AB0 |
| Product Type | Counting and Position Feedback Module |
| Product Family | SIPLUS |
| Automation Platform | S7-1500 |
| Module Function | Counting and Position Feedback |
| System Role | Counting and Position Signal Acquisition |
| Signal Application | Pulse and Position Feedback |
| Control Integration | Siemens S7-1500 PLC |
| Application | Industrial Machine Motion and Position Monitoring |
| Processing Function | Counting and Position Information Acquisition |
| Component Type | S7-1500 Technology Module |
| Installation | S7-1500 Control Cabinet |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.447 kg |
Product Features
- SIPLUS S7-1500 module for counting and position-feedback applications.
- Handles pulse-based feedback associated with machine movement.
- Suitable for indexing, conveying, positioning, and repetitive machine operations.
- Can work with suitable pulse-generating feedback devices.
- Makes counting and position-related information available to the S7-1500 control application.
- Supports feedback-based machine sequencing and monitoring.
- Suitable for automated production and material-handling equipment.
- Fits into existing S7-1500 control architectures where movement-related feedback is required.
- Useful for maintenance and replacement work on established SIPLUS S7-1500 installations.
Working Principle
The 6AG1551-1AB00-7AB0 receives electrical feedback signals generated as a machine mechanism moves. The module processes these signals as counting and position-related information, which the S7-1500 control program can use when executing machine sequences.
For example, on an indexing table, a feedback device can generate pulses as the mechanism moves. The module tracks the incoming signal events, while the PLC application uses the resulting information to determine whether the mechanism has reached the required stage of the sequence.
A typical application path is:
Feedback Device → 6AG1551-1AB00-7AB0 → S7-1500 Controller → Position / Sequence Logic → Machine Mechanism
The same arrangement can be used on conveyors, rotary mechanisms, packaging equipment, and automated handling systems. If the observed position does not correspond to the actual machine movement, troubleshooting should include the feedback device, signal wiring, configuration, PLC logic, and mechanical transmission rather than assuming the module itself is the only possible cause.
Role in a SIPLUS S7-1500 Counting and Position Control Architecture
The module occupies the feedback-acquisition layer between the machine’s pulse-generating device and the S7-1500 controller. It supplies counting and position-related information that the PLC application can use for movement monitoring and machine sequencing.
| Control Architecture Layer | Typical Component | Function |
|---|---|---|
| Control Layer | Siemens S7-1500 CPU | Executes machine and process control logic |
| Feedback Layer | 6AG1551-1AB00-7AB0 | Acquires counting and position-feedback information |
| Feedback Source | Encoder / Pulse-Generating Device | Produces movement-related electrical signals |
| Signal Layer | Feedback Wiring | Carries feedback signals to the module |
| Application Layer | PLC Program | Uses position and count information |
| Actuation Layer | Drive / Motor / Actuator | Produces the machine movement |
| Mechanical Layer | Machine Axis / Mechanism | Performs the physical movement being monitored |
Industrial Applications
| Application | Typical Use |
|---|---|
| Indexing Machines | Tracks movement through repeated machine positions |
| Conveyor Systems | Monitors movement-related pulse information |
| Packaging Machinery | Supports position-based sequencing of packaging mechanisms |
| Automated Assembly | Provides feedback for coordinated assembly operations |
| Material Handling | Monitors movement of transfer and handling mechanisms |
| Production Machinery | Tracks repetitive machine movement and operating events |
| Rotary Equipment | Processes feedback associated with controlled rotation |
| Machine Automation | Feeds counting and position information into PLC sequence control |
Installation and Maintenance
- Verify the module identification — Confirm that 6AG1551-1AB00-7AB0 matches the intended SIPLUS S7-1500 application.
- Review the machine configuration — Check the PLC hardware configuration, feedback arrangement, and application documentation before replacement.
- Isolate the equipment — Follow the plant’s electrical isolation procedure before accessing the module or feedback wiring.
- Identify the feedback source — Confirm the encoder, sensor, or pulse-generating device connected to the module.
- Inspect the module and terminals — Check for visible damage, contamination, loose connections, or other installation problems.
- Inspect feedback wiring — Check cables for physical damage, incorrect termination, shielding problems, or unintended connections.
- Remove the existing module carefully — Follow the applicable S7-1500 maintenance procedure and avoid disturbing adjacent components.
- Install the replacement module — Mount the module correctly and ensure that its mechanical and electrical interfaces are fully engaged.
- Reconnect the feedback signals — Restore field connections according to the approved wiring documentation and verify the signal assignments.
- Verify the hardware configuration — Confirm that the PLC configuration and relevant module settings correspond to the installed hardware and feedback arrangement.
- Perform a controlled movement test — Move the machine through known positions or events and compare the module feedback with the expected mechanical response.
- Record the maintenance results — Document the part number, feedback source, configuration, test results, and any adjustments made during commissioning.
Compatible System Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Executes the PLC application and uses position feedback information |
| S7-1500 System Components | Provide the automation-system structure for the module |
| Encoder / Feedback Device | Generates movement-related feedback signals |
| Feedback Signal Wiring | Transfers position and counting signals to the module |
| Servo / Drive System | Produces controlled machine movement where applicable |
| Motor | Provides mechanical movement for the monitored machine axis |
| Machine Mechanism | Converts controlled movement into the required production operation |
| HMI / Engineering System | Supports monitoring, configuration, commissioning, and diagnostics |
Recommended Related Models
| Model / Product Family | Product Type | Typical Relationship |
|---|---|---|
| Siemens SIPLUS S7-1500 | Industrial Automation Platform | Product family associated with the module |
| Siemens S7-1500 Technology Modules | Technology Module | Related hardware for specialized machine functions |
| Siemens S7-1500 Counting Modules | Counting Module | Related hardware for pulse-counting applications |
| Siemens S7-1500 Signal Modules | Signal Module | Associated I/O hardware within the automation platform |
| Siemens S7-1500 CPUs | PLC CPU | Control hardware associated with the module |
Key Advantages
- Combines counting and position-feedback functions within an S7-1500 architecture.
- Supports movement and position monitoring.
- Suitable for indexing, conveying, handling, and automated production equipment.
- Allows feedback information to be incorporated into PLC machine sequences.
- Supports pulse-based machine monitoring and control.
- Fits into SIPLUS S7-1500 automation systems.
Technical FAQs
What is the role of counting in a position-feedback application?
Counting provides a way to track incoming pulse events generated by the feedback device. In a machine application, these events can be associated with movement so that the PLC can use the resulting information for position monitoring or sequence control.
What should be checked if the reported position differs from the actual machine position?
Check the feedback device and its wiring first, then review the module configuration and PLC application. The mechanical transmission should also be inspected because backlash, slippage, or other mechanical issues can cause the actual movement to differ from the expected position.
Can this module be used on an indexing mechanism?
Yes, a counting and position-feedback arrangement can be useful on indexing mechanisms where the controller needs feedback about repeated movement between defined machine stages. The specific feedback device and signal characteristics must match the requirements of the application.
Why should the feedback system be tested after module replacement?
A module replacement can affect the complete signal chain if wiring, configuration, or module assignment is incorrect. A controlled movement test confirms that the feedback information corresponds to actual machine movement before the equipment returns to normal production.
