Product Overview

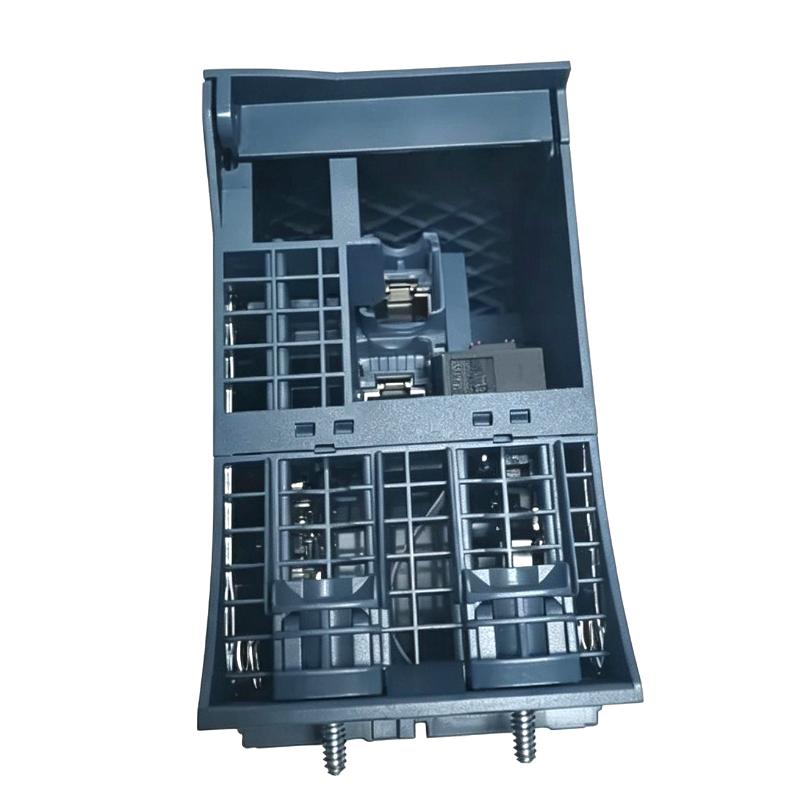

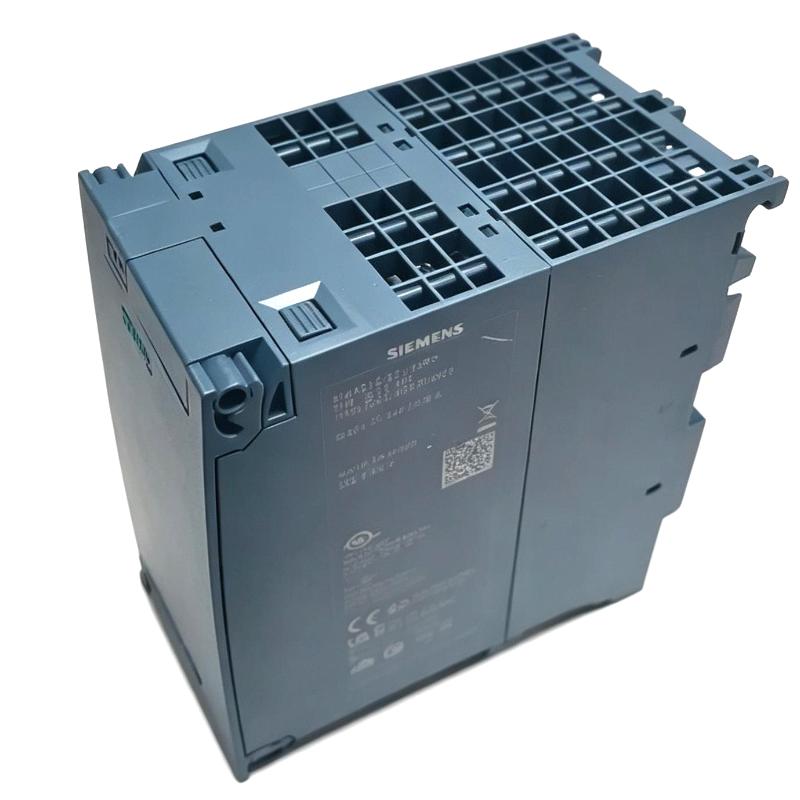

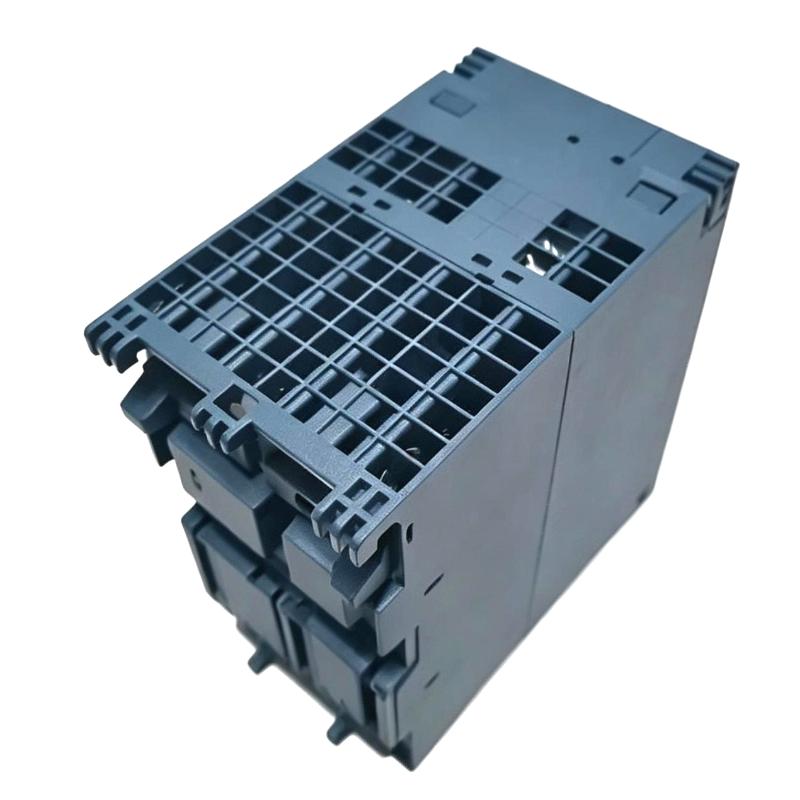

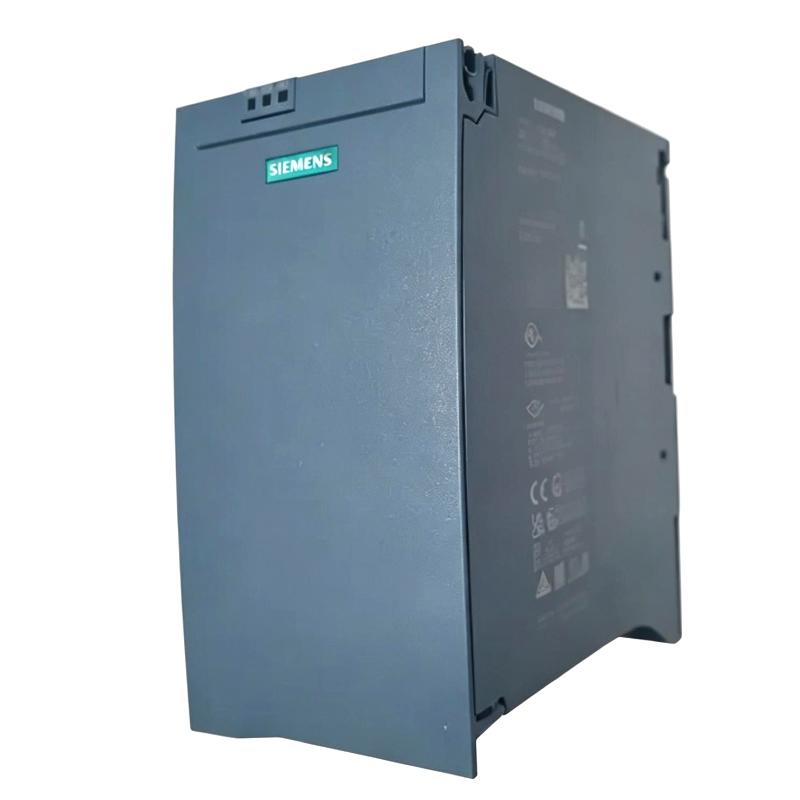

The Siemens 6AG1543-1MX00-7XE0 is a SIPLUS TIM 1531 IRC communication module for industrial remote communication applications. It belongs to the Siemens SIPLUS communication portfolio and is used to establish communication paths between automation systems and remote stations over suitable industrial communication networks.

The TIM 1531 IRC is particularly relevant to distributed automation architectures where the central control system needs to exchange process information with geographically separated stations. Instead of treating remote stations as isolated PLC installations, the communication module provides the interface needed to bring remote process data into the wider control architecture.

Typical applications include water and wastewater infrastructure, pumping stations, utility systems, remote process installations, and other distributed facilities. The module can work alongside an S7-based automation system to handle communication between the local controller and remote automation stations, while the PLC remains responsible for local control logic.

Technical Specifications

Product Features

• SIPLUS TIM 1531 IRC communication module for distributed automation architectures.
• Provides a dedicated interface for industrial remote communication.
• Supports communication between local automation systems and remote stations.
• Suitable for geographically distributed process-control installations.
• Helps integrate remote process data into a centralized automation architecture.
• Can be used in infrastructure applications such as water, wastewater, utilities, and remote pumping systems.
• Works alongside the PLC rather than replacing the controller’s process-control functions.
• SIPLUS hardware is intended for industrial applications requiring enhanced environmental suitability.

Working Principle

The 6AG1543-1MX00-7XE0 operates as the communication interface between a local automation station and remote automation equipment. The local PLC handles the application and control logic, while the TIM module manages the communication path used to exchange information with remote stations.

For data arriving from a remote site, process information is transmitted through the configured communication network to the TIM 1531 IRC. The module passes the received information into the local automation system, where the PLC program can use it for monitoring, control coordination, alarms, or data processing.

Remote Automation Station → Communication Network → TIM 1531 IRC → Local Automation System → PLC / Control Application

For outgoing communication, the direction is reversed. Data generated by the local automation system is transferred to the TIM module and sent through the configured communication path toward the remote station.

This arrangement is useful in distributed control systems because the communication function is separated from local process execution. A remote pumping station, utility installation, or other unmanned facility can exchange operational information with a central control architecture without requiring the communication function to be implemented directly in the PLC application.

Role in a Siemens Distributed Automation Control Architecture

The 6AG1543-1MX00-7XE0 occupies the remote communication layer between local automation equipment and geographically separated stations. It extends the automation architecture beyond a single control cabinet and allows process information to move between local and remote sites.

Industrial Applications

Installation and Maintenance

1. Confirm that the 6AG1543-1MX00-7XE0 matches the intended remote communication architecture before installation.
2. Identify the local automation station, remote stations, and communication path associated with the module.
3. Isolate the relevant control cabinet section according to the site’s electrical safety procedure.
4. Inspect the communication module and connection interfaces for visible damage or contamination.
5. Install the module in the specified automation station position.
6. Ensure the module is properly seated and mechanically secured.
7. Connect the communication interfaces according to the approved system and network documentation.
8. Verify the configured local and remote communication parameters before commissioning.
9. Check the PLC and communication configuration for consistency with the remote station architecture.
10. Energize the system and inspect module diagnostics and communication status.
11. Verify data exchange with the remote station and check for communication interruptions or diagnostic events.
12. Record the module identification, communication configuration, remote station information, and maintenance history for future service work.

Related Components

Recommended Related Models

Key Advantages

• Provides dedicated communication capability for distributed automation applications.
• Connects local PLC systems with geographically separated automation stations.
• Supports centralized monitoring of remote process installations.
• Suitable for infrastructure and utility automation architectures.
• Separates remote communication functions from local PLC control logic.
• Fits SIPLUS-based industrial automation systems requiring enhanced environmental suitability.

Technical FAQs

What is the primary purpose of the TIM 1531 IRC?

The TIM 1531 IRC serves as a communication interface for distributed automation systems. It enables local automation equipment to exchange process information with remote stations through the configured industrial communication architecture.

Where is this communication module typically used?

It is particularly suited to distributed installations such as water and wastewater systems, pumping stations, utility infrastructure, and remote process facilities where automation stations are separated geographically.

Does the TIM 1531 IRC replace the PLC?

No. The module handles communication functions, while the PLC remains responsible for local application logic and process control. The communication module and controller therefore perform different functions within the automation architecture.

What should be checked when communication with a remote station is interrupted?

Check the module installation, communication connections, local and remote configuration, network path, module diagnostics, and the status of the remote automation station. Comparing the configured communication parameters at both ends is also useful when troubleshooting a communication fault.
