- Siemens
- 6AG1542-5DX00-7XE0
- PROFIBUS Communication Module
- Germany
- 35 × 142 × 129 mm
- 0.382 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 35
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

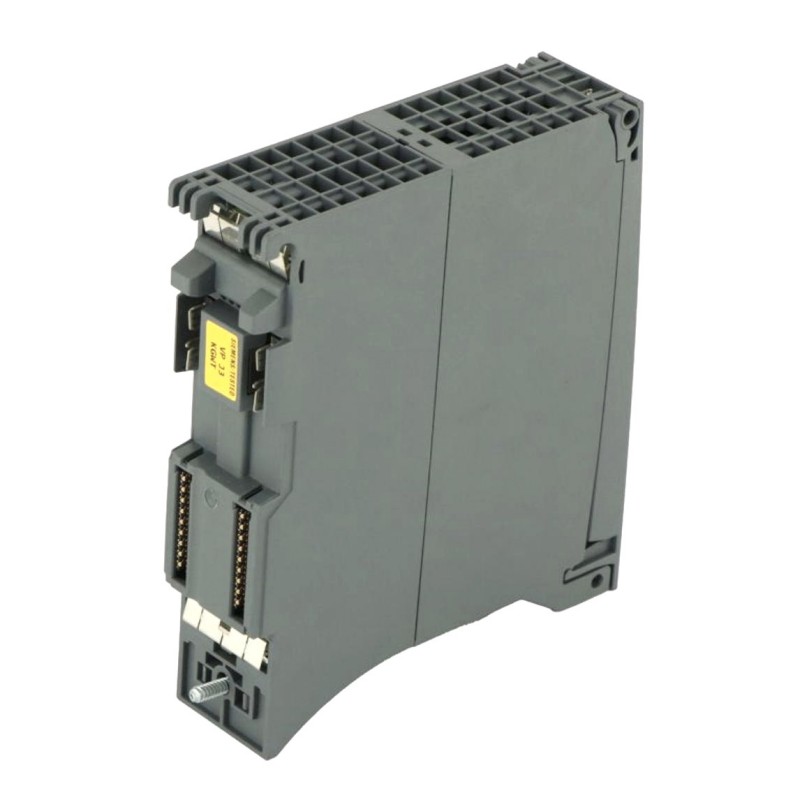

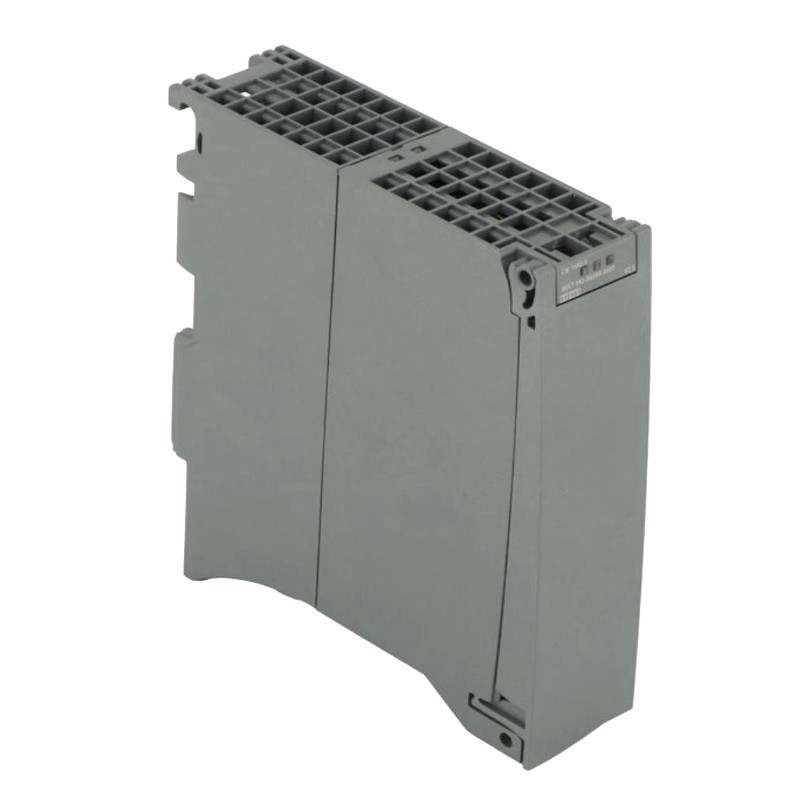

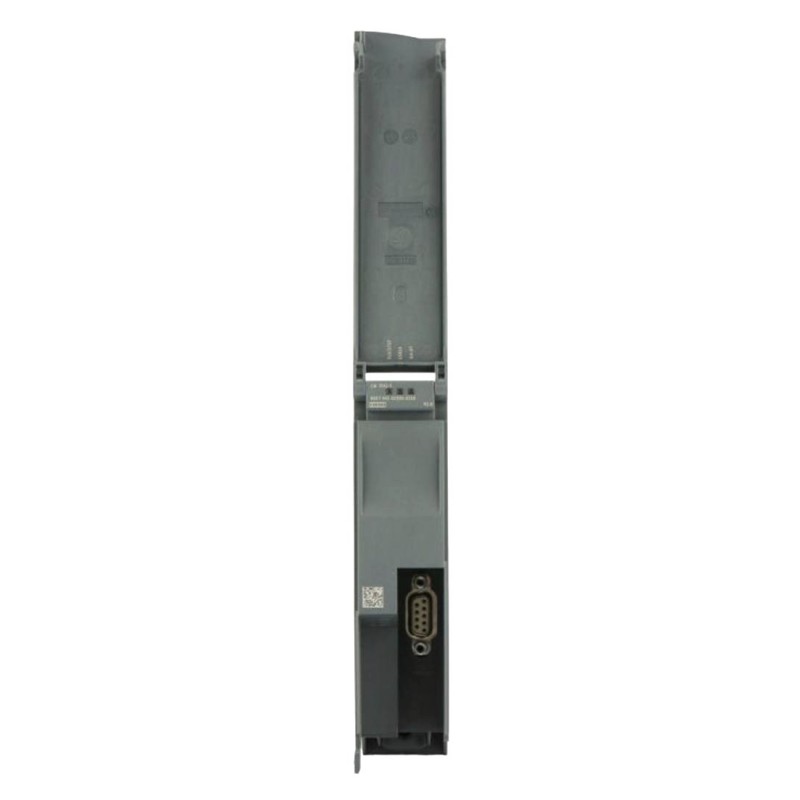

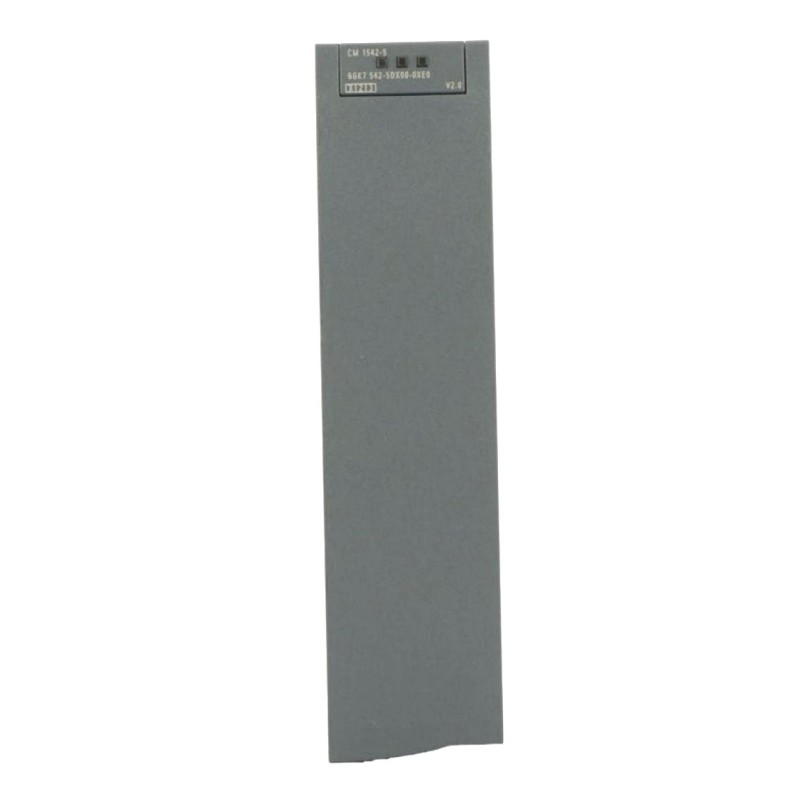

The Siemens 6AG1542-5DX00-7XE0 is a SIPLUS S7-1500 PROFIBUS communication module used to connect an S7-1500 automation system with PROFIBUS-based field devices and distributed automation equipment. It extends the controller’s communication architecture with a dedicated PROFIBUS interface while remaining integrated with the S7-1500 station.
In a typical control installation, the module forms the communication link between the S7-1500 CPU and devices located elsewhere in the automation network. These devices can include distributed I/O stations, drives, field equipment, and other compatible PROFIBUS nodes. The module handles the PROFIBUS communication interface, while the S7-1500 CPU remains responsible for application logic and overall control functions.
The SIPLUS designation makes this module particularly relevant to industrial installations where the S7-1500 platform is used in environments requiring enhanced environmental suitability. It can be applied in new control cabinets as well as modernization projects where PROFIBUS equipment remains part of the existing automation architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Model | 6AG1542-5DX00-7XE0 |
| Product Type | PROFIBUS Communication Module |
| Product Family | SIPLUS S7-1500 |
| Series | S7-1500 |
| Communication System | PROFIBUS |
| Communication Function | PROFIBUS Network Interface |
| System Role | Fieldbus Communication Interface |
| Primary Function | Data Exchange with PROFIBUS Devices |
| System Integration | S7-1500 Automation System |
| Network Application | Distributed Automation and Field Device Communication |
| Installation | S7-1500 Station |
| Dimensions | 35 × 142 × 129 mm |
| Weight | 0.382 kg |
Product Features
- Designed for PROFIBUS communication within the Siemens SIPLUS S7-1500 platform.
- Provides a dedicated fieldbus interface for compatible PROFIBUS equipment.
- Connects the S7-1500 controller with distributed devices and field-level components.
- Supports integration of PROFIBUS-based automation architectures.
- Suitable for installations that combine modern S7-1500 control hardware with established PROFIBUS networks.
- Can be used for system expansion and modernization where existing PROFIBUS devices must remain in service.
- Works as a communication interface rather than an independent PLC controller.
- SIPLUS product family is intended for industrial applications with enhanced environmental requirements.
Working Principle
The 6AG1542-5DX00-7XE0 acts as the communication interface between the S7-1500 station and the PROFIBUS network. The controller application determines the required process data, while the communication module manages the exchange of that data with connected PROFIBUS devices.
During cyclic or configured communication, data from distributed field devices is transferred through the PROFIBUS network to the communication module. The module passes the received information into the S7-1500 system, where the CPU and application program can use it for control, monitoring, sequencing, or diagnostics.
PROFIBUS Devices → PROFIBUS Network → 6AG1542-5DX00-7XE0 → S7-1500 Station → CPU / PLC Program
For outgoing data, the direction is reversed. The S7-1500 application determines the required output or command data, which is transferred through the communication module and PROFIBUS network to the corresponding field device.
This arrangement separates the fieldbus communication function from the PLC’s core processing task. The module manages the PROFIBUS interface, while the controller handles the application-specific interpretation and use of the exchanged process data.
Role in a Siemens S7-1500 Control Architecture
The 6AG1542-5DX00-7XE0 occupies the fieldbus communication layer of an S7-1500 automation system. It provides the interface required for connecting the controller station to PROFIBUS-based distributed equipment and field-level devices.
| System Layer | Typical Component | Function |
|---|---|---|
| Process Control | S7-1500 CPU | Executes PLC logic and process control functions |
| Fieldbus Communication | 6AG1542-5DX00-7XE0 | Provides the PROFIBUS communication interface |
| Network | PROFIBUS Network | Transfers data between the controller station and field devices |
| Distributed I/O | PROFIBUS I/O Station | Collects or executes field-level signals |
| Field Interface | Sensors / Actuators / Drives | Supplies process information or receives control commands |
| Engineering | TIA Portal | Configures the S7-1500 station and communication architecture |
| Process | Industrial Equipment | Performs the physical production or machine operation |
Industrial Applications
| Application | Communication Role |
|---|---|
| Process Automation | Connects the S7-1500 controller with distributed PROFIBUS field equipment |
| Factory Automation | Supports communication with PROFIBUS-based machine and I/O devices |
| Distributed I/O Systems | Provides the controller-side interface for remote I/O communication |
| Drive Systems | Connects compatible PROFIBUS drives and associated automation equipment |
| Manufacturing Lines | Exchanges control and diagnostic data with distributed production equipment |
| Chemical Processing | Integrates PROFIBUS field devices into centralized PLC control |
| Power and Utility Systems | Supports field-level communication within established automation architectures |
| System Modernization | Allows S7-1500 systems to integrate with existing PROFIBUS infrastructure |
Installation and Maintenance
- Confirm that the 6AG1542-5DX00-7XE0 is suitable for the intended S7-1500 and PROFIBUS architecture before installation.
- Review the PROFIBUS network documentation and identify the devices that will communicate through the module.
- Isolate the relevant control cabinet section according to the plant’s electrical safety procedure.
- Inspect the module and communication interface for visible mechanical damage or contamination.
- Install the module in the appropriate S7-1500 station position.
- Ensure the module is properly seated and mechanically secured.
- Connect the PROFIBUS network cable according to the approved wiring documentation.
- Verify the network configuration and device addressing before placing the system into operation.
- Configure the communication functions and associated hardware in the engineering environment.
- Energize the system and check the module and network diagnostics for communication faults.
- Verify that configured PROFIBUS devices exchange the expected process and diagnostic data with the S7-1500 controller.
- Record the module identification, network configuration, connected devices, and maintenance information for future service work.
Related Components
| Component | Function in the System |
|---|---|
| Siemens S7-1500 CPU | Executes the PLC application and process control logic |
| SIPLUS S7-1500 I/O Modules | Provide local process signal interfaces |
| PROFIBUS Network | Provides fieldbus communication between the controller and distributed devices |
| PROFIBUS Distributed I/O | Extends process I/O away from the main controller station |
| PROFIBUS Drive | Exchanges drive-related control and status data with the automation system |
| PROFIBUS Connector / Bus Cable | Provides the physical network connection |
| TIA Portal | Used for hardware configuration, programming, and diagnostics |
| Industrial Control Cabinet | Houses the S7-1500 station and associated automation hardware |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1541-1AD00-7AB0 | SIPLUS S7-1500 Communication Module | Related communication module for the same SIPLUS S7-1500 platform |
| Siemens 6AG1541-1AB00-7AB0 | SIPLUS S7-1500 Communication Module | Related communication interface within the S7-1500 family |
| Siemens 6AG1540-1AB00-7AA0 | SIPLUS S7-1500 Communication Module | Related serial communication module for external device integration |
| Siemens 6AG1540-1AD00-7AA0 | SIPLUS S7-1500 Communication Module | Related S7-1500 serial communication solution |
| Siemens SIPLUS S7-1500 I/O Modules | SIPLUS I/O Module | Associated I/O hardware for the same automation platform |
Key Advantages
- Adds dedicated PROFIBUS communication capability to an S7-1500 automation station.
- Connects the controller with compatible distributed PROFIBUS equipment.
- Supports field-level data exchange within established industrial automation networks.
- Useful for S7-1500 modernization projects involving existing PROFIBUS infrastructure.
- Separates fieldbus communication from the CPU’s core control processing.
- Fits the modular communication architecture of the SIPLUS S7-1500 platform.
Technical FAQs
What is the main purpose of the 6AG1542-5DX00-7XE0?
It provides a PROFIBUS communication interface for the SIPLUS S7-1500 platform. The module allows the S7-1500 station to exchange data with compatible PROFIBUS field devices and distributed automation equipment.
Can the module be used with distributed I/O?
Yes. A PROFIBUS communication module can serve as the controller-side interface for compatible distributed I/O equipment. The exact devices and network configuration should be verified against the intended S7-1500 hardware and PROFIBUS architecture.
What is the difference between this module and a serial communication module?
The 6AG1542-5DX00-7XE0 is intended for PROFIBUS fieldbus communication, whereas S7-1500 serial communication modules are used for point-to-point or serial device communication. The appropriate module depends on the interface used by the external equipment.
What should be checked if PROFIBUS communication fails?
Check the module installation, PROFIBUS cabling and connectors, network configuration, device addressing, configured hardware, and diagnostic information. The connected field devices should also be checked to determine whether the fault is local to one device or affects the wider communication network.
