Product Overview

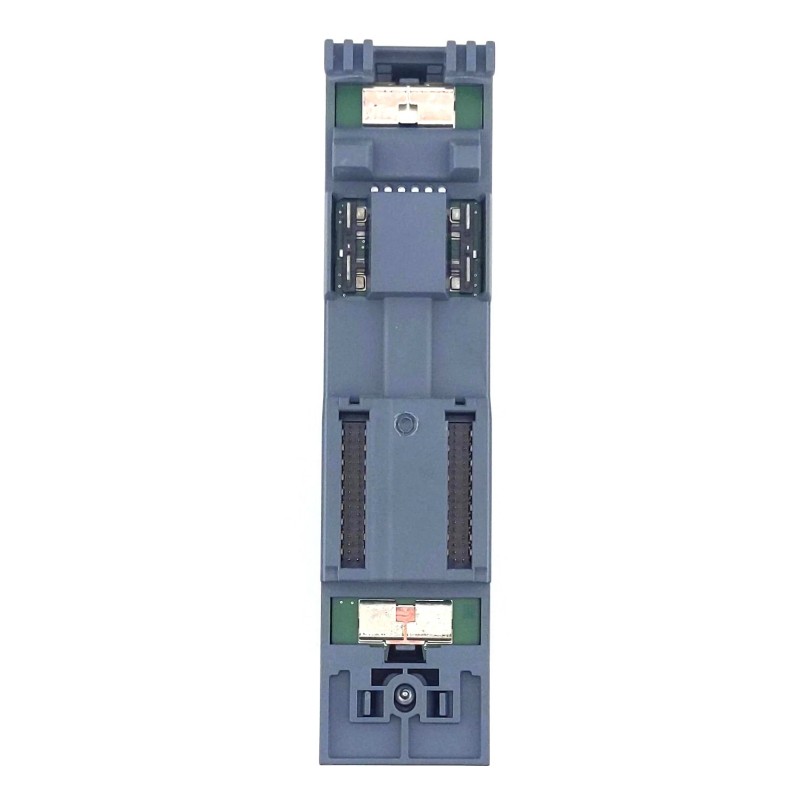

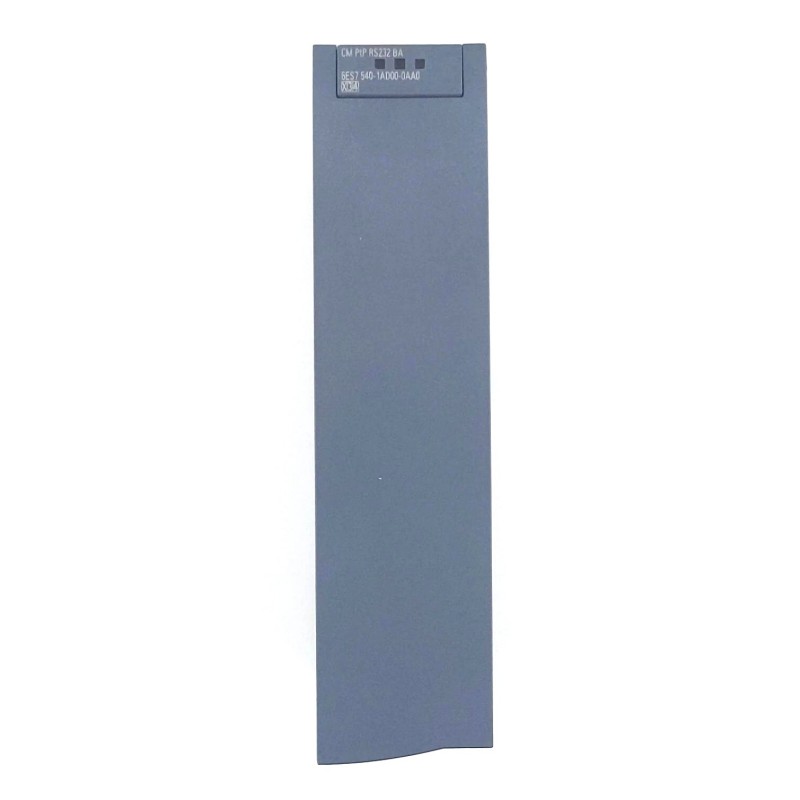

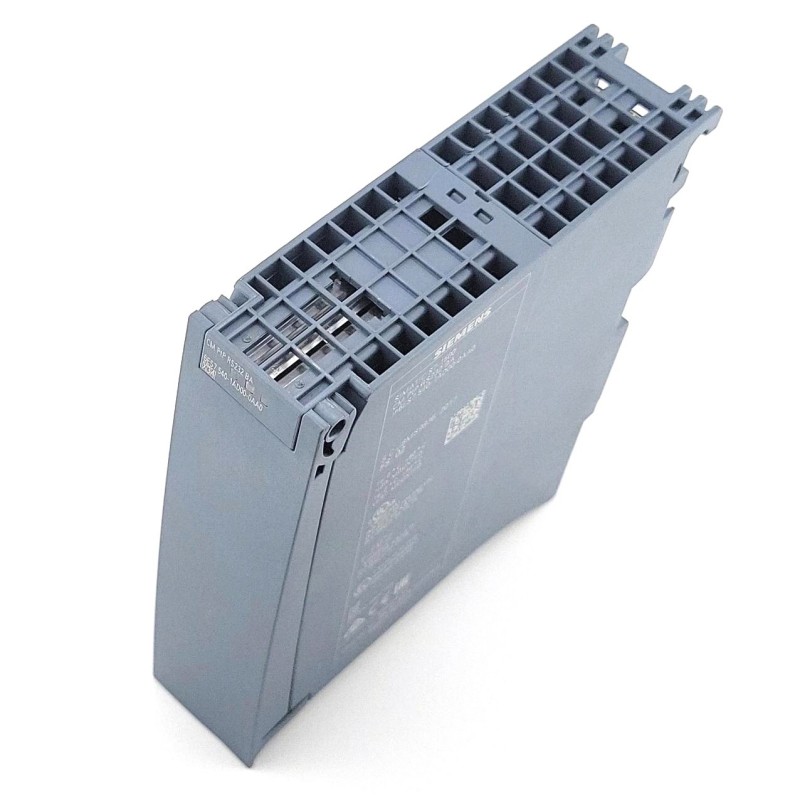

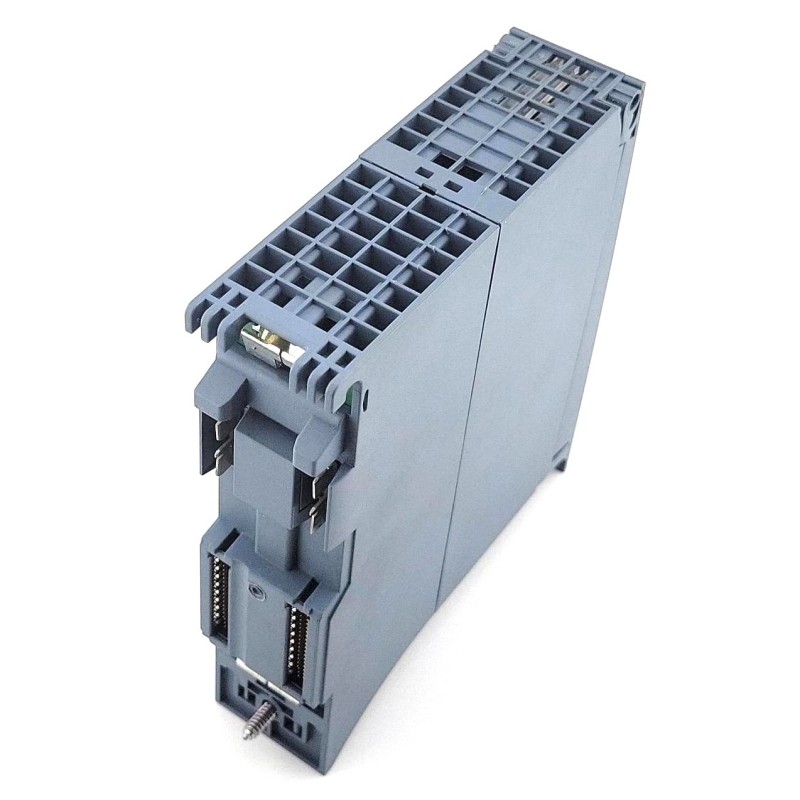

The Siemens 6AG1540-1AD00-7AA0 is a SIPLUS S7-1500 communication module used for point-to-point serial communication. It provides an RS232 interface for connecting an S7-1500 automation station with compatible external devices that use serial data communication.
This type of communication interface is useful when the PLC must exchange structured information with equipment that is not connected through a standard industrial Ethernet network. Depending on the application, the communication partner may be a serial instrument, controller, measurement device, printer, modem, or other automation equipment.
The module belongs to the S7-1500 CM PtP communication architecture. The SIPLUS version is intended for applications where the S7-1500 system is deployed in enhanced-environment industrial conditions. It can be integrated into new automation projects as well as maintenance and modernization work involving existing S7-1500 installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1540-1AD00-7AA0 |
| Product Type | Communication Module |
| Product Family | SIPLUS S7-1500 |
| Automation Platform | Siemens S7-1500 |
| Module Designation | CM PtP RS232 BA |
| Communication Type | Point-to-Point Serial Communication |
| Serial Interface | RS232 |
| Communication Mode | Serial Data Exchange |
| Application | External Device Communication |
| System Integration | SIMATIC S7-1500 / ET 200MP |
| Communication Role | Serial Interface |
| Typical Communication Partners | Instruments / Controllers / Serial Devices |
| Environmental Application | Enhanced-Environment Industrial Applications |
| Dimensions | 35 × 147 × 127 mm |
| Weight | 0.27 kg |
Product Features
- Siemens SIPLUS S7-1500 communication module for point-to-point serial applications.
- Provides an RS232 interface for compatible external equipment.
- Extends the S7-1500 automation system with dedicated serial communication capability.
- Suitable for exchanging structured data between the PLC and external serial devices.
- Can be used with instruments, controllers, and other equipment requiring an RS232 connection.
- Integrates into the modular S7-1500 communication architecture.
- Suitable for applications involving legacy or serial-enabled equipment.
- SIPLUS construction supports deployment in enhanced-environment industrial applications.
Working Principle
The 6AG1540-1AD00-7AA0 acts as a communication interface between the S7-1500 CPU and an external RS232 device. Unlike an I/O module, it does not primarily acquire individual process signals or generate analog/digital field outputs. Its task is to exchange serial data.
1. Data preparation
The S7-1500 CPU and user application determine what information needs to be transmitted. This can include commands, equipment parameters, measurements, status information, or other application data.
2. Communication transfer
The PLC application passes the required communication data to the point-to-point communication module through the S7-1500 system architecture.
3. RS232 transmission
The module sends the configured serial data through its RS232 interface to the connected device. Data received from the external device travels in the opposite direction through the same communication path.
4. Protocol and message handling
The communication behavior depends on the configured serial communication method and application program. The PLC can use the received messages to interpret equipment status, measurements, responses, or other information.
5. Application processing
After reception, the S7-1500 CPU processes the communication data according to the PLC program. The information can then be used for control logic, diagnostics, monitoring, data logging, or operator visualization.
Role in a SIPLUS S7-1500 Communication Architecture
The 6AG1540-1AD00-7AA0 occupies the serial communication layer of the automation system. It provides a dedicated RS232 connection between the S7-1500 platform and external serial equipment while the CPU remains responsible for application-level processing and control logic.
| System Layer | Typical Component | Function |
|---|---|---|
| Automation Control | S7-1500 CPU | Executes application logic and manages data processing |
| System Interface | S7-1500 Backplane | Transfers data between the CPU and communication module |
| Serial Communication | 6AG1540-1AD00-7AA0 | Provides the RS232 point-to-point interface |
| Communication Wiring | RS232 Cable | Carries serial data between the module and external equipment |
| External Equipment | Instrument / Controller / Serial Device | Exchanges data with the S7-1500 |
| Application Layer | PLC Program | Interprets received data and prepares outgoing messages |
| Operator Layer | HMI / SCADA | Displays equipment information and process data |
Industrial Applications
| Application | Module Role |
|---|---|
| Machine Automation | Connects serial machine equipment with the S7-1500 controller |
| Process Instrumentation | Exchanges data with compatible serial measurement devices |
| Equipment Integration | Provides an interface for serial equipment within an S7-1500 project |
| Manufacturing Systems | Links legacy serial devices with modern PLC control |
| Test and Measurement | Transfers measurement or equipment status data through RS232 |
| Utility Systems | Supports serial communication with compatible controllers and instruments |
| System Modernization | Helps integrate existing serial equipment into an S7-1500 automation architecture |
Installation and Maintenance
- Verify that the 6AG1540-1AD00-7AA0 is suitable for the intended S7-1500 or ET 200MP station.
- Confirm that the external communication partner uses a compatible RS232 interface.
- Isolate the relevant control cabinet and communication equipment according to the applicable safety procedure.
- Inspect the communication module and connector area for visible mechanical damage.
- Verify the RS232 cable wiring and signal assignment against the equipment documentation.
- Confirm the communication protocol and message structure required by the external device.
- Install the module correctly within the S7-1500 station and verify its connection to the system backplane.
- Secure the serial connection and ensure the communication cable is routed without unnecessary mechanical stress.
- Configure the module and communication parameters in the applicable Siemens engineering environment.
- Test communication in both directions and verify that transmitted and received data correspond to the application requirements.
- If communication fails, check the RS232 wiring, communication parameters, protocol configuration, external-device settings, and PLC diagnostics systematically.
- Record the communication partner, interface configuration, protocol, and relevant project settings for future maintenance.
Related Components
| Component | Function in the System |
|---|---|
| Siemens S7-1500 CPU | Executes PLC logic and processes communication data |
| Siemens SIPLUS S7-1500 RS422/485 Communication Module | Provides a related serial communication interface |
| ET 200MP Station | Provides a compatible modular automation architecture |
| RS232 Cable | Connects the communication module with the external serial device |
| Serial Instrument | Exchanges measurements and status information with the PLC |
| Serial Controller | Acts as an external communication partner |
| HMI / SCADA System | Displays data obtained from serial equipment |
| PLC Communication Instructions | Manage serial data exchange within the S7-1500 application |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1540-1AB00-7AA0 | SIPLUS S7-1500 Communication Module | Related CM PtP module for RS422/RS485 serial communication |
| Siemens 6AG1541-1AD00-7AB0 | SIPLUS S7-1500 Communication Module | Related SIPLUS serial communication hardware |
| Siemens 6AG1541-1AB00-7AB0 | SIPLUS S7-1500 Communication Module | Related SIPLUS point-to-point communication module |
| Siemens 6AG1542-5DX10-7XE0 | SIPLUS S7-1500 Communication Module | Related S7-1500 communication hardware |
| Siemens 6AG1543-1AX00-2XE0 | SIPLUS S7-1500 Communication Processor | Related SIPLUS network communication hardware |
Key Advantages
- Adds dedicated RS232 serial communication to a SIPLUS S7-1500 system.
- Provides a direct interface for compatible external serial devices.
- Supports integration of serial instruments and legacy automation equipment.
- Separates serial communication tasks from the PLC’s standard process I/O.
- Fits into the modular S7-1500 automation architecture.
- Suitable for maintenance, modernization, and new system integration projects.
Technical FAQs
What type of communication does the 6AG1540-1AD00-7AA0 provide?
The module provides point-to-point serial communication through an RS232 interface. It is intended for exchanging data between the S7-1500 system and a compatible external serial device.
When would an RS232 communication module be used instead of an RS422/RS485 module?
The selection depends on the physical interface of the communication partner and the required communication architecture. If the external device specifically uses RS232, an RS232-capable module is appropriate; RS422/RS485 applications require the corresponding interface hardware.
Can the module communicate with third-party serial equipment?
It can be used to interface with compatible external serial equipment when the electrical interface, communication parameters, protocol, and message structure are supported by the complete application. Compatibility should be verified for the specific device before implementation.
What are the first checks when serial communication stops working?
Check the RS232 cable and connections first, followed by communication parameters, protocol settings, external-device configuration, PLC communication instructions, and module diagnostics. A mismatch in message format or communication parameters can prevent otherwise functional equipment from exchanging data.
