Product Overview

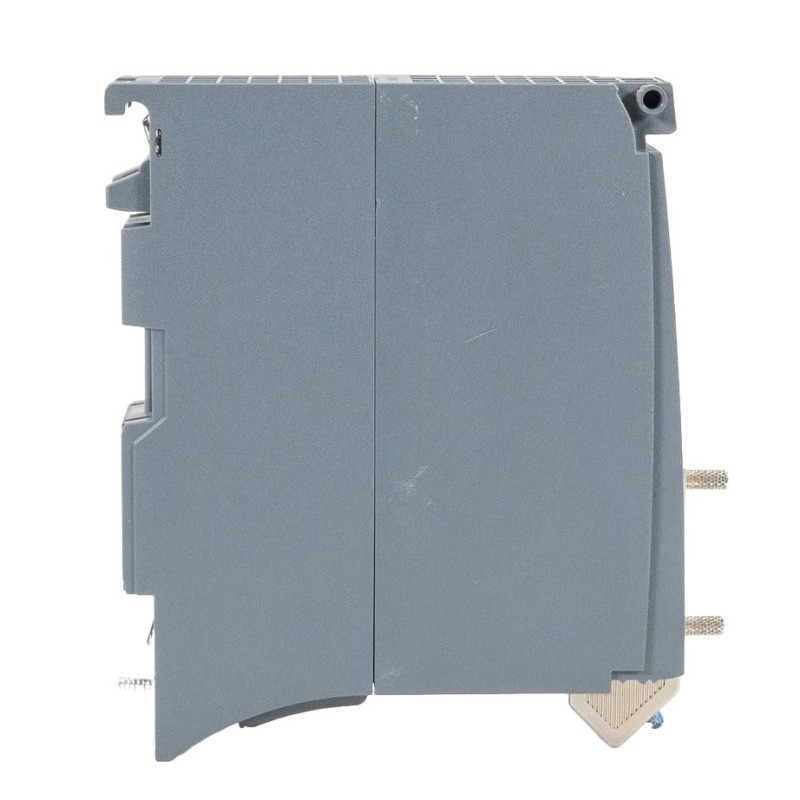

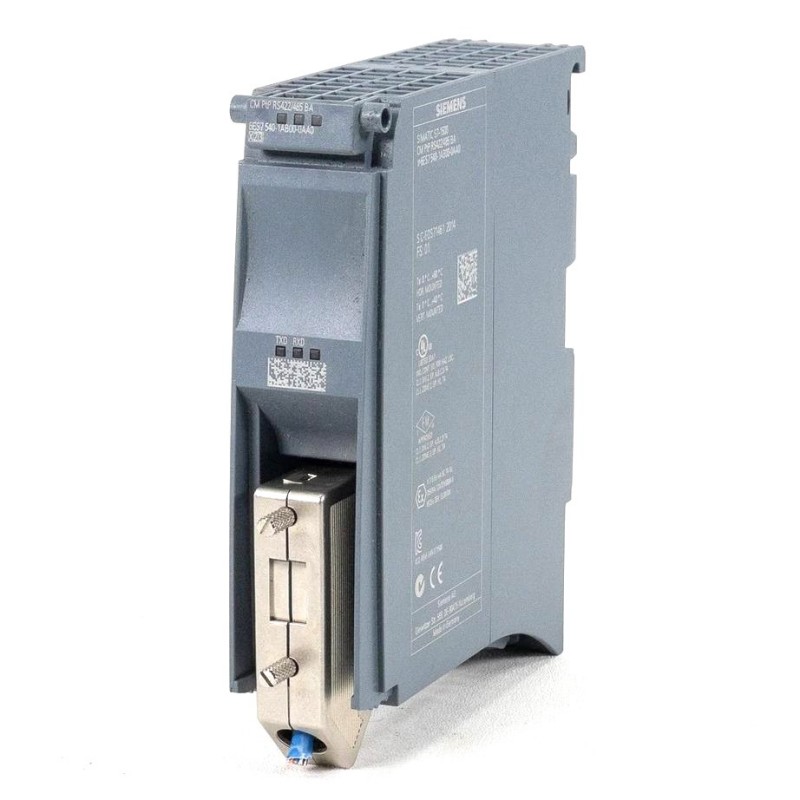

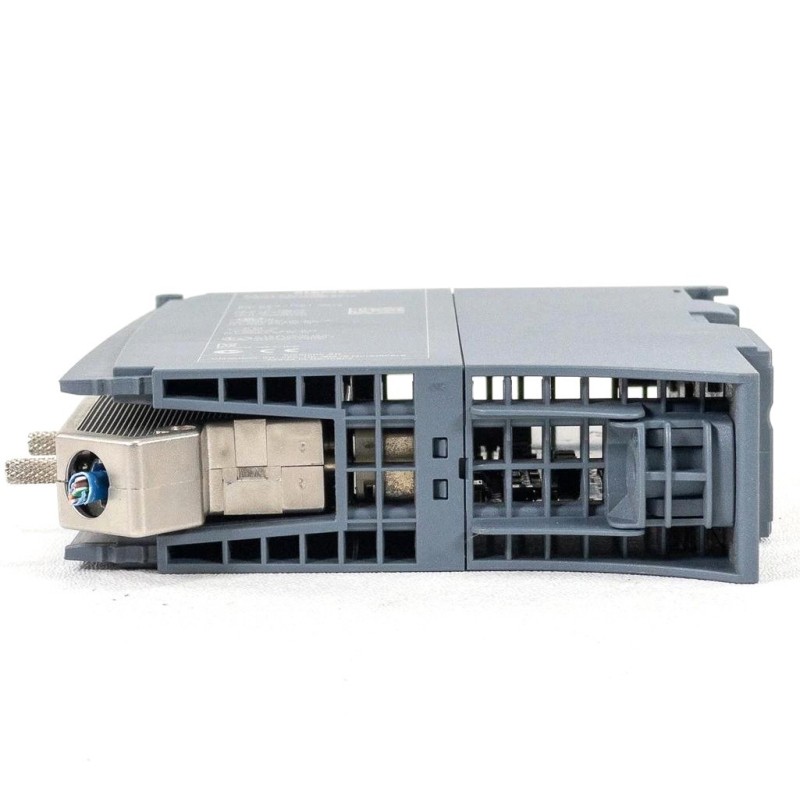

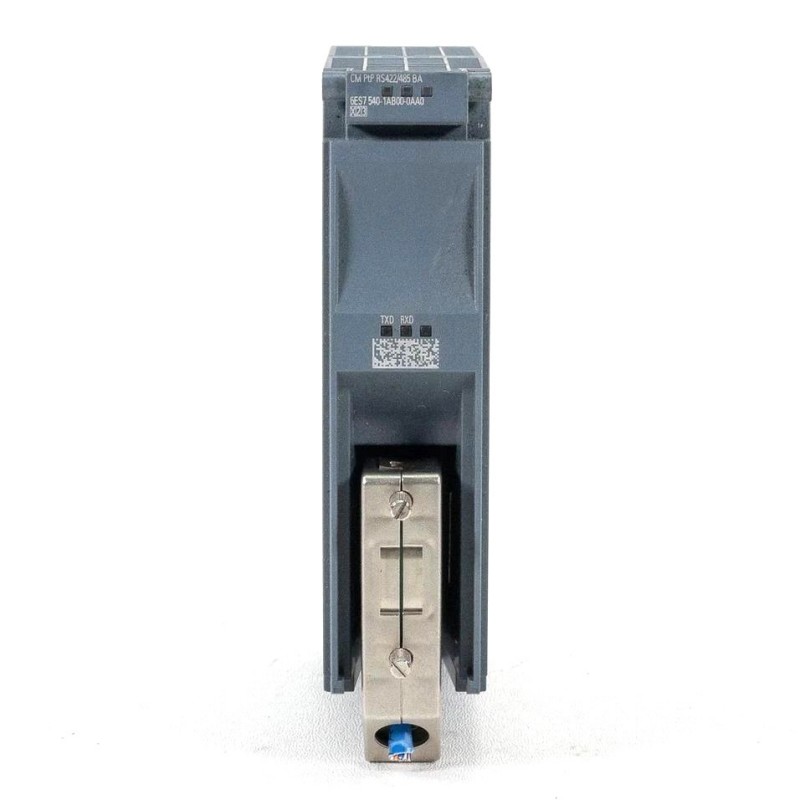

The Siemens 6AG1540-1AB00-7AA0 is a SIPLUS S7-1500 communication module for point-to-point serial communication. It is based on the S7-1500 CM PtP RS422/485 platform and provides a serial interface for connecting the PLC system with external devices and equipment that communicate through RS422 or RS485.
Unlike a standard analog or digital I/O module, the 6AG1540-1AB00-7AA0 transfers structured data rather than individual process signals. This makes it useful for applications where an S7-1500 controller needs to exchange data with serial instruments, controllers, meters, drives, or other automation equipment.
The module supports communication functions associated with the S7-1500 point-to-point communication architecture, including Freeport communication and protocol-oriented applications such as 3964(R) and USS. It is also associated with Modbus RTU and other serial communication tasks depending on the configured application and Siemens communication instructions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1540-1AB00-7AA0 |
| Product Type | Communication Module |
| Product Family | SIPLUS S7-1500 |
| Standard Model | 6ES7540-1AB00-0AA0 |
| Module Designation | SIPLUS S7-1500 CM PtP RS422/485 BA |
| Communication Type | Point-to-Point Serial Communication |
| Serial Interfaces | RS422 / RS485 |
| Communication Functions | Freeport / 3964(R) / USS |
| Application | Serial Device Communication |
| System Integration | SIMATIC S7-1500 / ET 200MP |
| Connector | 15-Pin D-Sub Female Connector |
| Electrical Isolation | Potential Separation |
| Environmental Design | Conformal-Coated SIPLUS Version |
| Dimensions | 35 × 147 × 127 mm |
| Weight | 0.272 kg |
Product Features
- Siemens SIPLUS S7-1500 communication module for serial point-to-point applications.
- Provides RS422 and RS485 communication interfaces for compatible external devices.
- Supports Freeport communication for user-defined serial data exchange.
- Supports protocol-oriented communication functions including 3964(R) and USS.
- Can be used as a serial communication interface within an S7-1500 automation station.
- Suitable for communication with external instruments, controllers, drives, and other serial devices.
- Based on the S7-1500 CM PtP RS422/485 BA architecture.
- SIPLUS version uses conformal coating for enhanced environmental application requirements.
Working Principle
The 6AG1540-1AB00-7AA0 operates as a serial communication interface between the S7-1500 automation system and an external device.
1. Data preparation
The S7-1500 CPU prepares the data that needs to be transmitted. Depending on the application, this can include commands, parameter values, equipment status information, measurements, or other structured data.
2. Transfer to the communication module
The CPU exchanges communication data with the CM PtP module through the S7-1500 system architecture. The communication module handles the serial interface rather than performing the application control itself.
3. Serial transmission
The module sends the data through its RS422 or RS485 interface to the connected external device. The same interface can receive serial data from the external equipment and make it available to the S7-1500 application.
4. Protocol handling
The communication method depends on the application configuration. Freeport can be used where the user application manages the serial data structure, while supported protocol functions can be used for established communication methods.
5. PLC application processing
Received information is passed back to the S7-1500 application. The CPU can then use the data for equipment monitoring, parameter management, control decisions, diagnostics, or operator visualization.
Role in a SIPLUS S7-1500 Communication Architecture
The module occupies the serial communication layer between the S7-1500 control system and external serial equipment. It extends the PLC beyond its local I/O architecture by providing a dedicated interface for equipment that communicates through RS422 or RS485.
| System Layer | Typical Component | Function |
|---|---|---|
| Automation Control | S7-1500 CPU | Executes application logic and communication management |
| System Interface | S7-1500 Backplane | Transfers data between the CPU and communication module |
| Serial Communication | 6AG1540-1AB00-7AA0 | Provides RS422/RS485 serial communication |
| Field Communication | Serial Cable / Network Wiring | Connects the module with external equipment |
| External Device | Instrument / Drive / Controller | Exchanges application data with the PLC |
| Application Layer | PLC Program | Interprets received data and generates communication commands |
| Operator Layer | HMI / SCADA | Displays or uses information obtained from connected devices |
Industrial Applications
| Application | Module Role |
|---|---|
| Machine Automation | Exchanges serial data between the S7-1500 and machine equipment |
| Process Instrumentation | Connects compatible serial instruments to the PLC system |
| Drive Communication | Provides a serial interface for compatible drive and controller applications |
| Energy Systems | Exchanges operating and measurement data with serial equipment |
| Manufacturing Equipment | Links legacy or serial-enabled devices with an S7-1500 controller |
| Equipment Integration | Connects third-party serial devices to the automation architecture |
| Data Acquisition | Transfers structured measurement and status information into the PLC application |
Installation and Maintenance
- Confirm that the 6AG1540-1AB00-7AA0 matches the intended S7-1500 or ET 200MP communication architecture.
- Verify whether the connected equipment requires RS422 or RS485 communication before installation.
- Isolate the relevant control cabinet and communication circuits according to the applicable plant safety procedure.
- Check the module and communication connector for visible damage before installation.
- Verify the serial wiring and signal assignment against the equipment documentation.
- Confirm that the selected communication protocol matches the external device and PLC application.
- Install the communication module correctly in the S7-1500 station and verify its system connection.
- Secure the 15-pin D-Sub communication connection and check the cable for mechanical damage.
- Configure the communication parameters and module settings in the applicable Siemens engineering environment.
- Test data transmission in both directions and confirm that the PLC application receives the expected information.
- If communication fails, check the protocol configuration, interface selection, wiring, device addressing where applicable, and communication diagnostics systematically.
- Record the connected device, serial interface, communication protocol, and relevant configuration parameters for future maintenance.
Related Components
| Component | Function in the System |
|---|---|
| Siemens S7-1500 CPU | Executes PLC application logic and manages communication tasks |
| ET 200MP Station | Provides a compatible modular I/O and communication architecture |
| RS422 / RS485 Field Wiring | Carries serial communication between the module and external equipment |
| Serial Instrument | Exchanges measurement or status data with the PLC |
| Drive / Controller | Provides serial equipment data and receives commands where supported |
| HMI | Displays communication-derived equipment and process information |
| PLC Communication Instructions | Handle the configured serial communication functions within the S7-1500 application |
| External Serial Device | Acts as the communication partner for the CM PtP interface |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1540-1AD00-7AA0 | SIPLUS S7-1500 CM PtP RS232 Communication Module | Related serial communication module using RS232 |
| Siemens 6AG1541-1AB00-7AB0 | SIPLUS S7-1500 CM PtP RS422/485 Communication Module | Related higher-performance SIPLUS serial communication module |
| Siemens 6AG1541-1AD00-7AB0 | SIPLUS S7-1500 CM PtP RS232 Communication Module | Related SIPLUS serial communication module |
| Siemens 6AG1542-5DX10-7XE0 | SIPLUS S7-1500 CM 1542-5 Communication Module | Related S7-1500 communication hardware |
| Siemens 6AG1543-1AX00-2XE0 | SIPLUS NET CP 1543-1 Communication Processor | Related SIPLUS network communication hardware |
Key Advantages
- Adds dedicated serial communication capability to SIPLUS S7-1500 systems.
- Supports RS422 and RS485 communication with compatible external equipment.
- Provides a practical interface for integrating serial instruments and controllers.
- Supports Freeport and established serial communication functions.
- Helps connect serial equipment that is not directly integrated through the PLC’s standard network interfaces.
- Fits into the modular S7-1500 automation architecture.
Technical FAQs
What is the difference between the 6AG1540-1AB00-7AA0 and an analog I/O module?
An analog I/O module handles process signals such as measurements or control outputs, while the 6AG1540-1AB00-7AA0 exchanges structured serial data with external equipment. It is therefore a communication interface rather than a conventional process I/O channel.
Which serial interfaces are provided by the 6AG1540-1AB00-7AA0?
The module is the SIPLUS S7-1500 CM PtP RS422/485 BA version and provides serial RS422 and RS485 interfaces. Siemens identifies the module as a point-to-point communication module based on the 6ES7540-1AB00-0AA0 standard model.
What communication protocols can be used with this module?
The module supports Freeport communication and functions associated with 3964(R) and USS. Serial applications can also involve Modbus RTU depending on the communication configuration and Siemens application instructions. The exact protocol implementation should be matched to the connected device and project configuration.
What should be checked when a serial device cannot communicate with the PLC?
Check the RS422/RS485 wiring, interface selection, communication parameters, protocol configuration, connected-device settings, and PLC communication diagnostics. The physical serial connection should also be checked before troubleshooting the application program.
