Product Overview

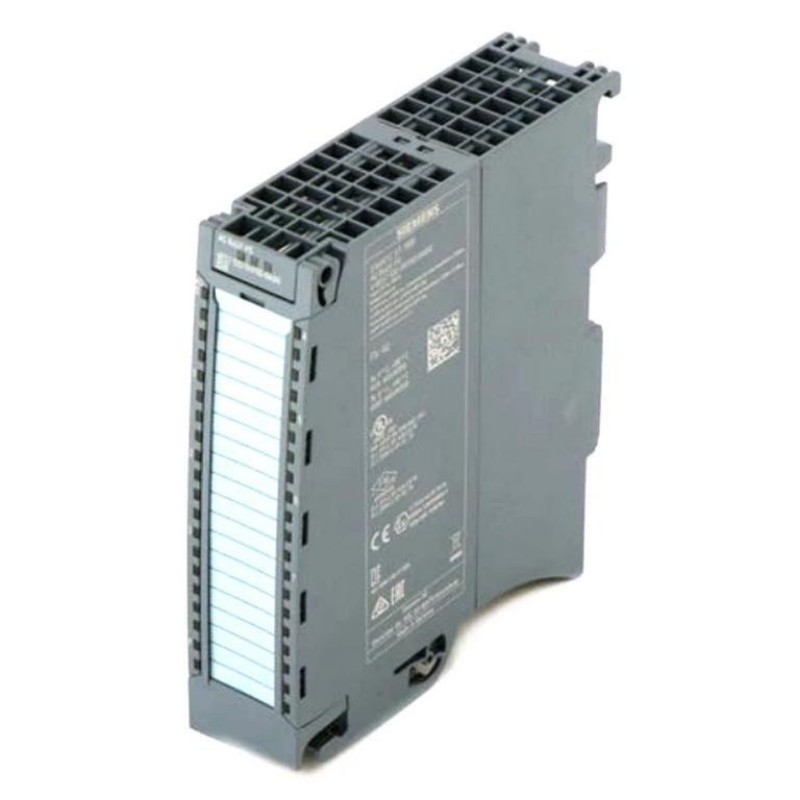

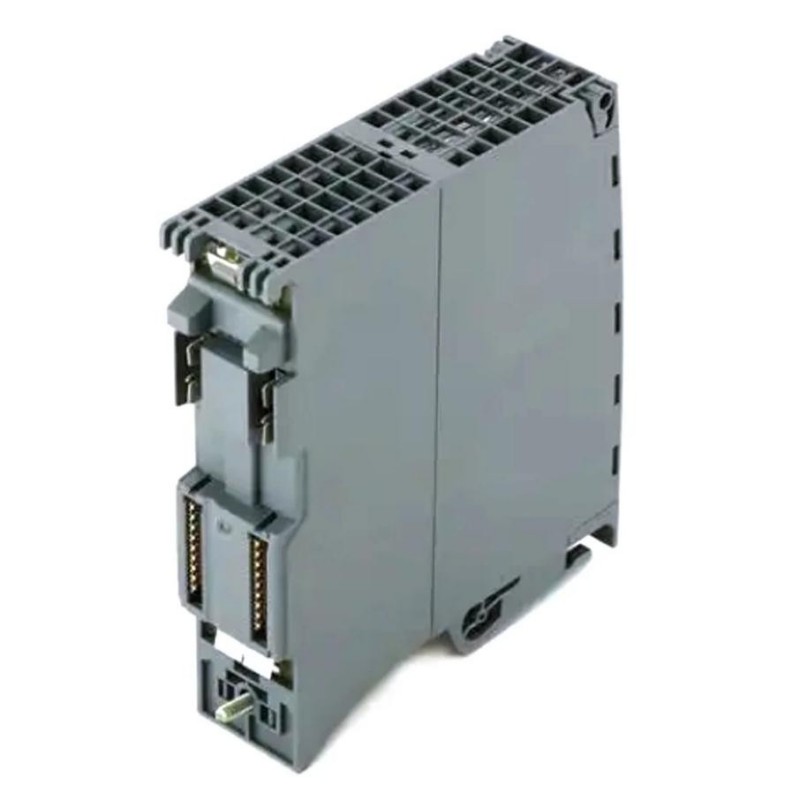

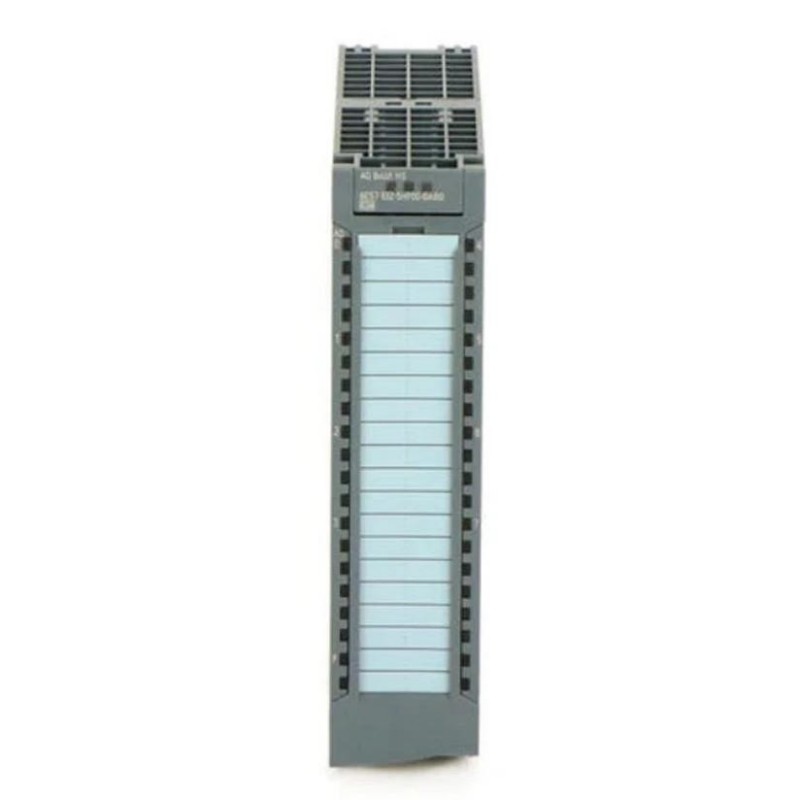

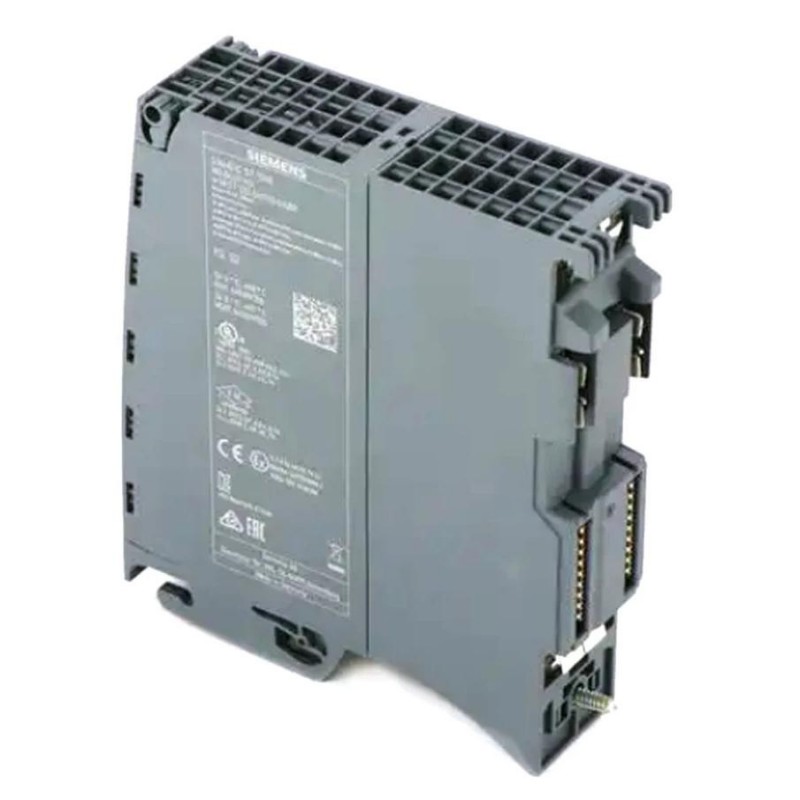

The Siemens 6AG1532-5HF00-7AB0 is a SIPLUS S7-1500 analog output module used to transfer continuous control commands from the PLC to field-level equipment. It forms part of the output side of an S7-1500 automation station, where digital values generated by the CPU are converted into analog signals for connected actuators and process devices.
A common application begins with a process measurement entering the PLC through an analog input module. The S7-1500 CPU evaluates that information against the programmed control strategy and calculates an output value. The 6AG1532-5HF00-7AB0 then handles the analog output stage, sending the resulting command through the field wiring to the associated actuator.
The module is suited to SIPLUS S7-1500 installations where analog output capability is required as part of machine or process automation. It can also be considered for maintenance and expansion projects in which the existing S7-1500 architecture and engineering structure are retained.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1532-5HF00-7AB0 |
| Product Type | Analog Output Module |
| Product Family | SIPLUS S7-1500 |
| Automation Platform | Siemens S7-1500 |
| Module Function | Analog Signal Output |
| Signal Direction | Controller to Field Device |
| Application | Analog Actuator and Process Control |
| System Integration | S7-1500 Modular I/O System |
| Signal Path | S7-1500 CPU → Analog Output Module → Field Device |
| Control Role | Continuous Control Signal Generation |
| Typical Field Devices | Control Valves / Drives / Analog Actuators |
| Installation | S7-1500 Modular Automation System |
| Environmental Application | Enhanced-Environment Industrial Applications |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.2 kg |
Product Features
- Siemens SIPLUS S7-1500 analog output module for continuous field-device commands.
- Transfers calculated output values from the S7-1500 CPU to connected analog equipment.
- Suitable for process control and machine automation applications requiring analog outputs.
- Can be used with control valves, compatible drives, and other analog-controlled actuators.
- Integrates with the modular S7-1500 I/O architecture.
- Supports closed-loop applications when paired with suitable analog input hardware.
- Suitable for SIPLUS automation installations involving enhanced environmental requirements.
- Separates the analog field interface from the higher-level control logic executed by the CPU.
Working Principle
The 6AG1532-5HF00-7AB0 operates between the S7-1500 control program and the field device. Its primary task is to take the output value supplied by the controller and make it available as an analog electrical command.
1. Control calculation
The S7-1500 CPU calculates the required output based on the application program. This may involve a process-control loop, machine sequence, operator command, or another control function.
2. Output data transfer
The calculated value is transferred through the S7-1500 system architecture to the analog output module. The module applies the configured channel information to the output operation.
3. Analog output generation
The module converts the controller’s digital output value into the corresponding analog signal for the connected field circuit.
4. Actuator response
The generated signal travels through the field wiring to the connected device. Depending on the application, the receiving device can adjust a valve position, process setting, or other continuously controlled operating parameter.
5. Closed-loop operation
When process feedback is required, an analog input module can return the resulting process measurement to the CPU. The controller compares the measured condition with the desired value and calculates a new output command.
Role in a SIPLUS S7-1500 Process Control Architecture
The module occupies the analog output layer between the S7-1500 control processor and the field actuator. It handles the physical analog command interface while the CPU remains responsible for application logic, calculations, sequencing, and control decisions.
| System Layer | Typical Component | Function |
|---|---|---|
| Process | Industrial Equipment | Responds to the controlled process command |
| Field Actuation | Valve / Drive / Analog Actuator | Receives the analog control signal |
| Analog Output | 6AG1532-5HF00-7AB0 | Generates the analog field output |
| System Bus | S7-1500 Backplane | Transfers output data within the automation station |
| Control | S7-1500 CPU | Executes control logic and calculates output values |
| Analog Feedback | SIPLUS Analog Input Module | Acquires process measurements when feedback is required |
| Visualization | HMI / SCADA | Displays process conditions and provides operator commands |
Industrial Applications
| Application | Module Role |
|---|---|
| Process Automation | Sends continuous commands to analog field actuators |
| Chemical Processing | Supports PLC-based regulation of process equipment |
| Water Treatment | Provides analog control signals for compatible process devices |
| Energy Systems | Connects S7-1500 control strategies with field actuators |
| Manufacturing Machinery | Supplies analog commands for continuously controlled machine functions |
| Utility Systems | Supports analog regulation of compatible equipment |
| Closed-Loop Control | Provides the output side of a measurement-and-control loop |
Installation and Maintenance
- Confirm that the 6AG1532-5HF00-7AB0 matches the intended SIPLUS S7-1500 station configuration.
- Verify the module position and associated hardware configuration before installation.
- Isolate the relevant control cabinet and field circuits according to the applicable safety procedure.
- Inspect the module and connection area for visible damage or contamination.
- Check the field wiring against the approved electrical drawings and output-channel assignment.
- Confirm that each connected actuator is compatible with the configured analog output arrangement.
- Install the module correctly in the S7-1500 station and verify its connection with the backplane.
- Check all field terminals and conductors for secure electrical and mechanical connections.
- Verify the module configuration and output-channel parameters in the PLC engineering project.
- After energization, compare commanded output values with the actual response of the connected field devices.
- If an output behaves unexpectedly, inspect the PLC program, hardware configuration, module diagnostics, field wiring, and actuator systematically.
- Record the module model, channel assignments, connected field devices, and relevant configuration details for future maintenance.
Related Components
| Component | Function in the System |
|---|---|
| Siemens S7-1500 CPU | Executes application logic and calculates control outputs |
| SIPLUS S7-1500 Analog Input Module | Acquires process measurements for control feedback |
| SIPLUS S7-1500 Digital I/O Modules | Provides discrete field interfaces within the automation station |
| S7-1500 System Backplane | Provides internal communication between the CPU and I/O modules |
| Control Valve | Uses an analog command to adjust a process variable |
| Variable-Speed Drive | Receives a compatible analog command for drive control applications |
| Analog Actuator | Responds to the analog output generated by the module |
| HMI / SCADA System | Provides operator monitoring and control functions |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1532-5HD00-7AB0 | SIPLUS S7-1500 Analog Output Module | Related SIPLUS analog output configuration |
| Siemens 6AG1531-7PF00-4AB0 | SIPLUS S7-1500 Analog Input Module | Complementary analog input hardware for process feedback |
| Siemens 6AG1531-7KF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog input module |
| Siemens 6AG1531-7NF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related S7-1500 analog acquisition hardware |
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output hardware for discrete loads |
Key Advantages
- Provides an analog output interface for SIPLUS S7-1500 systems.
- Converts PLC output values into physical analog control commands.
- Supports continuous control of compatible field actuators.
- Integrates directly into the modular S7-1500 automation architecture.
- Suitable for process regulation and machine automation applications.
- Can form the output stage of a closed-loop control system when combined with analog feedback.
Technical FAQs
What is the main difference between an analog output module and a digital output module?
An analog output module generates a continuously variable control signal within its supported configuration, while a digital output module is used for discrete switching states. The choice depends on whether the connected field device requires continuous control or an ON/OFF-type command.
How does the module receive its output command?
The S7-1500 CPU calculates the required output value and transfers the corresponding process data through the station architecture to the analog output module. The module then generates the field-side analog command.
What should be checked when an actuator receives an incorrect command?
Check the value generated by the PLC program first, followed by the hardware configuration, module diagnostics, output-channel assignment, terminal wiring, and the connected actuator. If the commanded PLC value is already incorrect, the issue may be in the application logic rather than the output hardware.
Is the 6AG1532-5HF00-7AB0 suitable for replacing another SIPLUS analog output module?
Replacement should be based on the complete application and system configuration rather than the physical similarity of the modules. Verify the exact order number, supported output requirements, channel configuration, PLC project, field wiring, and connected actuator before making the substitution.
